Yanhua Mini ACDP SH725XX Gearbox Clone Module 19 with License A000 BMW/Benz/JLR/Porxxx

ACDP Module 19 SH725XX Gearbox Clone

Module function：

1：Support all ZF 8HP gearbox clone. Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc.
2：Support VW/Audi DQ380/DQ381 0DE gearbox clone.
3：Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.
4：Support BMW 7-dual-clutch (GETAG 7DCT) gearbox clone.
5：Support BMW 7-dual-clutch (TEMIC DKG) gearbox clone.

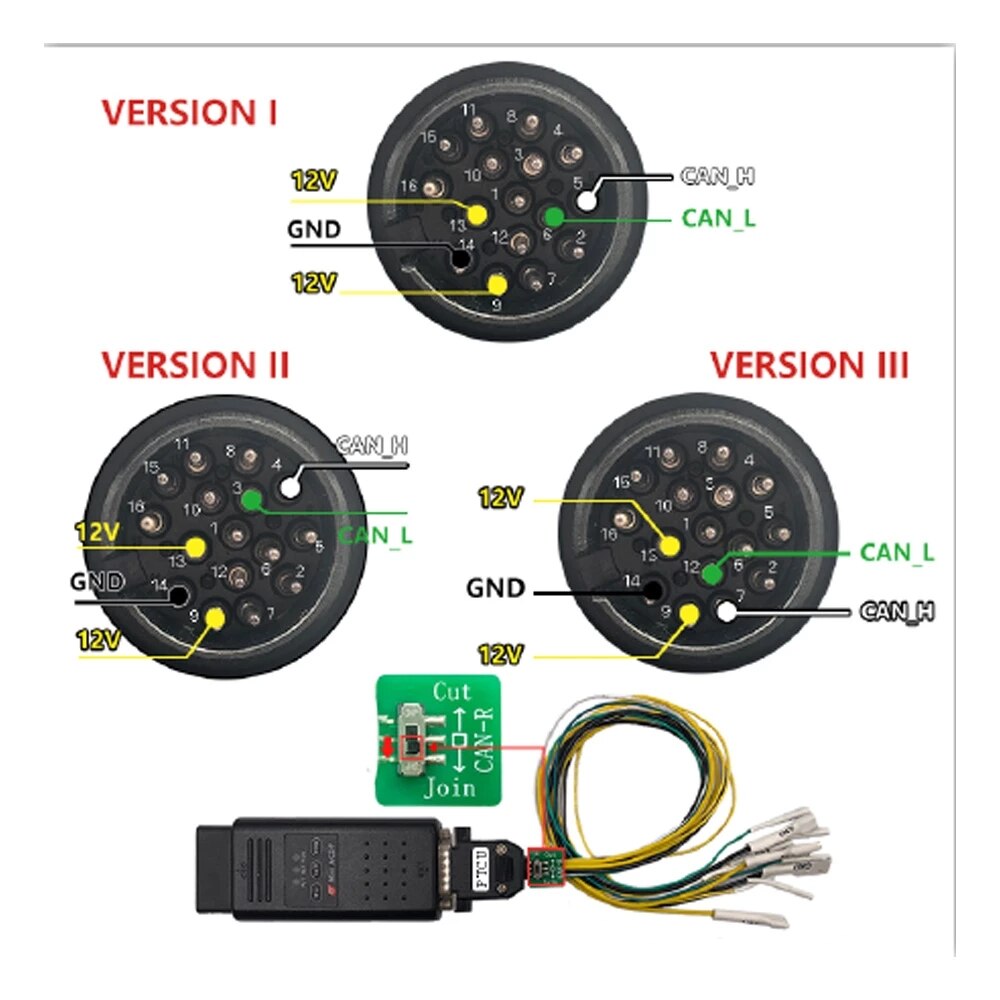

Overall connection diagram：

ZF 8HP ▼

DQ380/DQ381 0DE ▼

9GT(VGS-NAG3) ▼

BMW-Getrag 7DCT ▼

BMW-TEMIC DKG ▼

APP operation interface：

BMW 8HP ▼

DQ380/DQ381 0DE ▼

Benz 9GT（VGS-NAG3）▼

BMW-Getrag 7DCT ▼

BMW-TEMIC DKG ▼

Configuration List:

ACDP Configuration List (Module 19 SH725xx gearbox clone)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	SH725xx-0DE Interface board		Applicable to connect VW/Audi DQ380/DQ381 0DE gearbox	1
2	SH725xx-9GT Interface board		Applicable to connect MB 9GT(VGS-NAG3) gearbox	1
3	SH725xx-8HP Interface board		Applicable to connect ZF 8HP gearbox	1
4	SH725xx-7DCT Interface board		Applicable to connect BMW 7-dual-clutch（7DCT） gearbox	1
5	BMW-DKG Interface board		Applicable to connect BMW 7-dual-clutch（DKG） gearbox	1
6	DB15-LAN adapter		Applicable to connect ACDP host and TCU cable	1
7	TCU cable		Applicable to connect PTCU adapter and interface board	1
8	PTCU cable		Applicable to connect ACDP host and gearbox	1
