Yanhua Mini ACDP MQB/MMC Instrument Module 6 IMMO Adjustment Newly Add PCF-key Adapter

ACDP Module06 MQB/MMC Instrument

Module functions：

Support parts of VDO mileage adjustment/key programming of VW MQB platform via OBD.
Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.

Module features：

1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

MQB connection diagram：

MMC Connection diagram:

APP operation interface：

Configuration List:

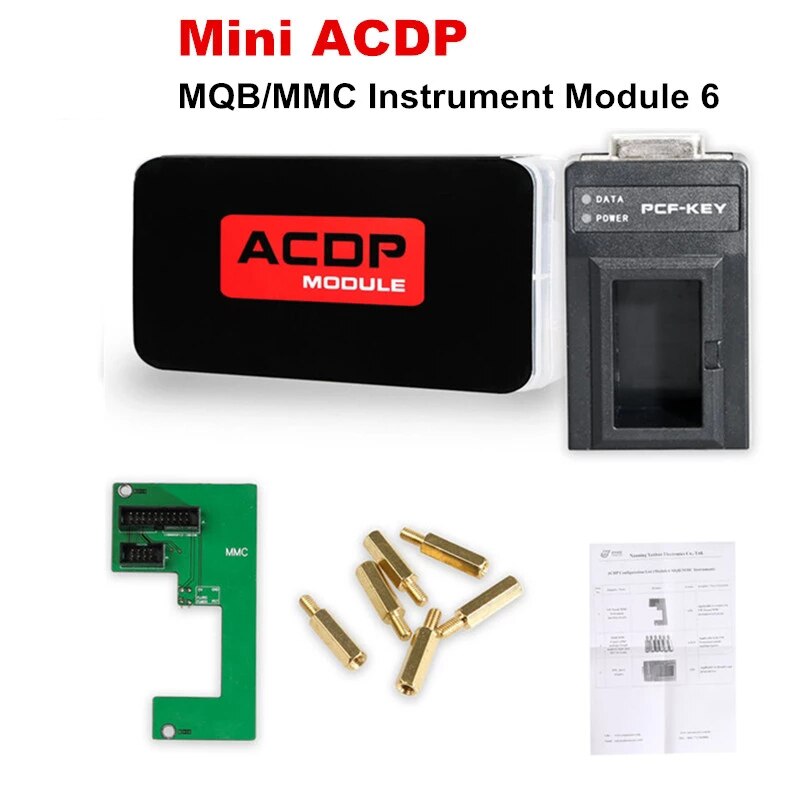

ACDP Configuration List (Module06 MQB/MMC Instrument)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	VW Passat MMC instrument interface board		Applicable to connect the VW Passat MMC instrument test point.	1
2	MQB/MMC Copper pillar package (Single head six angle stud M3*14+6mm)		Applicable to fix VW Passat instrument interface board.	6pcs

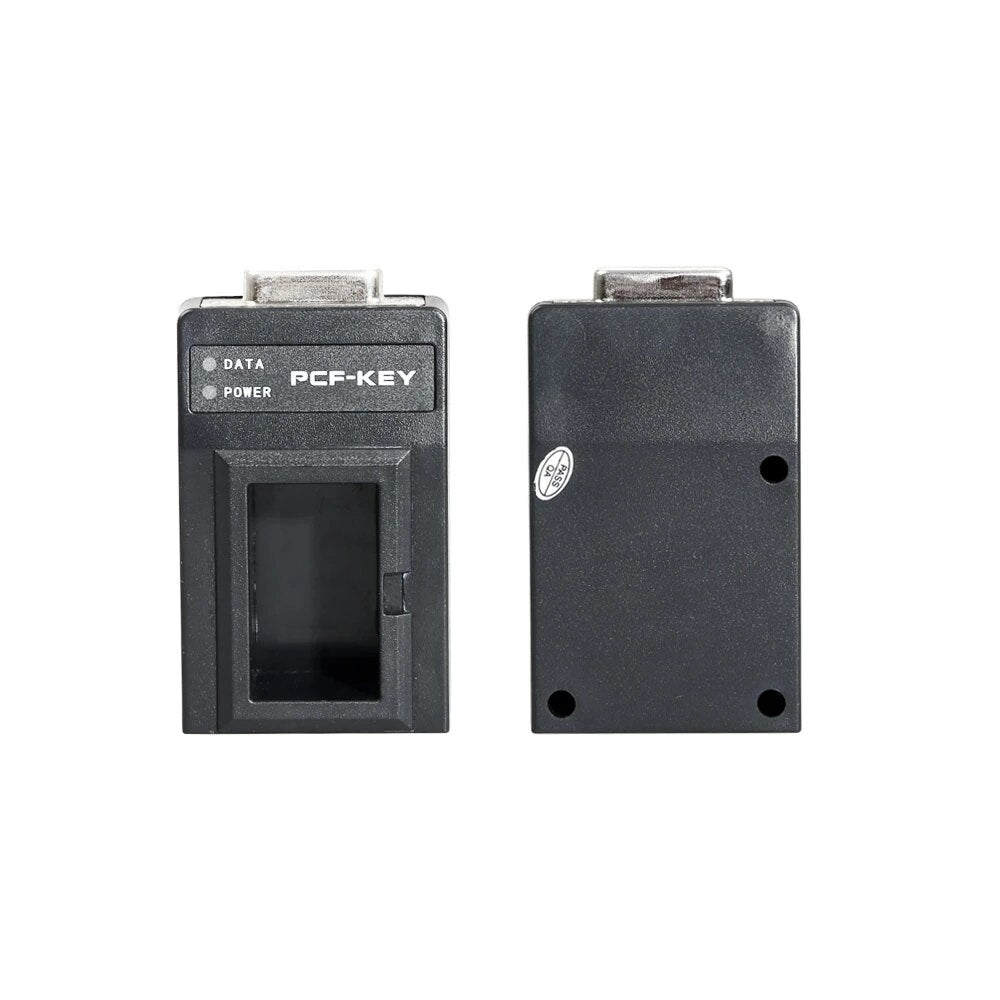

3	PCF KEY Adapter		Applicable to Identify and program key.	6pcs
