Yanhua Mini ACDP Module 5 Fujitsu CPU MB91FXX Read & Write

ACDP Module5 Fujitsu CPU MB91F

Module Function：

Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.

Module Feature:

1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

Overall connection diagram:

APP operation interface：

Configuration List:

ACDP Configuration List (Module5 MB91FXX CPU)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	HONDA FIT DELUXE Interface board		Applicable to connect HONDA FIT DELUXE odometer test point.	1
2	HONDA FIT GENERAL Interface board		Applicable to connect HONDA FIT GENERAL odometer test point.	1
3	KIA K3 Interface board		Applicable to connect KIA K3 odometer test point.	1
4	KIA K5 Interface board -1		Applicable to connect KIA K5 odometer test point 1.	1
5	KIA K5 Interface board -2		Applicable to connect KIA K5 odometer test point 2.	1
6	Sonata Interface board -1		Applicable to connect Sonata odometer test point 1.	1
7	Sonata Interface board -2		Applicable to connect Sonata odometer test point 2.	1

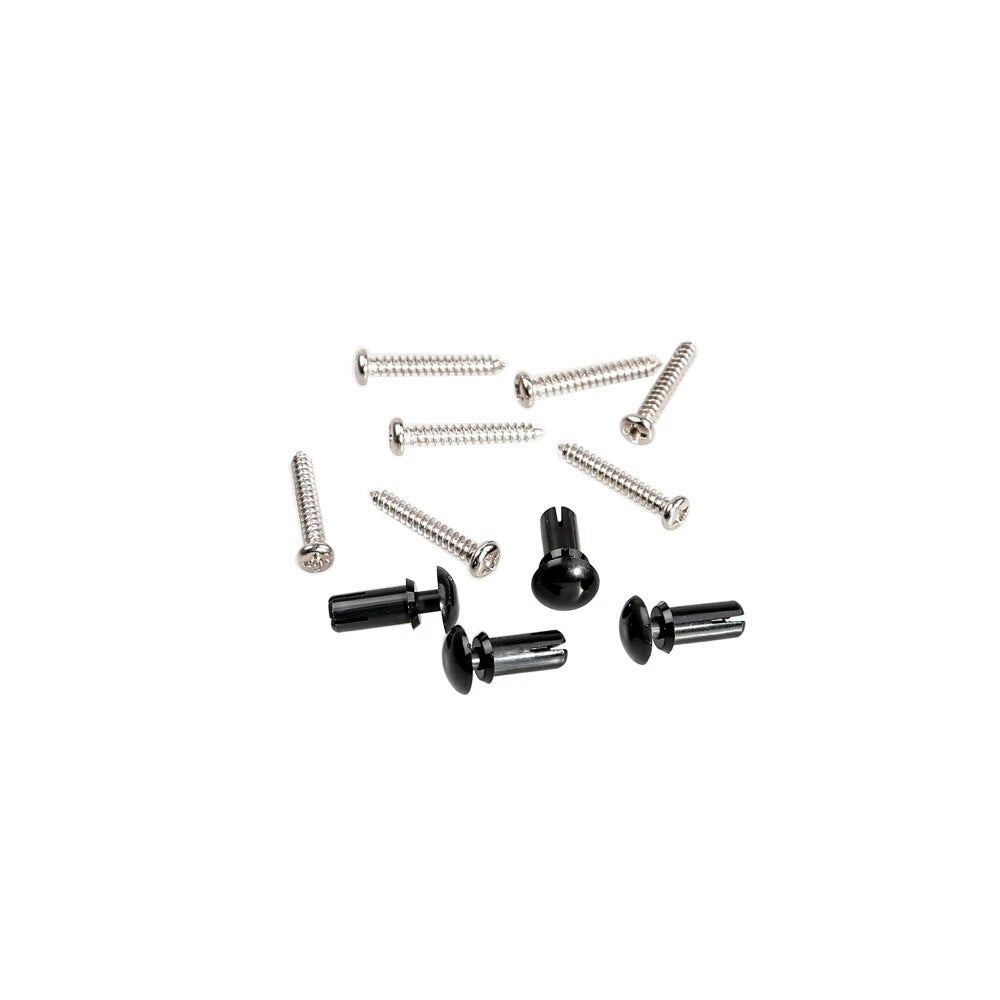

8	KIA K3 Interface board Nylon rivets package (R5105)		Applicable to fix KIA K3 Interface board.	4
9	MB91FXX CPU General screw package(M3×20mm)		Applicable to fix Honda, KIA, Hyundai Interface board.	7
