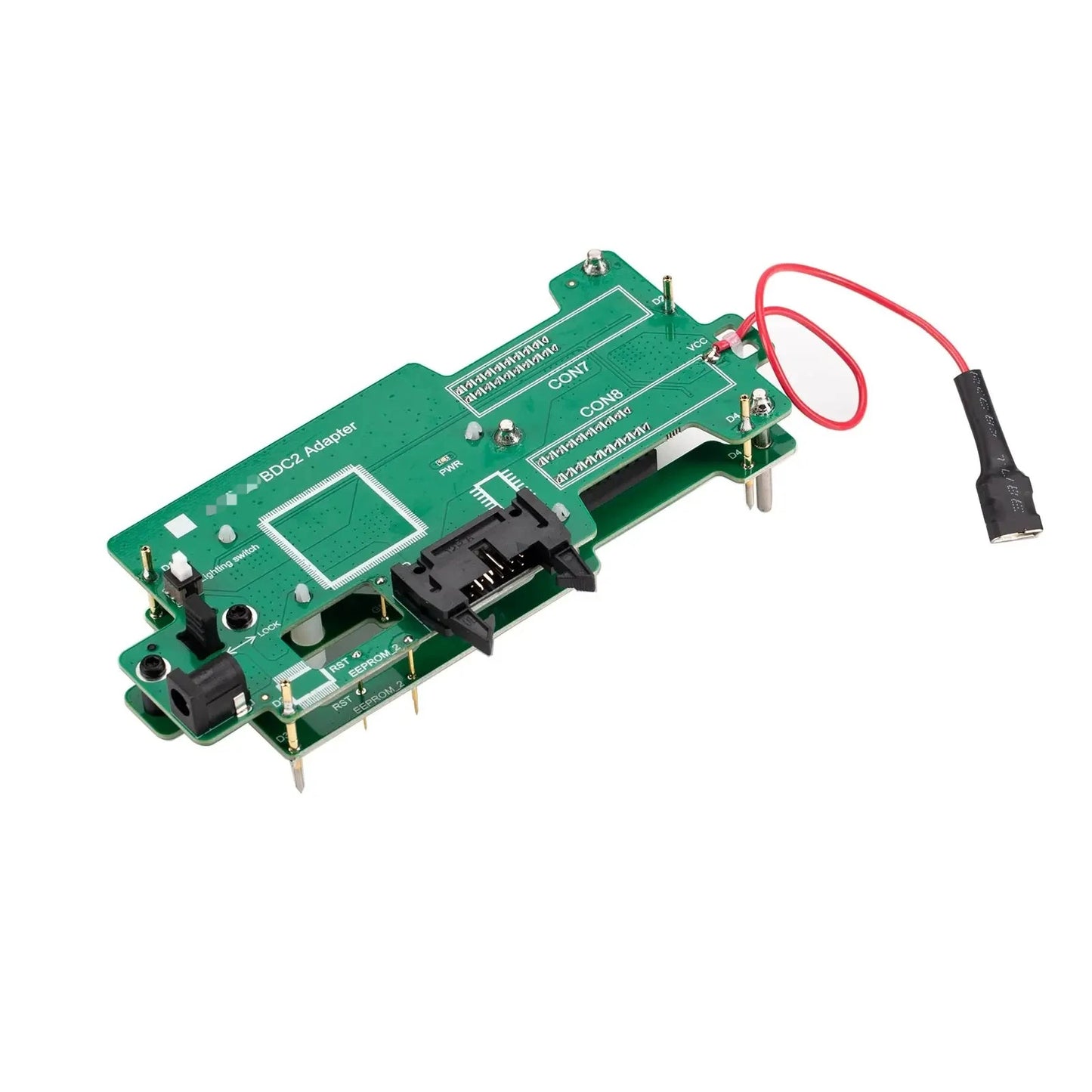

Xhorse for BMW G Series BDC2 Solder-Free Adapter work with VVDI2, Key Tool MIDI, Key Tool Plus [Free BDC2 License]

work with VVDI2, VVDI Key Tool Plus

Note:
1. Free for BMW G chassis BDC2 immo system activation is included with the purchase of an adapter for pre-orders only.
2. Please note: Activation after the pre-order period ends will require payment.
3. Please Leave your device SN after you purchase.
4. To learn and verify the key, install the BDC2 in the car or use a test bench (GODIAG for BMW BCD2 Test Platform).

Vehicle List:

5 Series (G30/G31/G38)      2016.11-2020.8
6 Series (G32)                     2017.7-2020.6
7 Series (G11/G12)             2015.7-2019.2
X3 (G01/G08/F97)              2017.12-2021.8
X4 (G02/F98)                      2018.4-2021.7
M5 (F90) November          2017.11-2020.6
for Rolls-Royce                        2018-

How to connect Xhorse for BMW-G BDC2 Adapter?

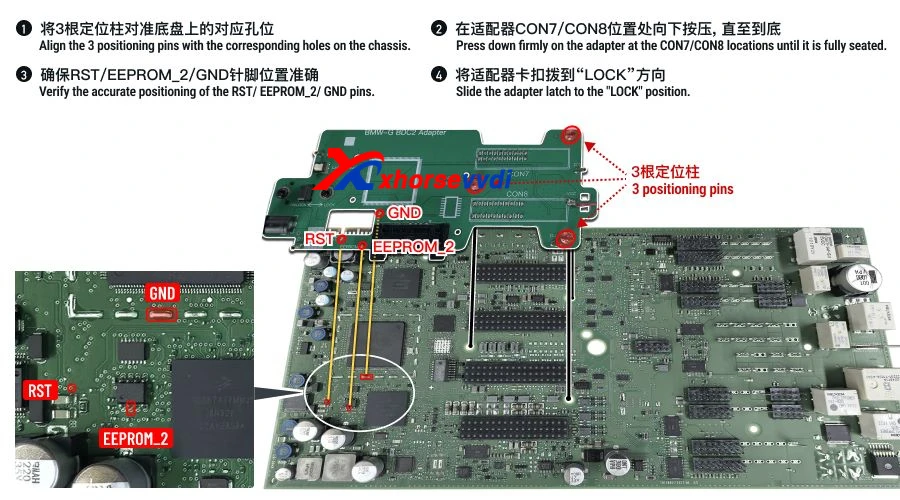

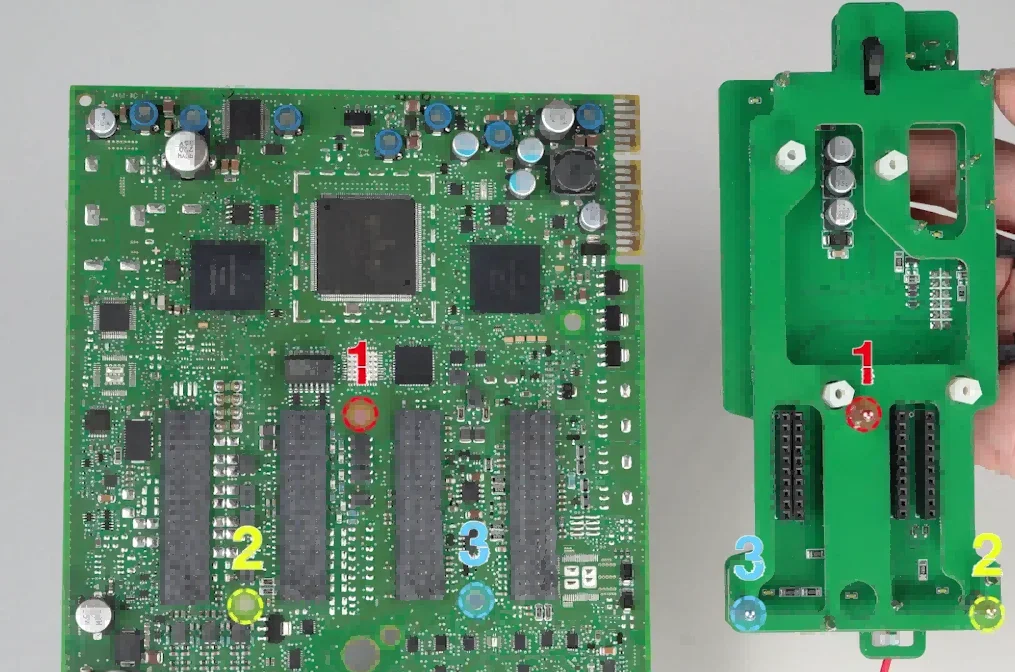

1. Align the 3 positioning pins with the corresponding holes on the chassis.
2. Press down firmly on th adapter at the CON7/CON8 locations until it is fully seated.
3. Verify the accurate positioning of the RST/EEPROM_2/GND pins.
4. Slide the adapter latch to the LOCK position.

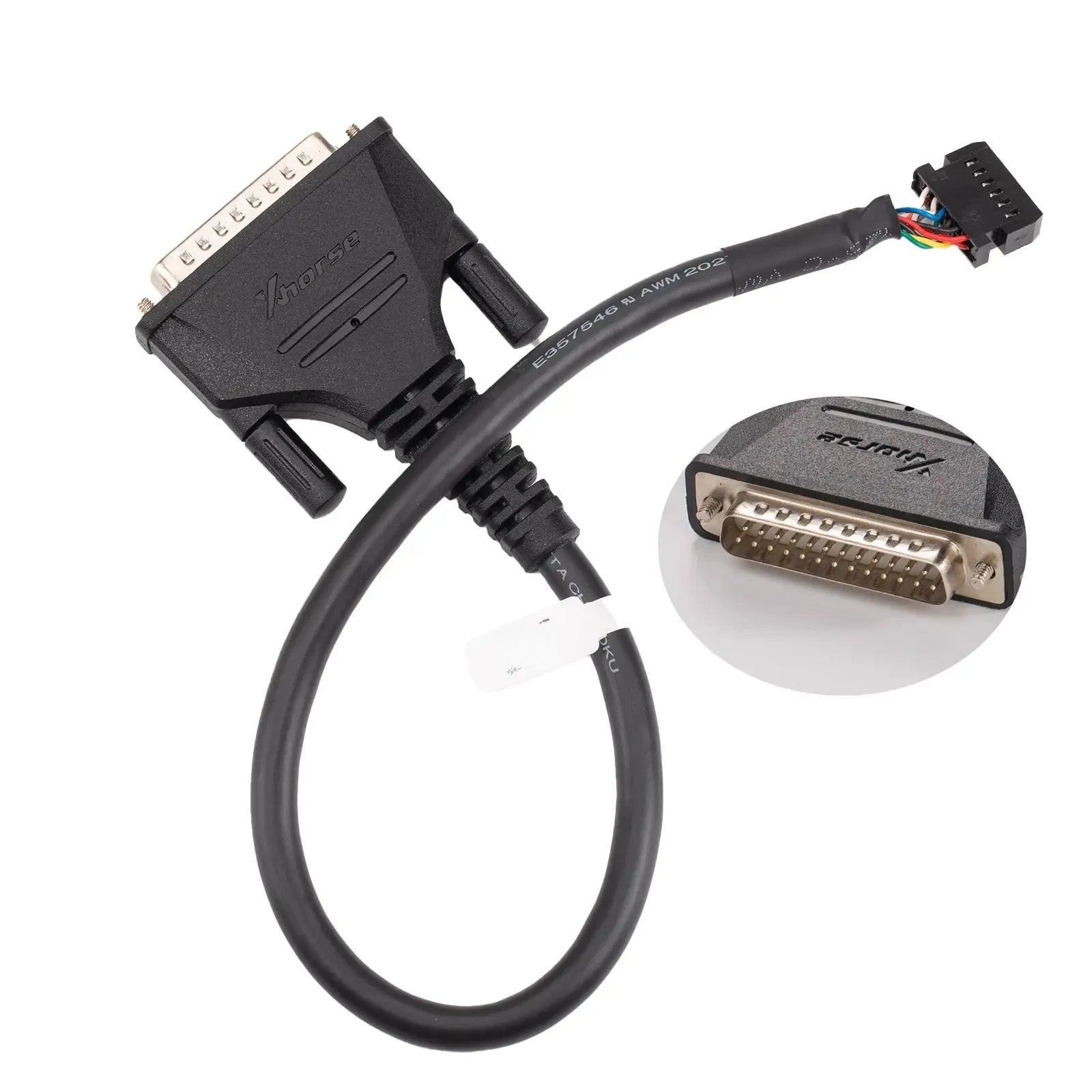

1. Connect the included cable harness to the device.
2. Connect the adapter power lince to PIN 1.
3. Supply +12V power.

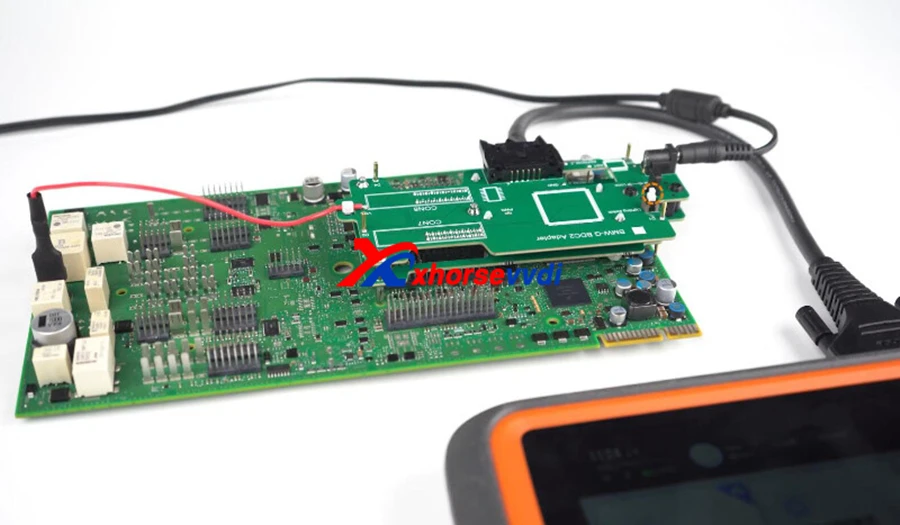

Key Tool Plus and BDC2 Adapter connection:


Directly check the fuse connectors on the vehicle without repeatedly disassembling the BDC for inspection.
Additionally, if there is an issue with the BDC during the key programming process that requires online coding or initialization, the operation can be performed directly on the platform without connecting it to the vehicle.
This greatly simplifies the workflow and avoids the many power supply and communication requirements and limitations associated with performing programming operations directly on the car.

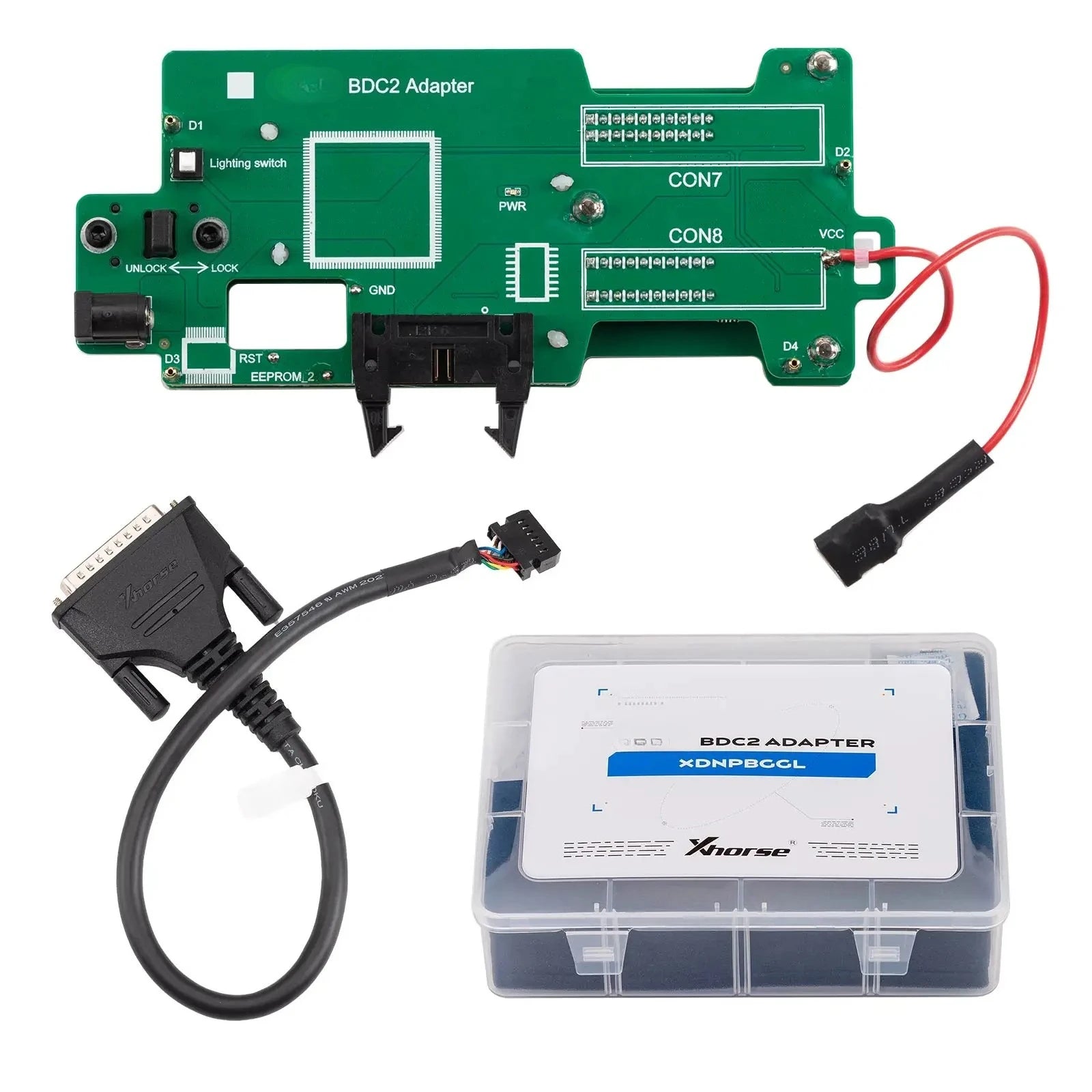

Package List:
