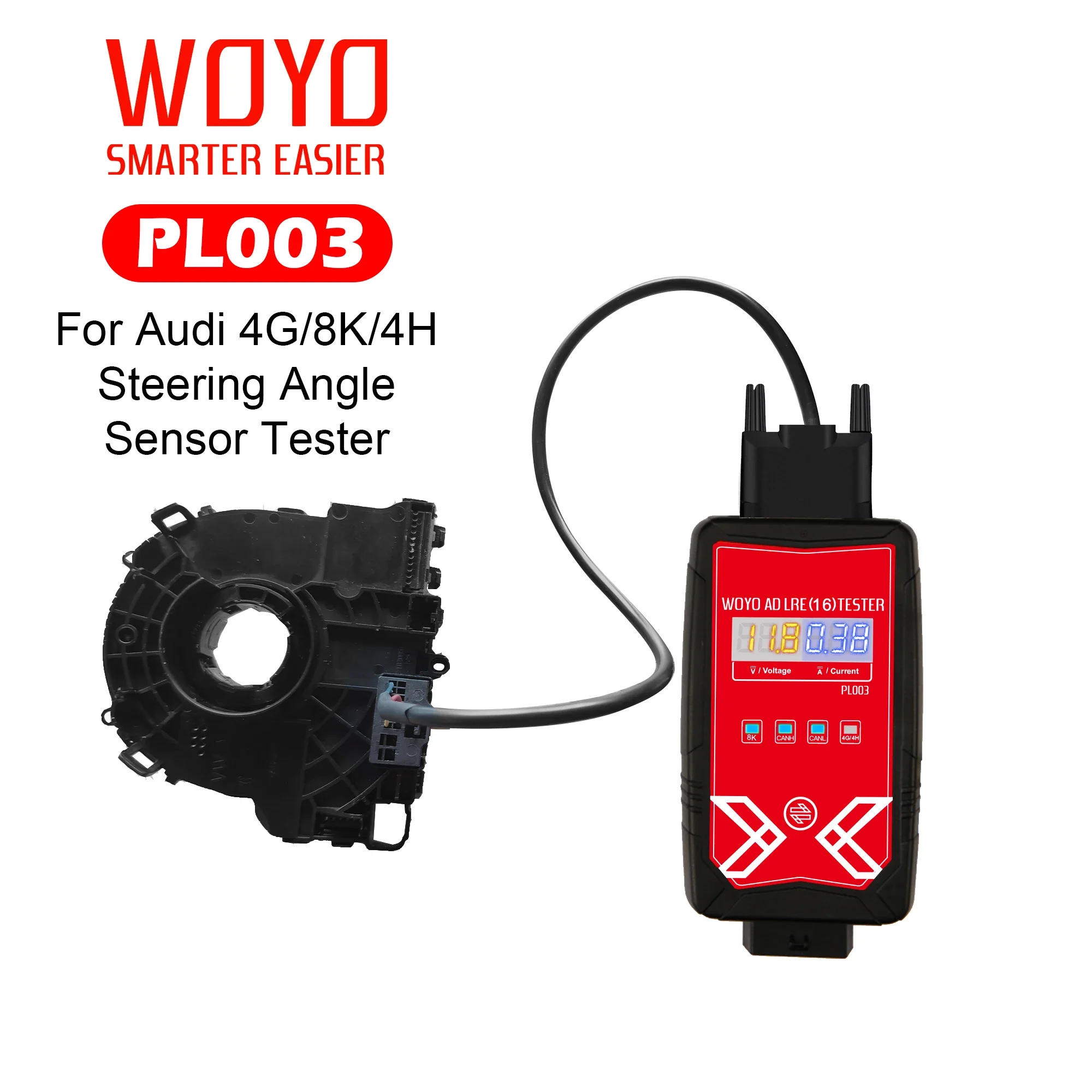

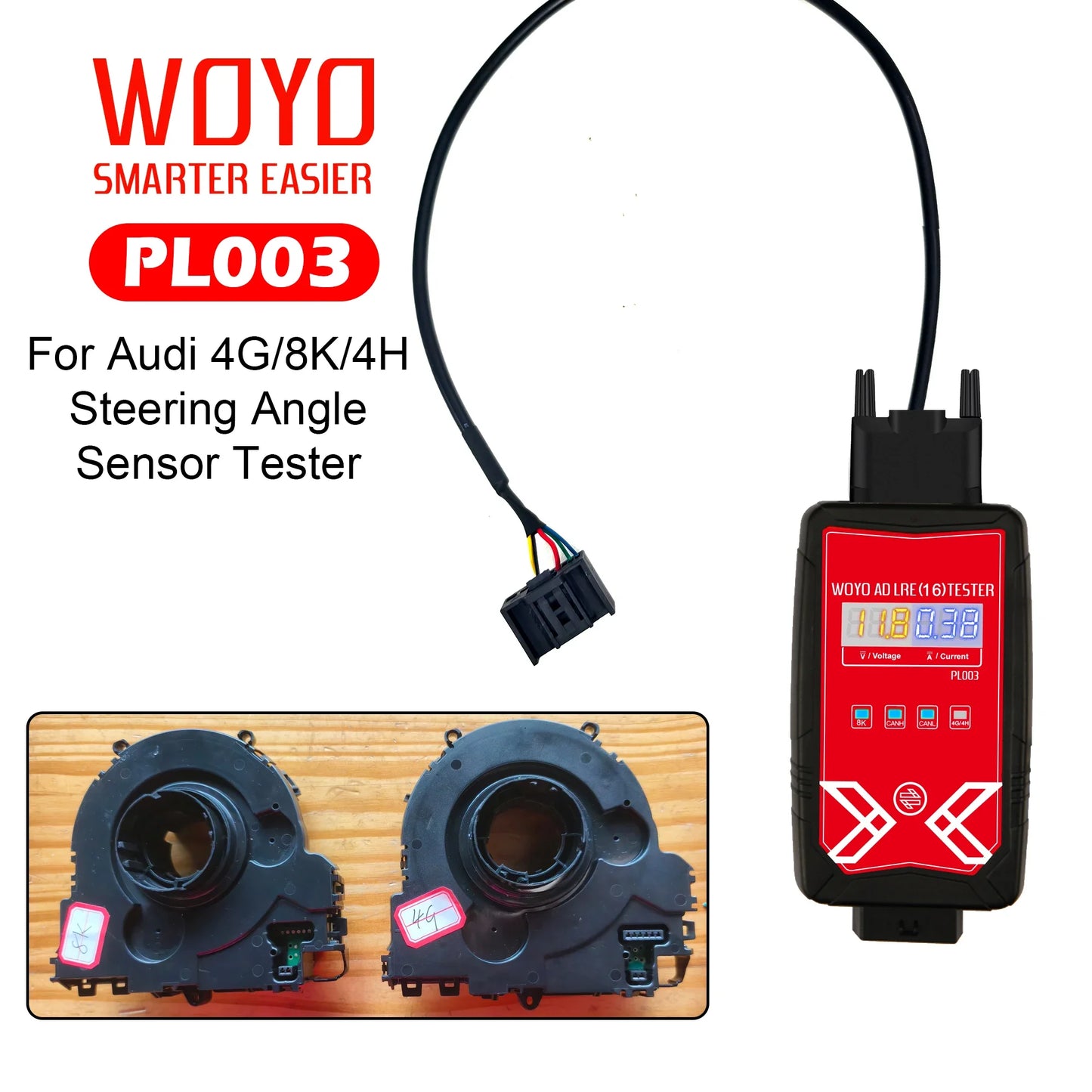

WOYO PL003 For AUDI LRE 16   4G/8K/4H Coil Spring With Electronics And Steering Angle Sensor Tester Bench Testing Lab Testing Component Testing Hardware In-the-Loop(HIL)Testing

Description:
This device is specifically designed to ensure the functional integrity of automotive electronic modules after repair, with the following core testing capabilities:

Bench Testing: Simulates the working state of modules in a controlled environment for comprehensive performance evaluation.
Lab Testing: Conducts in-depth fault analysis and functionality verification under strictly controlled lab conditions.
Component Testing: Independently tests each component to ensure operation according to manufacturing standards.
Hardware In-the-Loop (HIL) Testing: Simulates the operating environment of the entire system to validate real-time interactions between the component and other system parts.
Application Scenario
This tester is ideal for engineers to verify the functionality of automotive electronic modules post-repair without the need to reinstall them into the vehicle. By using our device, engineers can accurately test and validate repaired modules in a simulated real-vehicle environment, significantly enhancing the efficiency and success rate of repairs. This testing method not only saves time but also substantially reduces the risk of subsequent issues due to inadequate testing.

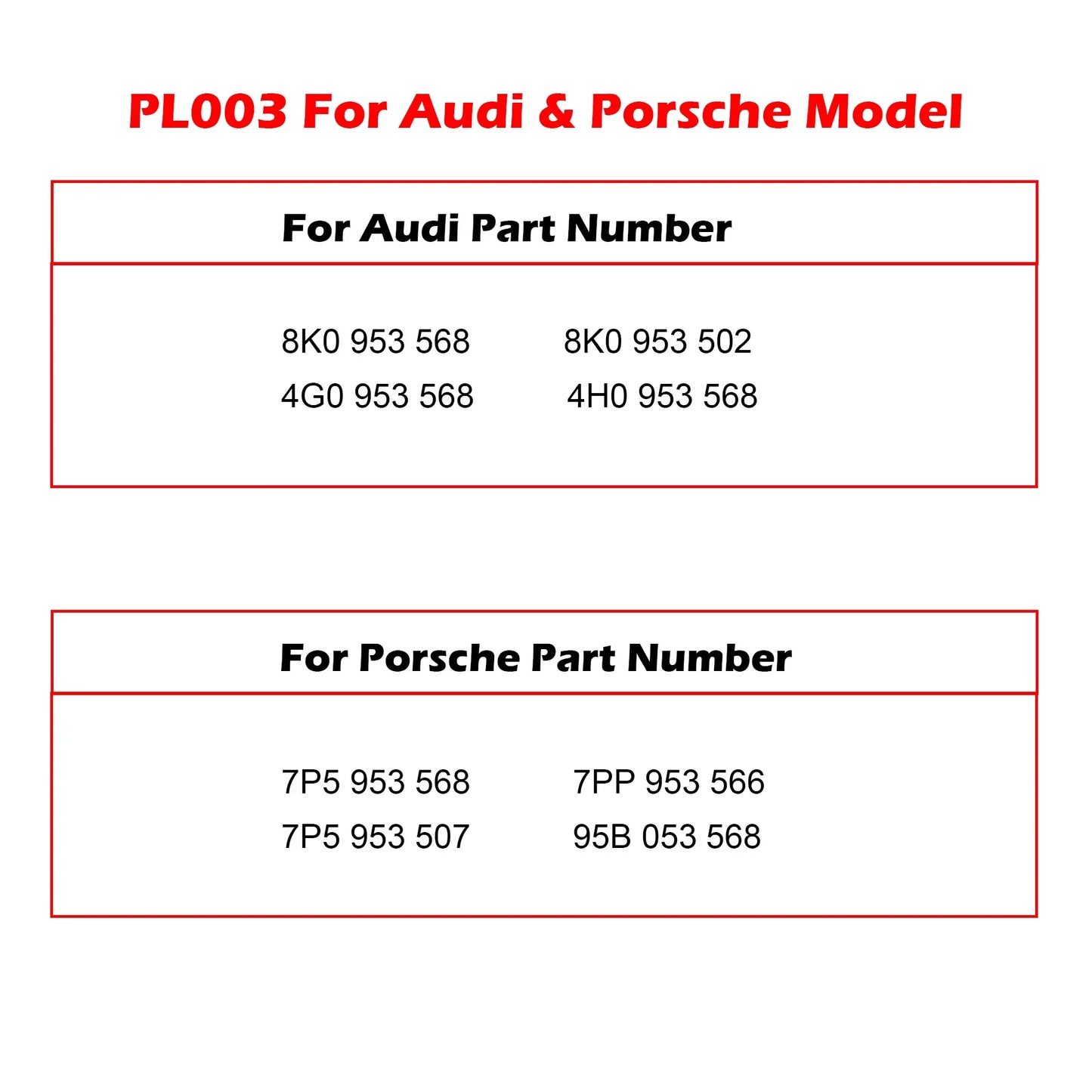

Supported Models:4G / 8K / 4H

For Audi:

8K0 953 568

8K0 953 502

4G0 953 568

4H0 953 568



For Porsche:

7P5 953 568

7PP 953 566

7P5 953 507

95B 053 568

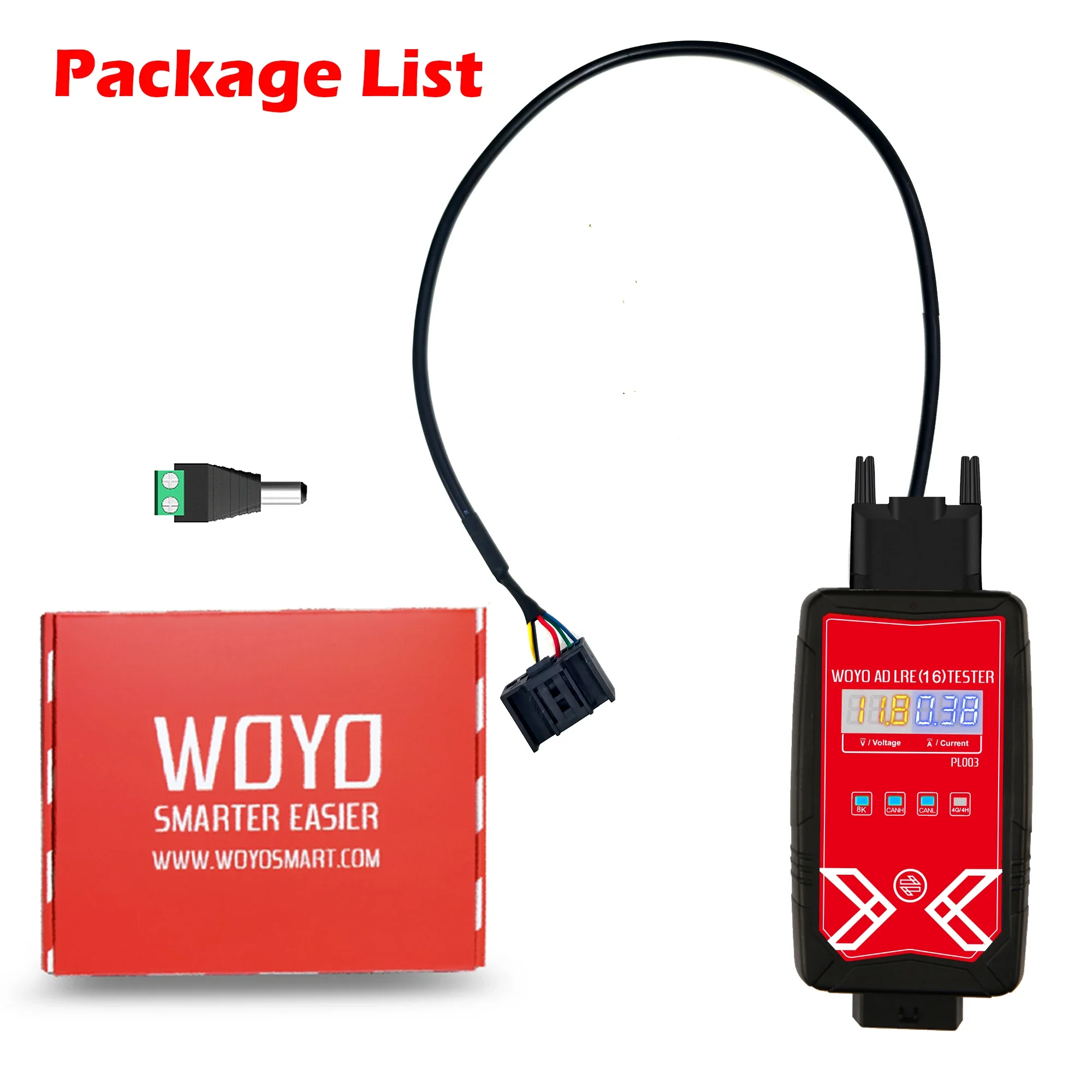

Packing List:
Main *1
Cable*1

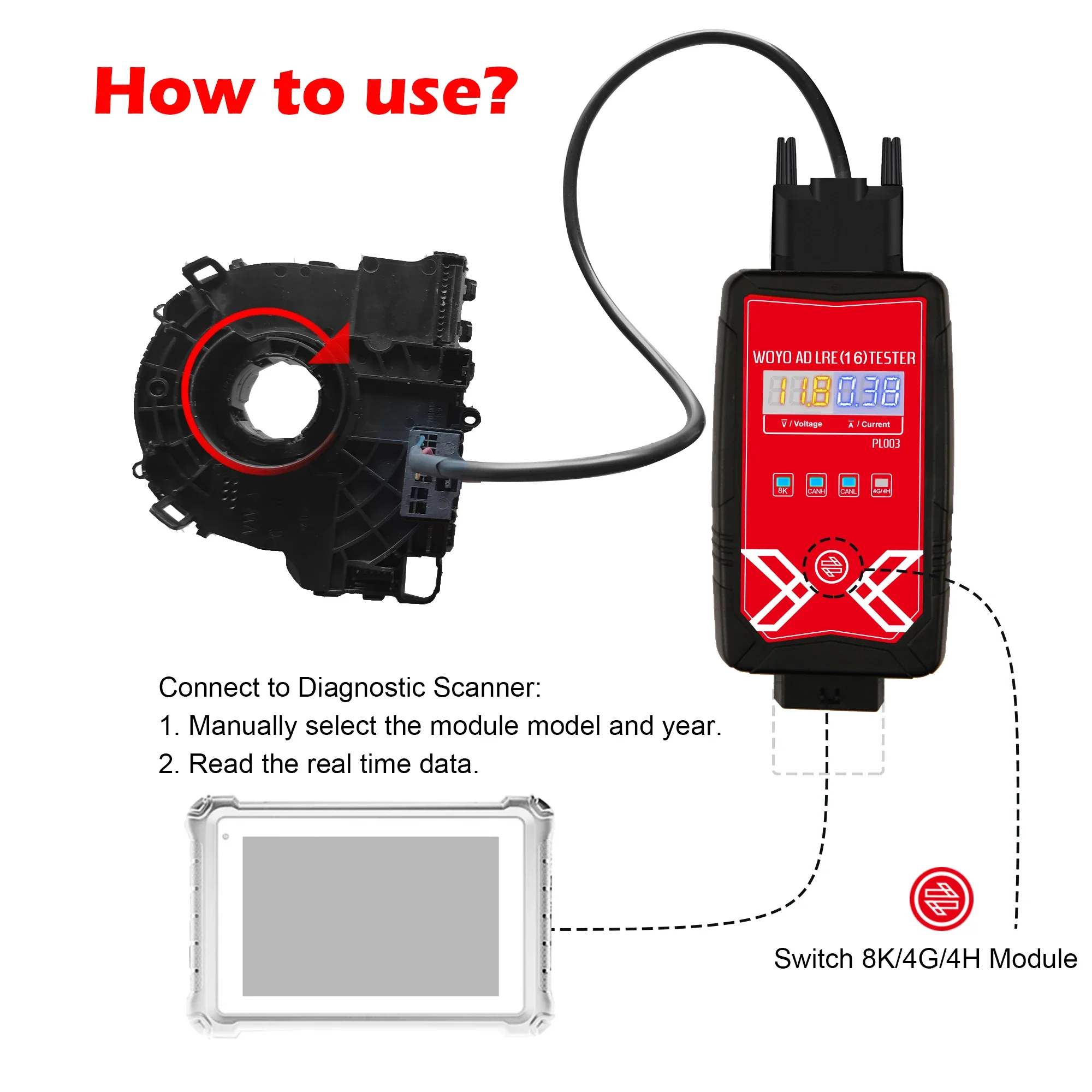

How to use WOYO PL003?

1. Connect to Steering Angle Sensor (Singal Light on the Module turn Green).

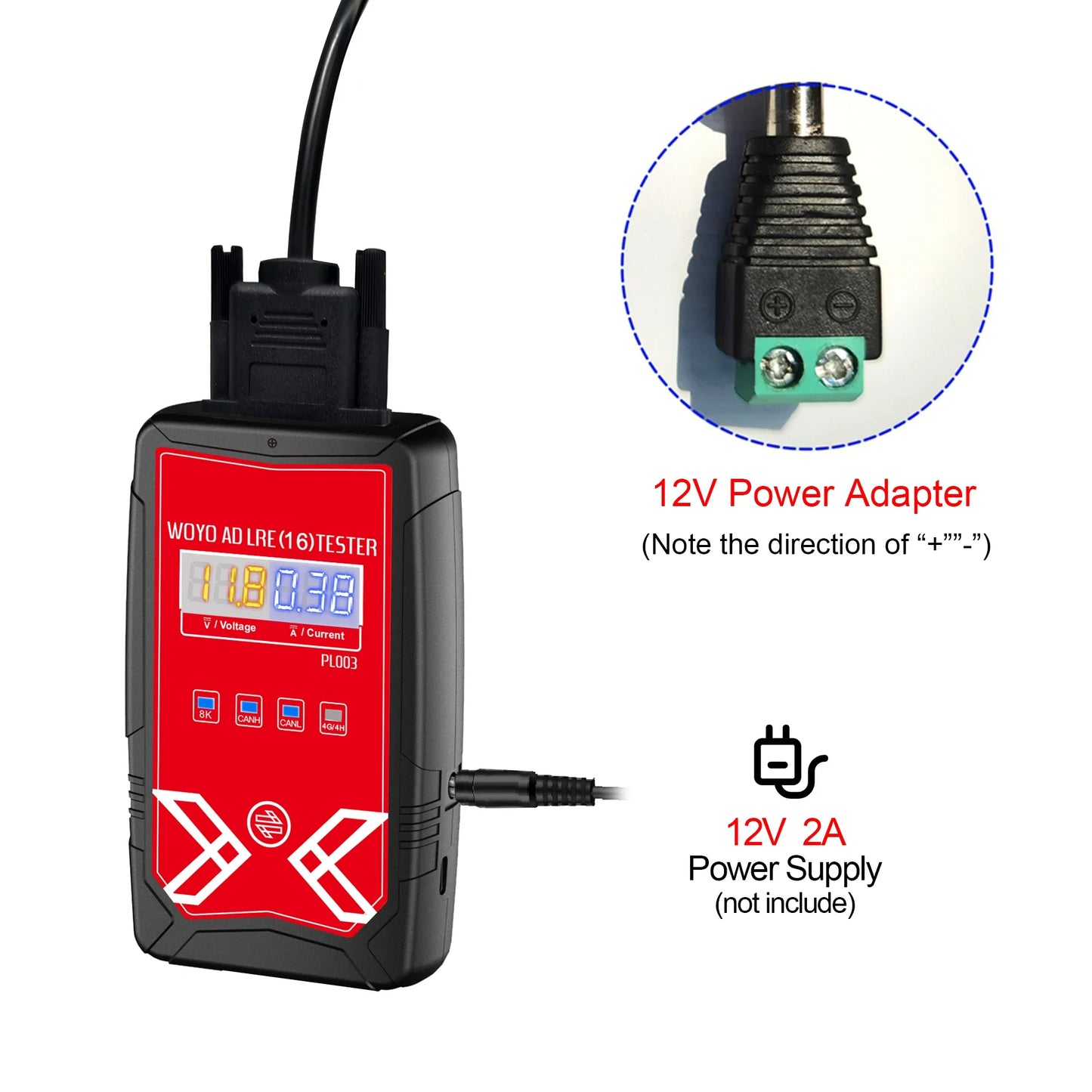

2. Connect to 12V 2A power supply, short press the button on the tester, start to diagnosis.

3. Connect to Diagnostic Scanner. Manually select car model with year and Module model with year.

4. Rotate Steering Angle Sensor and read the real time data on the scanner.

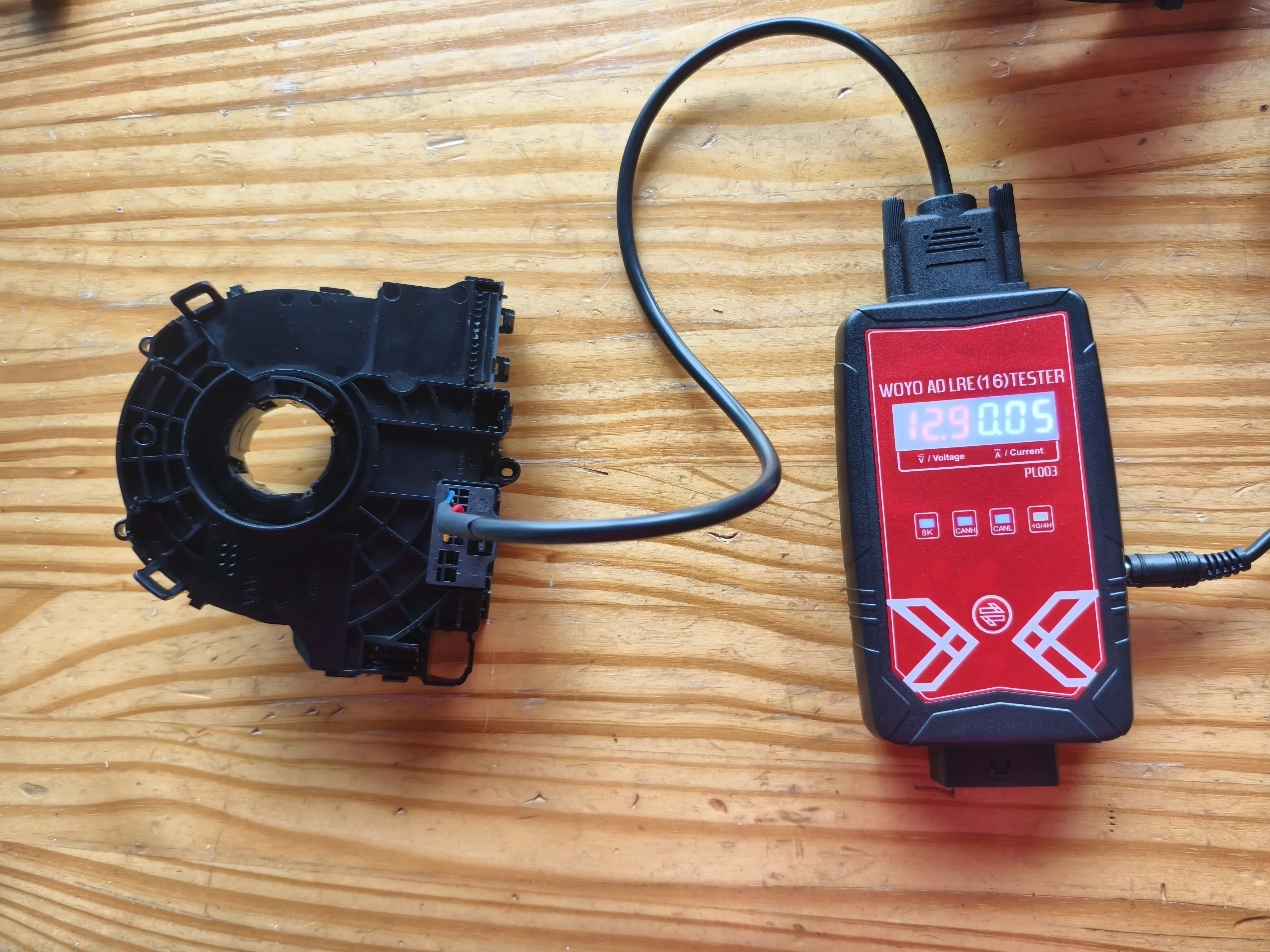

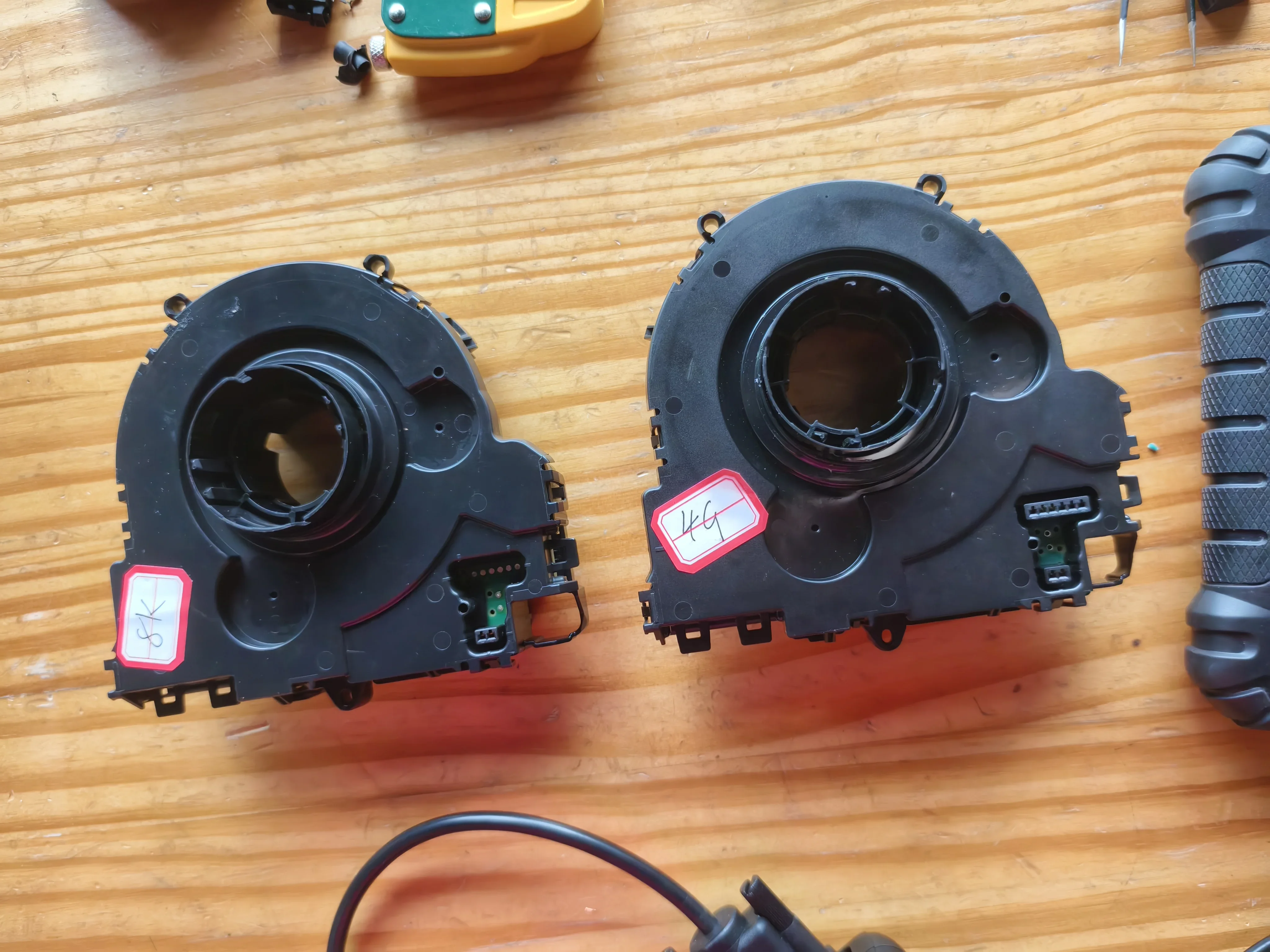

Real Photos
