Vgate iCar Pro vLinker MC Bluetooth 4.0/3.0/WiFi OBD2 Scanner Android/IOS Wifi Bluetooth ELM327 Auto Code Reader OBDII Tool

Vgate iCar Pro vLinker MC Bluetooth 4.0/3.0/WiFi OBD2 Scanner Android/IOS Wifi Bluetooth ELM327 Auto Code Reader OBDII Tool

Regular price $17.86
Regular price $0.00 Sale price $17.86
Sale Sold out
Shipping calculated at checkout.
Ships From



Vgate vlinker MC/ Vgate iCar Pro Bluetooth 3.0/Bluetooth 4.0/Wifi OBD2 Scanner Wifi ELM327 For Android/IOS

Please note:

Please select the corresponding version according to your mobile phone system.

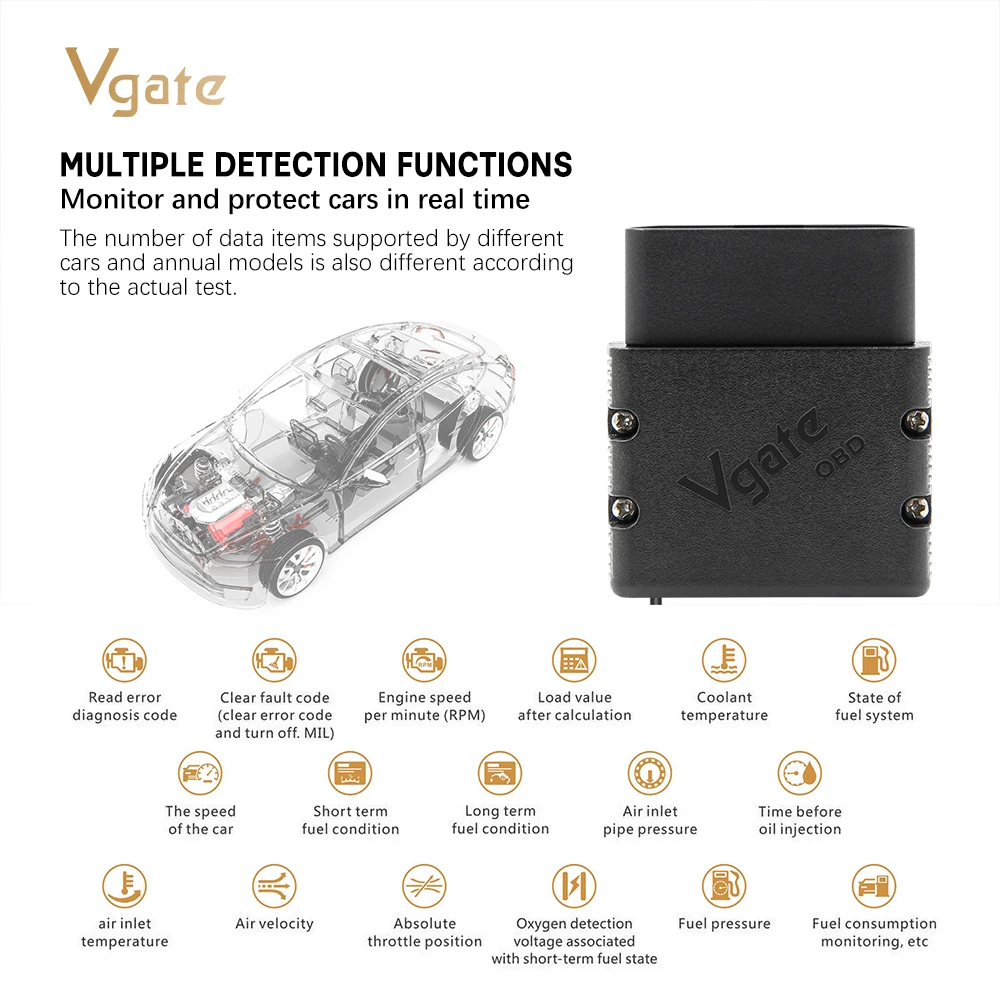

Vgate iCar Pro Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

1. Clear trouble codes and turn off the MIL ("Check Engine" light)
2. Engine RPM
3. Calculated Load Valu
4. Coolant Temperature
5. Fuel System Status
6. Vehicle Speed
7. Short Term Fuel Trim
8. Long Term Fuel Trim
9. Intake Manifold Pressure
10. Timing Advance
11. Intake Air Temperature
12. Air Flow Rate
13.Absolute Throttle Position
14. Oxygen sensor voltages/associated short term fuel trims
15. Fuel System status
16. Fuel Pressure
17. Many othershellip

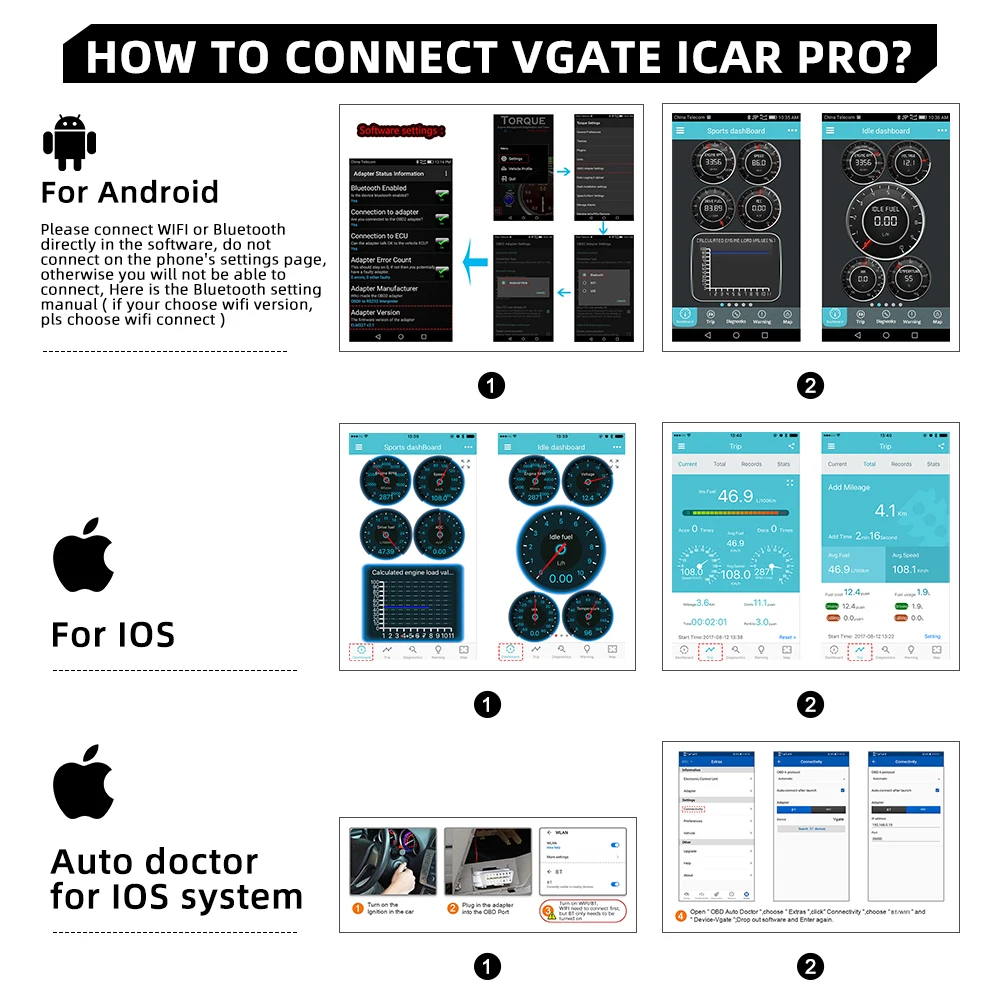

How to connect Vgate iCar Pro?

Please connect WIFI or Bluetooth-compatible directly in the software, do not connect on the phone's settings page, otherwise you will not be able to connect , Here is theBluetooth-compatible setting manual ( if your choose wifi version, pls choose wifi connect )

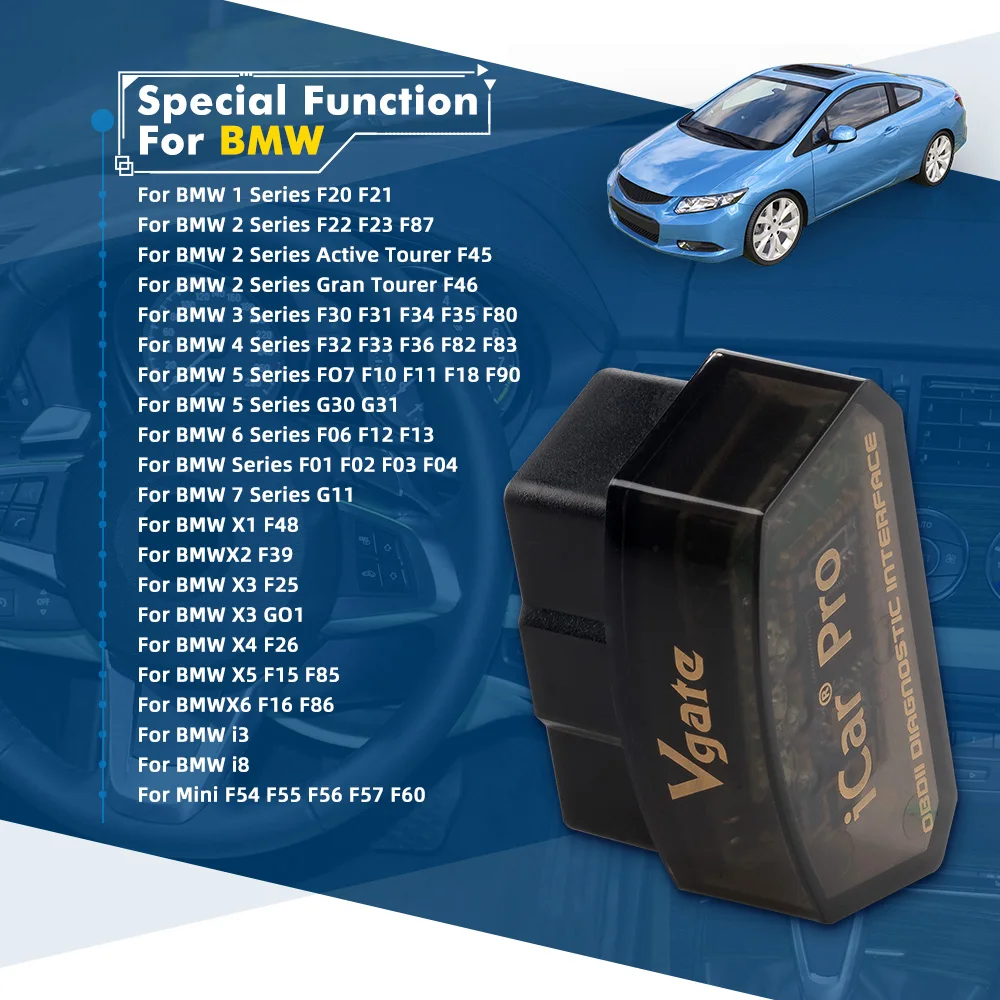

Bimmer Code for BMW-designated models :

Special function for BMW

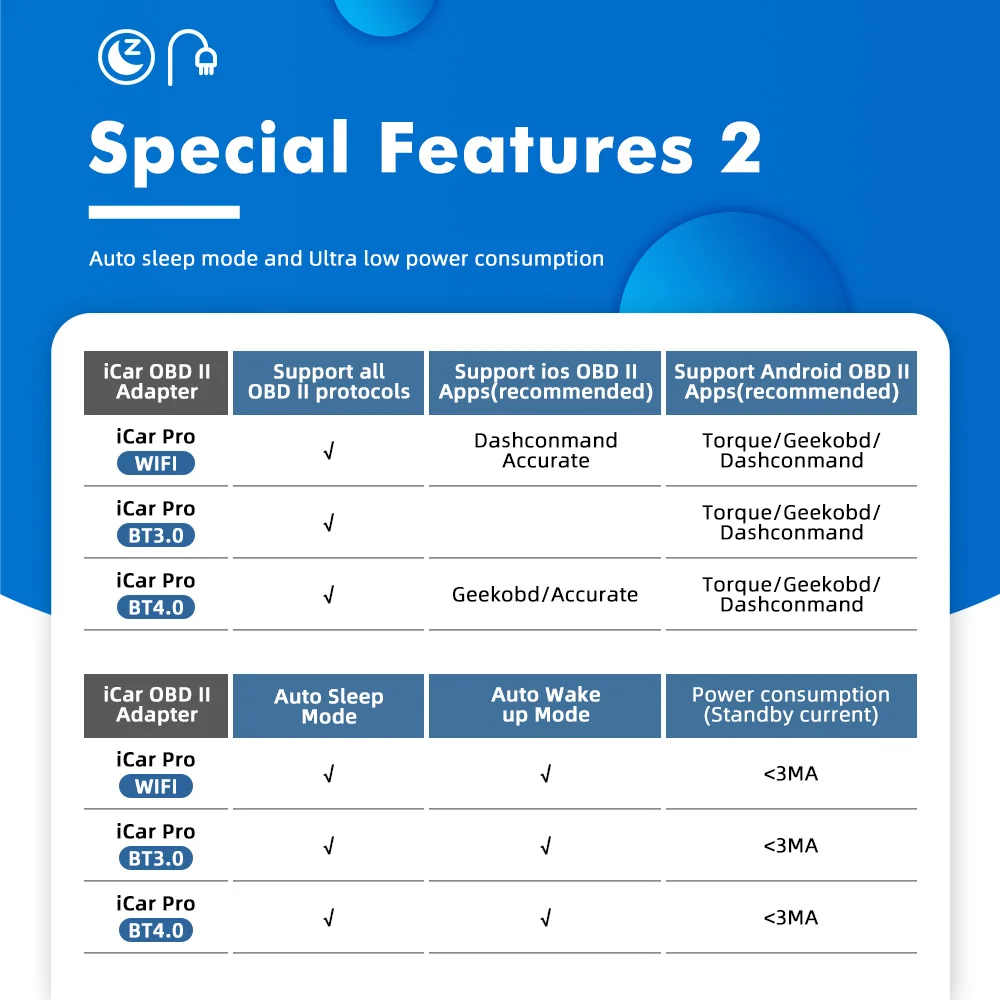

Vgate iCar Pro Special Features: Auto sleep mode and Ultra low power consumption

Vgate iCar Pro supports all OBD-II protocols:

1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250 * Kbaud)
B. USER1 CAN (11 * bit ID, 125 * Kbaud)
C. USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)

Vgate iCar Pro Easy to use:

Vgate iCar Pro Specification:

Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 - 85
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware versionV2.2
Supported systemsAndroid/IOS
Connection methodBluetooth-compatible

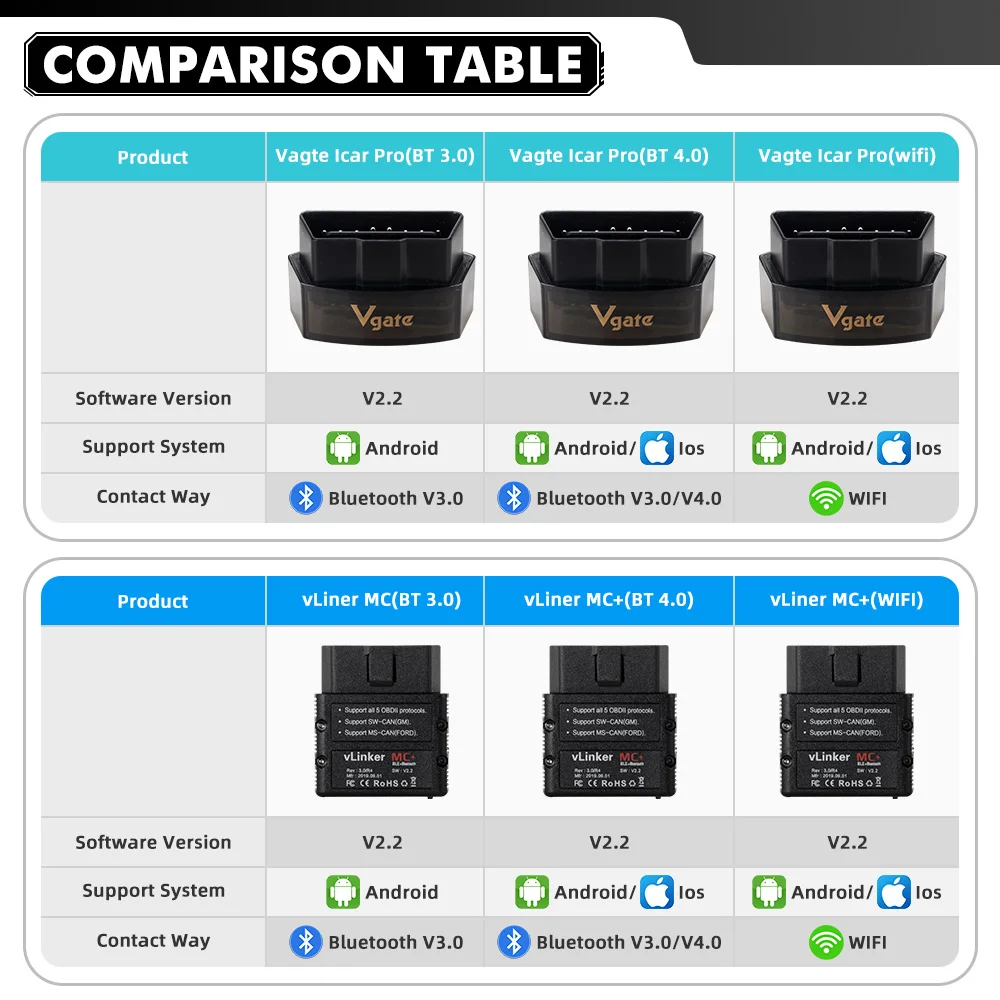

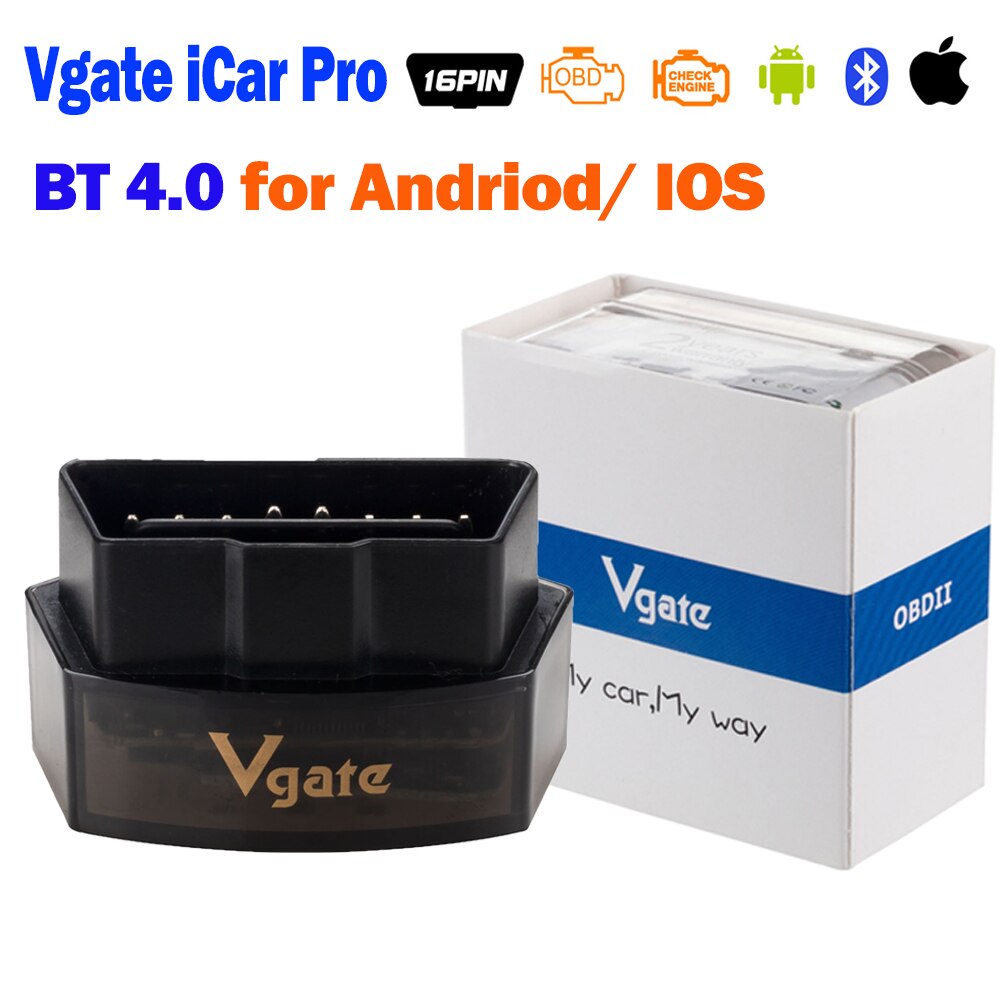

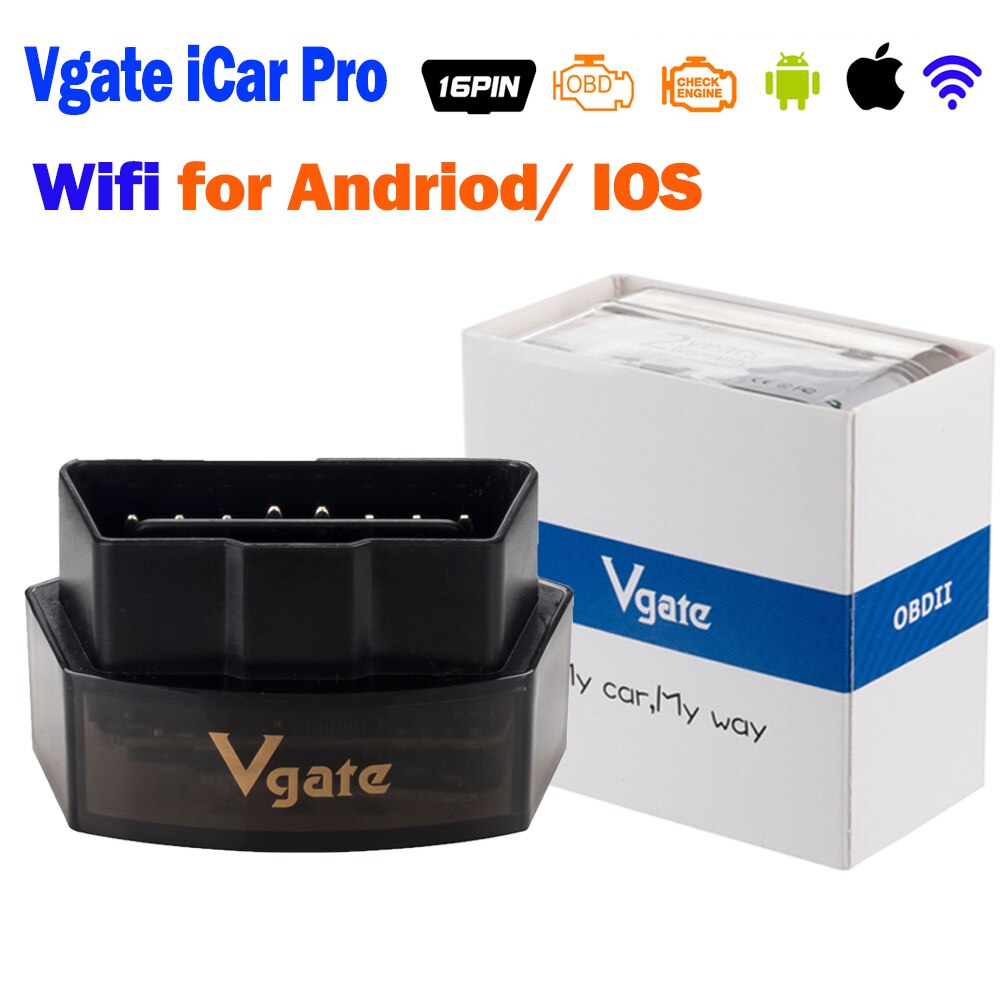

Vgate iCar Pro 3.0/4.0/WIFI

Vgate iCar Pro, How to Get the software ?

There is the software QR code in the manual paper, just Scan it to download the software :

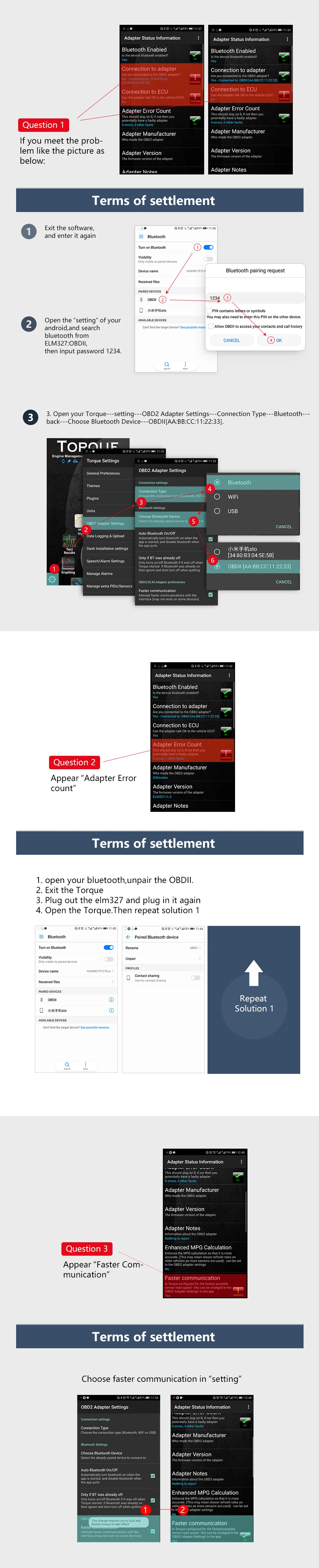

Vgate iCar Pro Problem settlement:

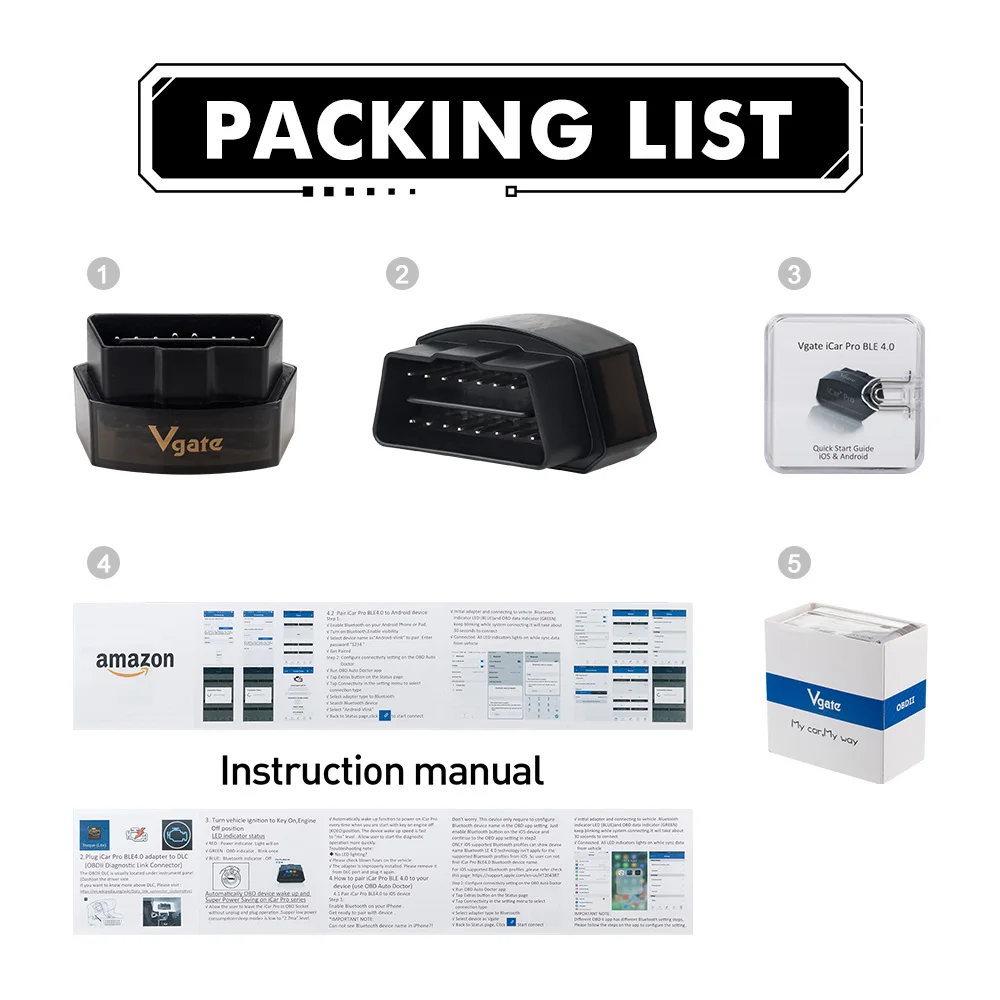

Vgate iCar Pro Packing List

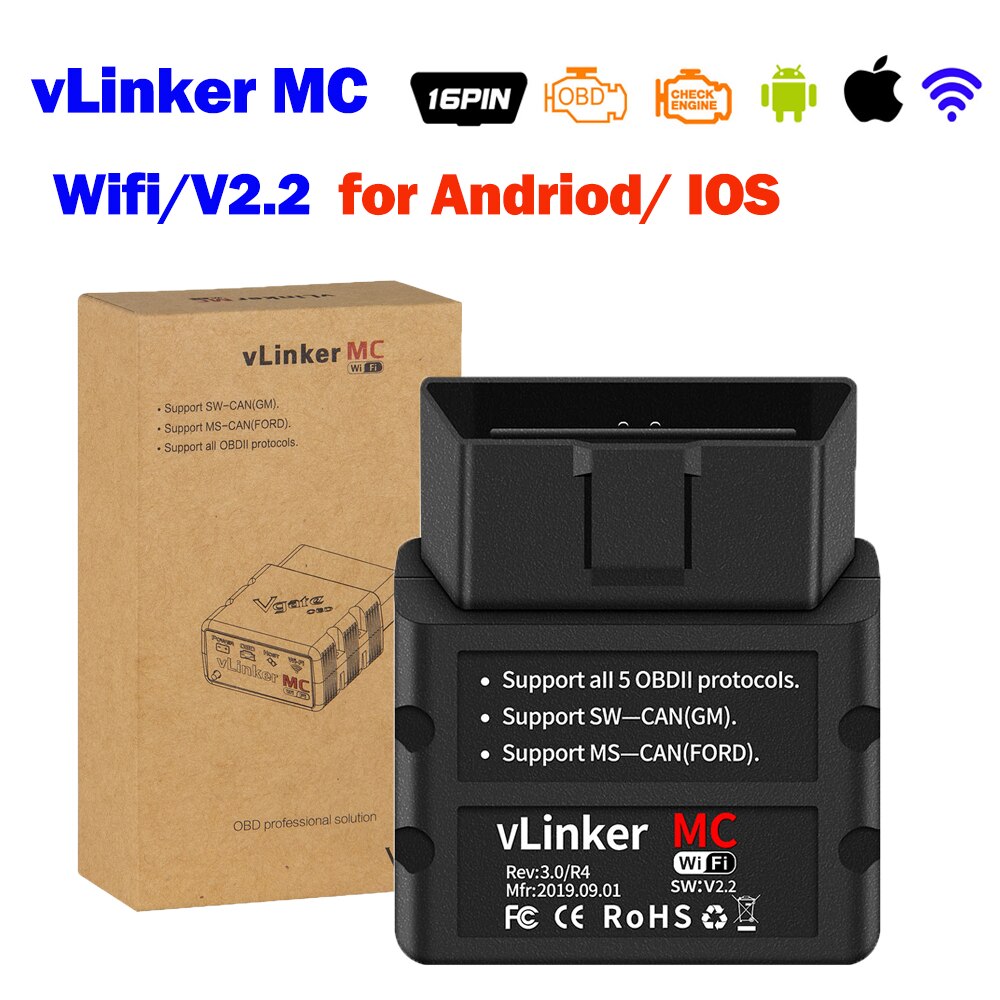

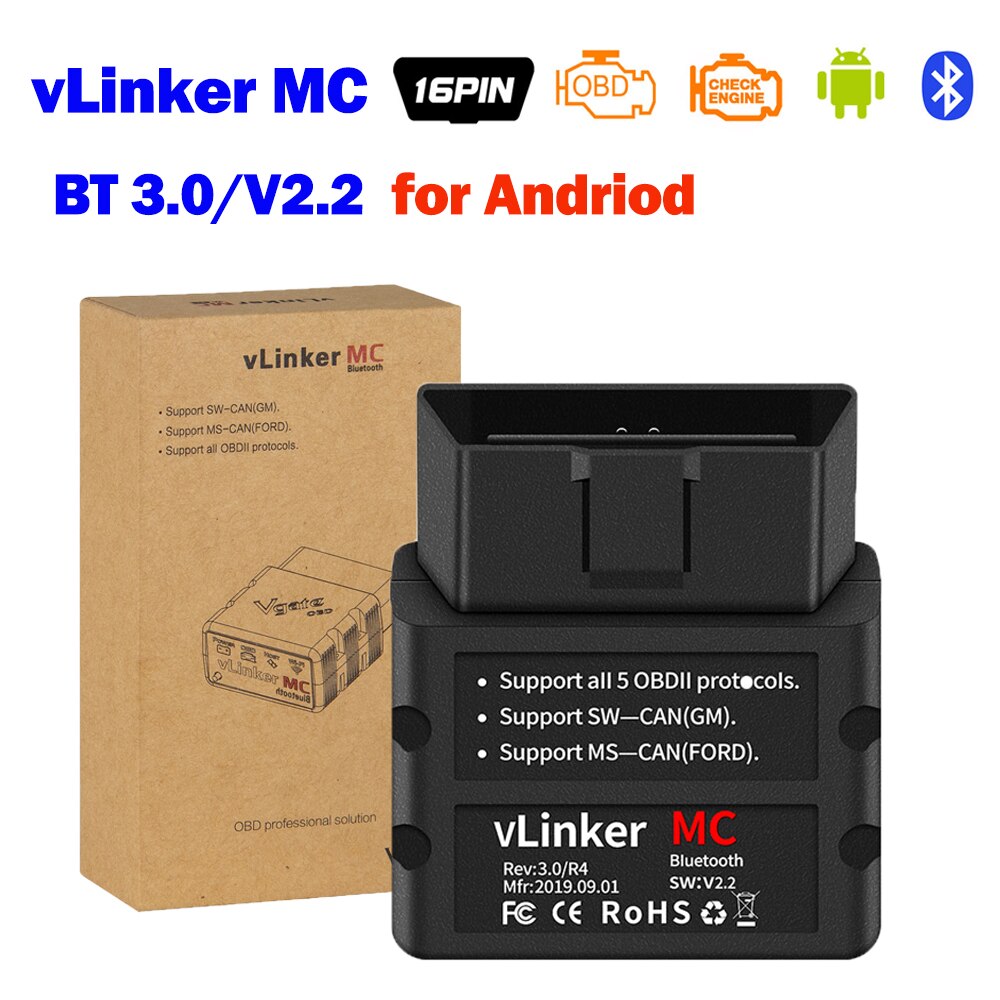

--------Vgate vLinker MC----------

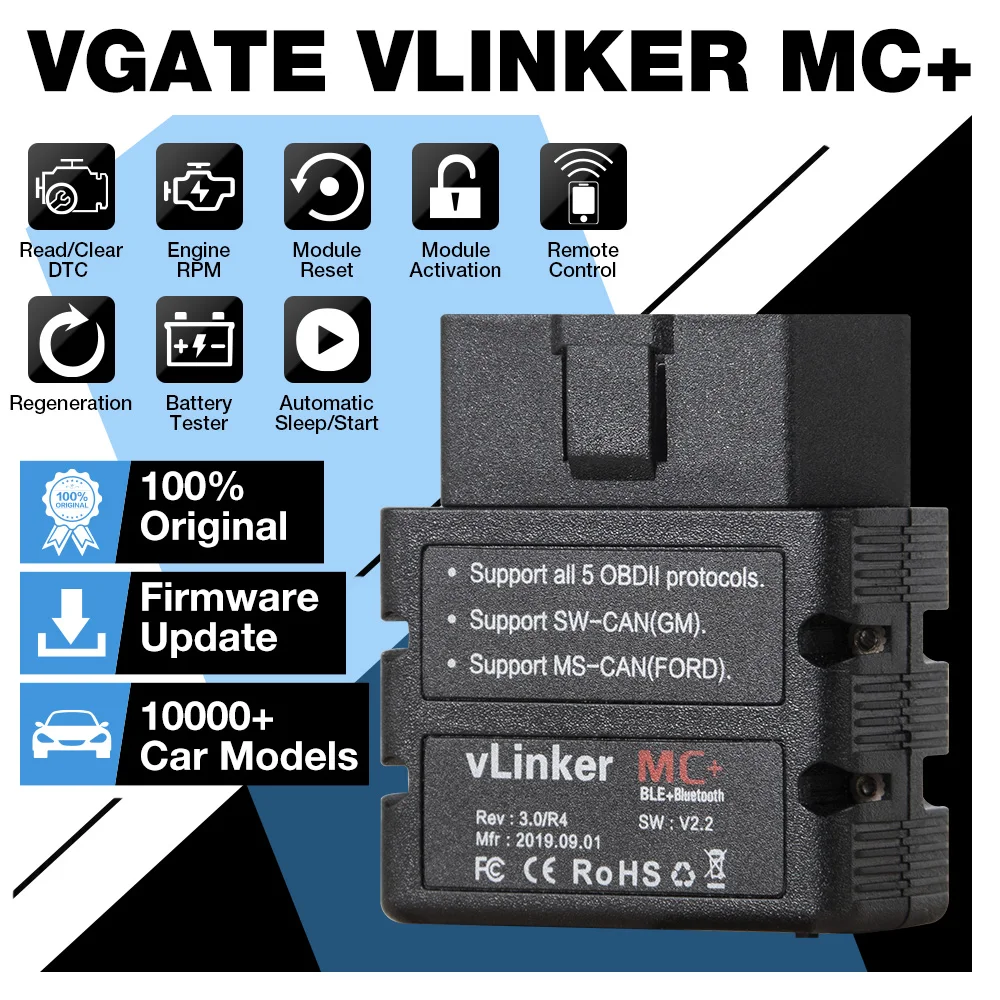

Vgate vLinker MC+ ELM 327 V2.2 Bluetooth 4.0/3.0/WIFI ELM327 For Android/IOS Scanner OBD 2 OBD2 Car Diagnostic Auto Tool PK OBDLINK

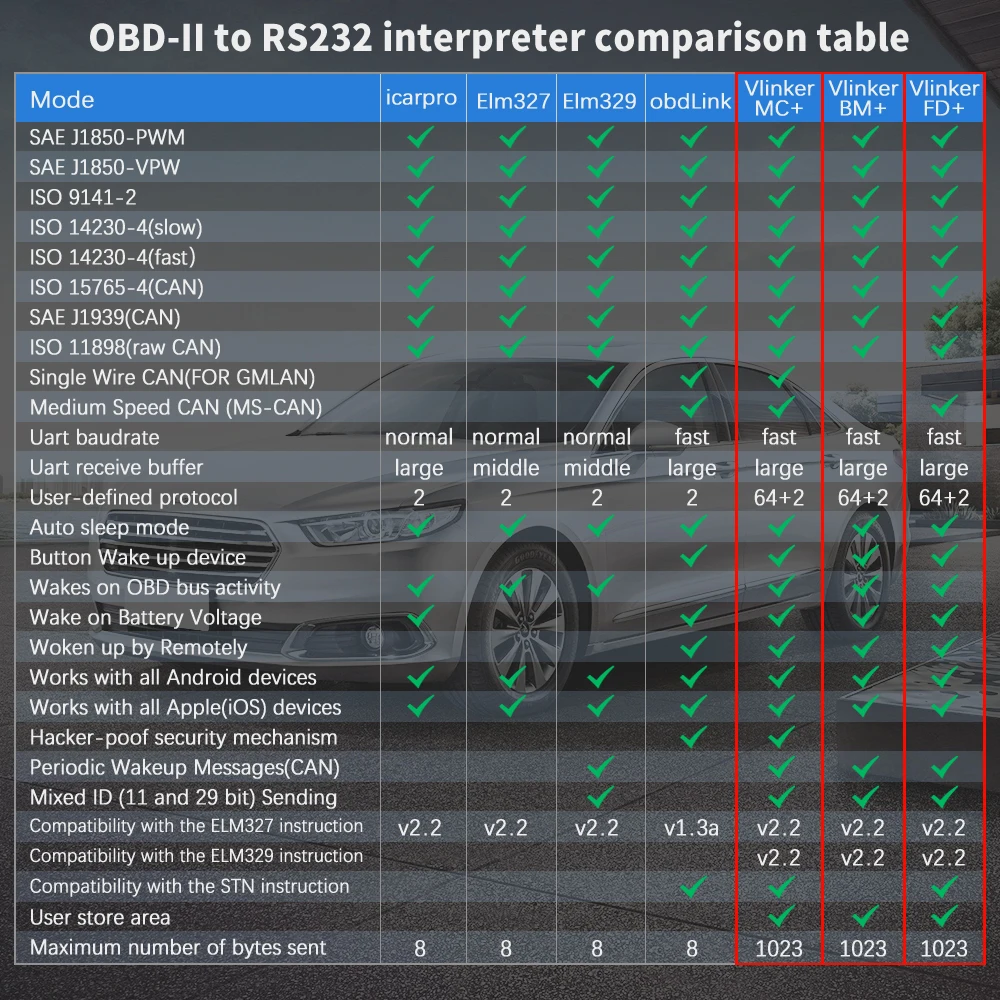

Why choose this vLinker MC+?

100% Original Vgate vLinker BT3.0/4.0/WIFI:

Compatible with 95%+ world car models.

1. Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc
2. Support Almost All ELM327/ELM329/OBDLINK Adapter Software
3. Automatic sleep and start to reduce power consumptione
4. OBD2 Standard Protocols+More protocols
5. Support user-defined commands
6. Request bytes up to 48 bytes
7. Support Firmware Update
8. Support user-defined APP

vLinker MC Support Protocols Multiple protocols

--15 ELM format protocols;
-- 23 STN format protocols;
-- Up to 64 user-defined protocols.

vLinker MC OBDII 5 Standard protocols

-- SAE J1850 VPW
-- SAE J1850 PWM
-- ISO 9141-2
-- ISO 14230-4
-- ISO 15765-4 CAN

vLinker MC Additional protocols

-- SAE J1939 CAN
-- ISO 11898 (raw CAN)
-- for GMLAN Single Wire CAN (for GMW3089)
-- for Ford Medium Speed CAN (MS CAN)

These protocols cover almost 99% of the OBDII Cars on the market

Software Support

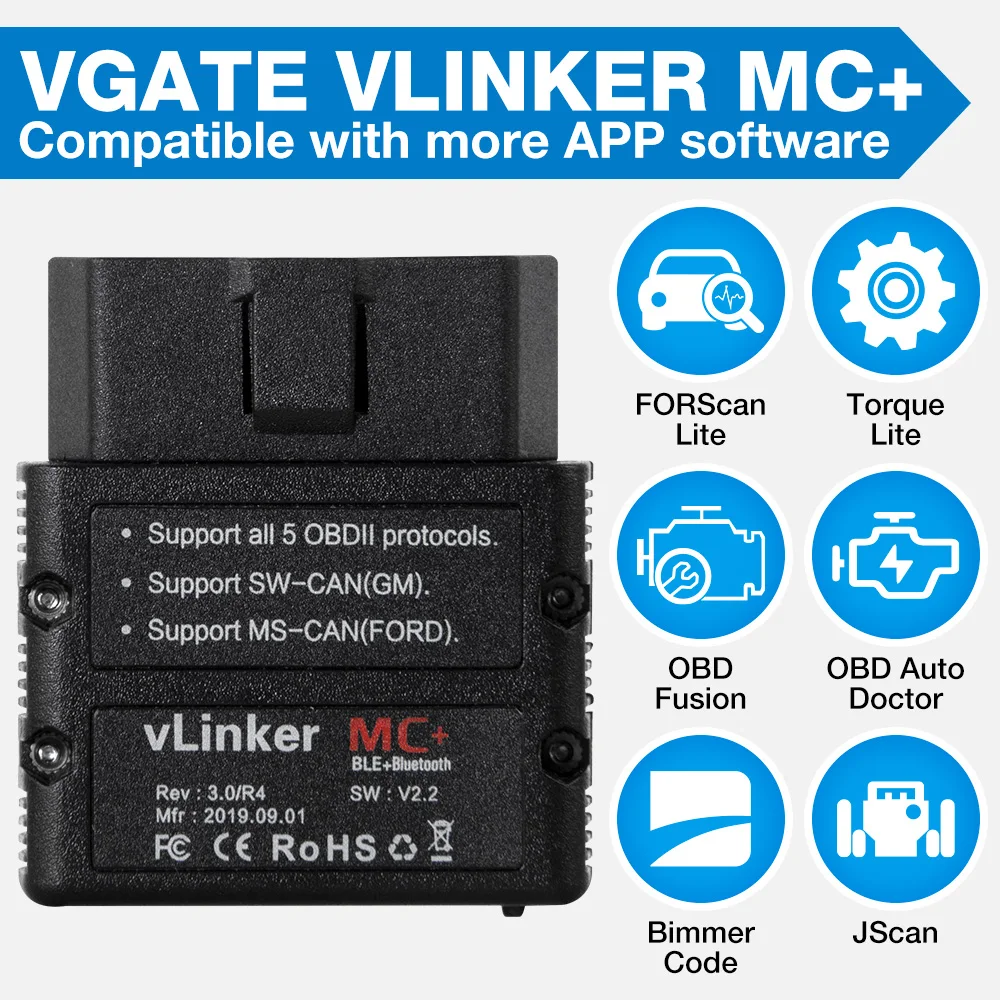

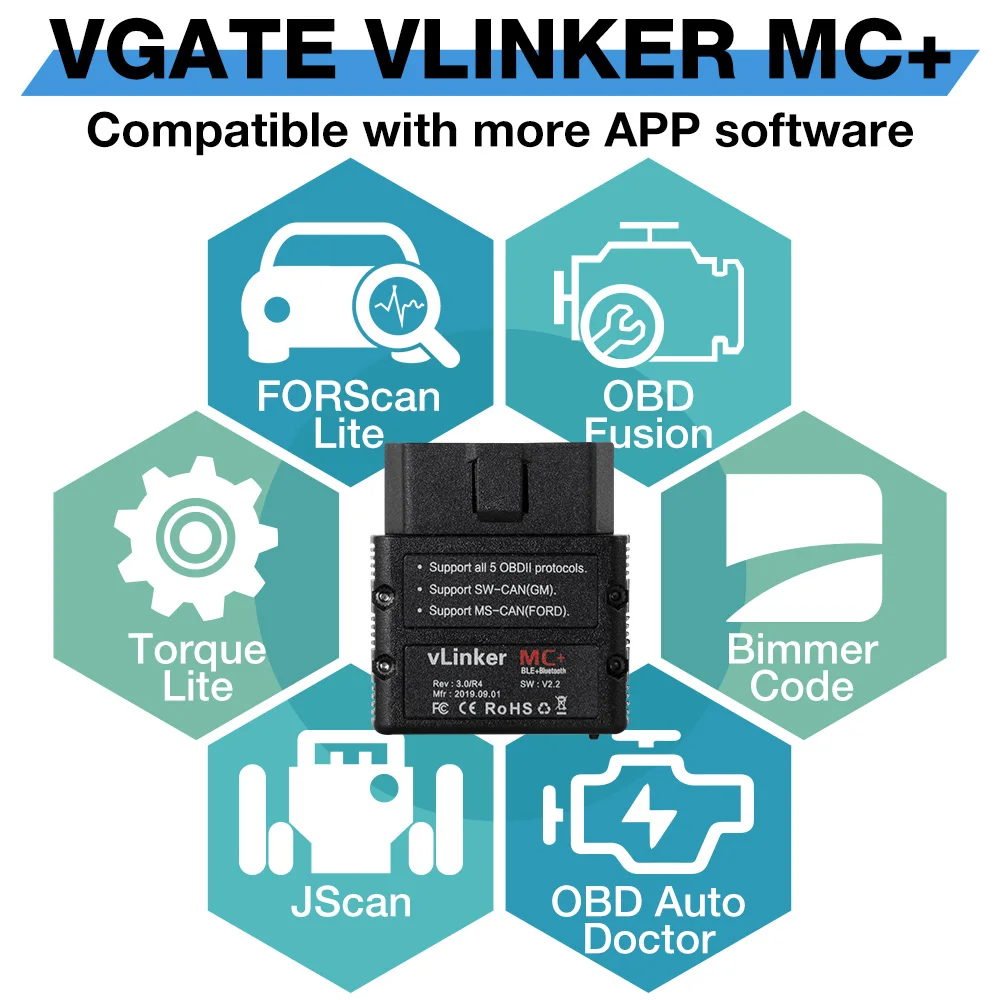

Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software

Please Note

We only sell adapters. If you need to charge for some functions of the software you choose, the fee will be paid to the software developer, not to us.

Rich instruction set, compatible with more APP software

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

-- Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

Vlinker MC Typical Applications

Vehicle telematics
Fleet management and tracking applications
Usage-based insurance (UBI)
OBD data loggers
Automotive diagnostic scan tools and code readers
Digital dashboards

vLinker MC Special Function:

1.Fully automatic identification of vehicle protocols,quick reading of vehicle information.

2.Fully automatic standby/start,no manual switch button required.

vLinker MC Package List:

1 x Vgate vLinker WIFI/BT3.0/BT4.0
1 x User manual

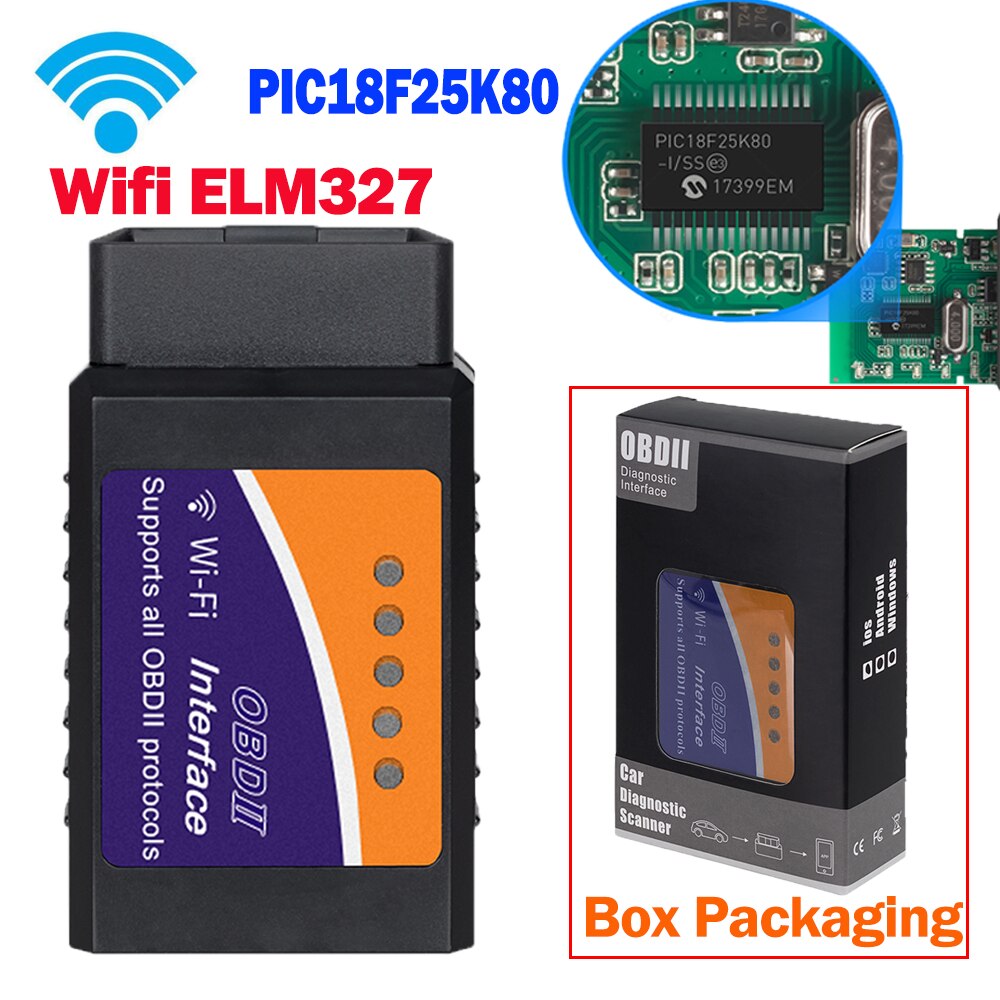

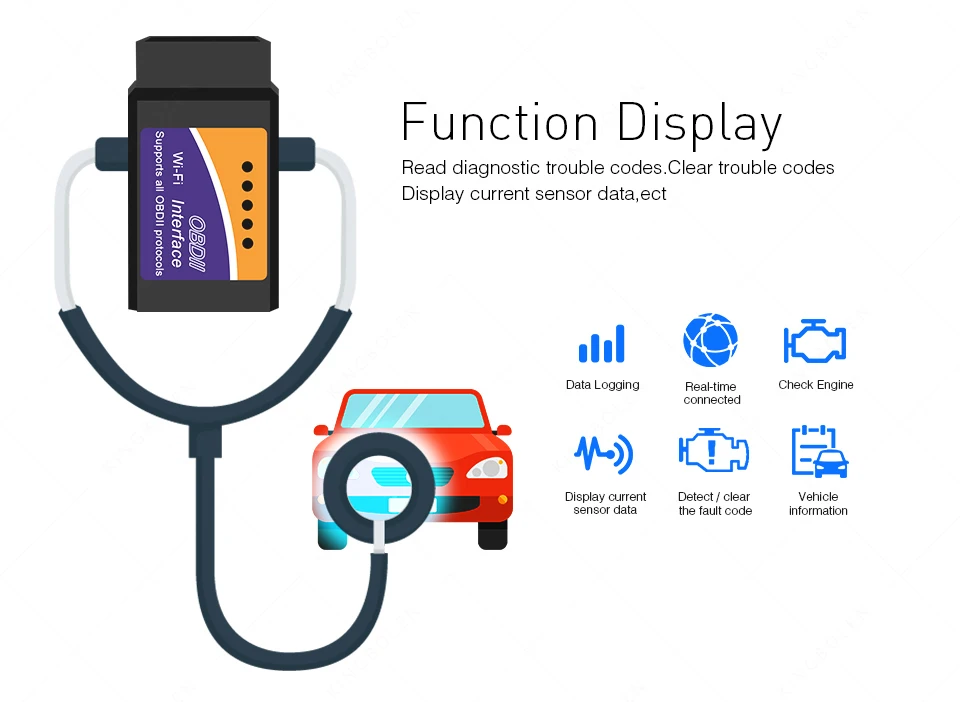

------------Wifi ELM327------------

Wifi ELM327 Feature

It is V1.5 and supports J1850 protocols.

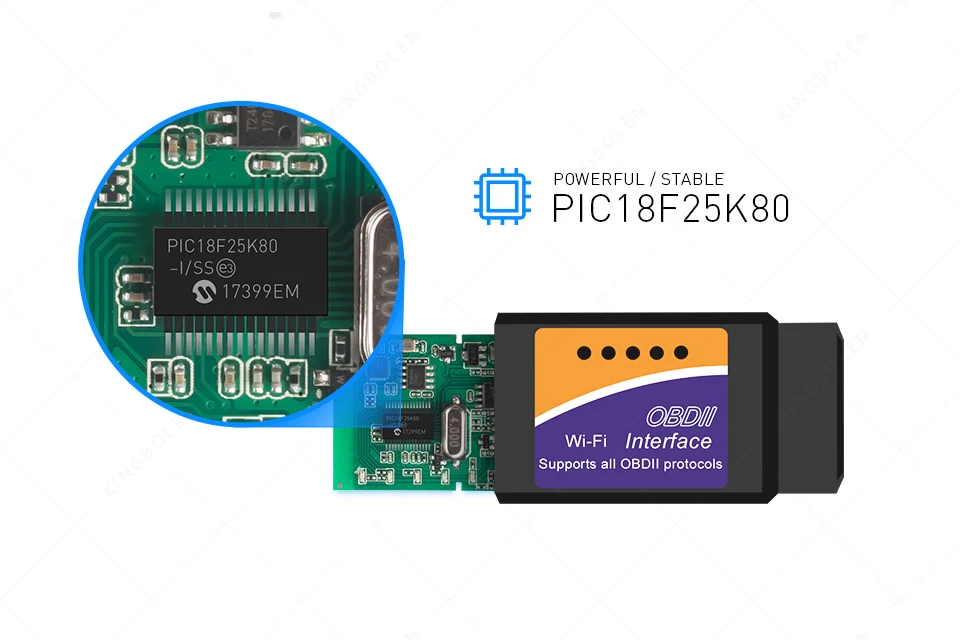

It is with pic18f25k80 chip.

It understand commands such as ATPPS and other.

The frequency of the crystal oscillator is 16mHz.

And for program, we suggest to use Torque.

The MAC address is AA:BB:CC:11:22: 33.

This elm327 usually can work on most new car with OBD 16pin Aadapter and 12V engine:

For USA Car brand, after 1996;
For Europe Car brand(petrol), after 2001;
For Europe Car brand(diesel), after 2004;
For Japan/Korea Car brand, after 2002;
For Chinese Car brand, after 2009;
For Indian Car brand, after 2010;
For RussianCar brand, after 2011;
Fit for Chrysler, Fit for Ford, Fit for GM, Fit for Jeep;
Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault, Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu, Fit for Land Rover, Fit for BMW, Fit for Vauxhall, Fit for Citroen, Fit for Volvo, Fit for Fiat, Fit for VW, Fit for Ford, Fit for Jaguar;
Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus, Fit for Mazda, Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota;......

*For Ssangyong car makes, please don't purchase If your car is before 2008.
*For Renault Dacia Logan car model, please don't purchase If your car is before 2009.


*Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1)

*With chip: PIC18F25K80,supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.

Supported OBD-II Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)


Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Display current sensor data, including:
1. Engine RPM
2. Calculated Load Value
3. Coolant Temperature
4. Fuel System Status
5. Vehicle Speed
6. Short Term Fuel Trim
7. Long Term Fuel Trim
8. Intake Manifold Pressure
9. Timing Advance
10. Intake Air Temperature
11. Air Flow Rate
12. Absolute Throttle Position
13. Oxygen sensor voltages/associated short term fuel trims
14. Fuel System status
15. Fuel Pressure

Wifi ELM327 Packing list:

1 * ELM327 OBD2 bluetooth diagnostic interface
