THINKTOOL THINKCAR Master X2 Advanced Diagnostic Tool With Video Remote Access

THINKTOOL THINKCAR Master X2 Advanced Diagnostic Tool With Video Remote Access

Regular price $1,980.00
Regular price $0.00 Sale price $1,980.00
Sale Sold out
Shipping calculated at checkout.

THINKTOOL Master X2

Advanced Diagnostic Tool With Video Remote Access!

Video
Remote
OE-Level
Diagnostic Function
Powerful Online
Programming
Build-in
TPMS Function

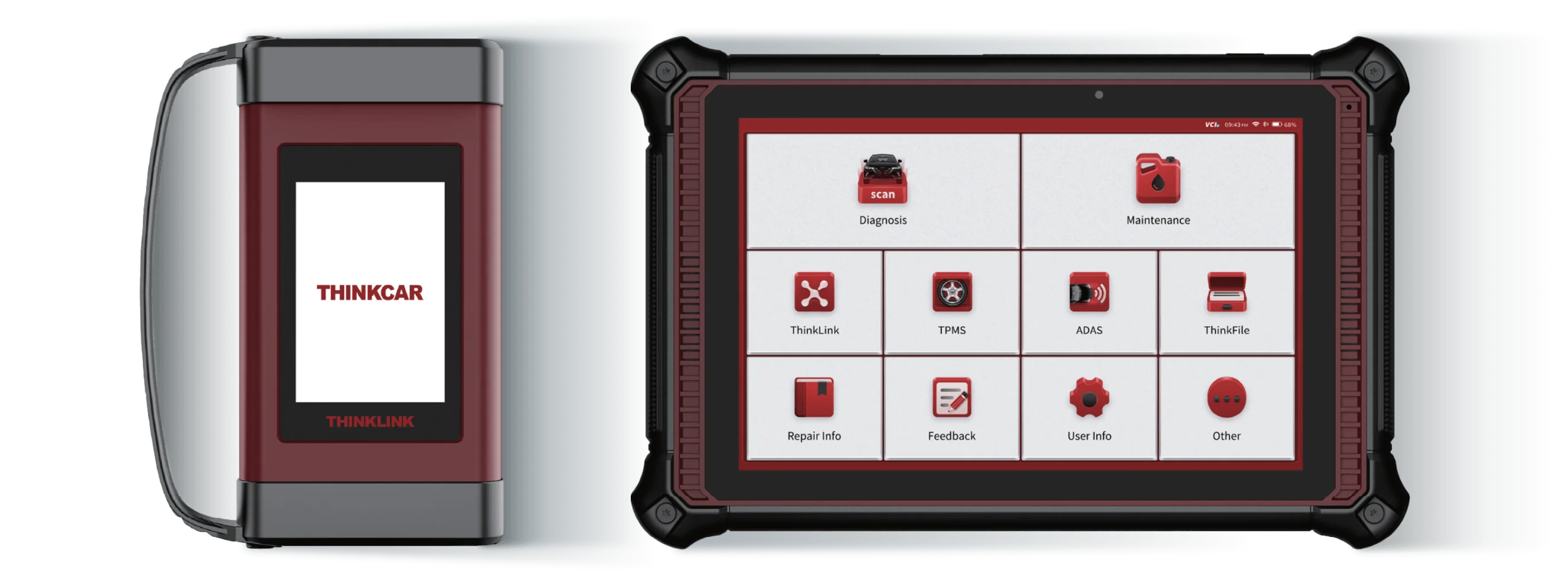

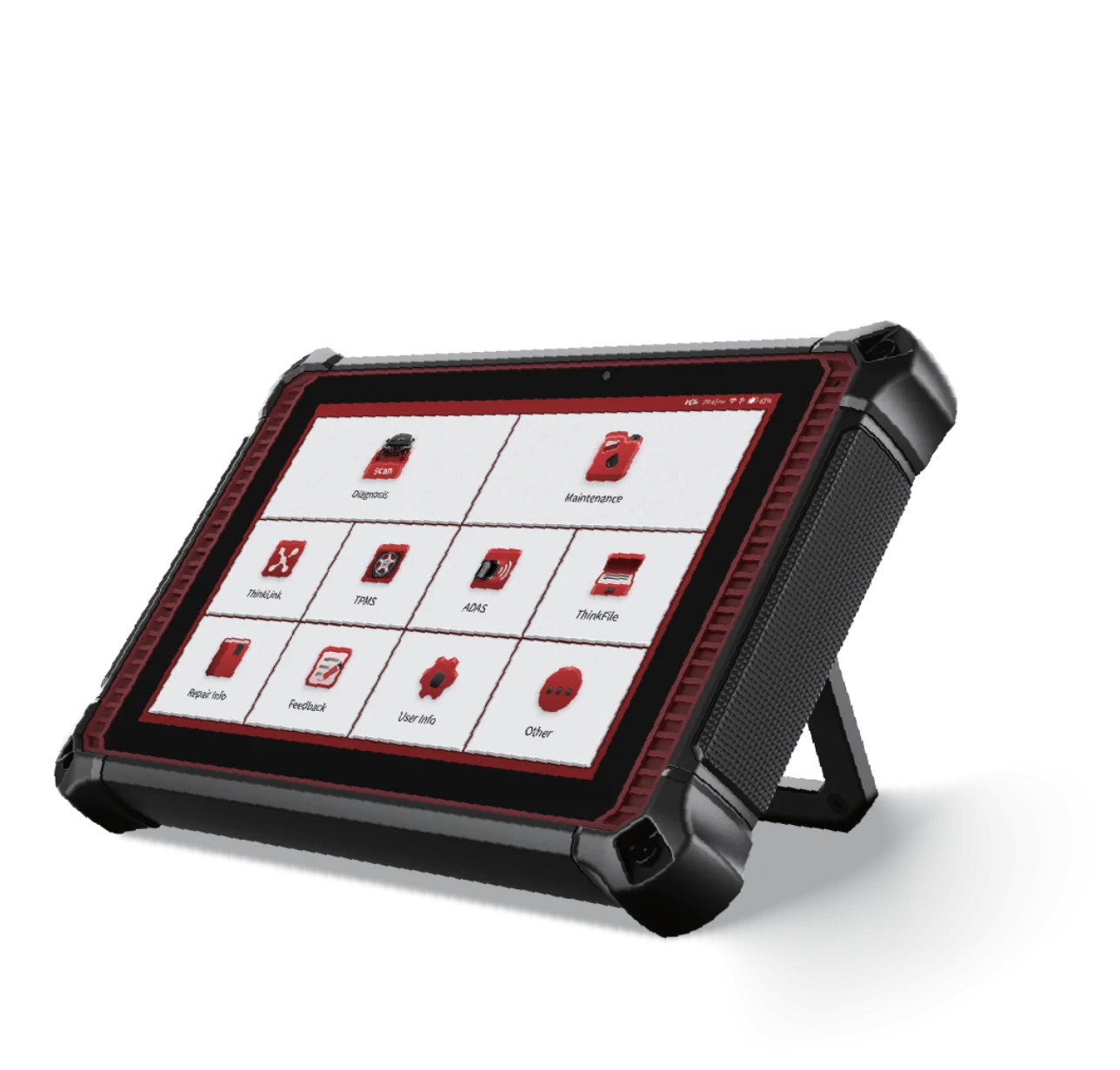

THINKTOOL Master X2 is a 10.1-inch touchscreen Android-based advanced diagnostic tablet, with 128GB memory and THINKLINK VCI, supporting the latest J2534, DoIP, D-PDU, CAN FD vehicle communication protocols. The Master X2 features the powerful full function full system diagnostic function with THINKCAR newly developed video remote technology. The build-in TPMS module support TPMS sensor activation, programming and relearn function. One Tool to meet different diagnostic scenarios.

Supported protocols

J2534

DOIP

D-PDU

CAN FD

ISO 9142

ISO 14230

ISO 15765

K/L-Line

Flashing Code

SAE-J1850 VPW

SAE-J1850 PWM

CAN ISO 11898

Highspeed CAN

Middlespeed CAN

Lowspeed and Singlewire CAN

FOR G--M UART

UART Echo Byte Protocol

Honda Diag-H Protocol

TP 2.0

TP 1.6

SAE J1939

SAE J1708

Fault-Tolerant CAN

SAE-J2610

RS232

Support 300+ Vehicles

160+

Passenger Vehicles

150+

Commercial Vehicles / Heavy Duty (Optional)

100+

Electric Vehicles (Optional)

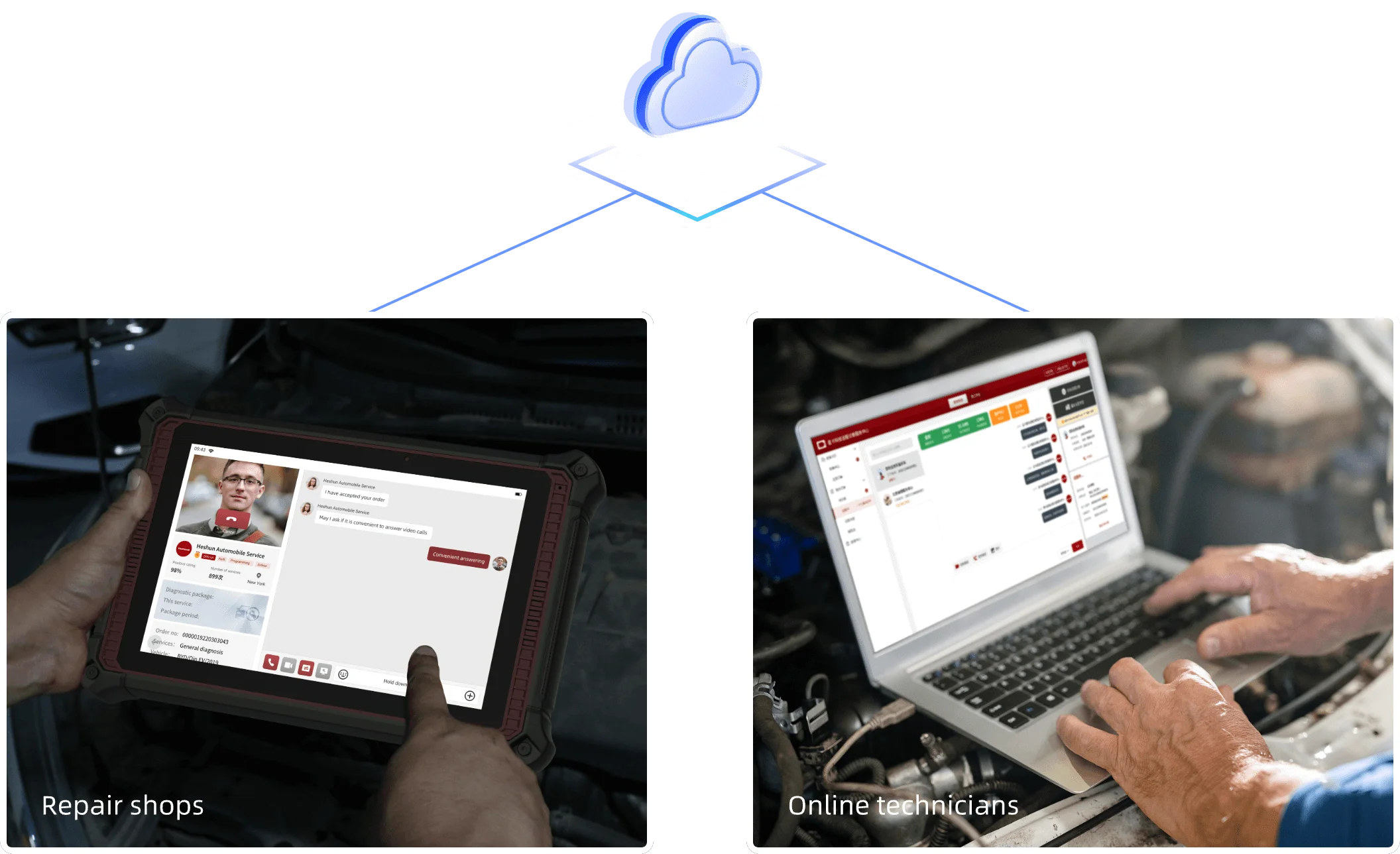

Video Remote Diagnostic

41 Maintenance Reset

Advanced Features

Build-in Video remote services, one key to connect with qualified online technicians.

Support more than 300 US, European, Asian vehicles, including passenger, commercial and electric vehicles.

Support the latest DoIP, D-PDU, CAN FD vehicle communication protocols.

Full system full function diagnostic features, from comprehensive OBDII diagnostics and services to advanced coding and programmings.

One key activate without registration, with better user experience.

Build-in TPMS module, no need extra TPMS tools, provide TPMS sensor activation, programming andrelearn function.

Powerful online programming for more than 19+ vehicle brands.

Accurate ADAS calibrations with THINKCAR ADAS equipment.

2 years passenger software free update. The heavy duty software and electric software are sold separately.

Support Wifi diagnosis, reliable and faster.

Specifications

Operating System

Android 10

Storage

128G/4G Rom/ Ram

CPU

2.0G GHz Quad Core

Camera

13 MP Rear

Screen Size

10.1 inch

Battery

12600mAh/3.7V
