ThinkCar THINKTPMS TP T90 TPMS S3 Programmer 315MHz 433MHz 2in1 Car Tire Pressure Diagnosis Tool TPMS Sensor Service Tool

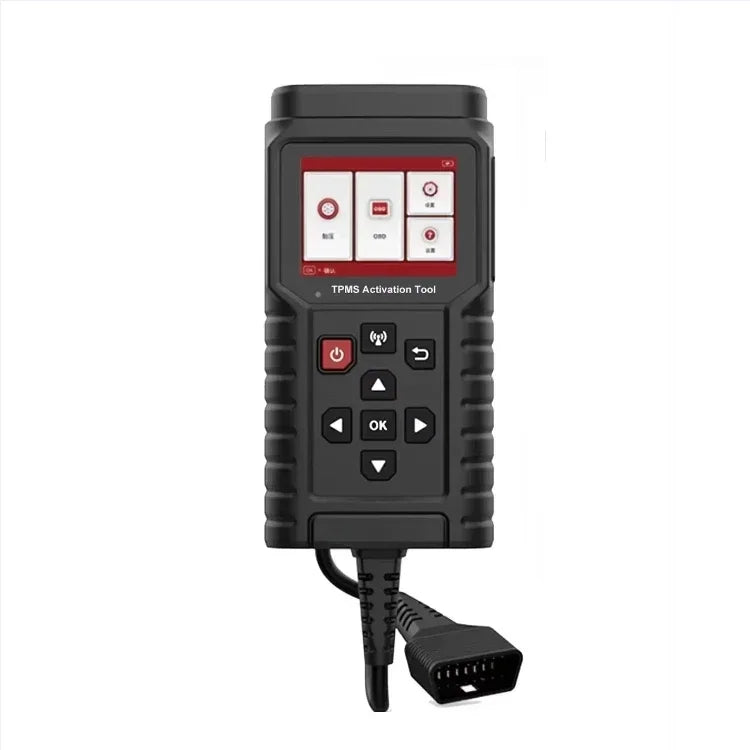

Thinkcar ThinkTPMS TP T90 TPMS Service Tool

The differences between THINKTPMS TP T90 and THINKCAR G2:

THINKTPMS TP T90 does not need to be used with PAD, it can be programmed and learned directly. THINKCAR G2 must be used with the THINKCAR decvice.



ThinkTPMS T90 is a Plug & Play TPMS service tool, compatible with American, European & Asian manufactured vehicles. T90 Can activate, read, & relearn all known sensors without binding with Thinktools.

Additionally, it can perform TPMS system diagnostics and OBDII diagnostics. It's an ideal choice to complete TPMS & Tyre health work.

• Screen Size: 2.5 inches

• Sensor Activation

• Sensor Programming

• Sensor Relearn

• Read Temperature

• Connection: Through OBD2 Port

• Read Codes & Clear Vehicle Fault Codes

• Read sensor data via Bluetooth

• Relearn and program TPMS sensors via the OBD port

• 8 sensors can be programmed at the same time

• Compatible with vehicles with OBD II protocol

• Read battery level condition





Program Muti-Sensor

THINKTPMS T90 supports program the sensor data to Thinkcar TPMS sensor S1/S2 & replace faulty sensor. Up to 8 Sensors can be programmed at the same time.

Relearn Sensor

Relearn is used to write the newly programmed sensor lDs into the vehicles ECU for Sensor recognition.

Diagnostic Function

Supports tyre pressure fault diagnostics including read & clear the DTC'S, Live data stream & More.

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.





2 in 1 S2-Sensor Bullet Points:

【98% Vehicle Coverage Limited S2 Inventory】An easy-to-use and cost-effective necessity for any shop performing TPMS repairs, the THINKCAR S2 sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.



【Maximum Signal Strength Wireless Programming】The extraordinary sensor signal strength allows THINKCAR S2 to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with THINKCAR latest TPMS tools. THINKCAR S2 is 100% clone-able. No relearn is required when the S2-Sensor is cloned with the original sensor ID and put in the same position.



【Superior Battery Reliability Lower Sensor Weight】With the highest quality materials and advanced TPMS technology, THINKCAR S2-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The S2-Sensor body weighs only 29g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.



【SAE Tested & Certified Strict Quality Control】THINKCAR high-quality MX-Sensor is tested and certified to meet SAE industry standard J2657 testing. THINKCAR guarantees S2-Sensor are free from manufacturing defects for a period of 24 months or 31,000 miles, whichever option comes first. Each THINKCAR S2 has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with THINKCAR TPMS tools. With the series number, THINKCAR can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.



【THINKCAR S2 Exclusive Press Release Interchangeable Valve Stems】The patented press release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.



High-Speed Accident Mostly Due To A Blow Out



Tire Aging/ Tire Leak/ High Temperature/ Speeding/ Overloaded...



Five Reasons to Choose THINKCAR S2-Sensors:





1. Covering 98%of all OE sensors on the market

2. 2 sensor types to reduce inventory (two valve types available)

3. Wireless sensor programming with THINKCAR TPMS service tools

4. 100%ID clone-able sensor with no re-learn required

5. Independently tested and certified to meet SAE standards





Safety Instructions



Any maintenance and repair work must be carried out by trained experts. Failure to do so may result in the failure of the TPMS sensor. THINK CAR does not assume any liability in case of faulty or incorrect installation of the unit.

CAUTION

When mounting/dismounting the wheel, follow the operation guideline of the wheel changer manufacturer strictly.

Do not race with the vehicle on which the LTR-01 RF sensor is mounted, and always keep the drive speed under 240km/h.

To guarantee optimal performance, the sensors may only be installed with original valves and accessories provided by THINK CAR.

Make sure to program the sensors using the THINK CAR-specific TPMS tool prior to installation.

Do not install programmed TPMS sensors in damaged wheels.

After installing the TPMS sensor, test the vehicle's TPMS following the steps described in the original manufacturer's user manual to confirm proper installation.

Components & Controls
