ThinkCar THINKTPMS S1 TPMS 315MHz 433MHz Car Tire Pressure Diagnosis Tool Universal Sensor Activation Programming Learning
ThinkCar THINKTPMS S1 TPMS 315MHz 433MHz Car Tire Pressure Diagnosis Tool Universal Sensor Activation Programming Learning
Couldn't load pickup availability
ThinkCar THINKTPMS S1 for ThinkTool Mini/Pro/Pros/ Pros+ 100% original
THINKTPMS S1 can work with THINKTPMS G1,Covers 98% of the car models, can replace the original tire pressure sensor
Why you need THINKTPMS S1 sensor?
THINKTPMS S1 sensor helps to monitors tire pressure and temperature. It helps you know the situation of four tires and prompts you to take in-time actions to prevent puncture and damage to car parts caused by flat tires. It also helps prevent flat tires, forecast leakage, reduce tire wire, prolong tire life, improve fuel efficiency and increase traffic safety.

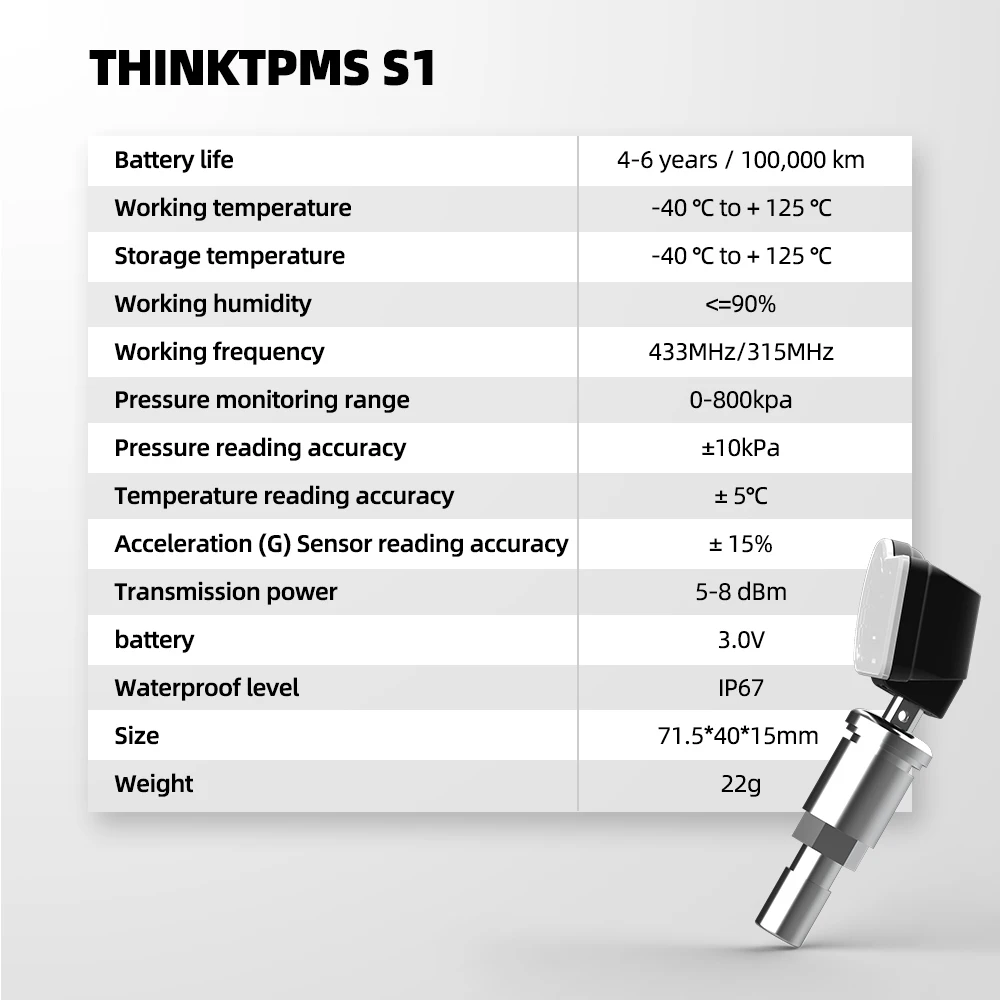

Specifications of THINKTPMS S1:
Battery life：4-6 years / 100,000 km
Working temperature：-40 ℃ to + 125 ℃
Storage temperature：-40 ℃ to + 125 ℃
Working humidity：<=90%
Working frequency：433MHz/315MHz
Pressure monitoring range：0-800kpa
Pressure reading accuracy：±10kPa
Temperature reading accuracy：± 5℃
Acceleration (G) Sensor reading accuracy：± 15%
Transmission power：5-8 dBm
battery：3.0V
Waterproof level：IP67
Size:71.5*40*15mm

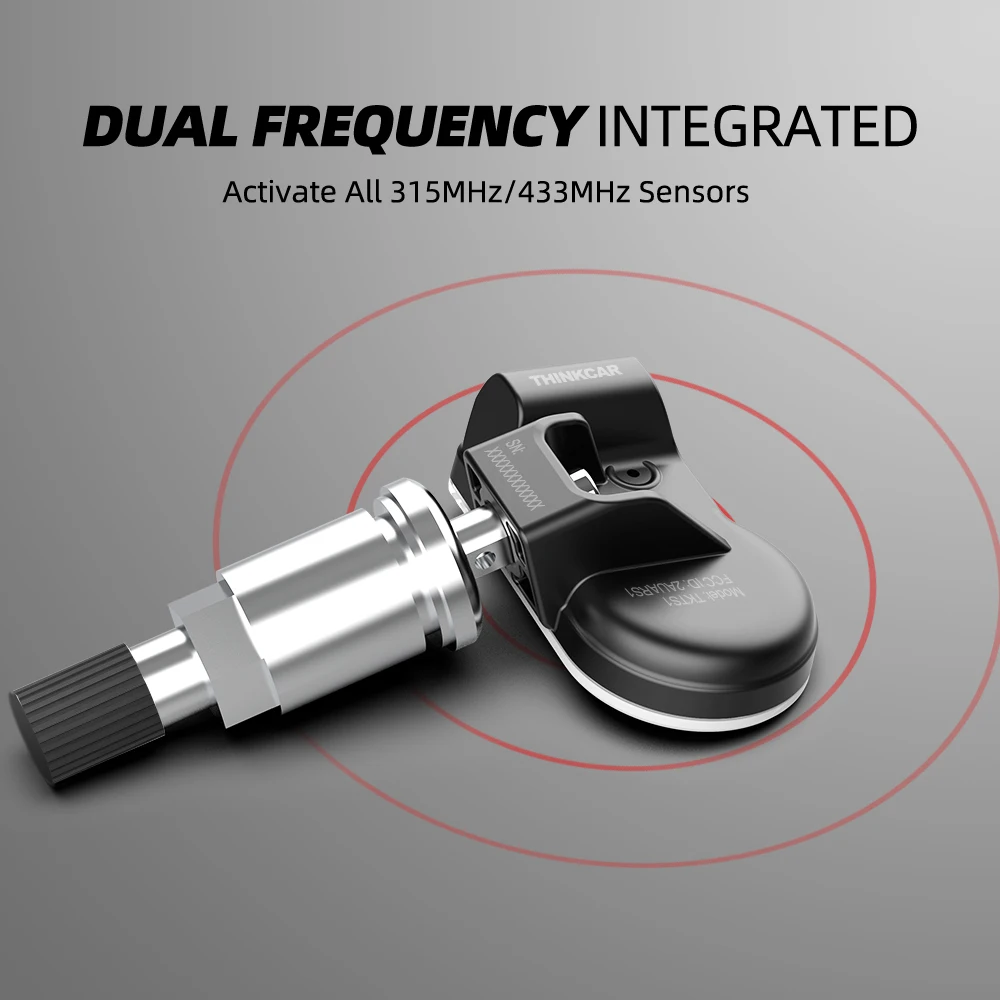

Dual frequency integrated
Activate All 315MHz/433MHz Sensors
Unlimited programming
4-6 years of battery life

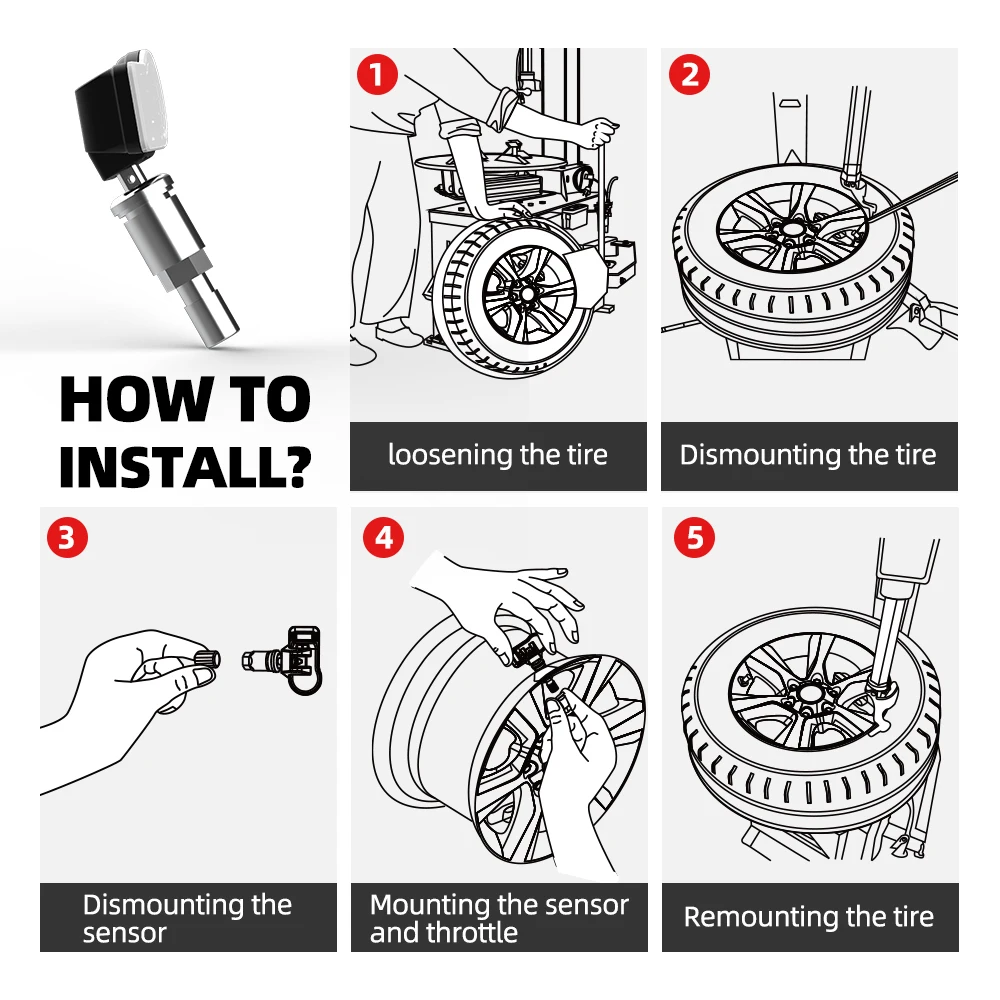

How toTrigger theTHINKTPMS S1 Sensor
1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance
