SUNKKO D3032C D3032C+R Adjustable 30A Discharge New Energy Venicle Lithium Battery Pack Balancer 20A Charge Capacity Voltage Equalizer

D3032C/D3032C+R New Energy Vehicle Lithium BatteryModule Equalizer &Analyzer

1. The machine can automatically collect and analyze the voltage of each string of lithium battery packs, while monitoring the changes in voltage of each string of battery packs during the equalization process.

2. The main control chip is an intelligent MCU chip, which can automatically analyze the battery,control the battery to charge and discharge, and then start the equalization work.

3. You can use Bluetooth to connect to your phone and remotely control it through an app program, achieving simple and effcient work.

4. The internal component layout is reasonable and equipped with a heat dissipation and coolingsystem, which can effectively avoid the impact of high temperature environment on electronic components.

5. Supports equalized repair and analysis of 2-32S battery modules, and is used for equalized repair of up to 32S lithium battery modules for new energy vehicles.

6. The equalization current is adjustable, with a maximum value of 30A.And the machine can accurately equalize repair of different types of battery packs.

7. Built-in charging system to achieve integrated charging and discharging control.

8. Safer and more reliable charging regulation, matching the charging voltage according to the lithium battery type and number of strings.

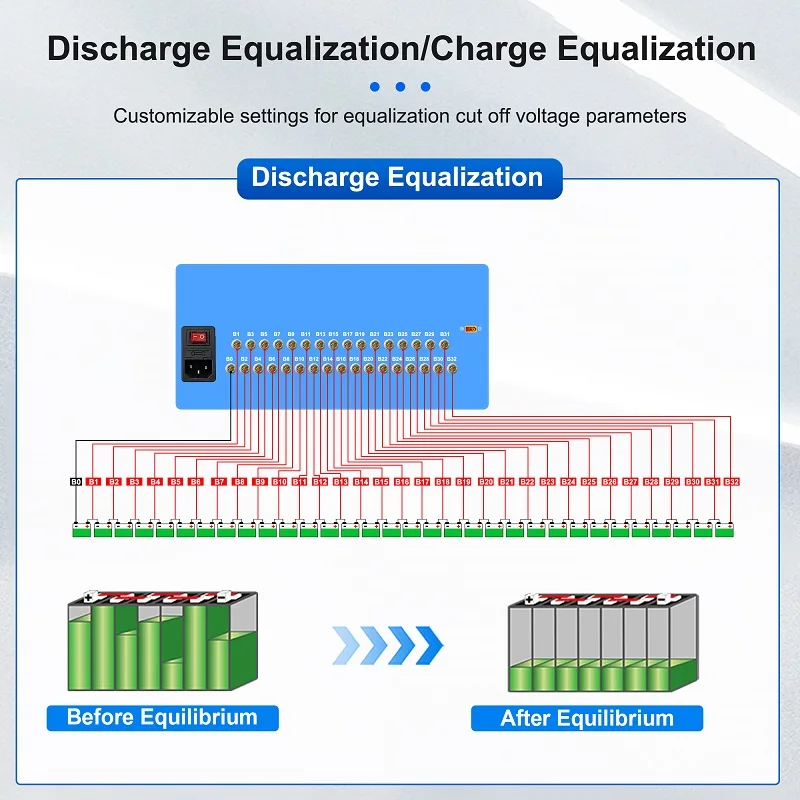

9. Discharge equalization can select continuous discharge equalization mode or pulse discharge equalization mode according to the aging degree of the battery pack and the equalization requirements.

10. The humanized movable operation panel can change the panel angle according to the operator's vision for easy observation.

Parameters

Product Name:New Energy Vehicle Lithium Battery Module Equalizer & Analyzer

Product Mode:D3032C/D3032C+R

Power Supply:110V  or  220V  optional

Number of battery strings used:2~32 strings

Charging applicable battery type:Li-ion/LiFePO4

Charging current:1~20A (Adjustment)

Discharging applicable battery type:Li-ion/LiFePO4/LTO

Discharge current:0~30A (Adjustable)

Minimum equalization voltage:1mv

Application

It is suitable for major scientific research institutions, lithium battery dealers, battery pack manufacturers and battery protection system manufacturers to detect and analyze the voltage of multiple batteries, and to perform maintenance services on power battery packs such as new energy vehicles and energy storage systems.

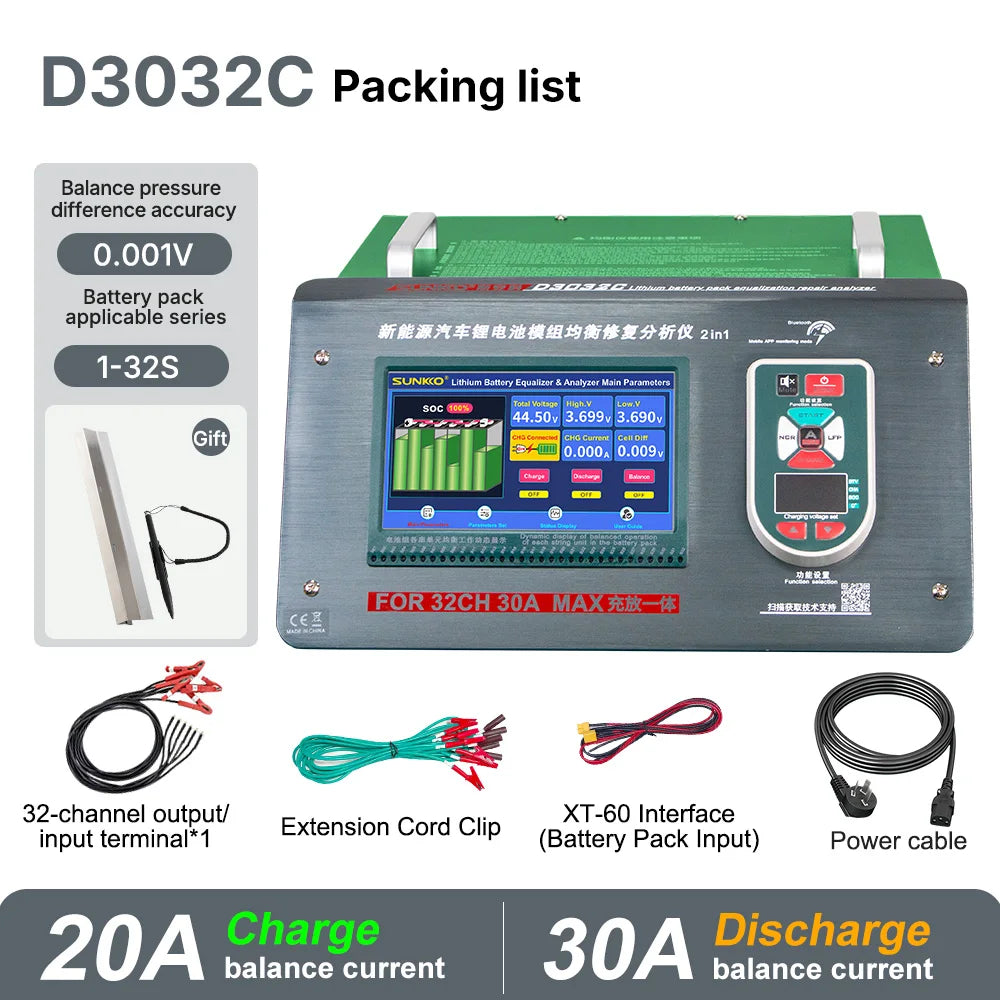

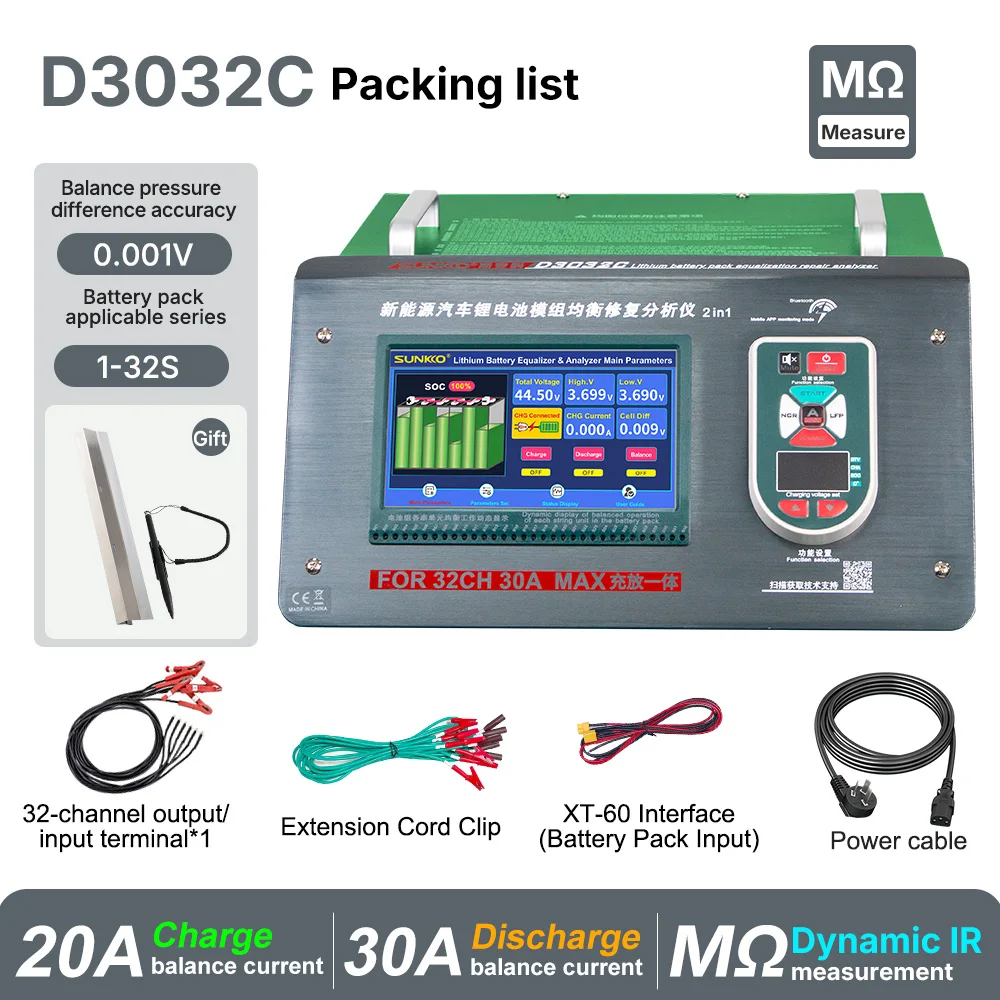

Packing list
1x equalizer (D3032C  or D3032C+R)
1x Extension cord clip
1x XT-60 Interface
1x touchscreenpen
1x Power cable
