PHONEFIX Fluke 15B+ 17B+ multimeter Electronic Measure Instruments Test Meter Mobile Phone Repair Diagnostic Fix Tool
PHONEFIX Fluke 15B+ 17B+ multimeter Electronic Measure Instruments Test Meter Mobile Phone Repair Diagnostic Fix Tool
Regular price
$78.99
Regular price
$0.00
Sale price
$78.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fluke 15B+ / 17B+ is the universal Electronics Digital Multimeters for Mobile Phone Repairs, FLUKE F15B+ 17B+ Auto Range AC DC Voltage Current Digital Multimeter Meter, High Performance Fluke 15B+ 17B+ multimeter for Mobile Phone Repair / Diagnostic Fix Tool

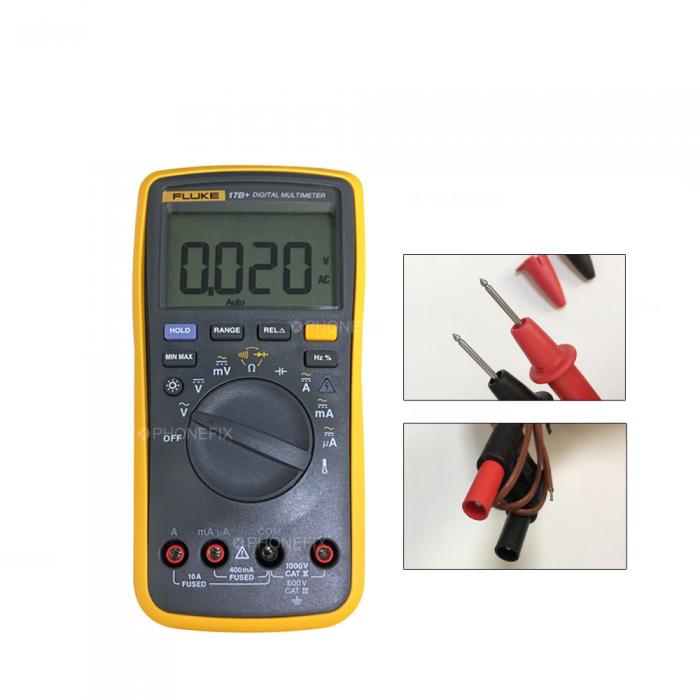

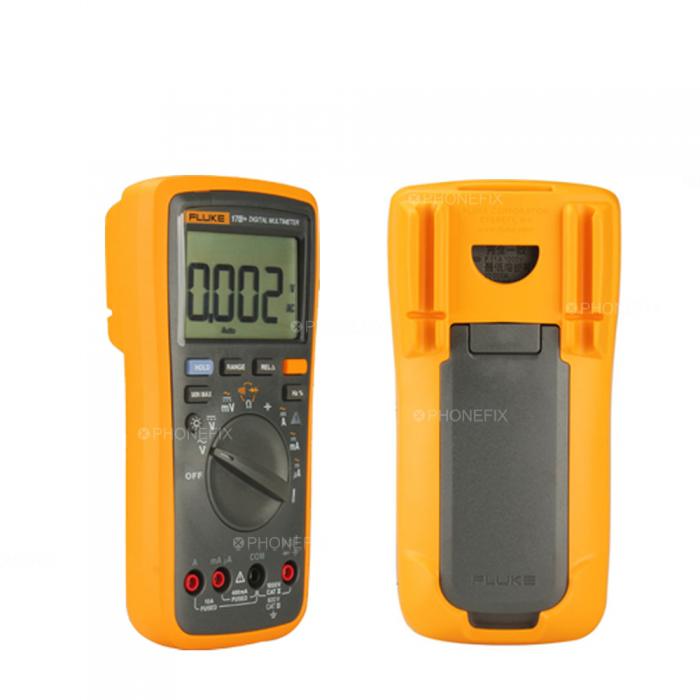

Fluke 15B+ / 17B+ High Performance Digital Multimeter for Mobile Phone Repairs
Features :
- Faster response
- Greater capacitance range: 0.01nF ~ 1000F
- The more bright: Add white LED backlight
- Larger screen: Larger than the original 1.5 times
Specifications:
- Maximum Voltage between any Terminal and Earth Ground: 1000 V
- Display(LCD): 4000 counts,updates 3/sec
- Battery Type: 2 AA,NEDA 15A, IEC LR6
- Battery life: 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type - of LED under test)
- Operating Temperature: 0 deg to 40 deg
- Storage Temperature: -30 deg to 60 deg
- Operating Humidity: Non-condensing90%at 10deg to 30deg;75% at 30deg to 40deg
- Operating Humidity,40MC Range: 80% at 10deg to 30deg;70% at 30deg to 40deg
- Operating Altitude: 2000m
- Storage Altitude:12.000m
- Temperature Coefficient: 0.1(specified accuracy)/deg(<18deg or > 28deg)
- Fuse protection for current inputs: 440 mA,1000 V Fast Fuse, Fluck specified part only.
11A,1000v Fast Fuse, Fluke specified part only.
- Size(HWL): 1839149.5(mm)
- IP Rating: .IP 40
- Safety: .IEC 61010-1, IEC61010-2-030 600V CAT ,1000V CAT¼Pollution Degree 2
- Electromagnetic Environment: IEC 61326-1:Portable
- Class A Equipment(Industrial Broadcasting and Communication Equipment)
Function
Range
Accuracy
Range
Accuracy
AC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3, 0.1Mv to 1,000V
DC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10, 0.1Mv to 1,000V
AC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3 ,0.1UA to 10A
DC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3 ,0.1UA to 10A
Capacitance: 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf ,+/-2%+5, 0.01nF to 100uF
Resistance :400 / 4K / 40K / 400K / 4M / 40M Ohm, +/-0.5%+3, 0.1 ohm to 40Mohm
RANGE VOLTS AC 0.1Mv to 1,000V
RANGE VOLTS DC 0.1Mv to 1,000V
RANGE AC CURRENT 0.1UA to 10A
RANGE DC CURRENT 0.1UA to 10A
RANGE RESISTANCE 0.1 ohm to 40Mohm
RANGE CAPACITANCE 0.01nF to 100uF
VOLTAGE AC 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3
VOLTAGE DC 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10
RESISTANCE 400 / 4K / 40K / 400K / 4M / 40M Ohm, +/-0.5%+3
CAPACITY 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf ,+/-2%+5
CURRENT AC 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3
CURRENT DC 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3
What's in the package:

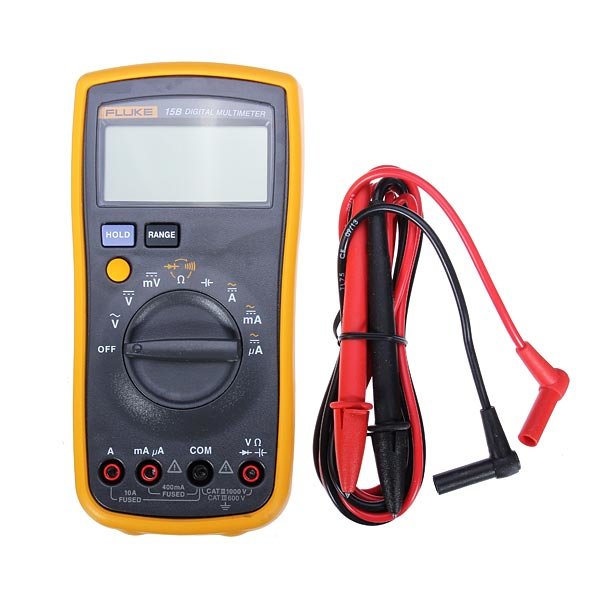

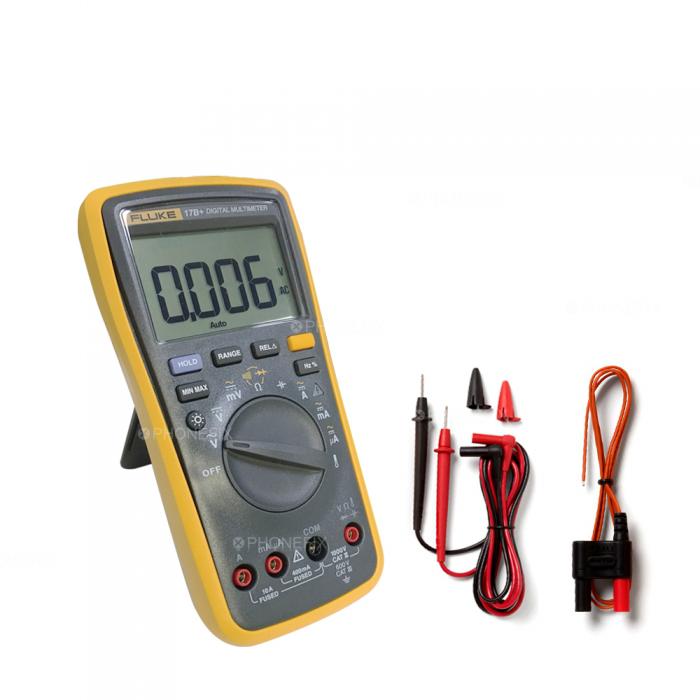

- 1 x Original Fluke 15B+ / 17B+ digital multimeter
- 2 x Test lead lines
- 1 x User Manual
