The Multiple Diagnostic Interface 2 (MDI2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI2) offers increased processing power, security, and faster programming speeds on Global A and future Global B vehicles.
The MDI2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming applications: TIS2Web–SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models. The MDI2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer programming events.
The MDI2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates only using a PC.
Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects to the MDI2.

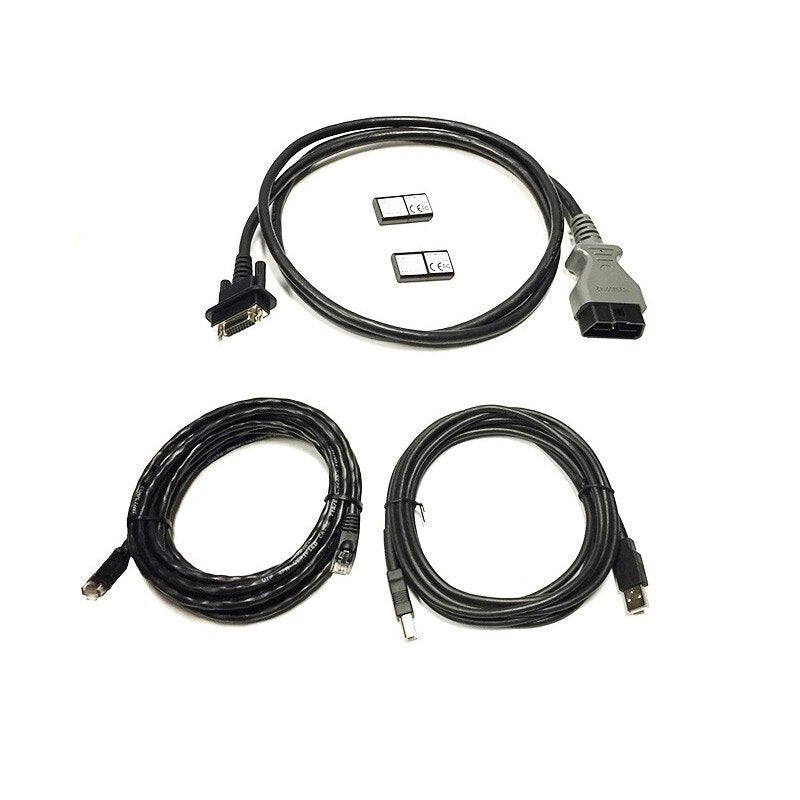

Kit Includes Components:
DLC Cable SAE J1962
10-ft. USB A to USB B Cable
Two pcs. of D-Link Wireless USB Adapters (Dongles) for wireless connection
1year supplier warranty
