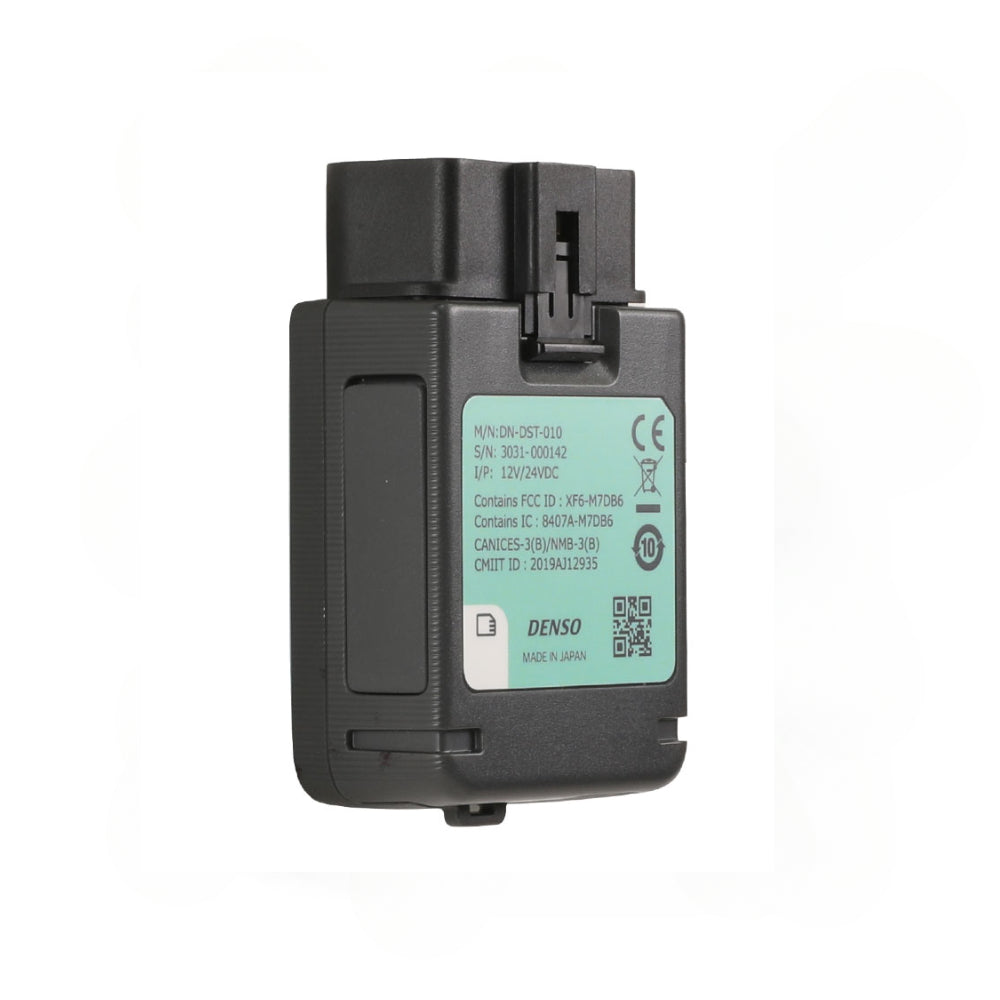

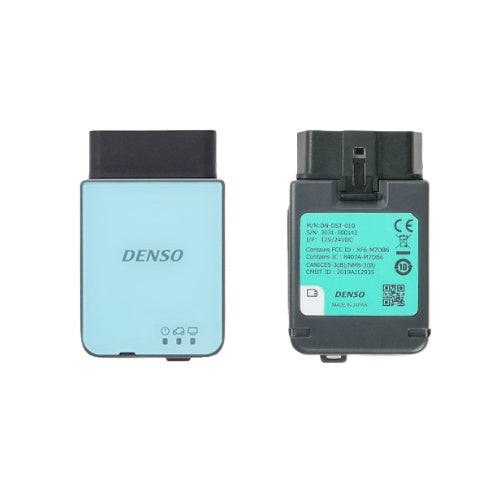

Original DENSO DST-NANO DST-010-A INTERFACE for SUBARU TOYOTA Honda DEALER SCAN TOOL Without Software
Original DENSO DST-NANO DST-010-A INTERFACE for SUBARU TOYOTA Honda DEALER SCAN TOOL Without Software
Regular price
$1,090.00
Regular price
$0.00
Sale price
$1,090.00
Unit price
/
per
Shipping calculated at checkout.
No reviews
Couldn't load pickup availability
Fast communication specified in ISO13400 (Ethernet) is supported.
A built-in wireless module allows Wi-Fi and Bluetooth connection to a PC.
The certification mark of each country on the label is subject to change without notice.
Specifications
| Model No. | DN-DST-010-A | DN-DST-010-B | ||
|---|---|---|---|---|
| Part No. | 95171-0148* | 95171-0151* | ||
| Label color | DARK GREEN | BLUE | ||
| CPU | 32-bit microcomputer | |||
| External interface | PC communication | USB | USB2.0 x 1 (Mini-DIN connector) | |
| Wireless LAN | IEEE802.11bgn 2.4GHz | - | ||
| Bluetooth | IEEE802.15.1 Ver.4.0/Class1 | - | ||
| SD memory card (supporting SD and SDHC memory cards) |
Slot x 1 | |||
| Vehicle communication | ISO9141(K/L) | |||
| HS-CAN,CAN-FD* | ||||
| DoIP (Ethernet) | ||||
| HONDA Exclusive Communication (P-Line, Diag-X, Diag-H, SCS, WEN) | ||||
| * Contact the distributor about other inquires related to communication with the vehicle. | ||||
| Main unit power supply voltage | Vehicle power supply | DC6.5 ～ 32V | ||
| USB power (BUS power) | DC4.75 ～ 5.25V | |||
| Power consumption | MAX. 2.5W (12VDC) | |||
| Operating environment | Operating temperature [Storage temperature］ |
-10 ～ 50℃ [-10 ～ 60℃] | ||
| Operating humidity | 35 ～ 85% | |||
| Main unit dimensions | 47.2mm (W) x 73.0mm (H) x 22.5mm (D) | |||
| OS environment | OS: Windows 10/11, CPU: 1GHz or higher, Memory: 2GB or higher, Free disk space: 1GB or higher *Excluding ARM-based processors |
|||
| Main unit mass | Approx. 70g | |||
| Model No. | DN-DST-010 | ||||
|---|---|---|---|---|---|
| Part No. | 95171-0134* | 95171-0137* | 95171-0139* | ||
| Label color | GREEN | YELLOW | PINK | ||
| CPU | 32-bit microcomputer | ||||
| External interface | PC communication | USB | USB2.0 x 1 (Mini-DIN connector) | ||
| Wireless LAN | IEEE802.11bgn 2.4GHz | - | |||
| Bluetooth | IEEE802.15.1 Ver.4.0/Class1 | - | |||
| SD memory card (supporting SD and SDHC memory cards) |
Slot x 1 | - | - | ||
| Vehicle communication | ISO9141(K/L) | ○ | ○ | ○ | |
| HS-CAN,CAN-FD* | ○ | ○ | ○ | ||
| DoIP (Ethernet) | ○ | - | - | ||
| * Contact the distributor about other inquires related to communication with the vehicle. | |||||
| Main unit power supply voltage | Vehicle power supply | DC6.5 ～ 32V | |||
| USB power (BUS power) | DC4.75 ～ 5.25V | ||||
| Power consumption | MAX. 2.5W (12VDC) | ||||
| Operating environment | Operating temperature [Storage temperature] |
-10 ～ 50℃ [-10 ～ 60℃] | |||
| Operating humidity | 35 ～ 85% | ||||
| Main unit dimensions | 47.2mm (W) x 73.0mm (H) x 22.5mm (D) | ||||
| OS environment | OS: Windows 10/11, CPU: 1GHz or higher, Memory: 2GB or higher, Free disk space: 1GB or higher *Excluding ARM-based processors |
||||
| Main unit mass | Approx. 70g | Approx. 60g | Approx. 60g | ||
*CAN-FD is available from DST-010 software Ver.3.2.0 onward.
