Original Autel Maxidiag Elite MD802 All system +DS Model Full System DS+EPB+OLS+Data Stream Diagnostic-Tool 4 in 1 Code Reader

Original Autel Maxidiag Elite MD802 All system +DS Model Full System DS+EPB+OLS+Data Stream Diagnostic-Tool 4 in 1 Code Reader

Regular price $280.38
Regular price $0.00 Sale price $280.38
Sale Sold out
Shipping calculated at checkout.

MaxiDiag Elite MD802 for all system (Including MD701, MD702, MD703, MD704) 4 in 1 Code Reader

Features

One tool can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems
Turns off warning lights for all major Asian vehicle
Reads live datastream
Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2    Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
Enhanced OBD II Mode 6
OBD II code tips guide technicians to the root cause of trouble code faster
Data graphing
One year free software upgrade
Prints data via PC



Specifications

 Display                        TFT color display (320 x 240 dpi)
 Operating Temperature        0 to 60°C (32 to 140 °F)
 Storage Temperature            -20 to 70°C (-4 to 158°F)
 External Power                12.0 to 18.0 V power provided via vehicle battery or adapter
 Length\Width\Height            212 mm (8.35'')\110.5 mm (4.35'')\37.5 mm (1.48'')
 Weight                        0.28kg(without wire) 0.484kg(with wire)


Vehicle Coverage:

Nissan, Infiniti, Toyota, Lexus, Scion, for Honda, Acura, Subaru, Mitsubishi, Suzuki, Isuzu, Hyundai, Kia, Daewoo, Mazda, Holden, Bens, Smart, Sprinter, Maybach, BWM, Mini, VW, Seat, Skoda, Audi, Opel, Land Rover, Jaguar, Volvo, Porsche, Saab, EU Ford, Vauxhall, Ford , GM, Chrysler, Peugeot, Citroen, Renault, Dacia, Fiat, Abarth, Alfa-Romeo, Maserati, Lancia.

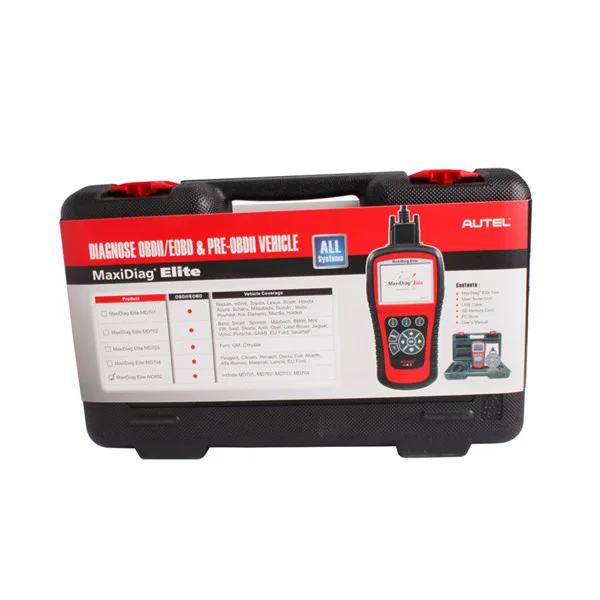

Accessories

Carry case
SD Card
CD
USB Cable
OBDII Cable
User's Manual



Item Pictures:



maxidiag-elite-md802-sc124-c-1maxidiag-elite-md802-new-multiplexermaxidiag-elite-md802-sc124-c2maxidiag-elite-md802-new-main-unitmaxidiag-elite-md802-new-2maxidiag-elite-md802-new-03maxidiag-elite-md802-new-4maxidiag-elite-md802-new-5maxidiag-elite-md802-c3maxidiag-elite-md802-new-01
