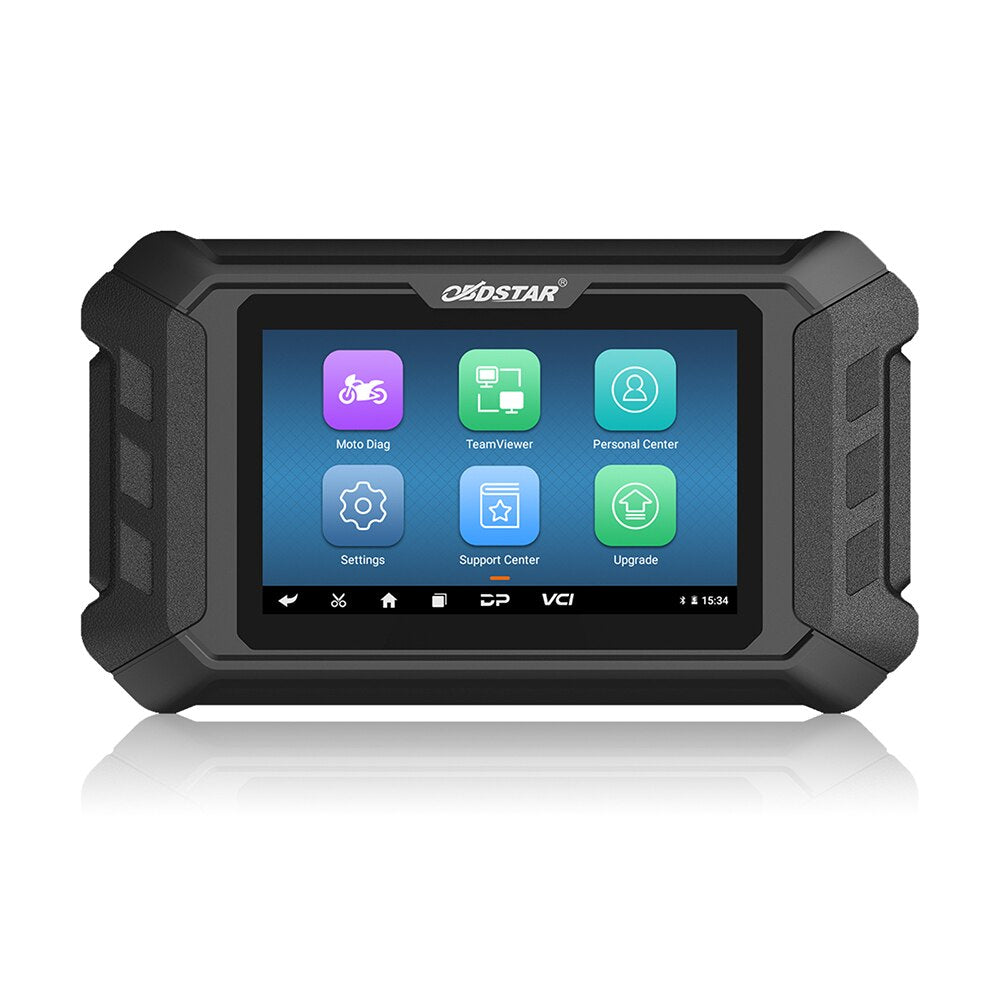

OBDSTAR MS50 Motorcycle Scanner Motorcycle Diagnostic Tool Standard Version

Product Description

OBDSTAR MS50 STD Motorcycle Scanner Motorcycle Diagnostic Tool Standard Version

Please check the Supported list before buying:
OBDSTAR MS50 Standard Version Supported List (2024-11-15)
OBDSTAR MS50 User Manual

Promotion (Aug. 8th, 2023--Dec. 30th 2024):
Get extra 1 year for update, so you will get totally 2 years free update finally.
(Please provide the serial number of your MS50 after it's registered.)

Top 4 reasons to buy OBDSTAR MS50 Motorcycle Scanner:

1. Fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

4. Free update for one year. After first year, 100 USD for one year update.

5. Support odometer recalibration, but need to buy MP001 adapter to work with.

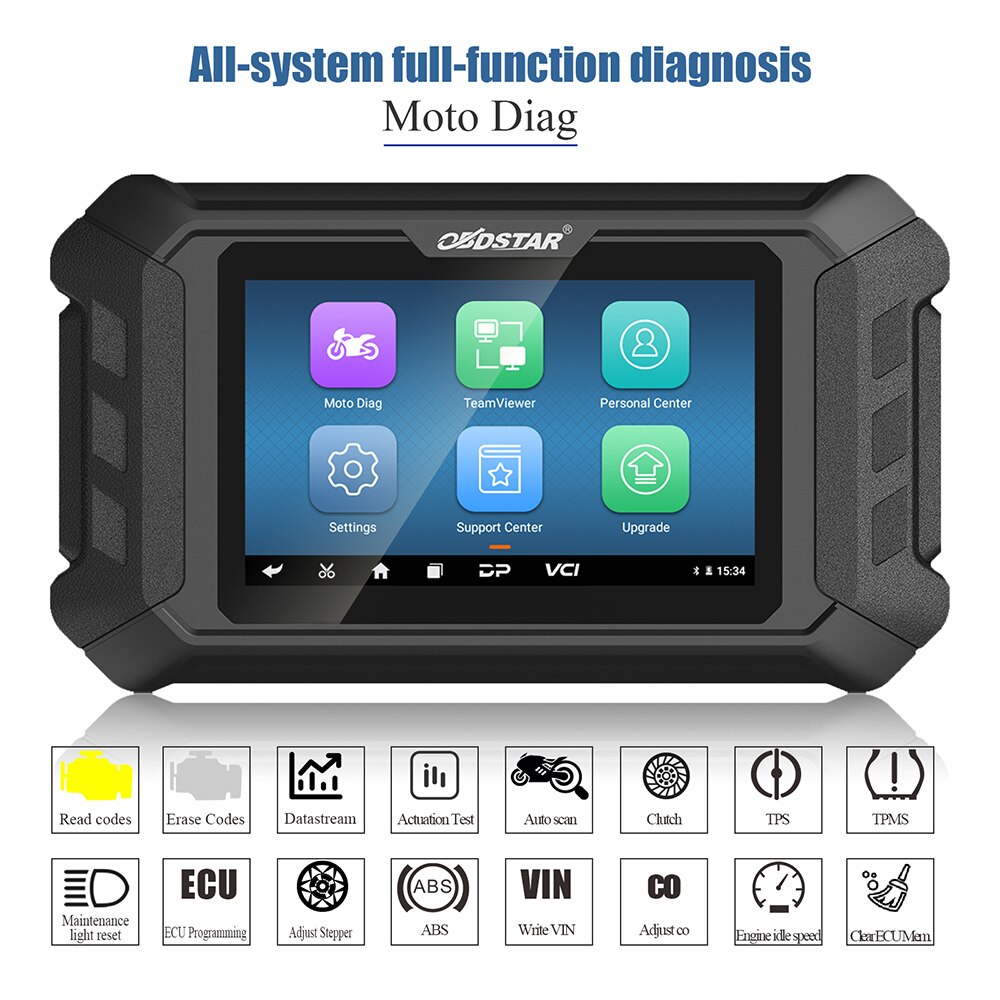

OBDSTAR MS50 Motorcycle Scanner Features:

1. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

2. Provide complete diagnostic functions including fault codes reading or clearing, data stream reading, action test, setting, coding, etc.;

3. Menu Arbitrary selection is more convenient and quick;

4. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

5. One-Click remote function, OBDSTAR technical staff remote assistance;

6. Support most of the Asia and Europe models;

7. New android 5.1.1 operation system;

8. Wi-Fi connection to the internet, one-click software upgrade;

9. Language: English only.

Differences between MS50 standard version & basic version:

1. MS50 standard version supports ECU tuning, while basic version doesn't.

2. MS50 standard version supports more brands of motorcycles than the basic version, please download the supported list for reference.

APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA

China:
CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, LINHAI, QJBENELLI, SHINERAY, ZONTES

Americas:
ACELLERA

Optional Software Kit:

1. Odometer Recalibration support series (Works with P001,P002,M053 cable and M054 cable)

Europe:

APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas:

BUELL, HARLEY-DAVIDSON

Asia:

HONDA, KAWASAKI, SUZUKI, YAMAHA

China:

HAOJUE, KYMCO

2. Tuning support series (Works with P001,P002,M053 cable and M054 cable)

HONDA

3. Motorcycle key programming support series (Works with P001,P002,M053 cable and M054 cable)

Europe:

APRILIA, PIAGGIO, VESPA

Asia:

HONDA, KAWASAKI, SUZUKI, YAMAHA

4. Tuning support series

HONDA

Specifcations


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 700g
Dimension	198mm*115mm*31mm

MS50 Function Display

1) Brand Supported



2) Help Data/Technical Bulletin/Fault Guidance




3）Supported Systems List/Manual Service Function





4) Manual Maintenance Reset




5) Diag Socket/Diag Connector Location




6) Data Flow Text/Waveform Diagram/Instrument Diagram




7) Special Function-BENELLI



8) Special Function/Advanced Function-KTM


9) Special Function/Systems List-PIAGGIO





10) Special Function-VESPA


11) Special Function-HONDA



12) Special Function/Advanced Function-KAWASAKI





Comparison Between MS50 Standard Version & MS50 Basic Version



Comparison: MS80 vs MS50


Item			MS80	MS50
Diag Cable			High-Quality ，low price	High-Quality ，low price
Main machine			8-inch Android tablet	5-inch Android tablet，OBD charge
Plastic Cover			Industrial Design	Industrial Design
Smart switch pin			Highly integrated diagnostic connector	Highly integrated diagnostic connector
Diag Connector			OBD adapter, no need to disassemble	OBD adapter, no need to disassemble
Operation System			Android	Android
Wifi			one button click	one button click
Language			English and more local language	English and more local language
Remote assistance			Yes, engineer can assistant via remote control software	Yes, engineer can assistant via remote control software
Immobilizer	Europe	TRIUMPH	√
		GILERA	√
		PEUGEOT	√
		PIAAGIO	√
		DUCATI	√
		VESPA	√
	America	HARLEY	√
Motorcycle diagnosis	Asia	HONDA	√	√
		KAWASAKI	√	√
		KYMCO	√	√
		SUZUKI	√	√
		SYM	√	√
		YAMAHA	√	√
		MONTESA	√
		PGO	√	√
		HARTFORD	√	√
		AEON	√	√
		BENELLIDSK	√
	Europe	APRILIA	√
		BENELLI	√	√
		BMW	√
		DUCATI	√
		KTM	√	√
		PIAGGIO	√	√
		TRIUMPH	√
		VESPA	√	√
		MALAGUTI	√
		GASGAS	√
		GILERA	√
		GUZZI	√
		AGUSTA	√
		DERBI	√
	America	HARLEY	√
		INDIAN	√
		VICTORY	√
		BRP	√
OBD	OBD-II	OBD	√	√
Motorboat diagnosis	Asia	HONDABOAT	√
Comparison of accessories
M001		Main Cable	√	√
M002		Power Cable	√	√
M002A		GND	√
M003A		Multi functional jumper	√	√
M004		APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA	√	√
M005		KAWASAKI	√	√
M006		KAWASAKI	√
M012		SUZUKI	√	√
M015A		HONDA/HONDA MONTESA	√	√
M018		YAMAHA	√	√
M019		KTM	√	√
M021		AEON/BENELLI/BENELLI DSK	√	√
M026		SYM	√	√
M027		KYMCO/KAWASAKI	√	√
M028		pgo		√
M030		HARDFORD		√
M034		HARLEY-DAVIDSON	√
M037		DUCATI	√
M040		BMW	√
M041		EURO V	√	√
M042		INDIAN/VICTORY	√
M043		BRP	√
P001		IMMO KIT(Optional)
12V2A		CHARGER	√	√
Support system			1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems	1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function			Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)	Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location			√	√
Diagnostic connector Display			√	√
Technical Bulletin			√	√
Fault Guidance			√	√
Data Flow Text/ Waveform Diagram			√	√
Instrument Diagram			√	√
Any menu back			√	√
Interactive Circuit diagram			√	--
Components Description			√	--

OBDSTAR MS50 Latest Updates:
HAOJUE V30.03 DIAG Upgrade
Motorcycle Diag Upgrade Announcement of April

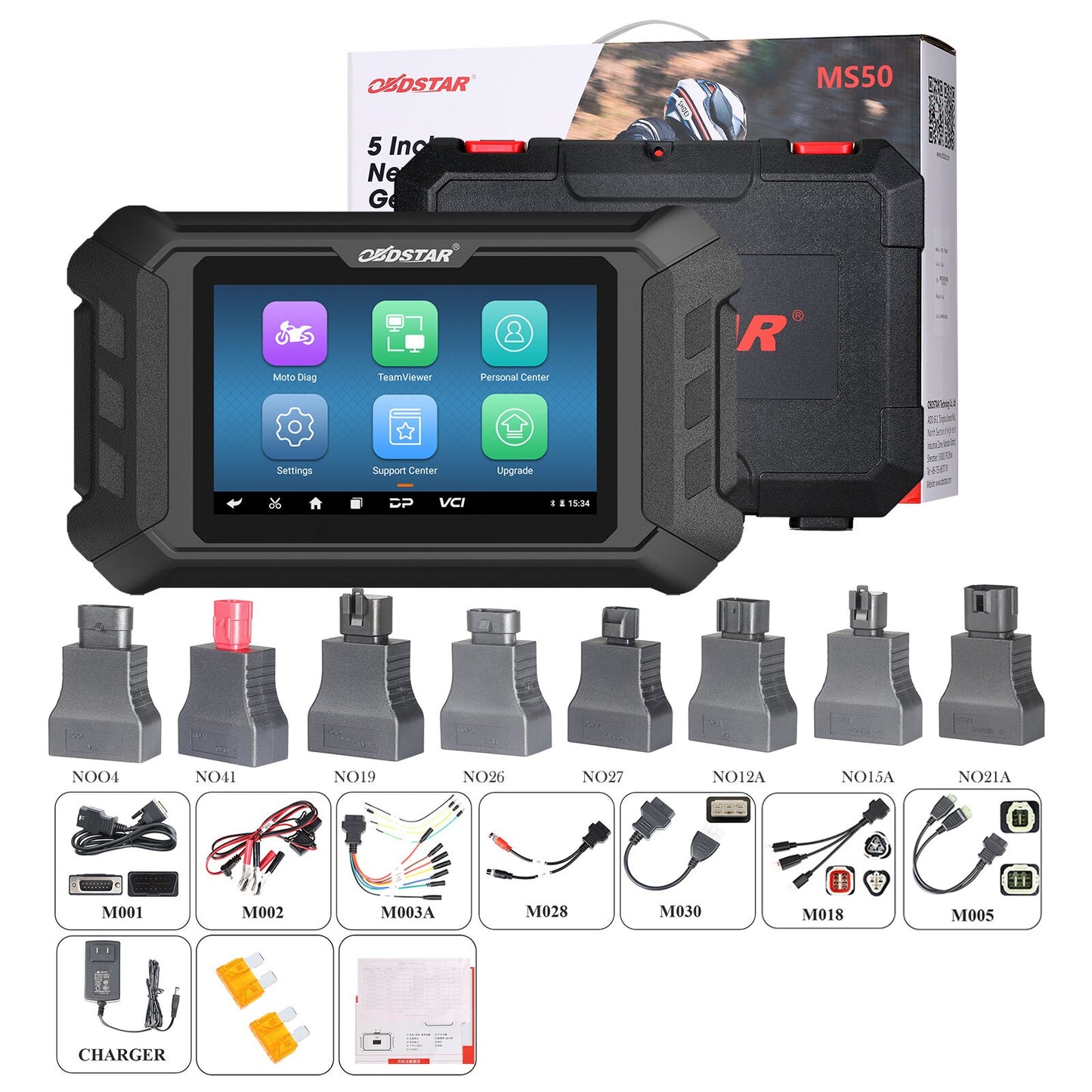

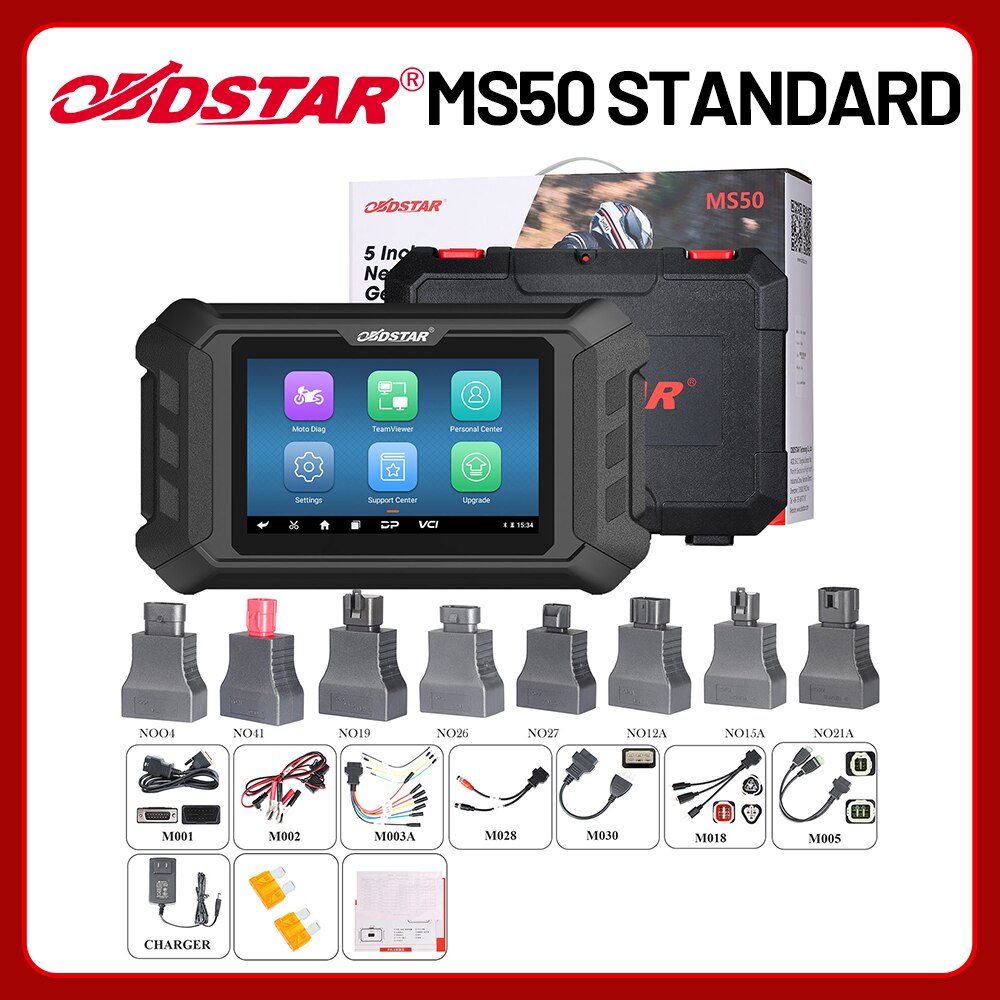

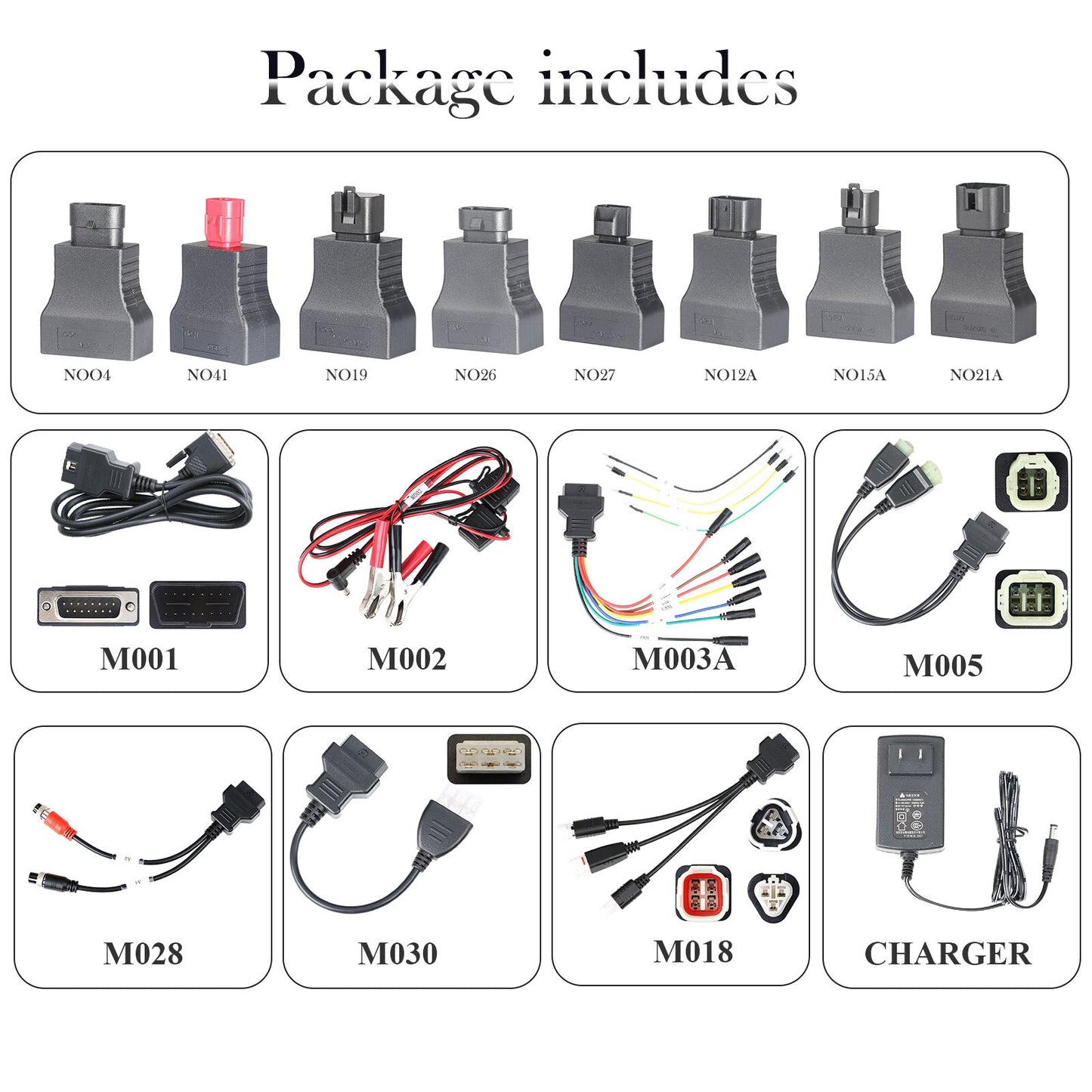

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NOO4 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter
