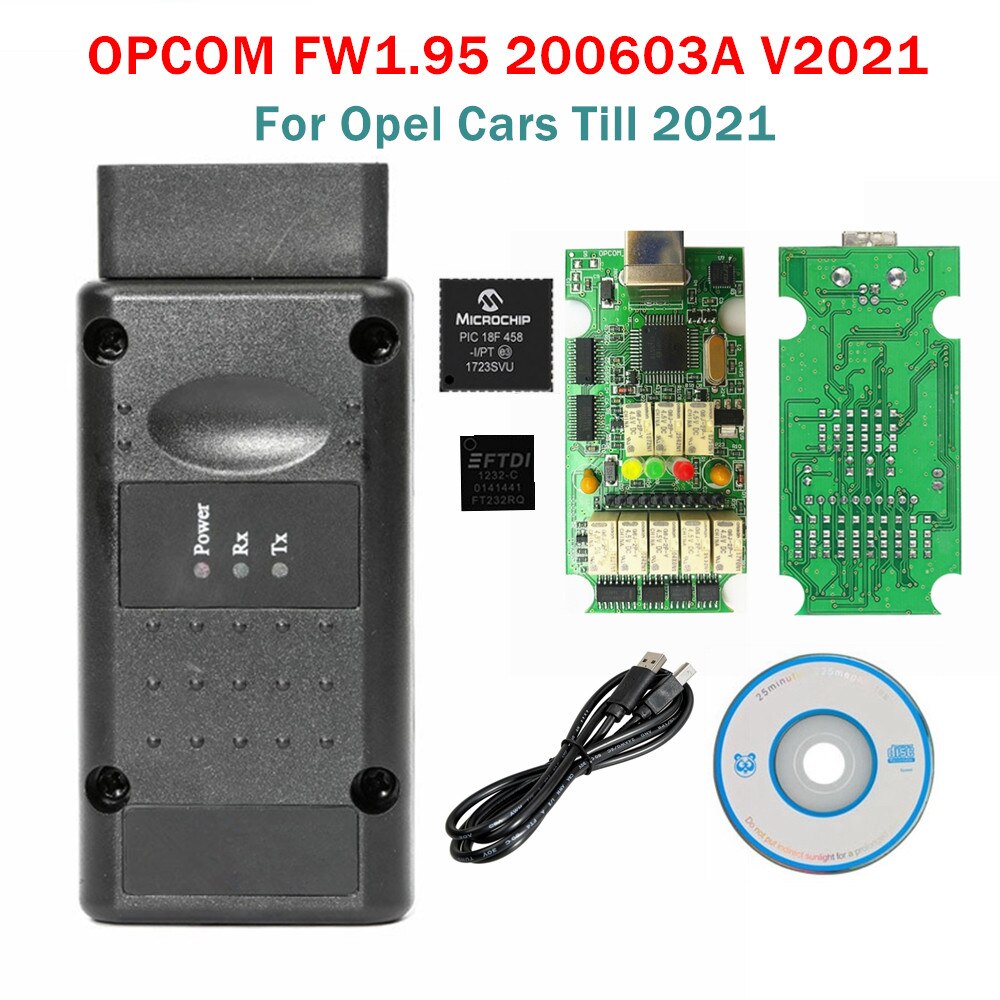

2021 V200603A Firmware OPCOM 1.99 1.95 1.70 OBD2 CAN-BUS Code Reader Opel OP COM OP-COM Diagnostic PIC18F458 FTDI

1) Newest Software OP-COM 200603A . For Opel Cars Till 2021

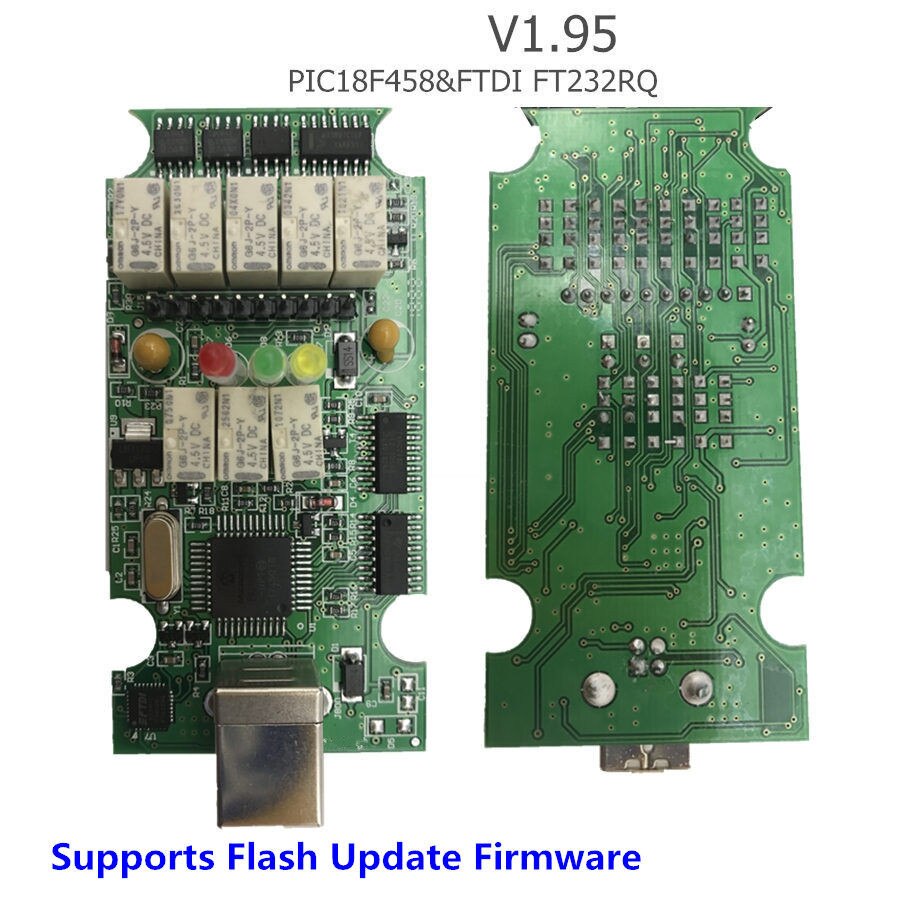

2) Green PCB Board,Real PIC18F458&FTDI FT232RQ

Firmware V1.95,Supports Flash Update Firmware

3) OPCOM V2021 Multi-Language

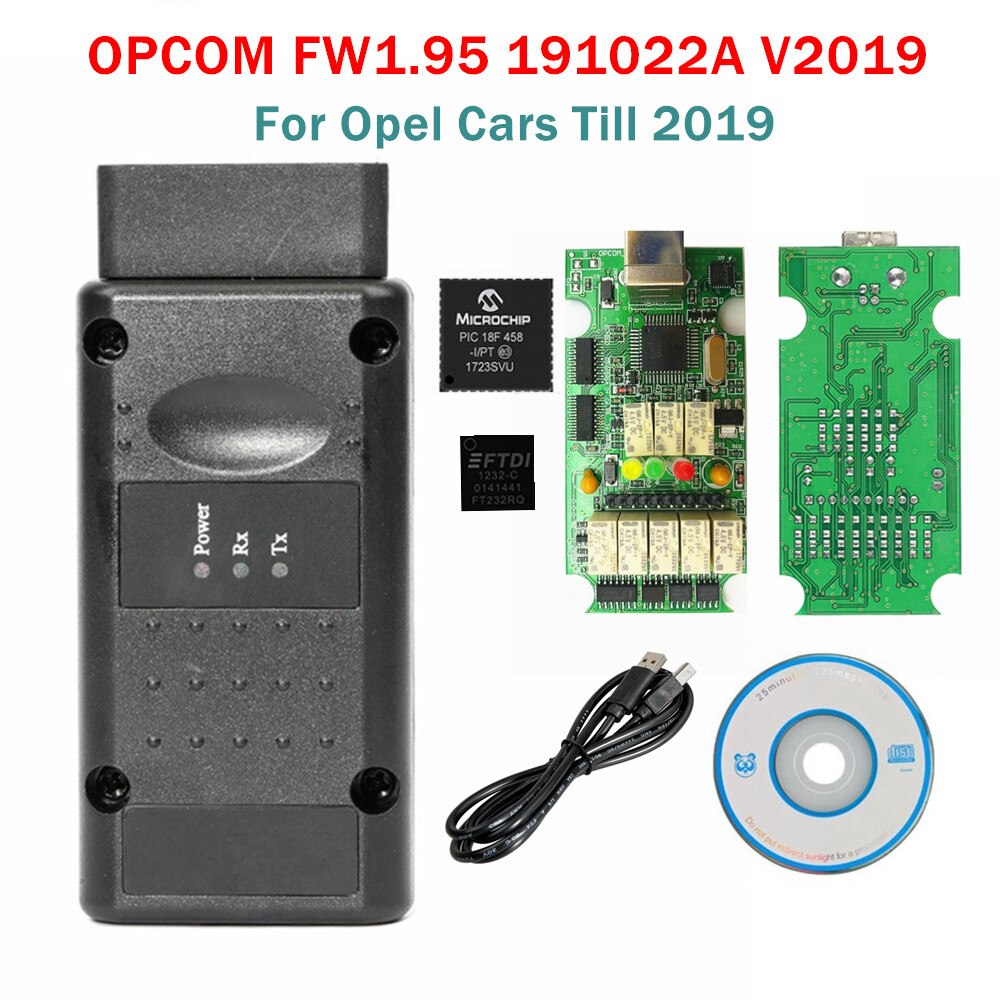

New OPCOM 191022A V2019 Hilights:



1) Newest Software OP-COM 191022A . For Opel Cars Till 2019

2) Green PCB Board,Real PIC18F458&FTDI FT232RQ

Firmware V1.95,Supports Flash Update Firmware

OPCOM 1.95 V2019 VS OCPOM 1.95 V2021:





1.

OPCOM 1.95 V2019 works for opel cars untill 2019

OPCOM 1.95 V2018 works for opel cars untill 2021



2.

OPCOM 1.95 V2019 supports win xp / win7 32bits

OPCOM 1.95 V2021 supports win xp / win7 32bits



3.

All Versions PCB are Original PIC18F458 Full chips & FTDI FT232RQ which can flash FW Update.



4.

V2019 and V2021 support multi-languages.



Please Pay Attention:



The hardware Main unit PCB Board can only be used with the device software. This software can only be used with its own version of the hardware. Other old versions of OPCOM hardware cannot use this V2021 or V2019 software.

Although V2021 or V2019 are all Firmware V1.95 versions, they do not support each other. The built-in burning program is different, and the software is different too.

------------------------------------------------------------------------------------------------------------------------------------------------









PIC18F458 Chip+FTDI Chip

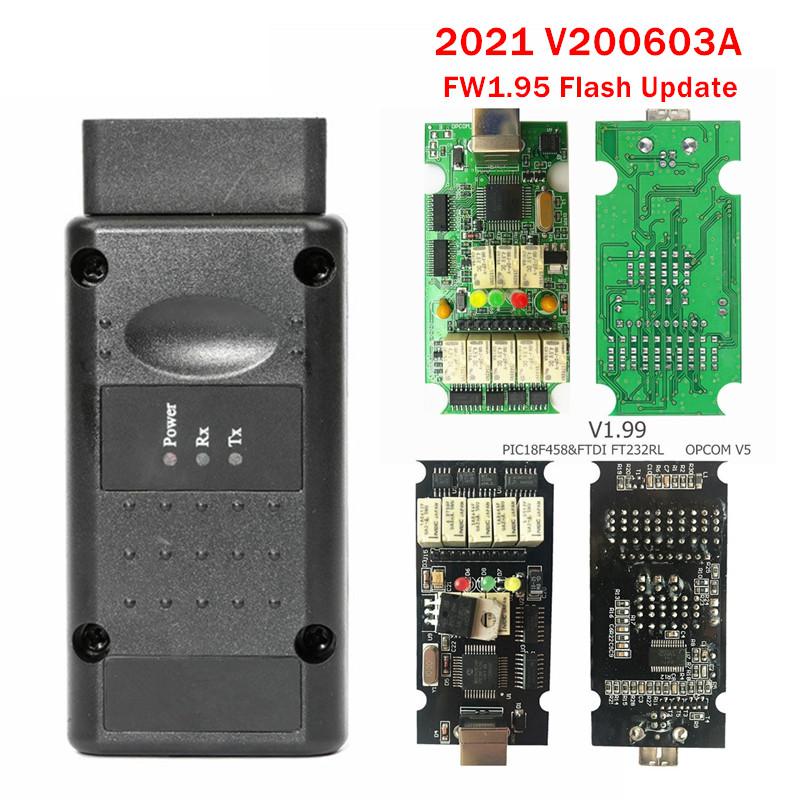

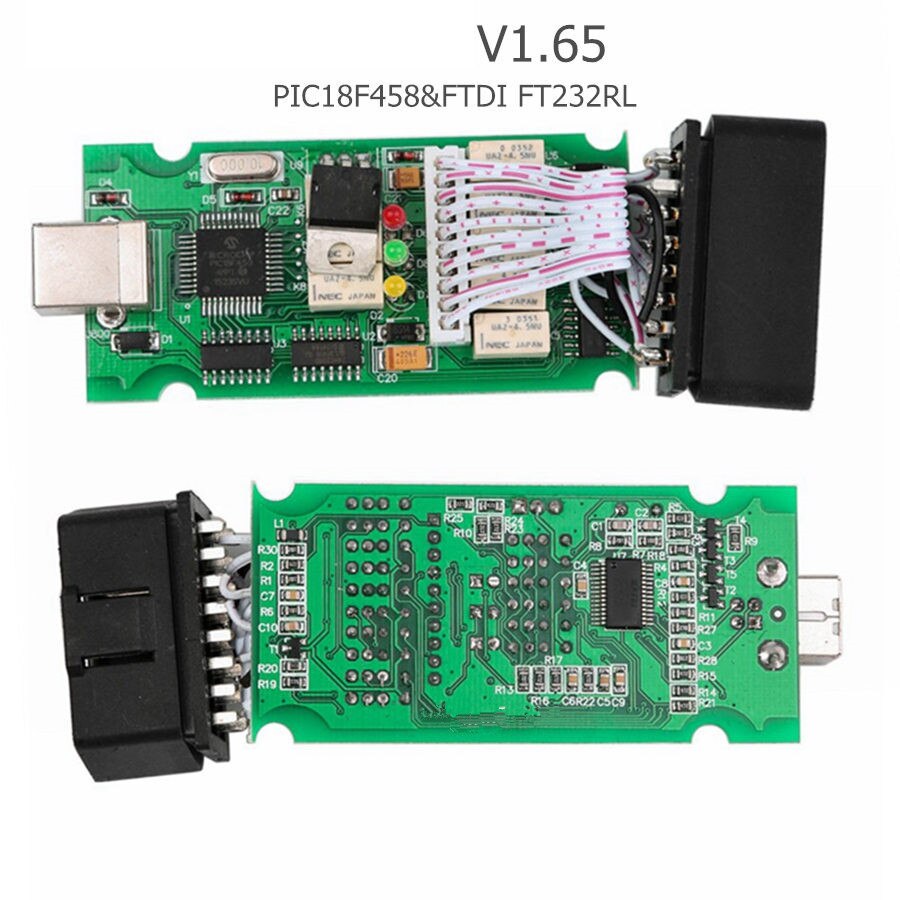

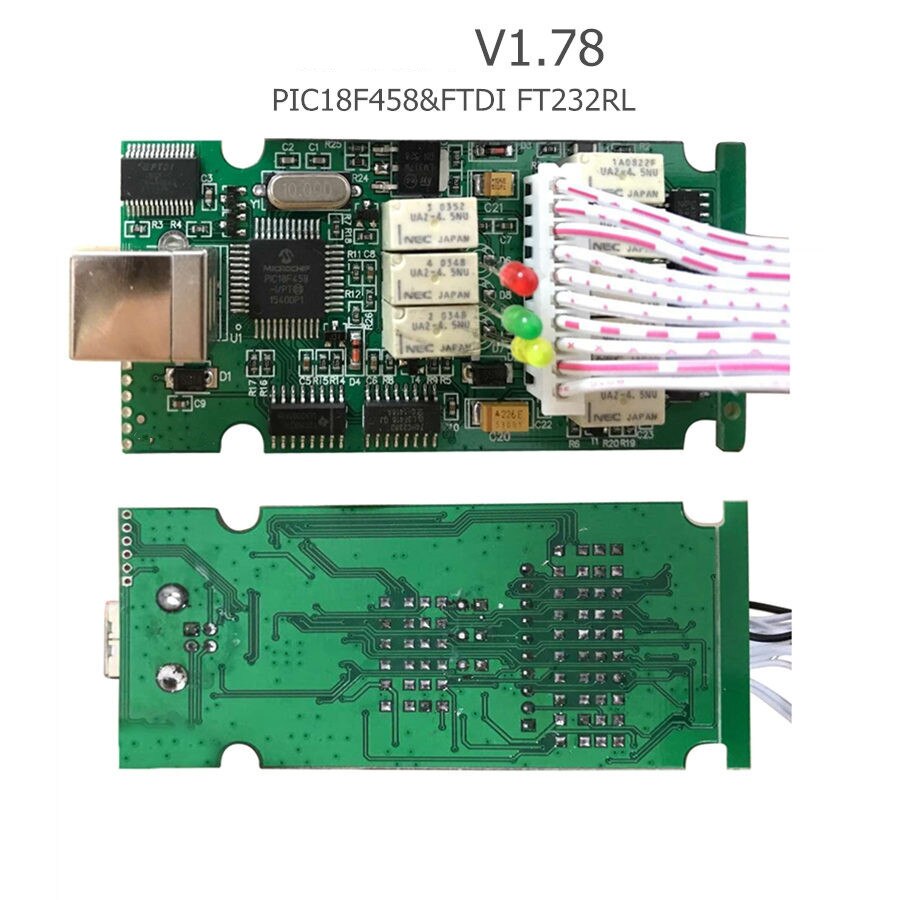

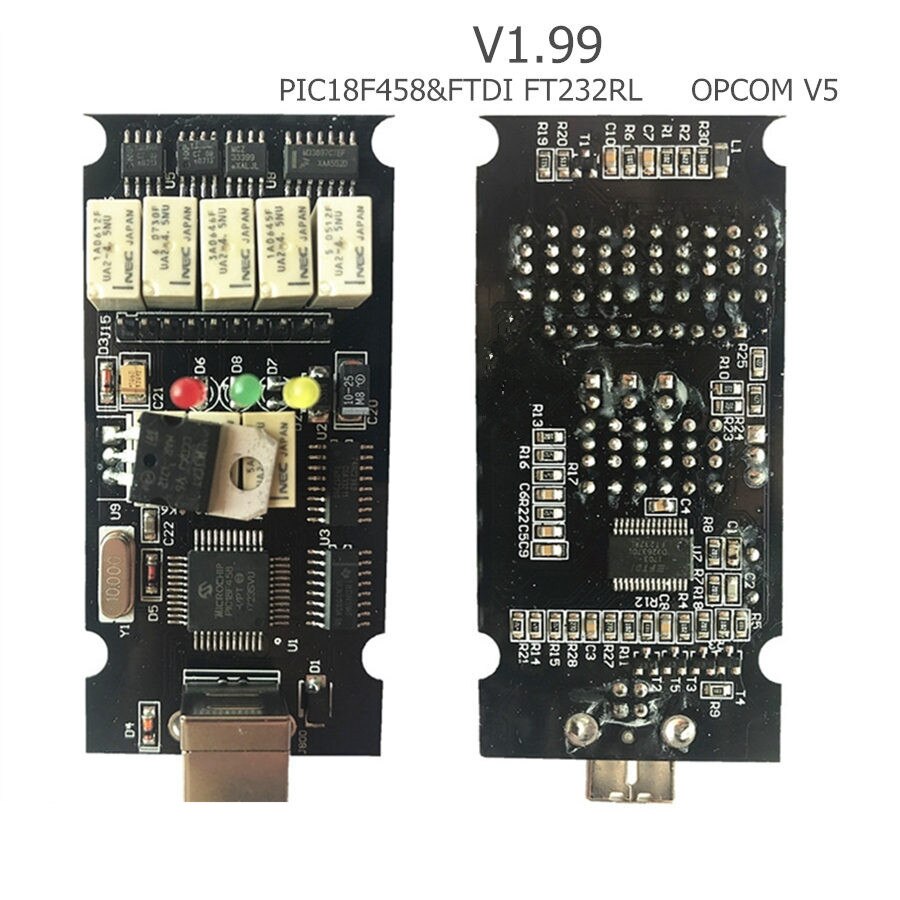

V1.59 V1.65 V1.70 V1.78 V1.99 isFT232RL Chip

V1.95 is FT232RQ Chip





Highlight:

OPCOM is a special PC Based diagnostic interface especially for OPEL.

Best Chip:PIC18F458 and FTDI FT232RL,high speed and more stable function



Firmware v1.65 &V1.70&V1.95(optional)Software V2014 120309A

Language: English Only

Windows System:Win XP/WIN 7 32bits ONLY(close anti-virus program).No Work Win 8 or win10,computer not compatible.

Note: Please do not update online, or device will damaged broken.

If buyer received unreadbale CD or damaged,please ask me to send you download link .



Function:

1. It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

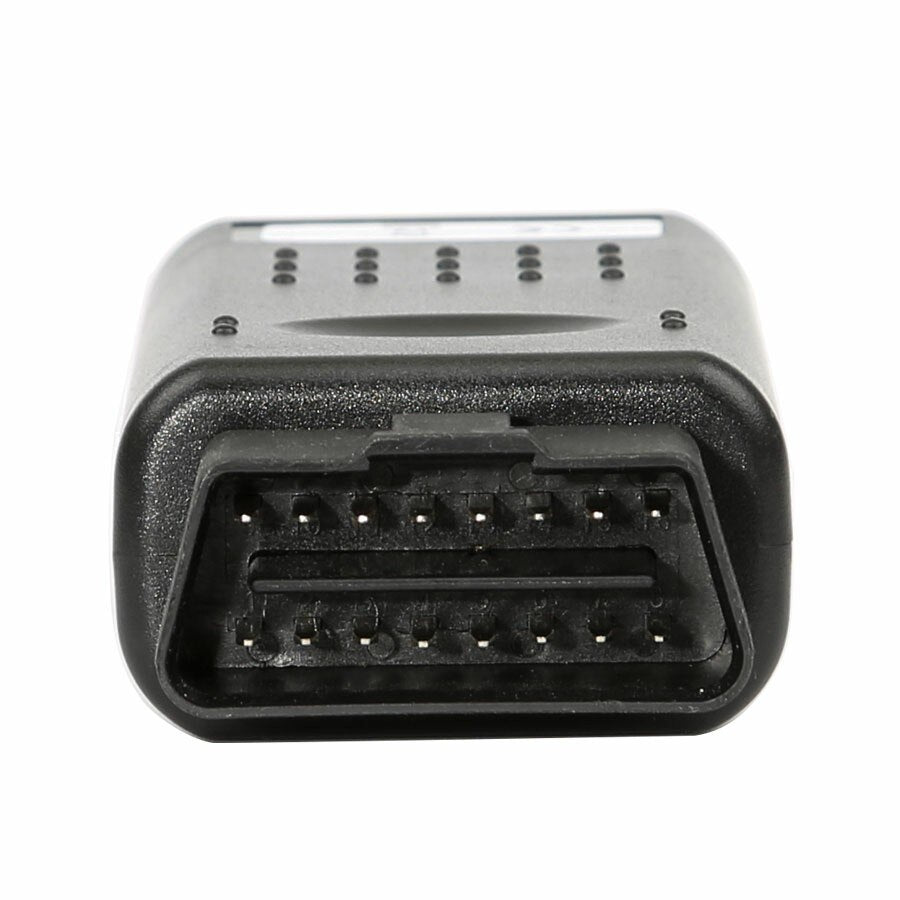

4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information:



Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!



You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps



Package list:

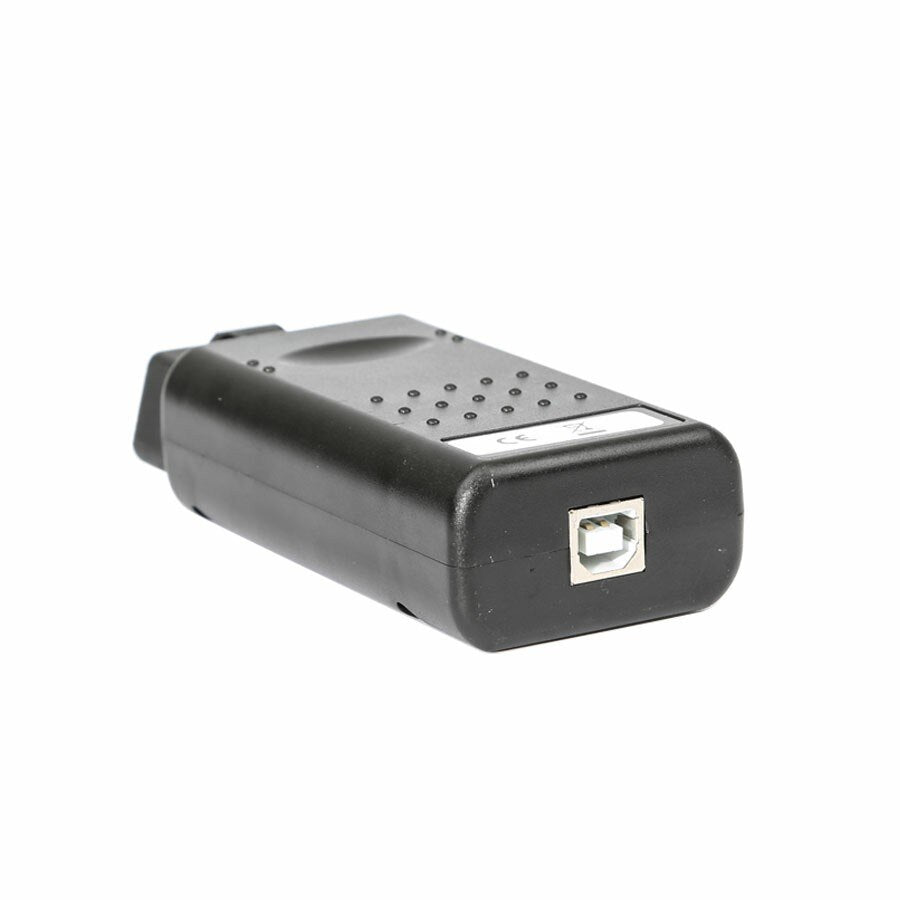

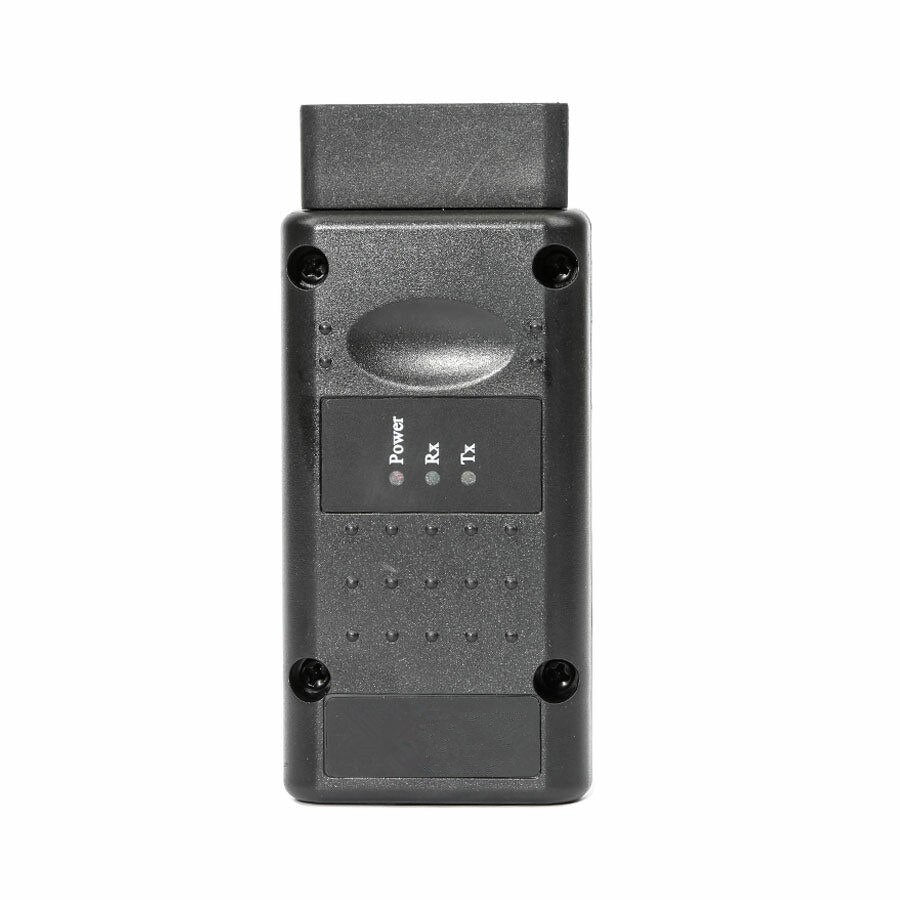

1 x OP COM Interface

1 x USB Cable

1 x CD

Note:If buyer received unreadbale CD or damaged,please ask me to send you download link .Do not open dispute or leave negative feedback .
