MPPS V22 Master Tricore+Multiboot+Breakout Tricore Cable+Bench Pinout Cable no limit Perfect kit

Name: MPPS V22 Master Tricore+Multiboot+Breakout Tricore Cable+Bench Pinout Cable no limit Perfect kit
Brand: OBDLAUNCH
SKU: DIAG-1994-1
Price: 49.34 USD
Availability: InStock

$49.34

~~$0.00~~ $49.34

Sale Sold out

Shipping calculated at checkout.

color mpps main unit mpps full Set Tricore full set

Size 20mm

Quantity

MPPS V22 +Tricore Boot+BOSCH Tricore+Bench Pinout Cable full

--MPPS V22 add more car model ,

--MPPS V22 add more funtions,

--MPPS V22 support win7/win10,

--MPPS V22 no usage time limit , MPPS V21 has usage time limit.

MPPS V22 description part :

1.MPPS V22 Specifictions:

--Latest Version: Newest MPPS V22.2.3.5

--support car:Please contact to get MPPS V22 car list

-- Support System: WIN10, WIN7 (64bit)

--Carlist_MPPS V22 MASTER

https://mega.nz/file/sd4BQTLS#f4oM0ZCIMdWOwQ-8mcpajHDAJW_yYSf6GxPruH38XlE

--Software download link：

https://mega.nz/folder/wQ510ZLb#Owy3mT3EDOl_ZICHiSbBRw

SN NUMBER IS 43XXX

Sn serial number is based on 43xxx, and a unique serial number is customized again.

--Support Multi-languages:
Afrikaans, Albanees, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latviesu, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Romanian, Slovencina, Slovenski, Srpski, Suomea, Svensk, Turkish

--Support New Functions :

Added new FRF decryption in Tricore Boot.

Added PSA ME7.4.5 K-line/CAN and Special mode.

Added Opel Vauxhall ME9.6.

Added Renault Delphi DCM 1.2 Can.

Added VAG Simos 6.2/6.3.

Corrected a problem with Delphi E87 checksum.

Added new antituning search for EDC17 ecu’s.

Added (M)EDC17 Slave ecu’s both TP2 and UDS.

ADDed Fiat JTDM Marelli Multijet MJD9DF CAN

Various corrections and fixes.

MJ9DF READ VIDEO

2.The MPPS V22 is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:

Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).

Selectable full / partial reading and writing when the ECU allows this function.

Selectable reading / writing speed.

Writing “changes only” function for faster programming (when supported by the ECU).

Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.

Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.

Boot mode support for ECU’s with C167 and ST10 processors.

EEprom read/write functions for some ECU’s are included.

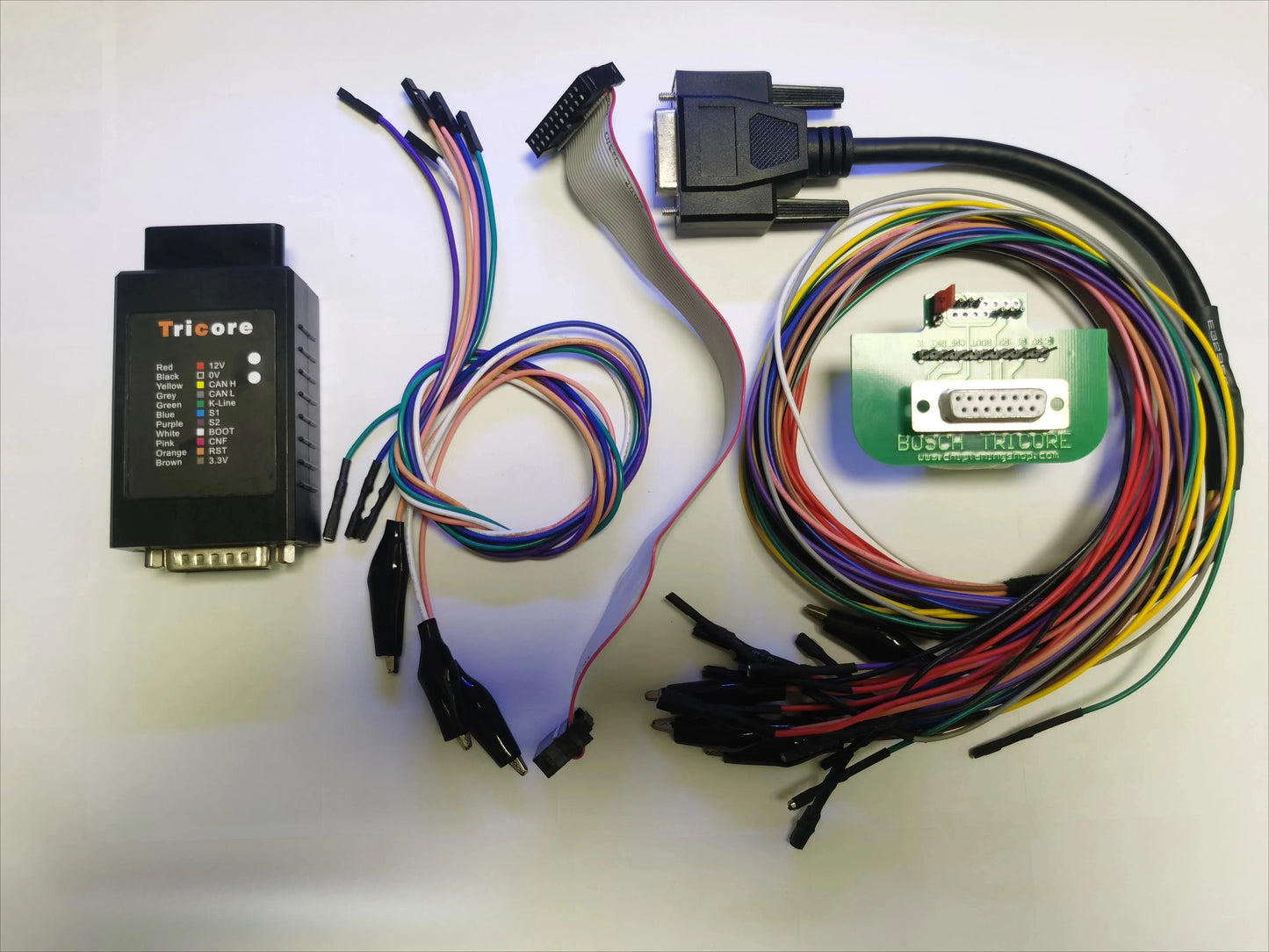

3.Tricore Boot + OBD Unlock Module Features:

TPROT / DS check feature, for testing if TPROT is active without opening ECU

Auto detects ECU and processor type. No need to select from list, everything is automatic!

Read/Write of all memories Eeprom, Irom, Xrom (where possible)

Patch function for OBD Flashing of TPROT ECU’s in boot mode (supports only VAG at the moment)

Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.

Checksum Correction supported for Bosch MEDC17 irom and eeprom.

Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom

NEW!Support for Bosch Service Mode to read password on ECUs using TP12+

NEW!Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

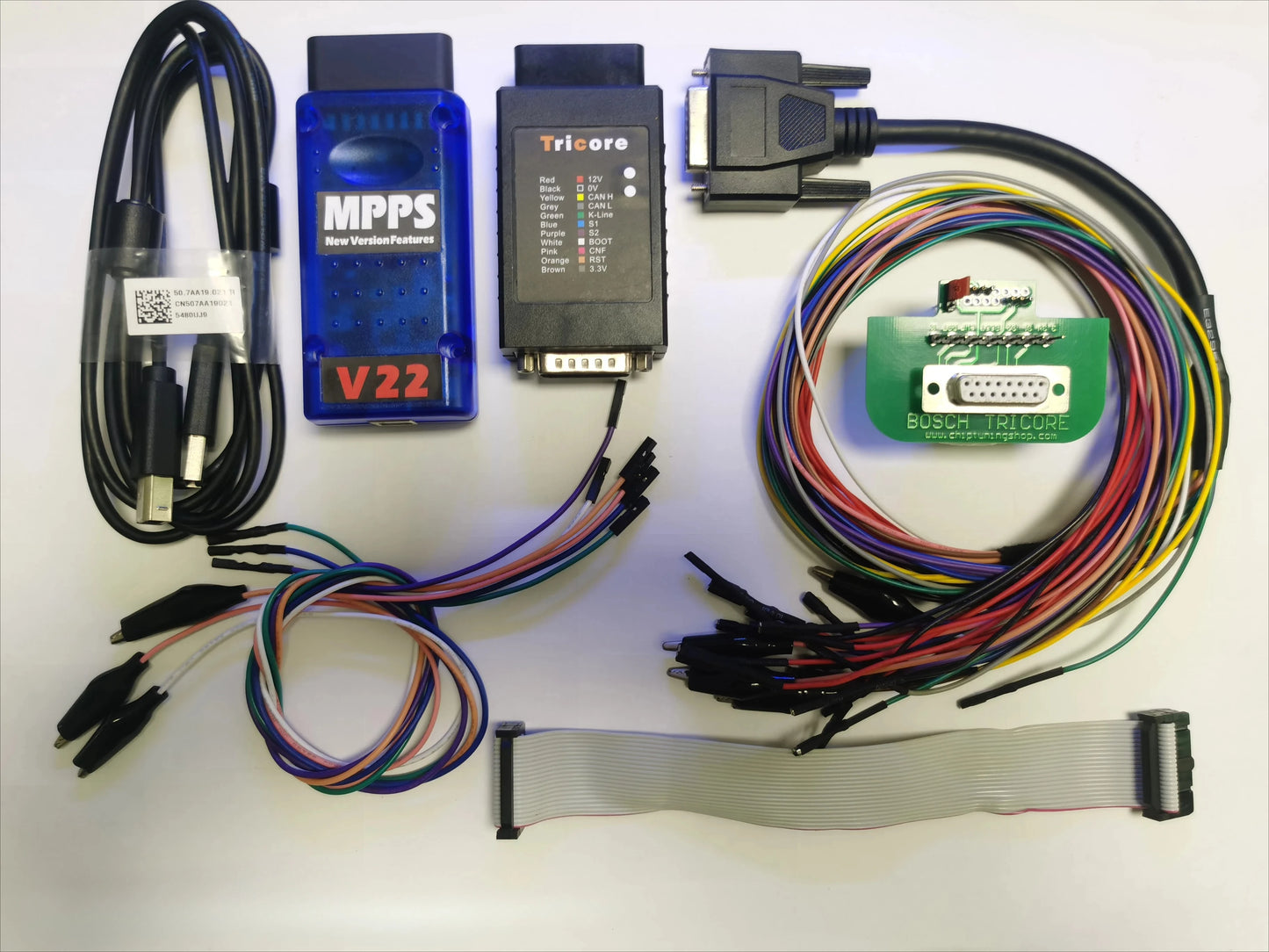

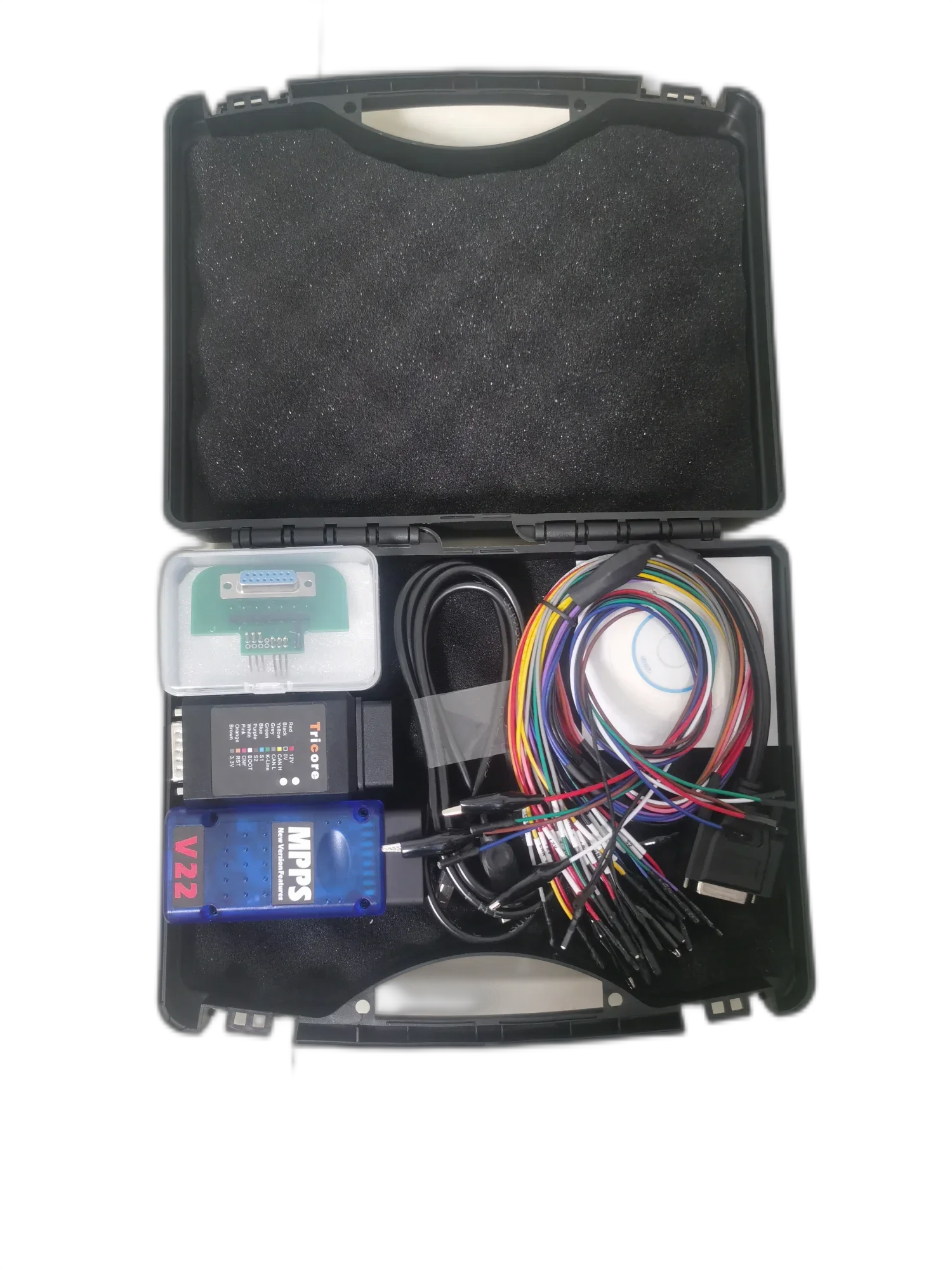

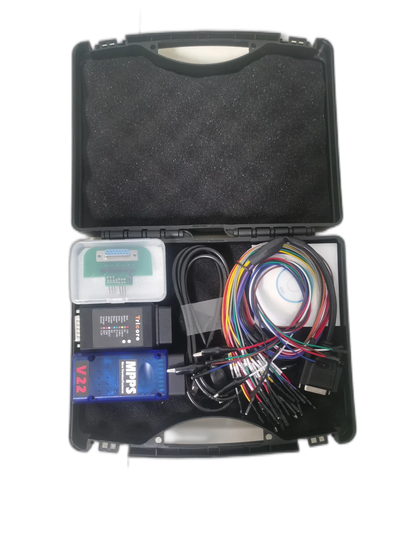

4.Packing list:

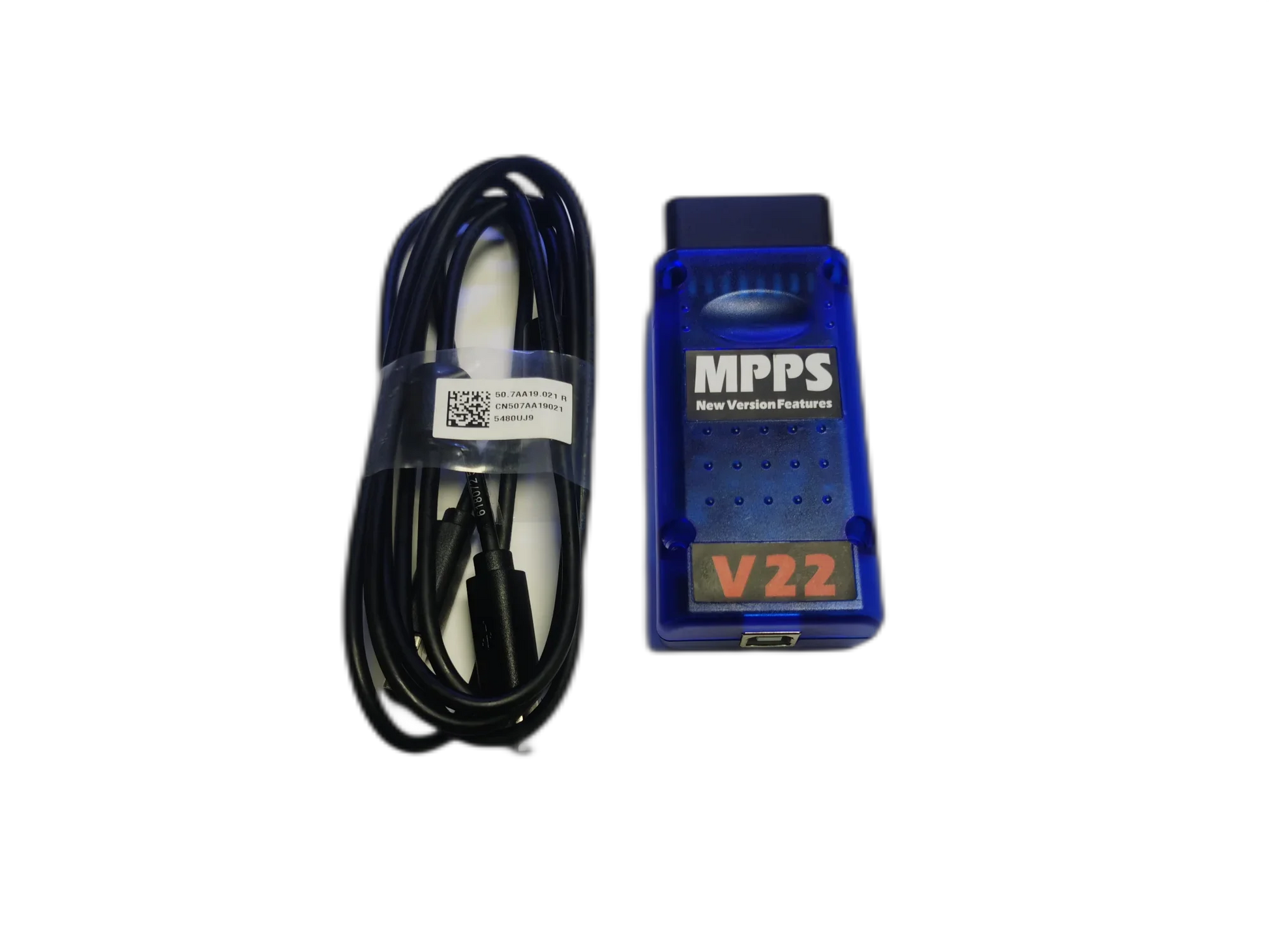

1* MPPS V22 main unit

1* USB cable

1*CD

1*Tricore full kit

1*BOSCH TRICORE Adapter

1*BOSCH TRICORE Adapter 6pin cable

1*BOSCH TRICORE Adapter DB15 cable

1*Bench Pinout cable DB15

1*BOX

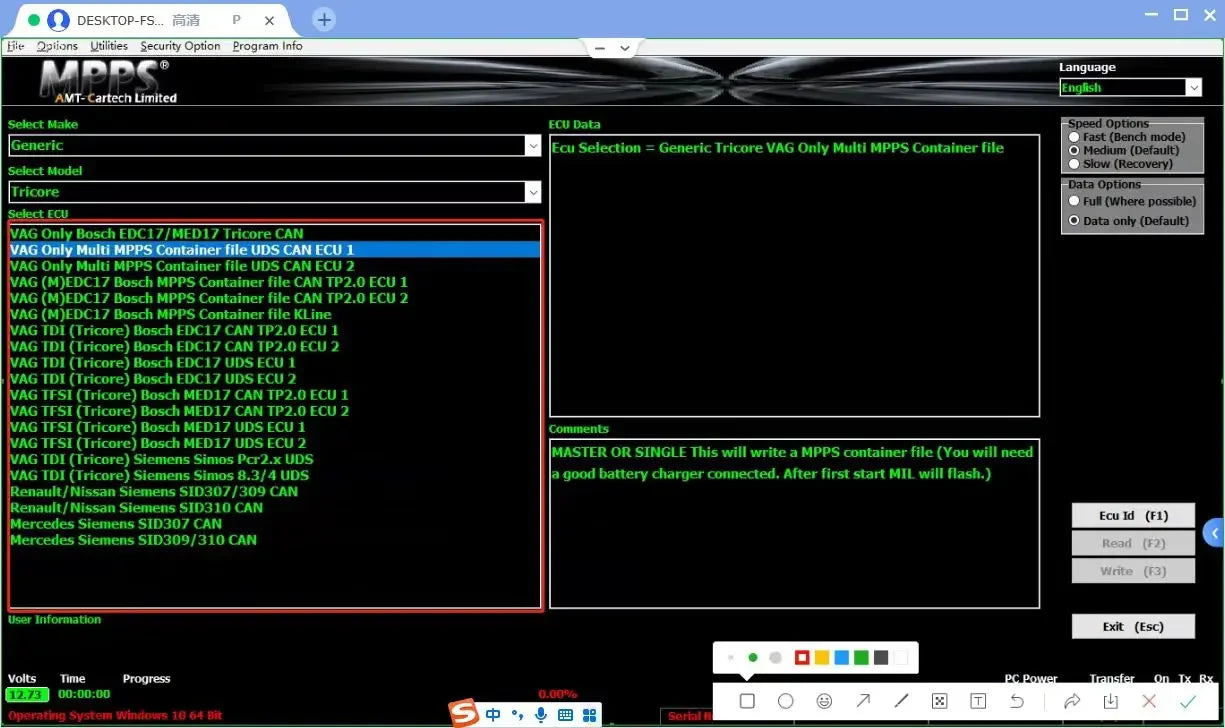

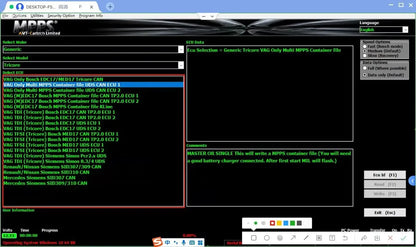

5.MPPS V22 Software Display :
