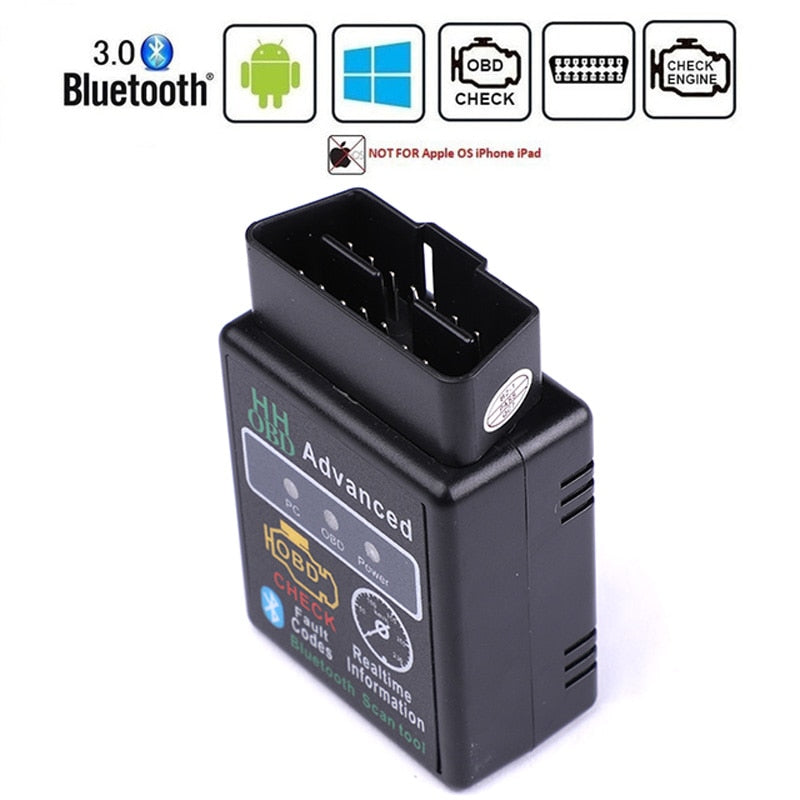

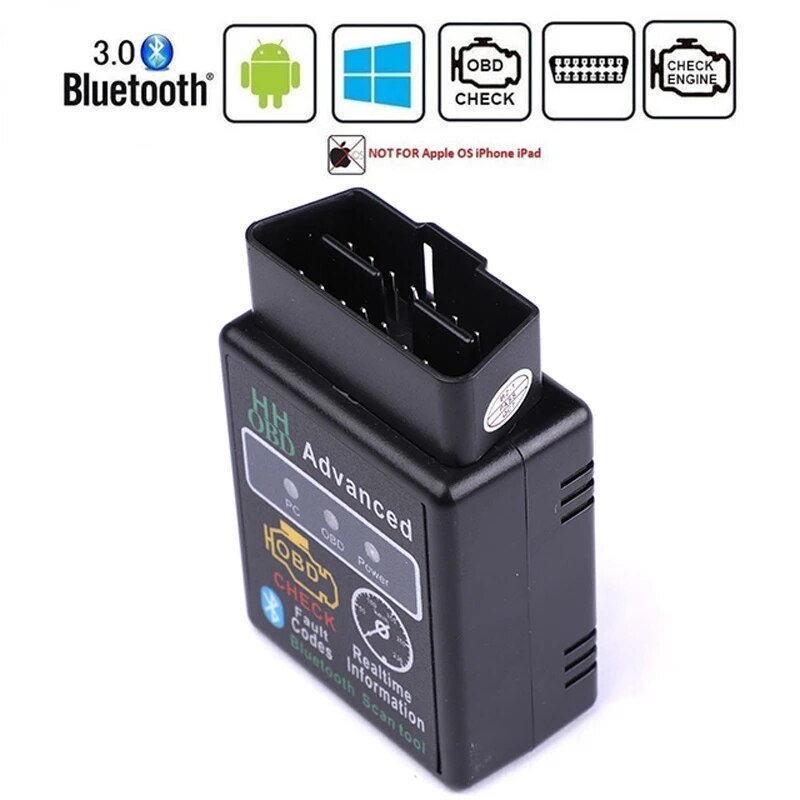

HH OBD ELM327 Bluetooth OBD2 OBDII CAN BUS Check Engine Car Auto Diagnostic Scanner Tool Interface Adapter Android PC

HH OBD Bluetooth V2.1 For options OBDII Car Diagnostic Tool  with Pic18f25k80 Chip Supports ATAL ATPPS

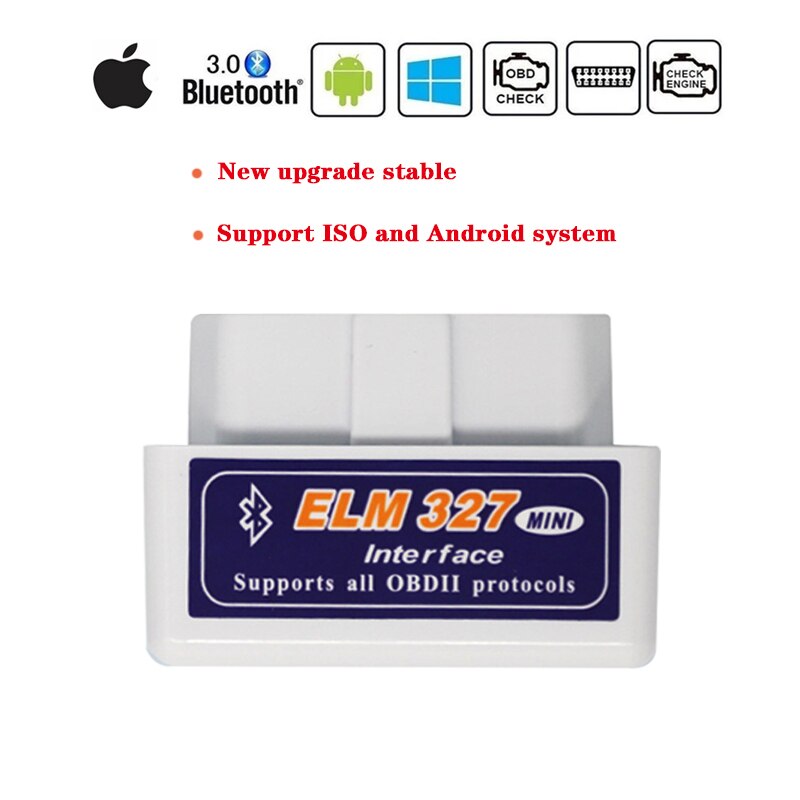

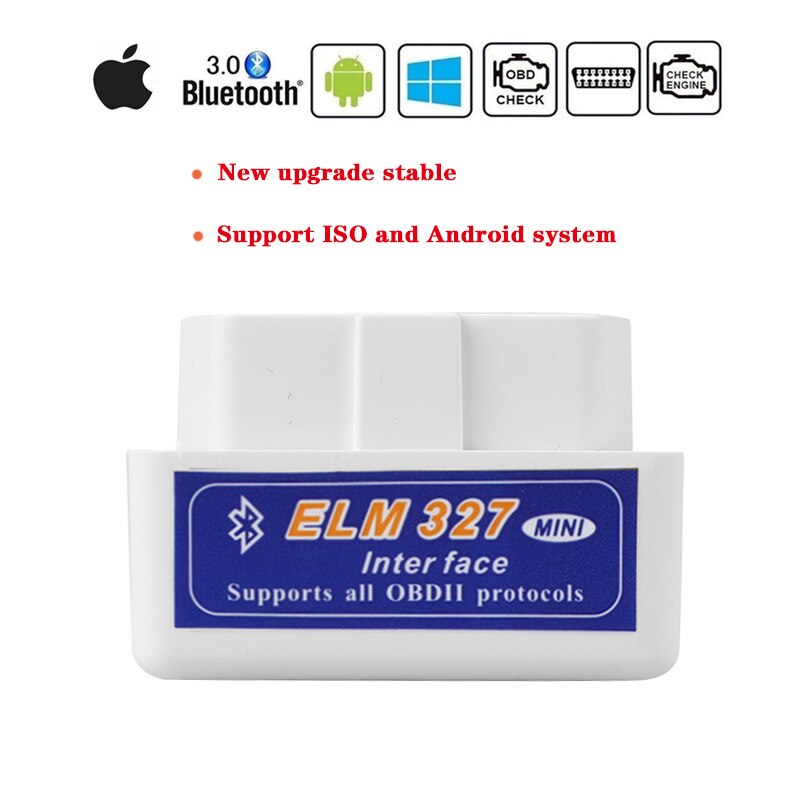

ELM327 V1.5  Bluetooth  For options OBDII Car Diagnostic Tool  with YM1130 Chip Supports ATAL ATPPS

WHY Choose V1.5 ELM327 or ELM327 OBD HH

1.V 1.5 ELM327 and ELM327 OBD HH Works with 9 protocols, including SAE-J1850 PWM , JAE J1850 VPW

2.If your phone is Apples ISO system, choose ELM327 V1.5 BluetoothNEW OBD

3.If your phone is Android, choose ELM327 BluetoothHH OBD

1.ELM327HH OBDare V2.1Version, 1 PCB board ,with PIC18F25K80 Chip.

2.ELM327 are V 1.5 Version, 1 PCB board ,withYM1130Chip.

3.Bluetooth version ELM327 password :1234 or 0000 .

4.All elm327 supports ATAL ATTP and more Commends .

5.Warehouses have full stock, RU/CN warehouse supports Fast delivery .

6.Samsung phone would not have stable connections, Samsung phone block strange connectors,pls understand

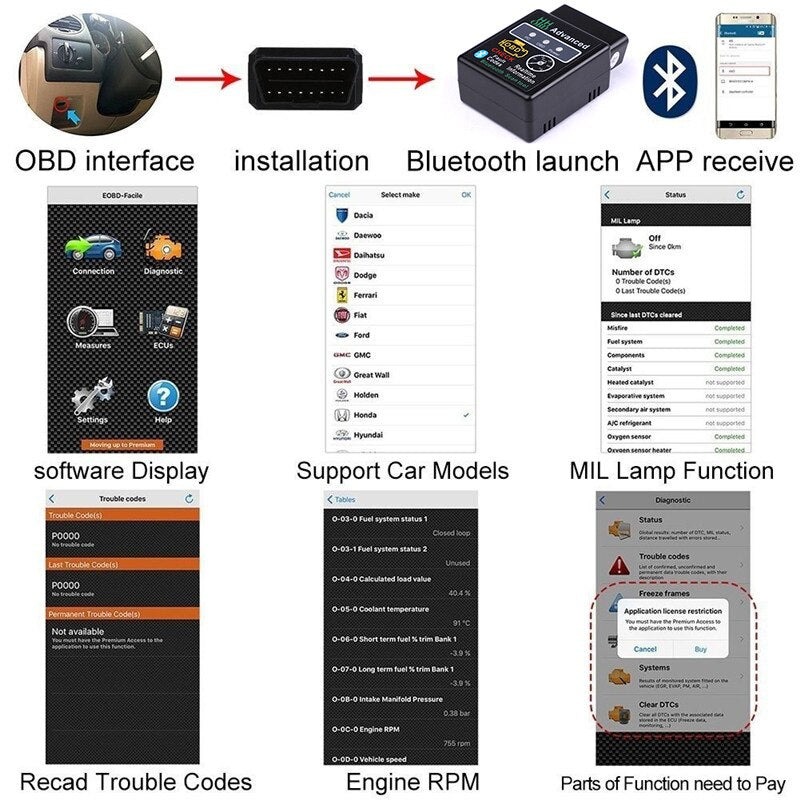

ELM327 V1.5 Works With Phone APP

ELM327 work with smartphone to Diagnostic car errors, and delete errors, so you need to buy a right type elm327 for your phone or tablet. ELM327 suport : TORQUE PRO software for Android phone, OBDscope software for Symbian system phone and PPC(Windows Mobile) system phone, ScanMaster-ELM Software for PC etc. ELM327 Package including CD software or QR CODE software ,all softwares are same note: if CD broken, pls contact seller or install from link here : http://www.360diag.net/a/downloads/OBD2_Fault_Code_Scanner/2015/0205/301.html

Language List of ELM327

(ELM327 APP supports Multi-Languages , because language changes with the operation system) Russian, Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish and so on

ELM327 V1.5 OBD2 Scanner support Functions List:

1.Engine RPM

2.2.Calculated Load Value

3.3.Coolant Temperature

4.4.Fuel System Status

5.5.Vehicle Speed

6.6.Short Term Fuel Trim

7.7.Long Term Fuel Trim

8.8.Intake Manifold Pressure

9.9.Timing Advance

10.10.Intake Air Temperature

11.11.Air Flow Rate

12.12.Absolute Throttle Position

13.13.Oxygen sensor voltages/associated short term fuel trims

14.14.Fuel System status

15.15.Fuel Pressure

ELM327 V1.5 and  ELM327 V2.1HH OBD   can read Standard OBD2 Protocols:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

ELM327 V 1.5 Key Features:

Wireless scanning for tool, support all OBD2 protocols Compatible with most OBD II compliant vehicles 3000 code definition database Read diagnostic trouble codes 16-pin socket adaptor for Bluetooth interface Built-in indicator lights Packaging: Type 1 1 x ELM327 OBD2 Bluetooth/WIFI diagnostic interface 1 x CD-ROM Type 2 1 x ELM327 OBD2 Bluetooth/WIFI diagnostic interface 1 x Carton Box with QR Code (if disk damaged during the slong time shipping, pls contact seller, do not dispute, thanks )

How to get the suitable APP software ?

pls Scan QR CODE here ,and then pls choose the right app for your phone system

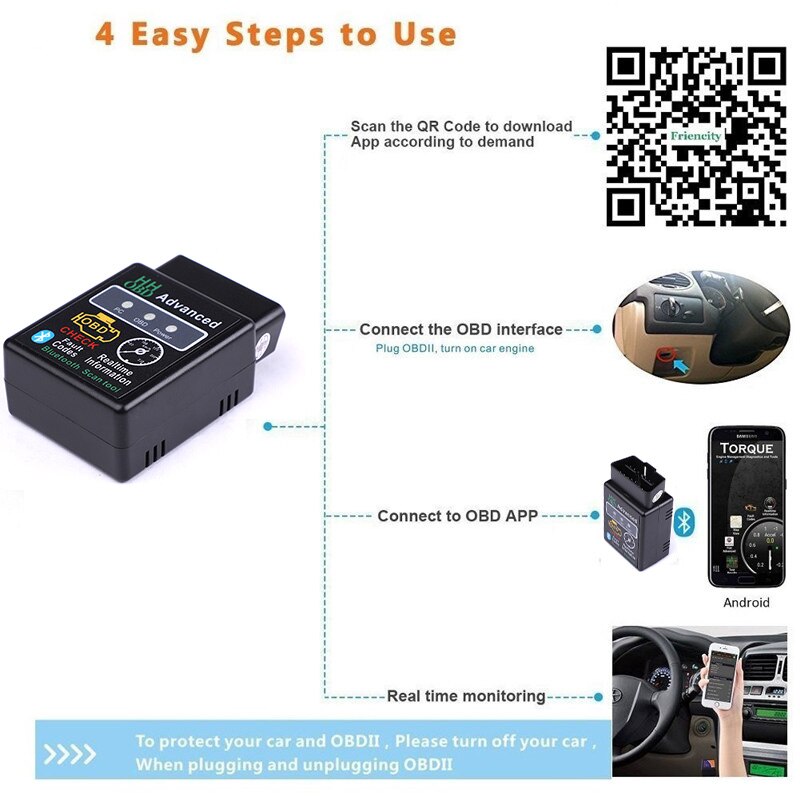

HOW To connect the phone and use the ELM327 ?

A: On android phone : 1. Open the "setting" of your android,and search bluetoothfrom ELM327:OBDll, then input password 1234.

2.Open your Torque--etting---OBD2 Adapter Settins---Connection Type---Bluetooth---back---Choose Bluetooth Device---OBDII[AA:BB:CC:11:22:33].
