Heavy Duty Truck 2.8.150 Premium Tech Tool for VOCOM II Vocom2 mini Diagnostic Tool Truck Bus excavator diagnostic tool

Heavy Duty Truck 2.8.150 Premium Tech Tool for VOCOM II Vocom2 mini Diagnostic Tool Truck Bus excavator diagnostic tool

$747.45
$0.00 $747.45
Sale Sold out
Shipping calculated at checkout.
Color

Heavy Duty Truck 2.8.150 Premium Tech Tool for VOCOM II Vocom2 mini Diagnostic Tool Truck Bus excavator diagnostic tool

Support Languages:

English,Cestina,Dansk,Deutsch,Espanol,Francais,Italiano,Latviesu,Lietuviu,Magyar,Nederlands,Polski,Portugues,Romana,Srpski,Suomi,Svenska,Turkce, Japanese,Chinese,Korea etc.

Supported Vehicles Models:

FOR V-olvo Trucks - Older electrical system, Vehicle electrical system '98; VERSION2, VERSION3; VERSION4 - FH4/FM4;
FOR V-olvo Buses - Conventional, Multiplexed, Multiplexed v2, Multiplexed v3;
FOR V-olvo Construction Equipment;
FOR V-olvo Marine engines - VERSION2, VERSION3;
FOR V-olvo OEM Component Customer - VERSION2, VERSION3;
FOR Mack Trucks -V-MACI/II/III,ITC,IV,IV+,I, DTI;
FOR UD Trucks - VERSION2, VERSION3;
FOR Renault Trucks - VERSION2, VERSION3, VERSION4; (EURO6,DXI,DTI).

①Connectivity indicator

Blue light.

Blinks when connecting.

Stable light when connected.

②Status indicator

Green light when starting up.

Light is off when the device is ready to operate.

Red light when errors are stored in the memory.

Stored errors does not prevent you from using the device.

③Power indicator

Blinks when starting up.

Stable light when ready to operate.

Note: The color of the light indicates the battery condition of the connected vehicle. The device itself has no internal battery.

FAQ:

1.Does it support USB connection?

No, it only supports wifi communication (you can use the wifi network card that comes with the laptop, or use the matching USB wifi adapter to connect), the wifi password is v2d + device serial number (lowercase letters)

2.How many years of vehicle models does it support?

It can support vehicles models from the year of 1996 to 2021.

3.What cables does the product include?

The mini vocom ii comes with 8pin cable, but it does NOT include 14pin and Renault 12pin cable, which need to be bought separately.


Product Specifications:



Computer operating system

Windows 10 (32/64 bit)

Computer connection

Wi-Fi

Wi-Fi support

IEEE 802.11 a/b/g/n    2.4 Ghz and 5 Ghz

Wi-Fi security

PSK, EAP-PEAP, EAP-TLS,WPA or WPA2

Diagnostic application interfaces

RP1210C, J2534, J2534-1

Vehicle battery

12V or 24V

Vehicle electronic architecture

Version 2, Version 3, Version 4 T1

Vehicle connection(*using OBD2 adapter)

OBD2, 9-Pin*

Vehicle interfaces

2xCAN (max. 1 Mbps) 1xJ1708 (max. 38 Kbps)

Vehicle communication protocols

ISO 11898,ISO 15765-2, SAE J1939, SAE J1708,SAE J1708

Operating voltage

6V to 32V (max. 36V)

Operating temperature

-40°C to +70°C/ -40°F to +158°F

IP protection rating

IP44

Weight

85 grams/3 ounces

Dimensions (WxDxH)

110mm x 47mm x 22mm/4.33in x 1.85in x 0.86in

Package Includes:
1pc x VOCOM II Mini dongle
1pc x 8pin OBD2 cable
1pc x SSD hard disk------optional

Software Update: 2.8.150
OS Requires: Window7 32bit Professional more better

Tech Tool (TT) is a tool that supports the repair and diagnostic process. It was developed to make repair shop tasks easier and more efficient. TT can be used in the repair shop, out in the field, at the roadside, or during test drives. TT is a diagnostics application that covers the whole repair process through the use of plug-ins. With TT you can diagnose, test, calibrate, and program a product. A product could be a vehicle, engine, or a machine. TT also provide functions for updating the tool, communication with the product, and other external applications. The set of plug-ins, user authorizations, and available languages is adjustable to provide every user with what they need.

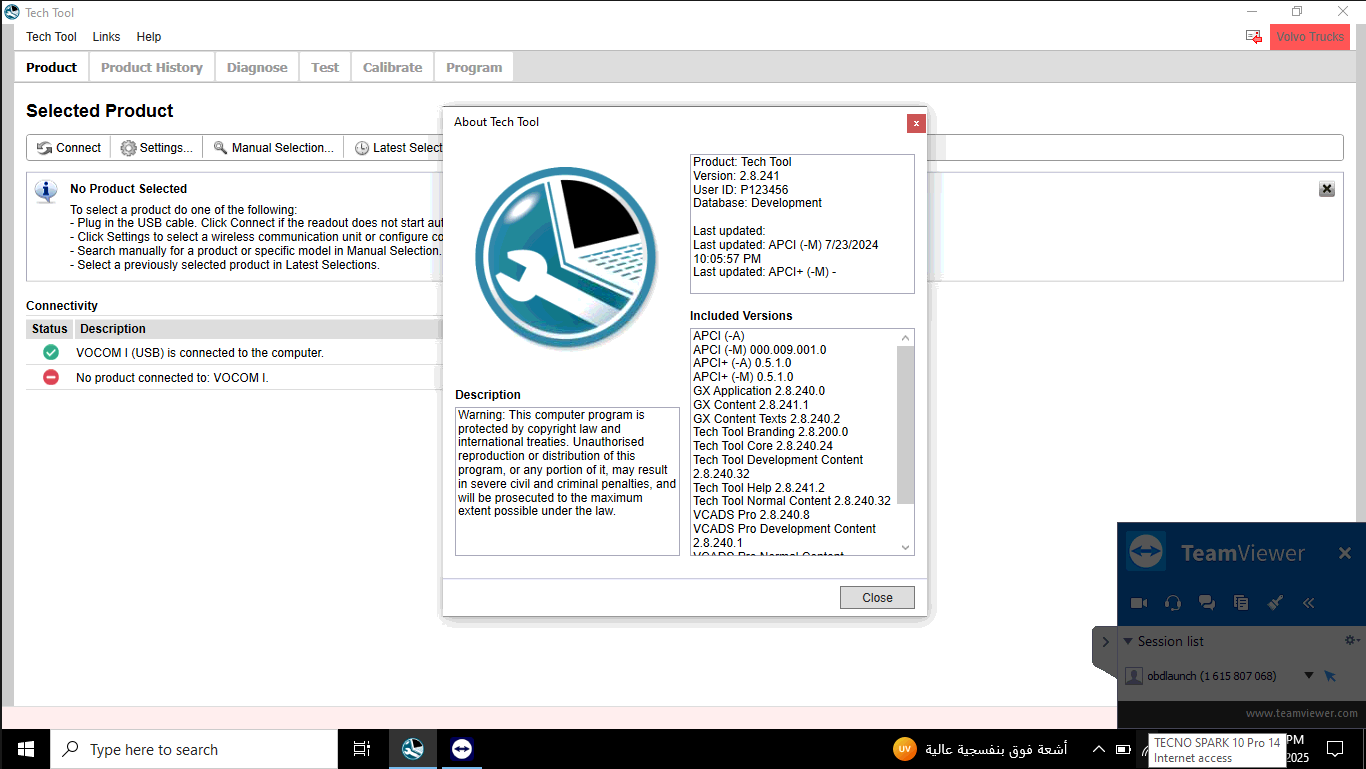

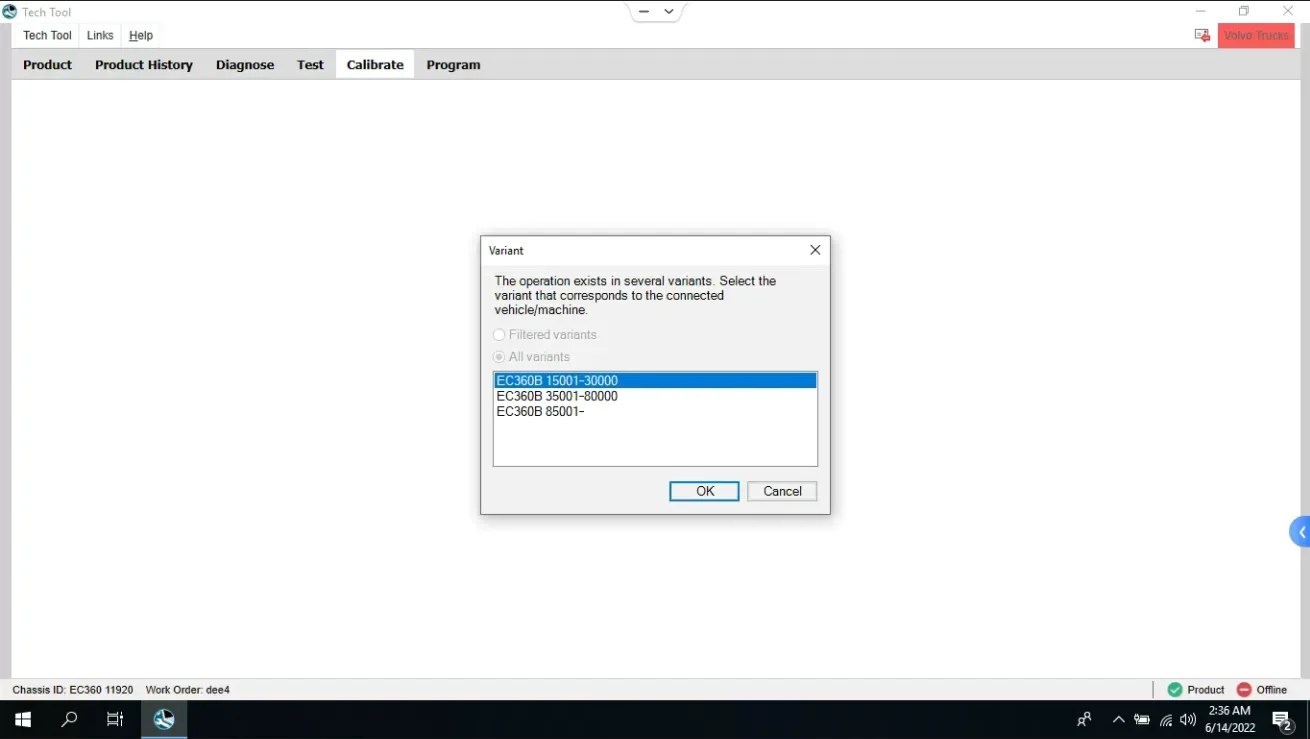

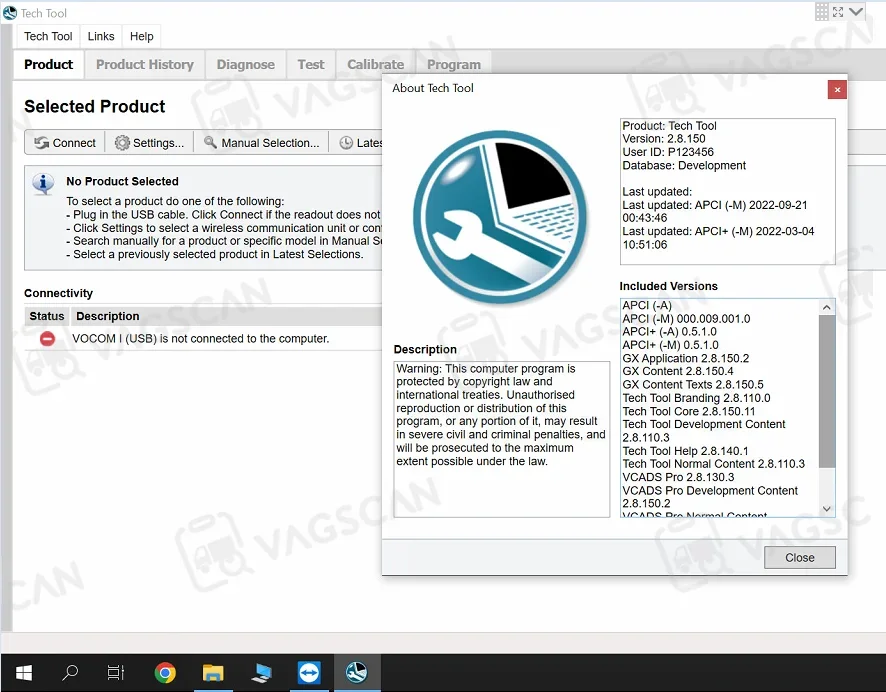

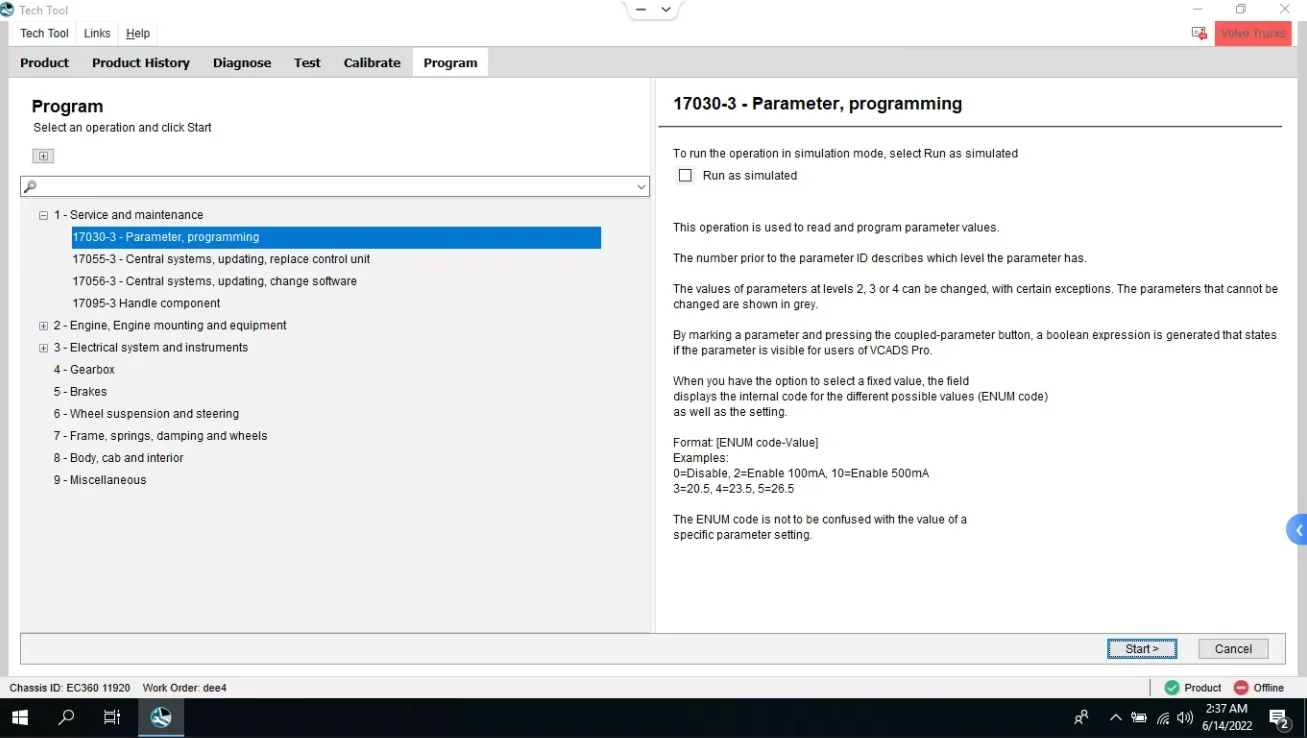

Software Screenshot
