GODIAG GT100+ GT100 Pro New Generation OBDII Breakout Box with Electronic Current Display

GODIAG GT100+ GT100 Pro New Generation OBDII Breakout Box with Electronic Current Display

Regular price $109.00
Regular price $0.00 Sale price $109.00
Sale Sold out
Shipping calculated at checkout.
Color

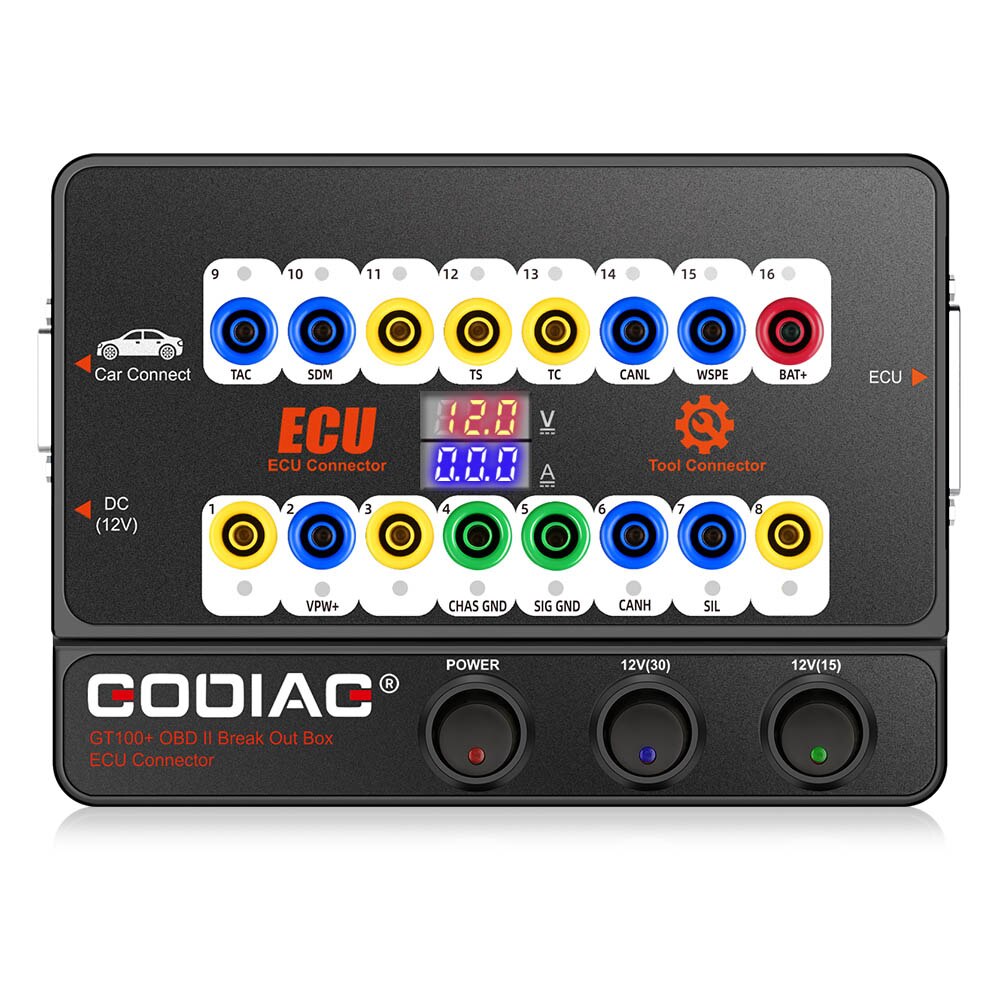

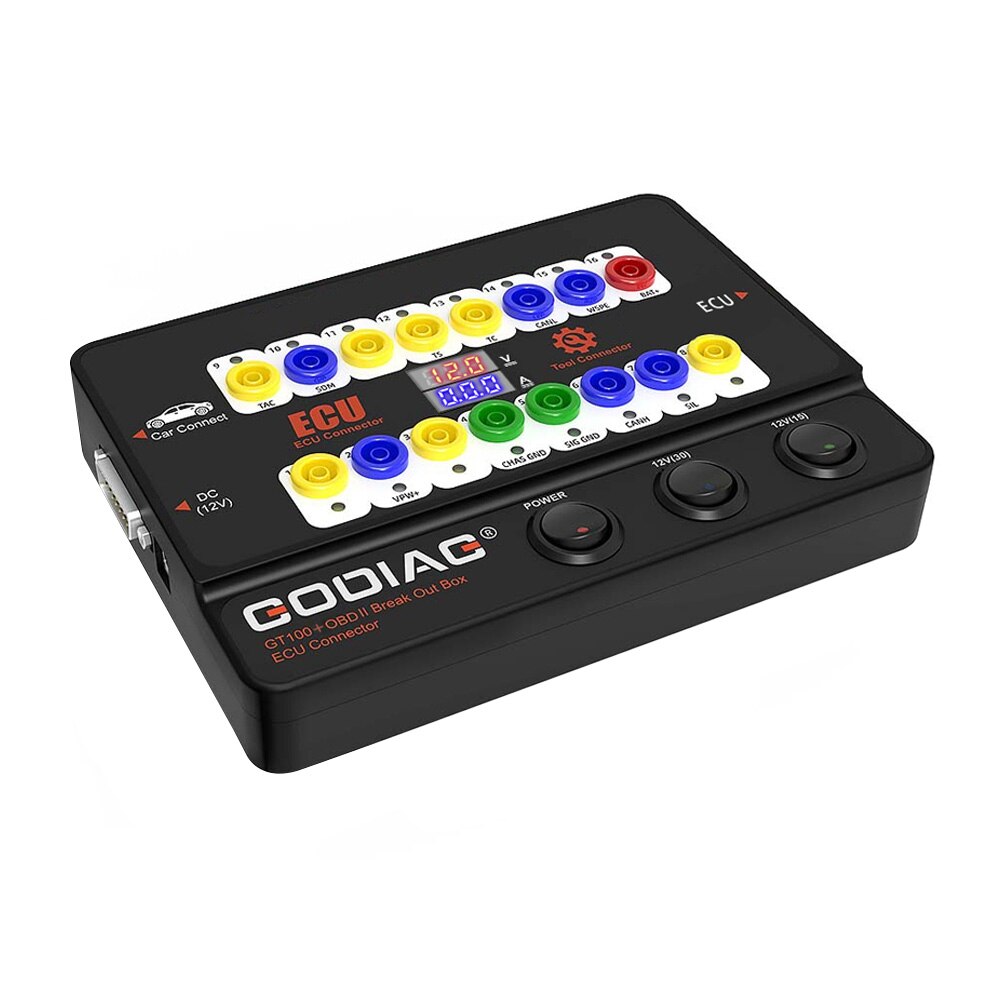

GODIAG GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector with Electronic Current Display

GODIAG GT100+ Highlights:


1. New generation of GT100, Adds Electronic Current Display. You can
intuitively see the current display of the ECU by connecting the ECU
module with the Banana interface or the DB25 cable, which can make your
work much easier.

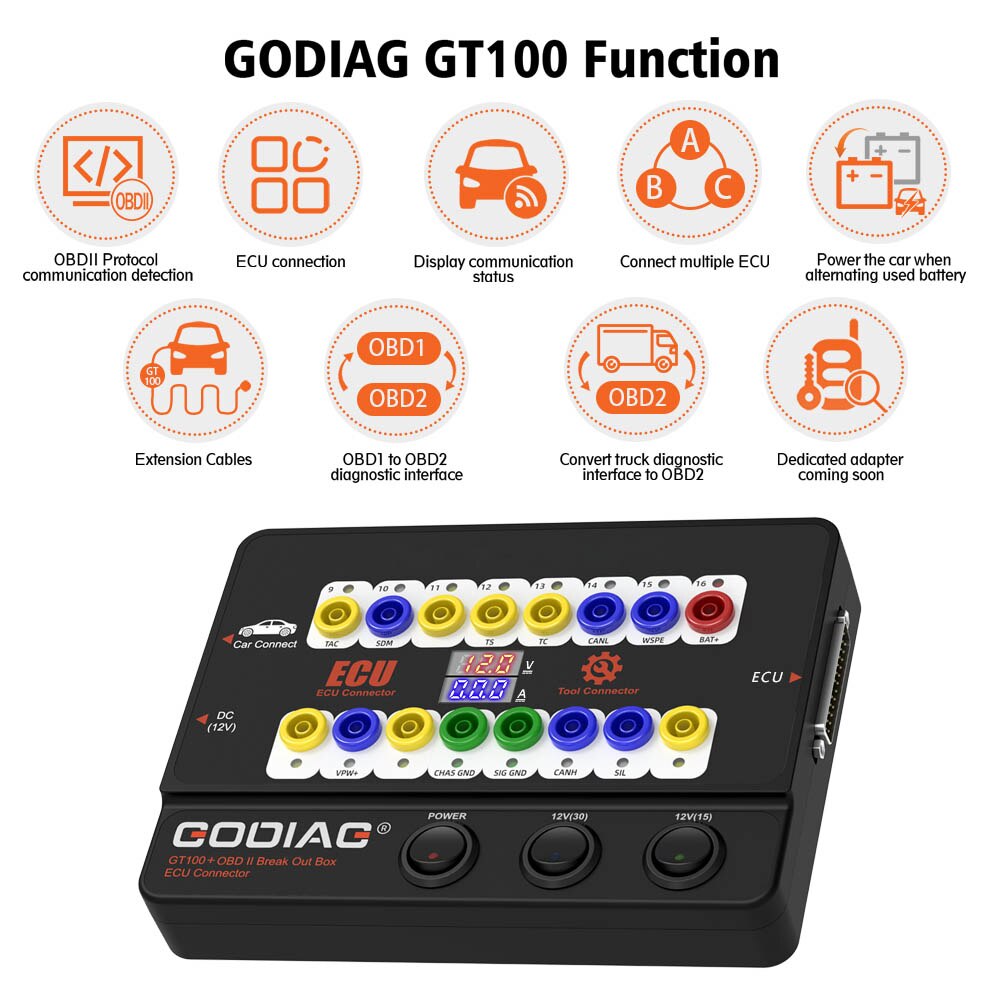

2. ECU connection + OBDII Protocol Detector + Electronic Current Display.
3. The cable can be extended, with an Optional Dedicated Adapter.
4. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
5. Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface.
6. One Year Warranty.

GODIAG GT100+ Details:

1. GT100+ adds Electronic Current Display.

On bench connect the ECU module by using the banana connector or db25
dedicated ECU adapter, Godiag GT100+ will display the electronic
current.

The advantage to display electronic current value:

The user can intuitively see the current status of the ECU. There is
no current display or the actual displayed current is inconsistent with
the engineer’s expected current, then you can immediately check whether
the wiring is wrong, if the wiring is correct, he can judge that the ECU
may be broken, so there is no need to perform diagnostic communication
and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is incorrectly connected or the ECU is broken.

2. GT100+ Adds CANBUS Protocol Communication

GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana
connector on the machine], these non-standard obd2 protocol interface
may display CAN BUS or K-Line communication protocol. GT100 can only
display K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS
K-Line Pwm Vpw+ KWP 2000 protocol communication.

3. Reset instrument/immobilizer when all keys lost

When you want to program key for VW, Porsche, Mitsubishi and nother
cars with all keys lost, or to program Toyota ECU, you need to activate
the dashboard (reset instrument) or wake up the immobilizer module
first. Then you can operate directly by using GT100 GT100+.

a.To replace the engine ECU of Toyota or to use
some key programmer to program Toyota when all keys lost, it requires to
short-circuit PIN13-PIN4


b.To program Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short-circuit PIN1-PIN4.


c.For Porsche and VAG 4th generation / 5th
generation keys (for example new A6L Touareg A4 Q5 A7), please use
GT100+ to short-circuit banana connector PIN 16—-PIN 1 to lit up the
dashboard, after that use the key programming tool to connect with the
female adapter of GT100+ for data collection. Some vehicle dashboards
won’t be lit up, but data can also be collected, for example: A6L Q7.

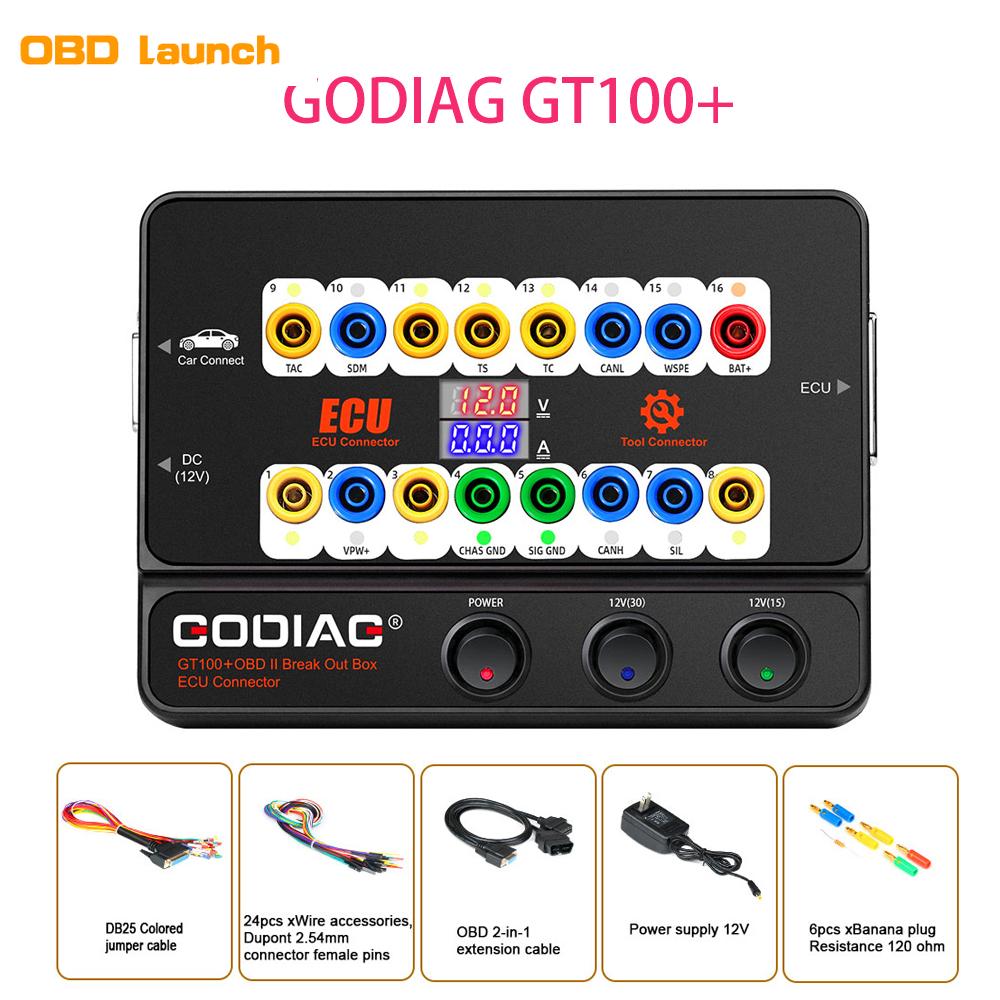

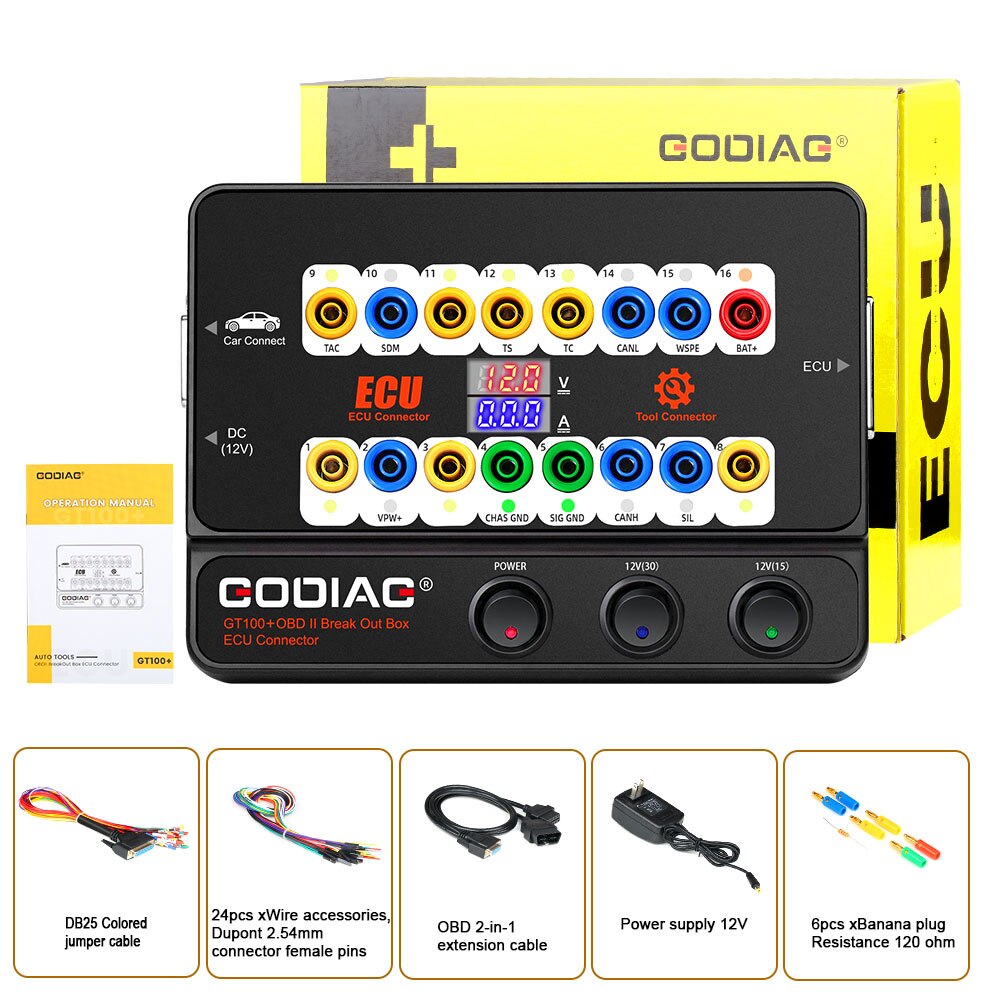

1pc x Host
1pc x OBD 2-in-1 Extension Cable
1pc x Colored Jumper Cable
1pc x Power Supply 12V
1pc x Resistance 120 ohm
6pcs x Banana Plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
