Diesel Engine Timing Tool For BMW MINI Kit W16D Also for Fords, Vo-lvo, 1.4-1.6 Tdci

100% Brand new and high quality!!!
Important information:

1.Please allow a little error due to manual measurement. Please make sure you don't mind before you bid.
2.The color may be different from the difference display, please understand.
3.tht colour of box is red or blue or black
4.If there is no box in the picture, the product does not have a box
5.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility


A diesel engine timing tool kit for BMW Mini with engine codes W16D16 (9HZ) and W16D16UO used on Mini, Mini Clubman (07-10) with chassis R55/56/57 Also used on some Citroen and Peugeot models

Applications: Mini W16D (9HZ) and W16D 16UO, Mini Clubman 07-10 (chassis R55 | 56 | 57)1.6 diesels.

Also suitable for Citroën 1.6 diesels in C2 | Xsara Picasso | C4 | C5 | C4 Picasso | Grand Picasso | Berlingo.

Plus Peugeot 1007 | 206 | 307 | 207 | 308 | Partner Mk3.


Essential tool.

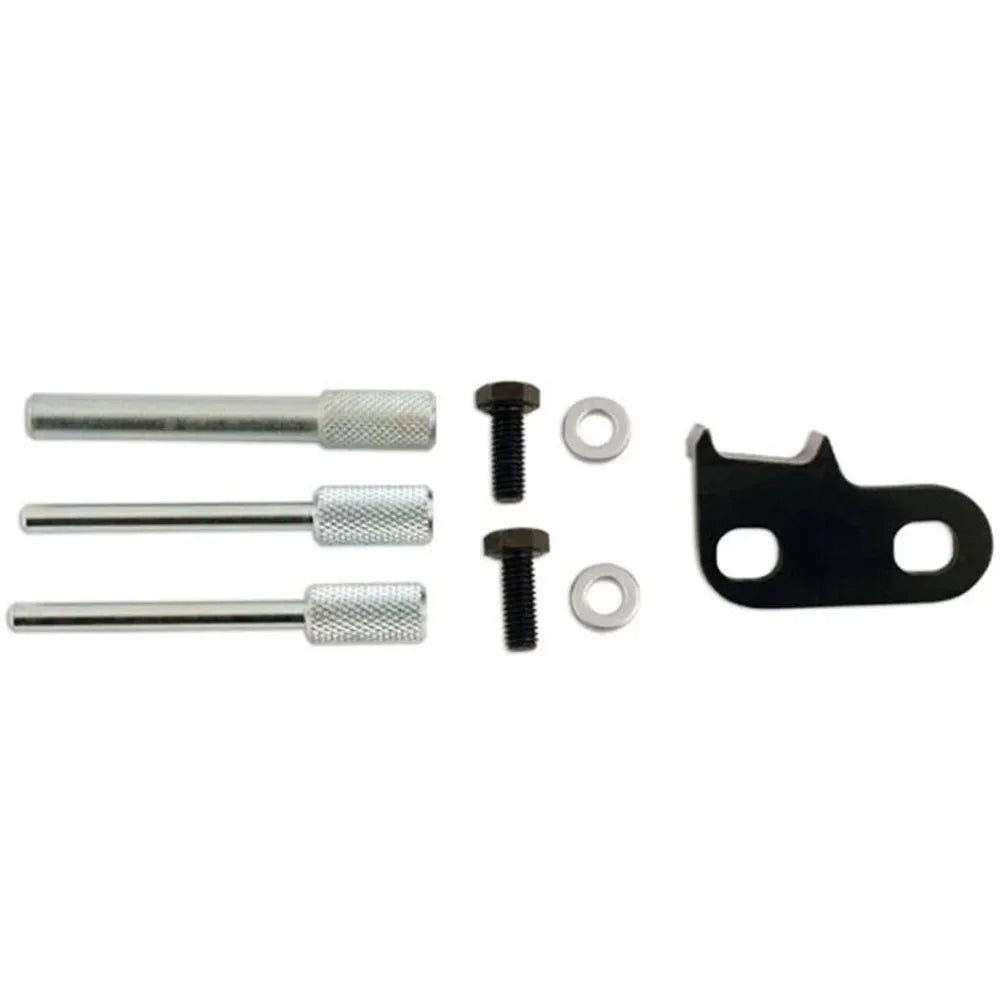

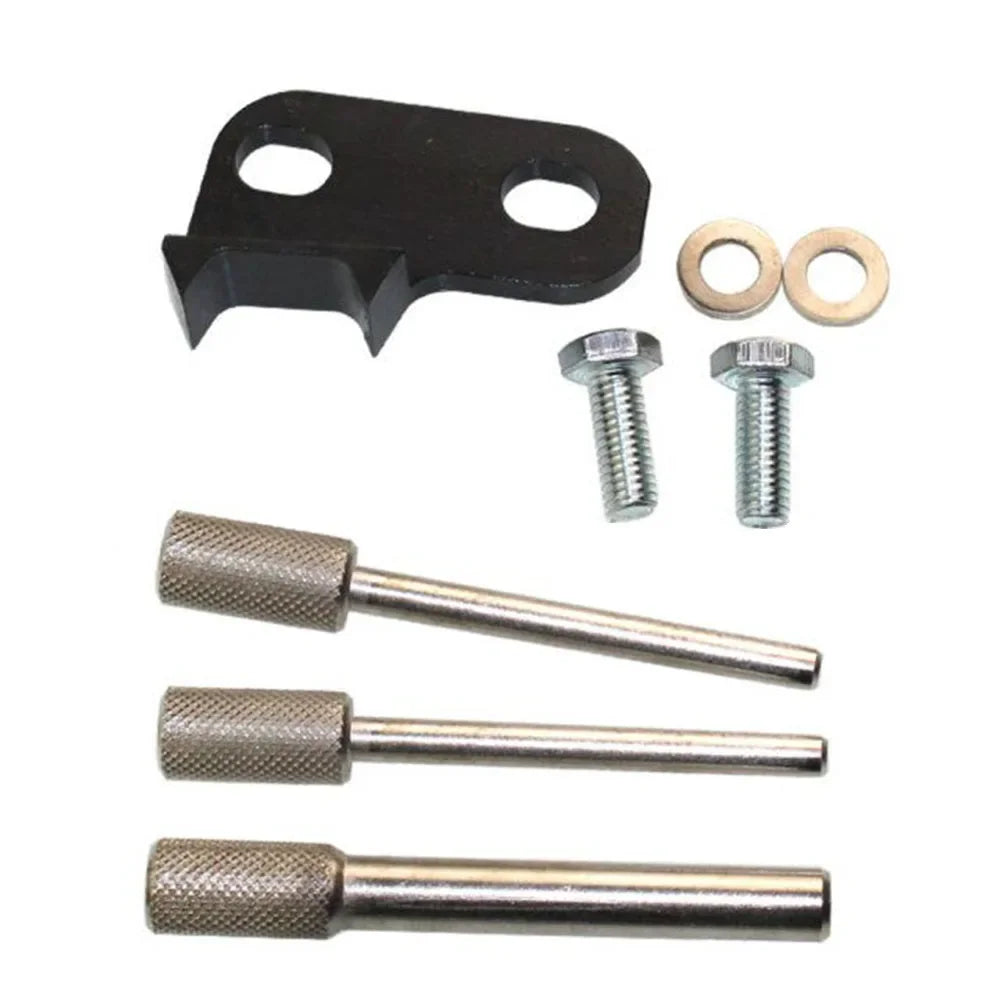

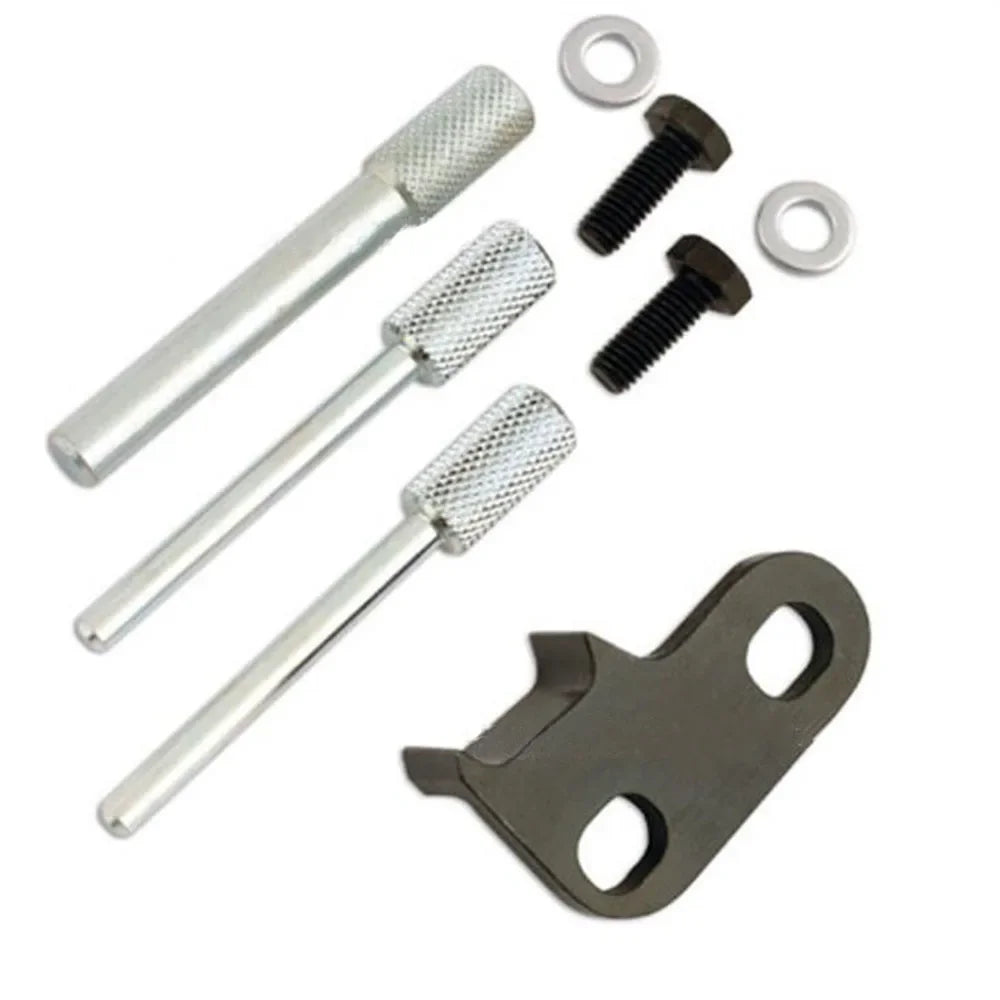

Set of locking pins and flywheel locking tool for timing belt replacement and chain in head service operations. Suitable for 1.6D W16 diesel engines fitted in BMW Mini R55/56/57 models. The timing pins lock and hold the camshaft, crankshaft and HP pump in the timed position.


OEM Tools:

Flywheel Holding Tool (VSE6155.01): 11-9-850 (BMW)

Flywheel Locking Pin (VSE5846.01): 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)

Camshaft/HP Fuel Pump Locking Pins (VSE5846.02): 11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)

Crankshaft Locking Pin (VSE5846.03) 11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)


Applications to:

BMW Mini R56/57: 1.6D Cooper D (07-10), 1.6D One D (09-10)
BMW Mini Clubman R55: 1.6D Cooper D (07-10)


Citroen: Berlingo I/II (05-11), Berlingo III (08-15), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-15), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-15), C4 Picasso/Grand Picasso (06-13), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)



Ford: B-Max (12-15), C-Max (07-15), Fiesta (02-15), Focus (04-15), Focus C-Max (03-07), Fusion (04-11), Grand C-Max (10-15), EcoSport (13-15), Tourneo Courier (14-15)
Mazda: 2 (02-10), 3 (04-12), 5 (10-12)

Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-15), 2008 (12-15), 307 (01-08), 308 (07-14), 308CC (09-15), 3008 (09-15), 407 (04-11), 4008 (12-15), 508 (11-15), 5008 (09-15), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-15)


Suzuki: Liana (04-08), SX4 (07-11)

Toyota: Aygo (05-10)

Volvo: C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)


Engine Codes:

1.4D: F6JA, F6JB

1.4D D-4D: ZWZ-TV

1.4D DDiS: (DV4)8HY

1.4D HDi: DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)

1.4D TDCi: F6JA, F6JB, F6JC, F6JD, KVJA

1.5D TDCi: UGJC, ENUG, UGCA

1.6D: MZ-CD(Y6), W16, W16U0, Y6

1.6D DDiS: DV6(9HX)

1.6D eDrive: D4162T, D4164T

1.6D eHDi: DV6C(9HR)

1.6D HDi: DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ) , DV6DTED(9HP), DV6ETED(9HN), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)

1.6D TDCi: G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, T1DA, T1DB, T3DA, T3DB, TZJA, TZJB, UBJA
1.6D TDCI ECOnetic: G8DD, GPDA, HHJD, TZJA, TZJB
