Product Features:

Wide Compatibility with Mainstream Chips: The adapter primarily supports reading/writing and verification operations for key chips such as Toyota's first-generation DENSO series, as well as Delphi's DCM7.1AP and DCM7.24. Optimized communication protocols and stable hardware interfaces ensure more efficient and secure ECU data reading and flashing.

Online Firmware Updates: Simply connect to the internet to obtain and install the latest official firmware with one click.

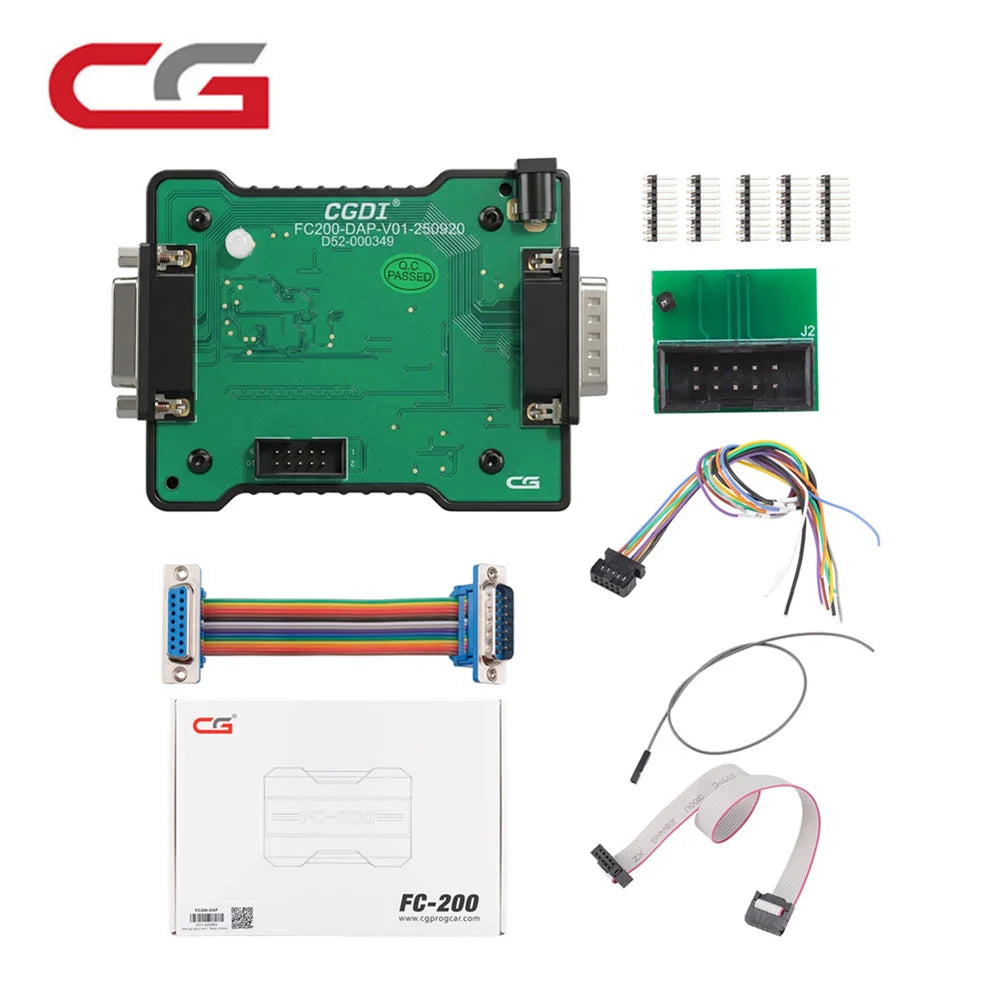

Continuously Expanding Chip Support: The FC200-DAP is developed based on a scalable hardware platform and software architecture. We will continuously expand its supported chip models through ongoing firmware updates.

Product Functions:

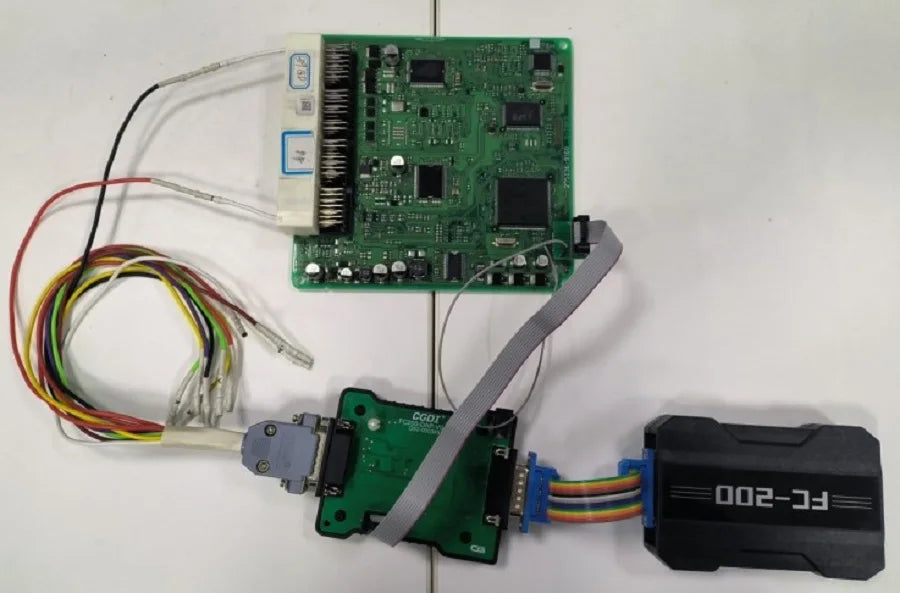

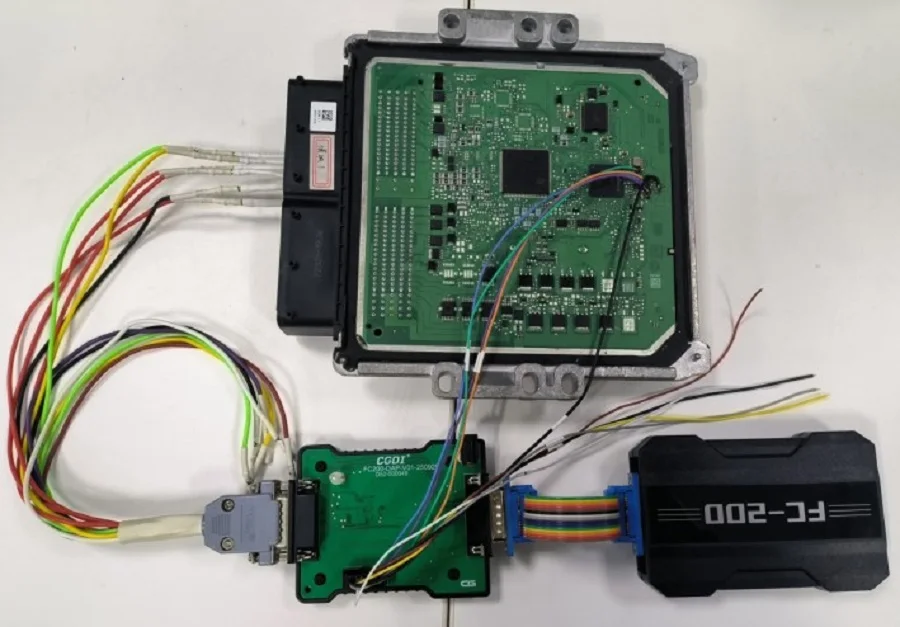

1. DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.

Main Models:

DCM7.1AP—Chinese cars, for Hyundai, for Kia, and Indian market models (for Tata, for Mahindra, for Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.

DCM7.24—Chinese Yuchai

Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.

Precautions: ① The correct vehicle model must be selected for operation; ② Diesel engines require a stable 12V power supply.

2. Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:

76F0038GD

76F0038AGD

76F0039GD

76F0039AGD

76F0040GD

76F0040AGD

76F0070

76F0085

Important Note:

Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip matches. The model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.
