1.surface

1 .Digital battery analyzer host

2 .Display interface:Using 320*240 color LCD screen, can display different functions and measurement data

3 .Left key◀:Switch pages or set data

4 .Right key▶:Switch pages or set data

5 .up key▲:Selecting function or setting data

6 .down key▼:Selecting function or setting data

7 .(Esc):Exit the current page or return to the previous level

8 .(Enter):Determine options or enter the next level

9.printer:Use paper to print out the test results.
10 .(PRINT) :press down "PRINT" key to entering the print interface,press Enter" key to confirm print.

1 .Digital battery analyzer host

2 .Display interface:Using 320*240 color LCD screen, can display different functions and measurement data

3 .Left key◀:Switch pages or set data

4 .Right key▶:Switch pages or set data

5 .up key▲:Selecting function or setting data

6 .down key▼:Selecting function or setting data

7 .(Esc):Exit the current page or return to the previous level

8 .(Enter):Determine options or enter the next level

9.printer:Use paper to print out the test results.
10 .(PRINT) :press down "PRINT" key to entering the print interface,press Enter" key to confirm print.

2.Function testing

a. Battery Test

After the normal boot, press any key to enter the main menu, as shown in Figure 3.1.0.



 Press "▲ ▼" button, select "1 battery test" press key to enter the next one, if the battery voltage is too low (less than 11.5V) will be prompted interface (Figure 3.1.1), press <Enter> key to continue measuring, <Esc> key to abandon measurement. If the battery voltage is normal, it will go directly to the battery type selection screen (Figure 3.1.2). On the subject of battery type battery by selecting the corresponding option.



 Press <Enter> key to enter the next one. Enter battery specifications set value (Figure 3.1.3).

"▲" setpoint plus 5

"▼" setpoint minus 5

"◀" set value minus 100

"▶" set value plus 100

After setting the setpoint press <Enter> key to start the measurement. Will be displayed after the measurement test results shown in Figure 3.1.4



Ø  If the test result lower right corner of the interface with an icon of the printer, press <Enter> key to print the test results, you can enter the test results before printing models, the interface shown in Figure 3.1.5. Enter up to 16.

Ø "▲ ▼" to select the character you want to enter. (You can enter letters, numbers, there is a small part of the sign)

Ø "◀ ▶" Select the digits to enter

Ø When you're finished, press <Enter> to save the print, <Esc> key does not save print. 3.1.6 print result shown in Fig.

Ø Note:

Ø 1, before the test, ensure that the engine does not start, all electronic devices have been turned off.

Ø 2, after the car running for some time, not immediately tested, because the battery voltage is slightly higher than normal available, open headlights, etc. 2 to 3 minutes, before they can properly test.

b.Starter system test

In the main menu (Figure 3.1.0) Select option 2 (starter system testing), and press <Enter> key to enter the starter system test interface (Figure 3.2.0 below).

prompted display interface to operate. After starting the engine to wait around for about 15 seconds to read the test data (minimum voltage value). For 12V systems. If the minimum voltage value is greater than 9.6V, then start the system normally. If less than 9.6V, shows the battery voltage is too low to start, check that the relevant part of the connection points, lines, and starters. If the 24V system, the minimum voltage 19.2V places as a reference boundaries.  Test result print operations can refer battery test results printing operation.

c.Charging System Test

In the main menu (Figure 3.1.0) Select option 3 (charging system test), press <Enter> key to enter the charging system test, then the operation prompt interface (Figure 3.3.0 below) will appear.

3.Language support

available in English, Portuguese, Spanish, French, German, Italian, Russian,  Japanese, Turkish, Traditional Chinese ,Thai and Korean total of 12 kinds to choose from.

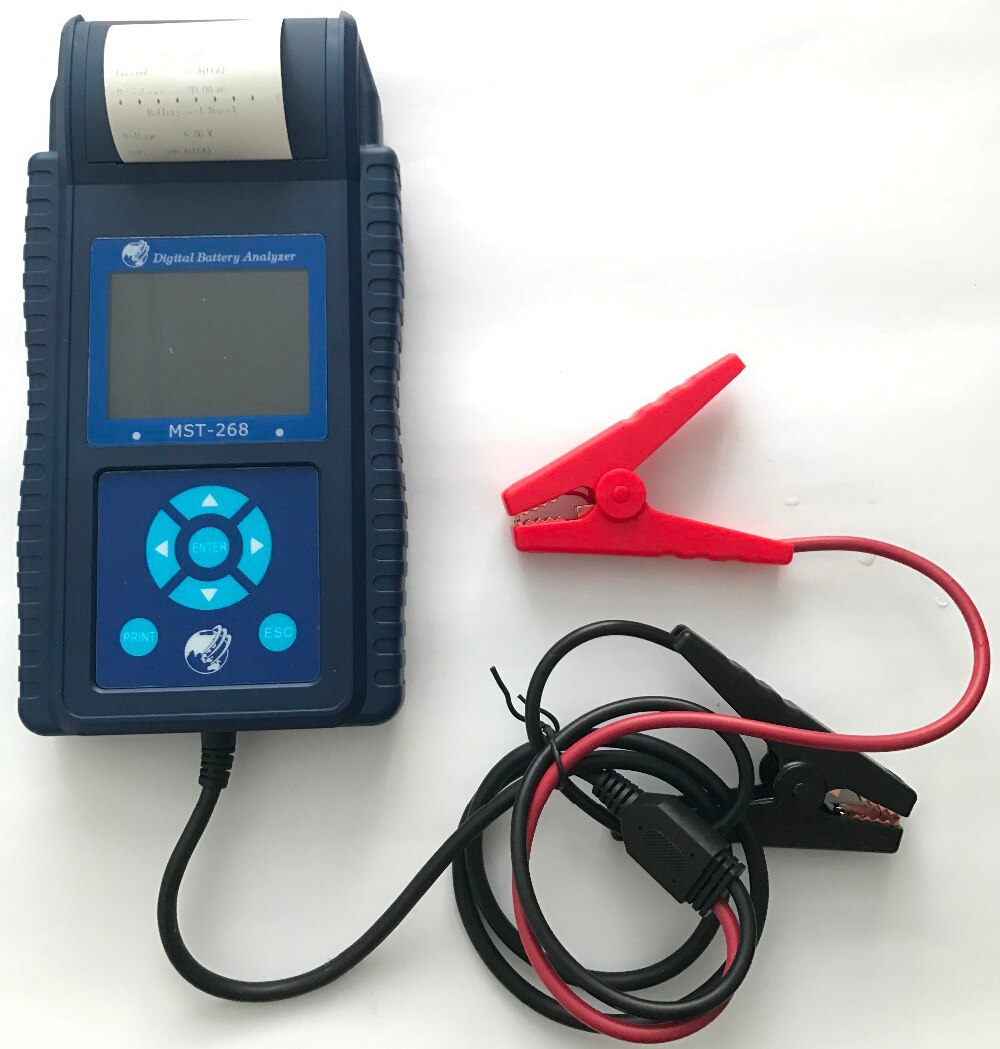

3.product photo
