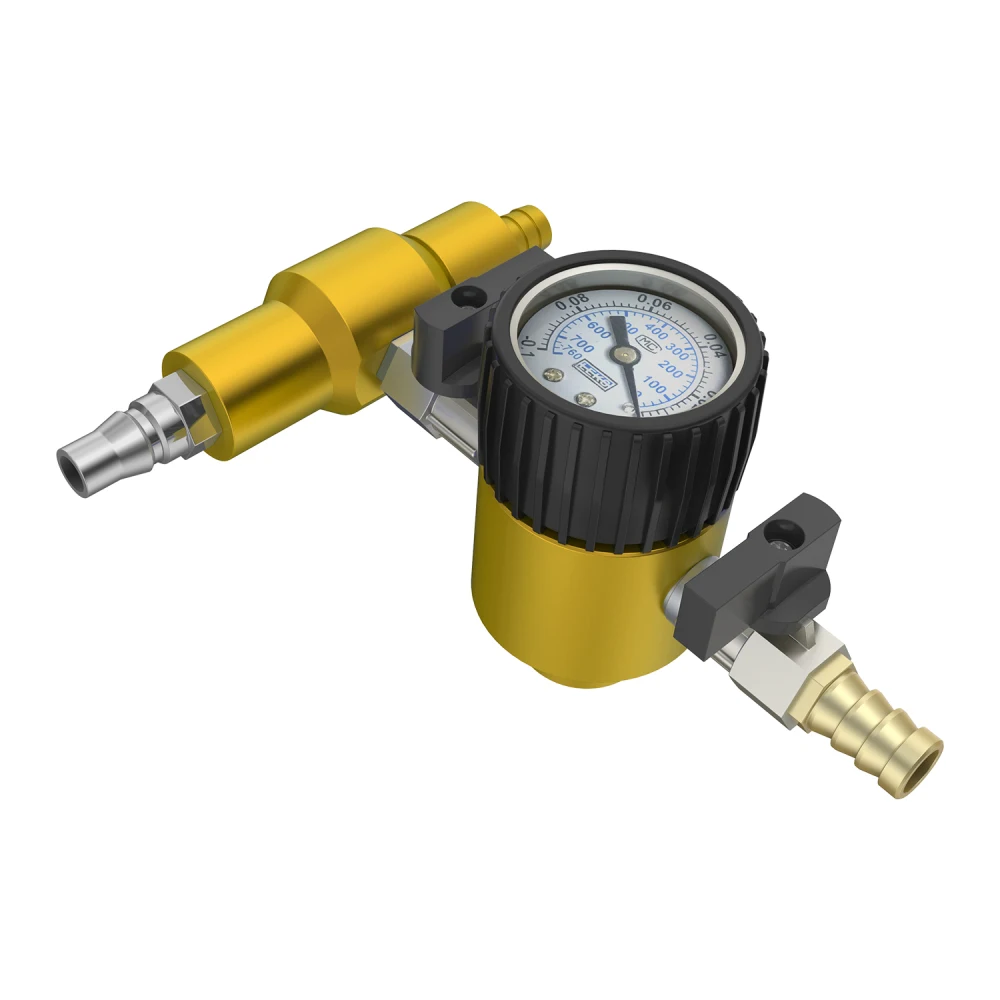

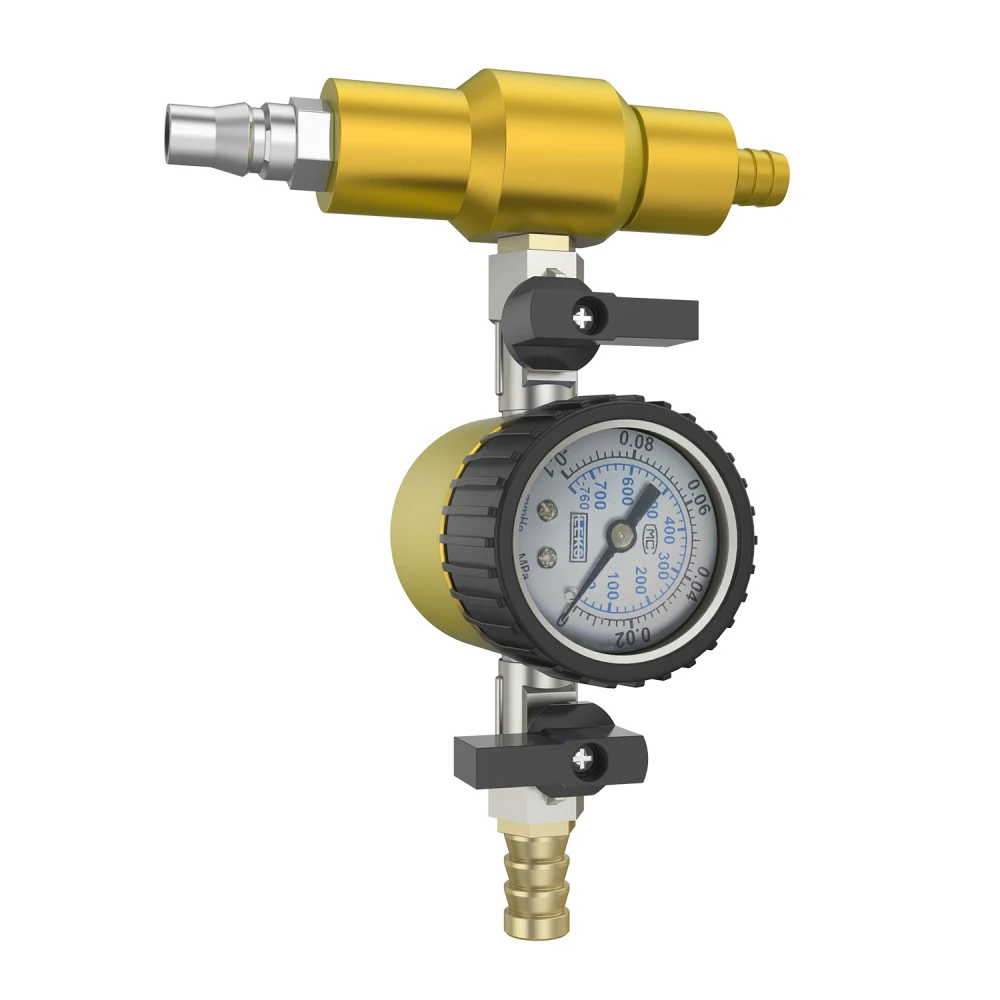

AUTOOL Universal Car Coolant Water Tank Leakage Detector Radiator Pressure Tester Gauge Vacuum Coolant Refill Tool Kit

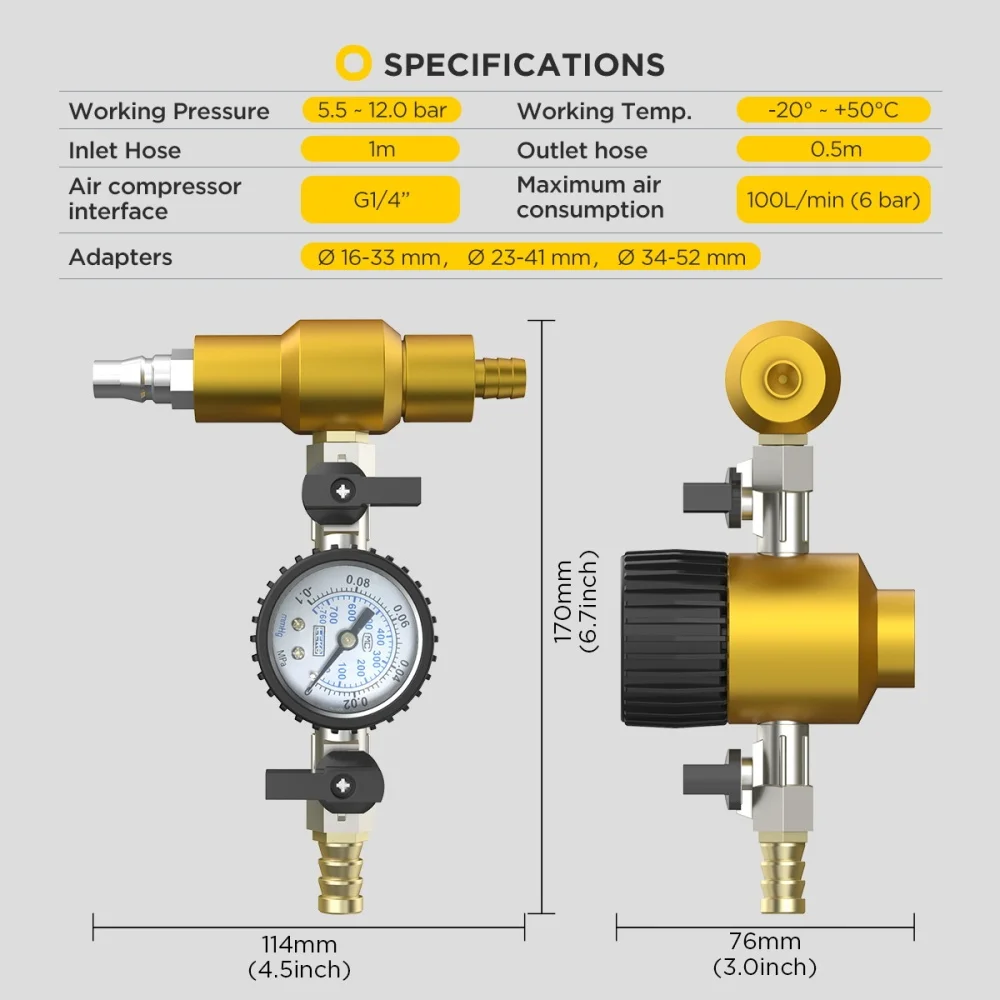

Scope of application：

Working pressure from 5,5 to 12,0 bar.
Max air use 100 L/min at 6 bar.
Air connection 1/4”F.
Temperature from -20° to +50°C.

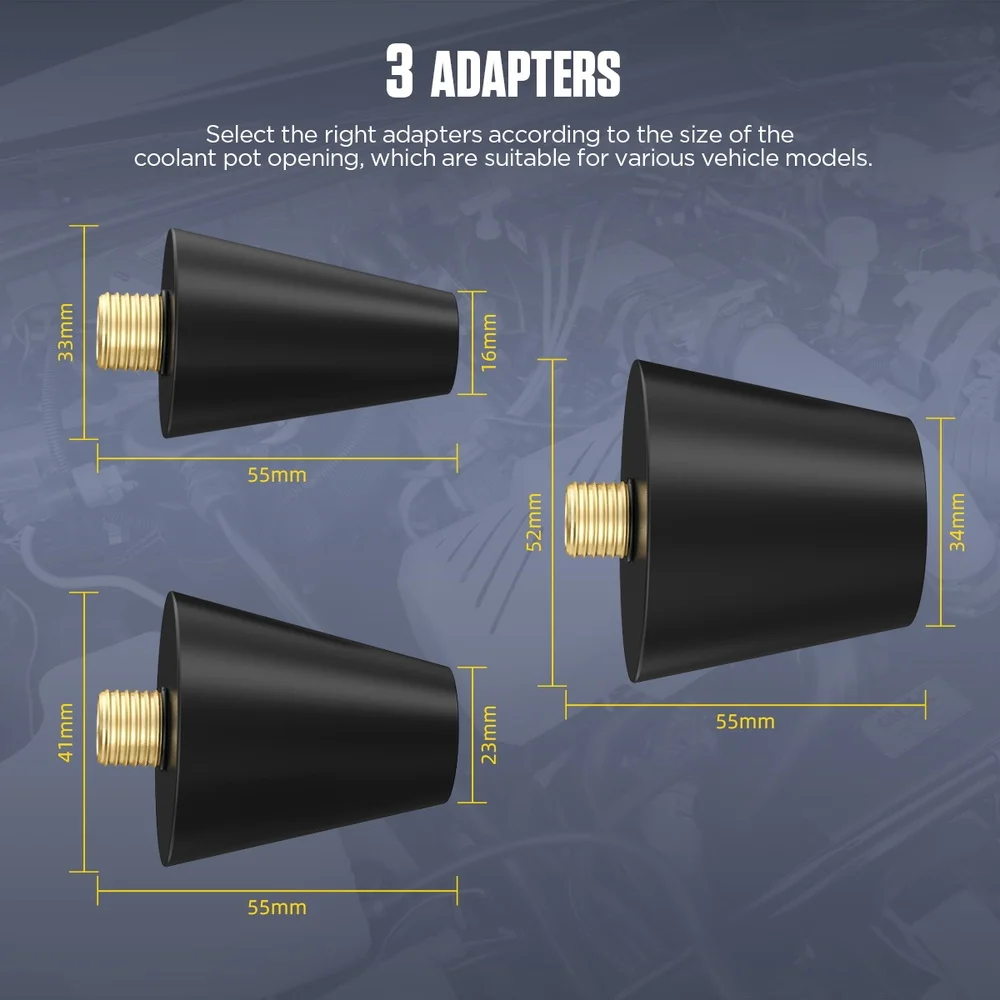

Adapters: Ø 16 - 33 mm Ø 23 - 41
mm Ø 34 - 52 mm.

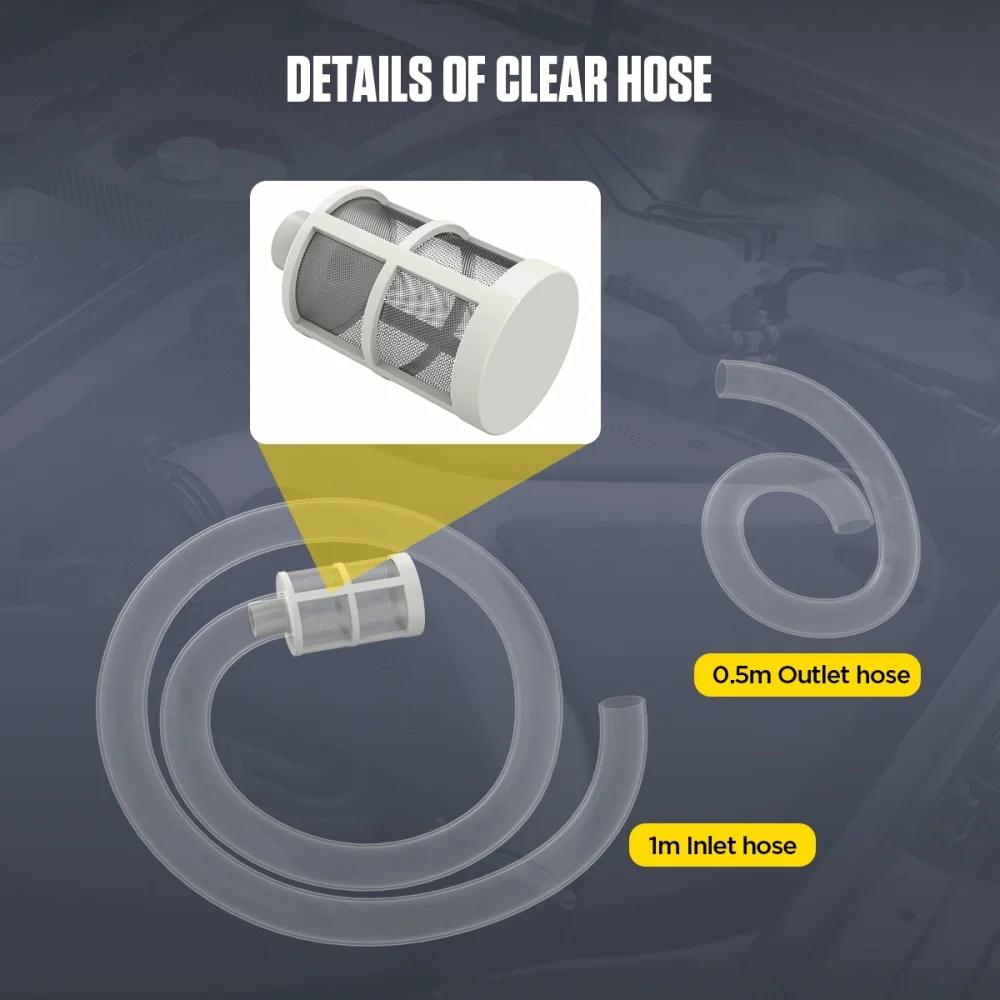

Inlet Hose 1 meter.
Outlet Hose 0.5 meter.

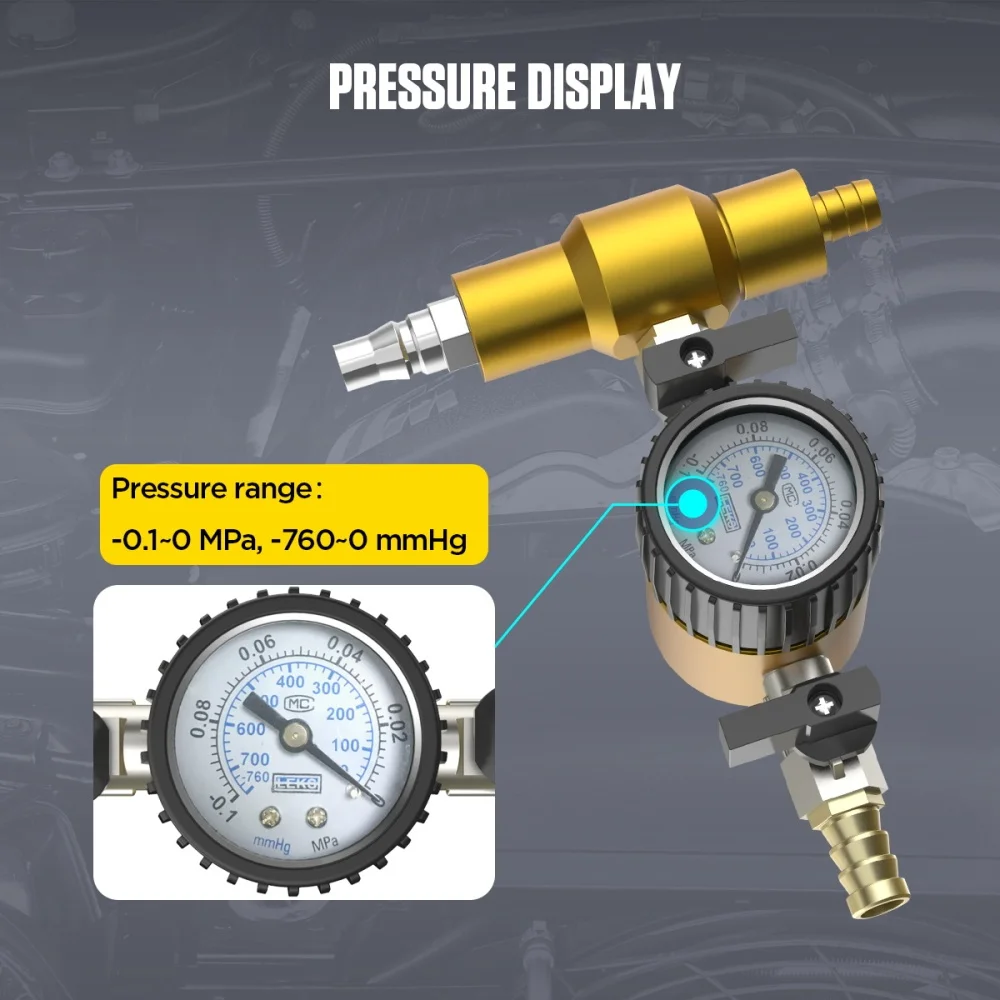

MPA:-0.1 to 0.
mmHg:-760 to 0.

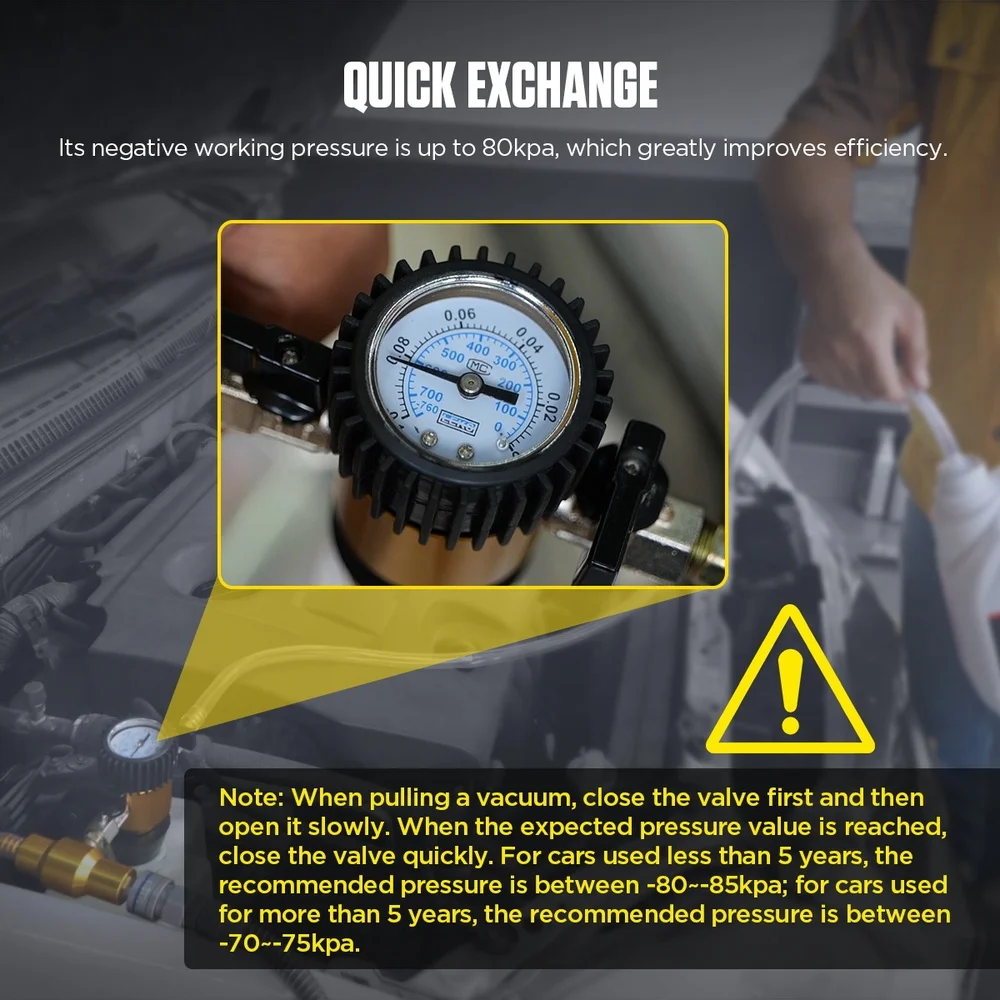

QUICK EXCHANGE :

lt's negative working pressure is up to 80kpa, which greatly improves efficiency.

Notice：

When pulling a vacuum, close the valve first and then open it slowly.When the expected pressure value is reached, close the valve quickly.

For cars used less than 5 years, the recommended pressure is between-80 ~-85kpa; for cars used for more than 5 years, the recommendedpressure is between -70 ~-75kpa.Three different specifications of adapterheads, can be selected accordingto the size of the coolant spout

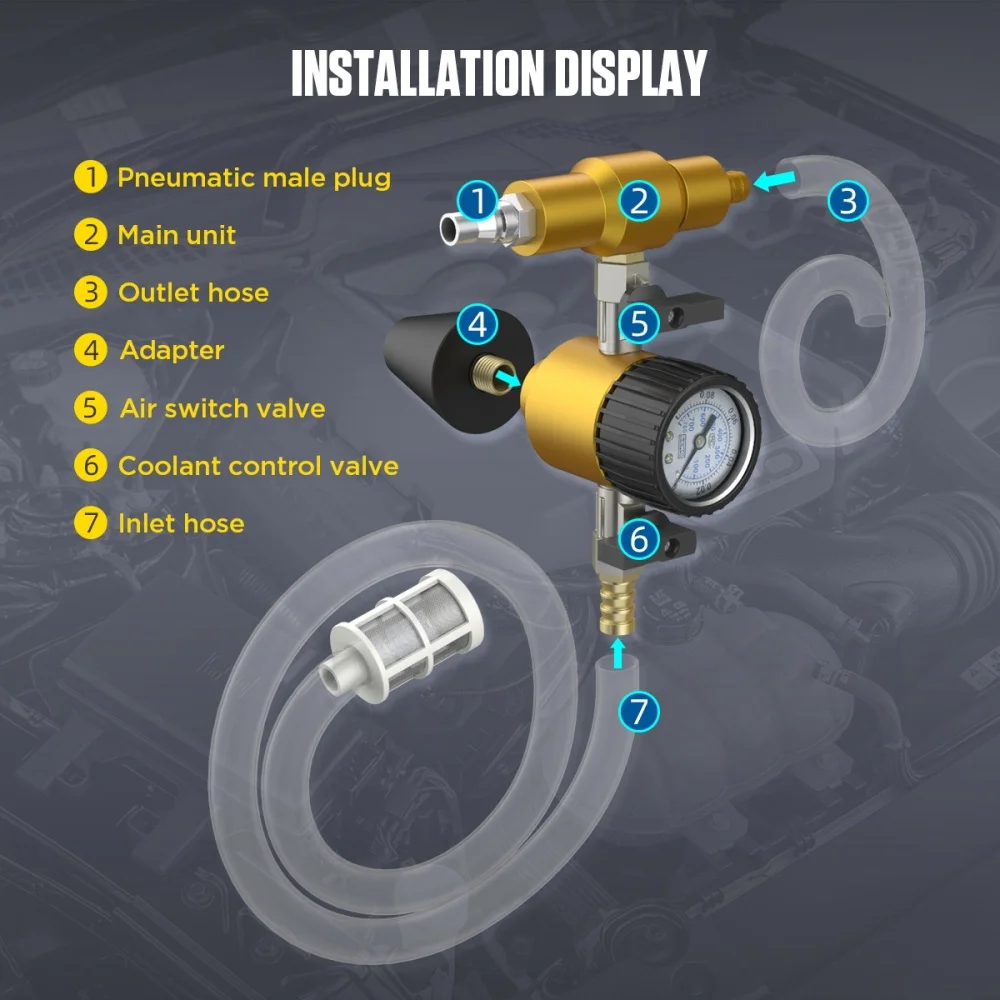

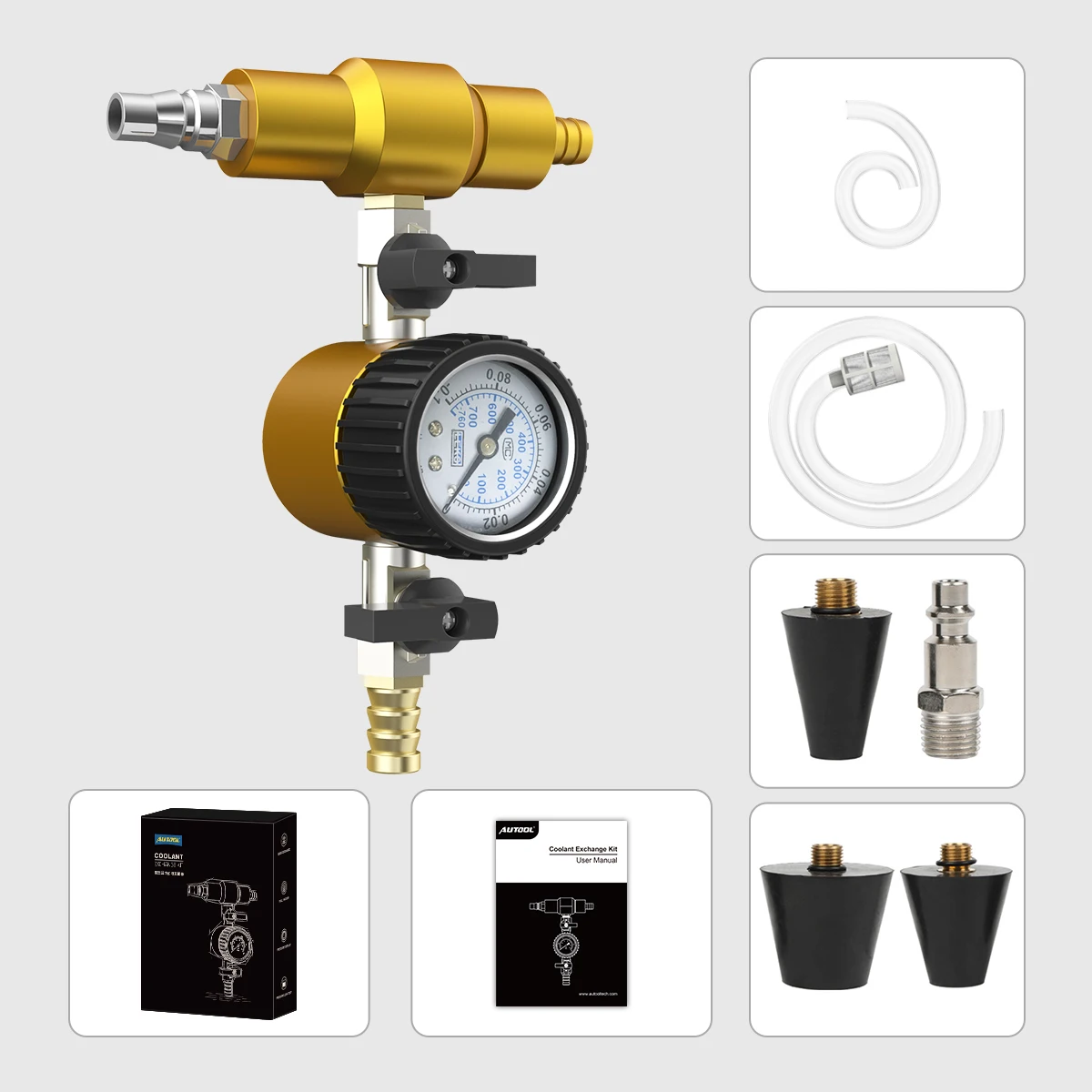

Packing List :

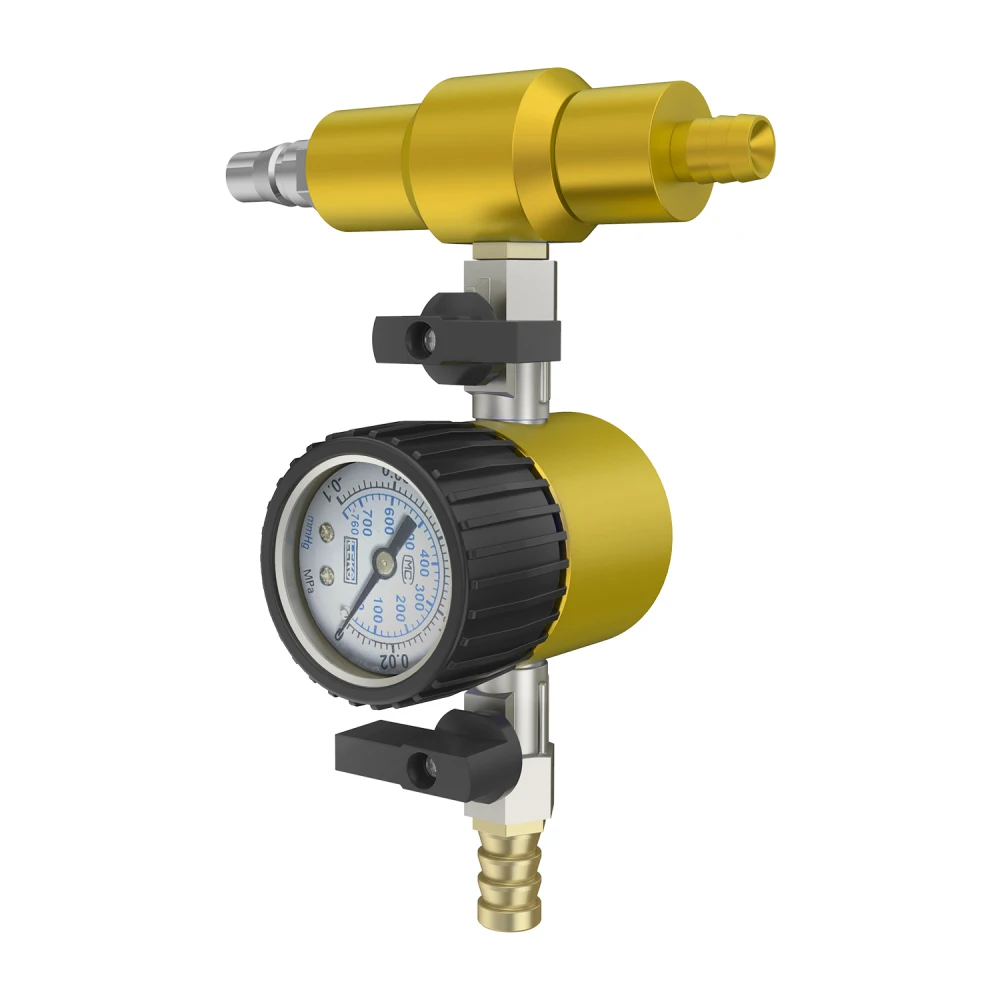

A: Main Unit

B: Male Coupler to shop air

C: Adapters

D: Inlet Hose

E: Outlet Hose
