AUTOOL SPT360 Car Spark Plug Tester Ignition Testers Automotive Diagnostic Tool Five-Hole Spark Plug Flashover Analyzer 110/220V
AUTOOL SPT360 is a digital high-frequency tester for testing the performance and strength of spark plugs. The frequency can reach up to 9000 rpm and is compatible with spark plug testing of all crankshaft engines and motorcycles on the market. This product can also compare five holes at the same time, simulate the real speed, and display digital control, which improves the test accuracy and the work efficiency of maintenance personnel.
①Spark plug performance test;
②Standard comparison test;
③Simulate engine operating conditions;
④Wide working frequency range;
⑥ Plug and play;
2. Three-year warranty.
3. Standard comparison test: The standard test position is designed to make the spark plug tested have contrast.

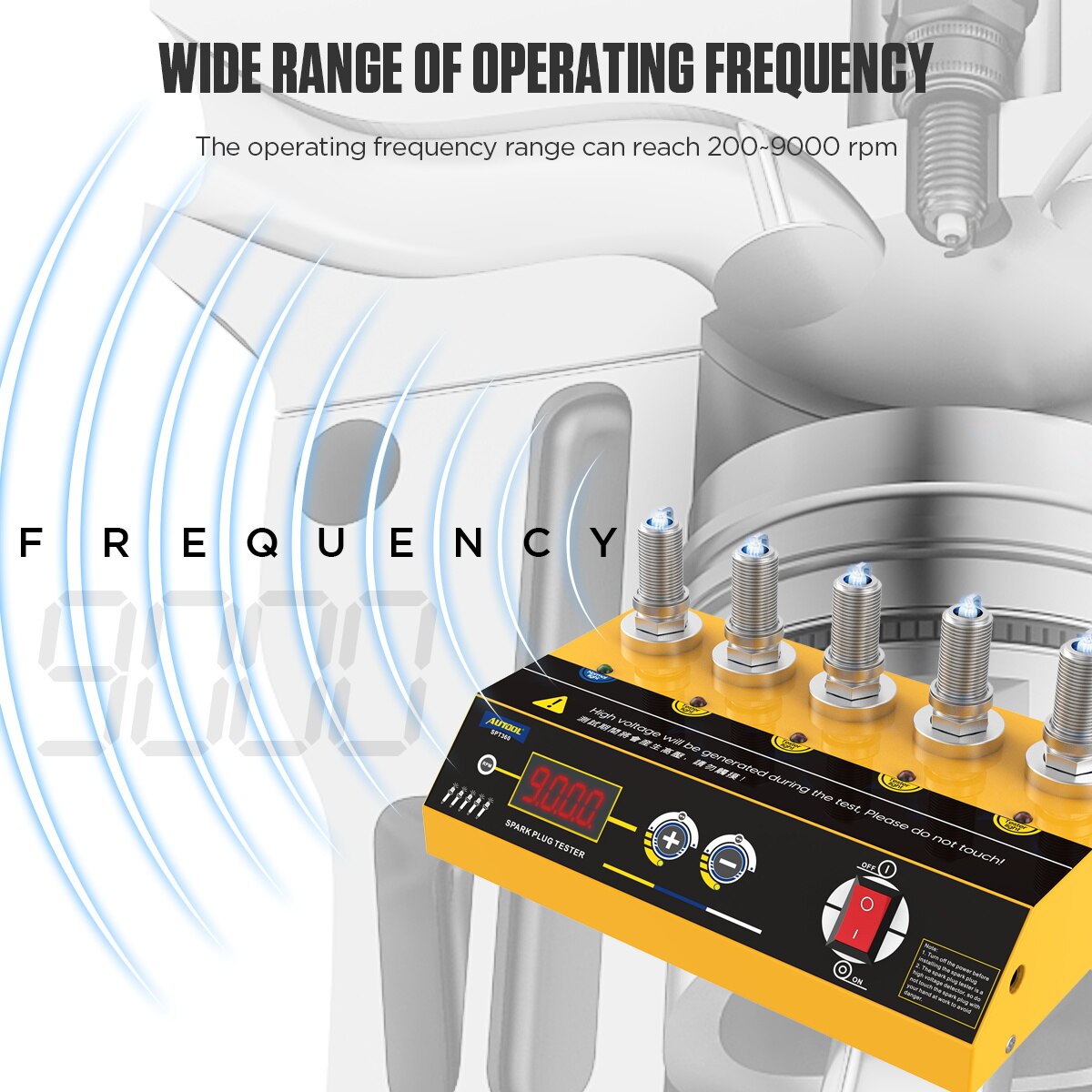

4. Wide operating frequency range: The operating frequency range can reach 200~9000 rpm.

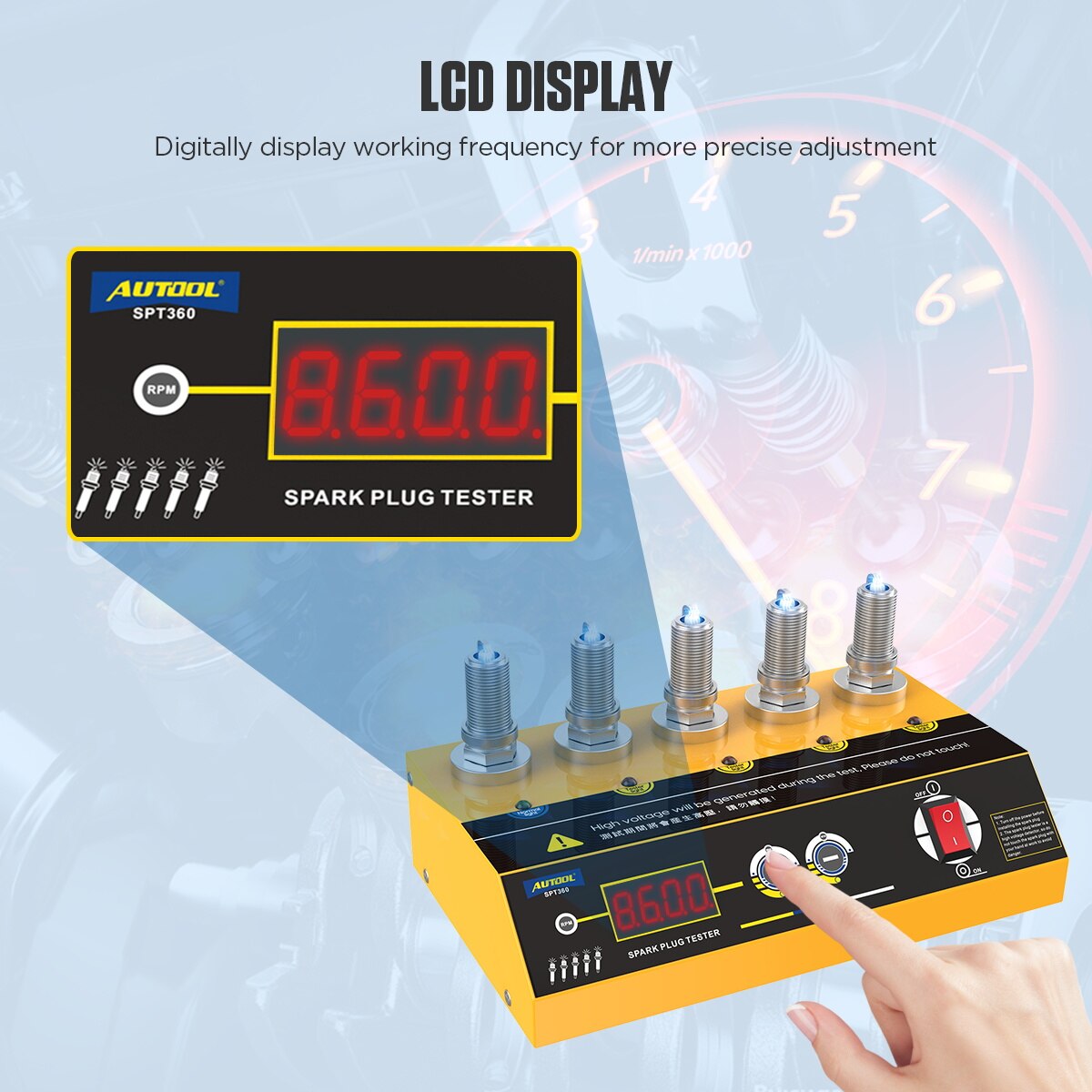

5. LCD display: digital working frequency, more precise adjustment.
6. Plug and play: easy to operate, connect and test.

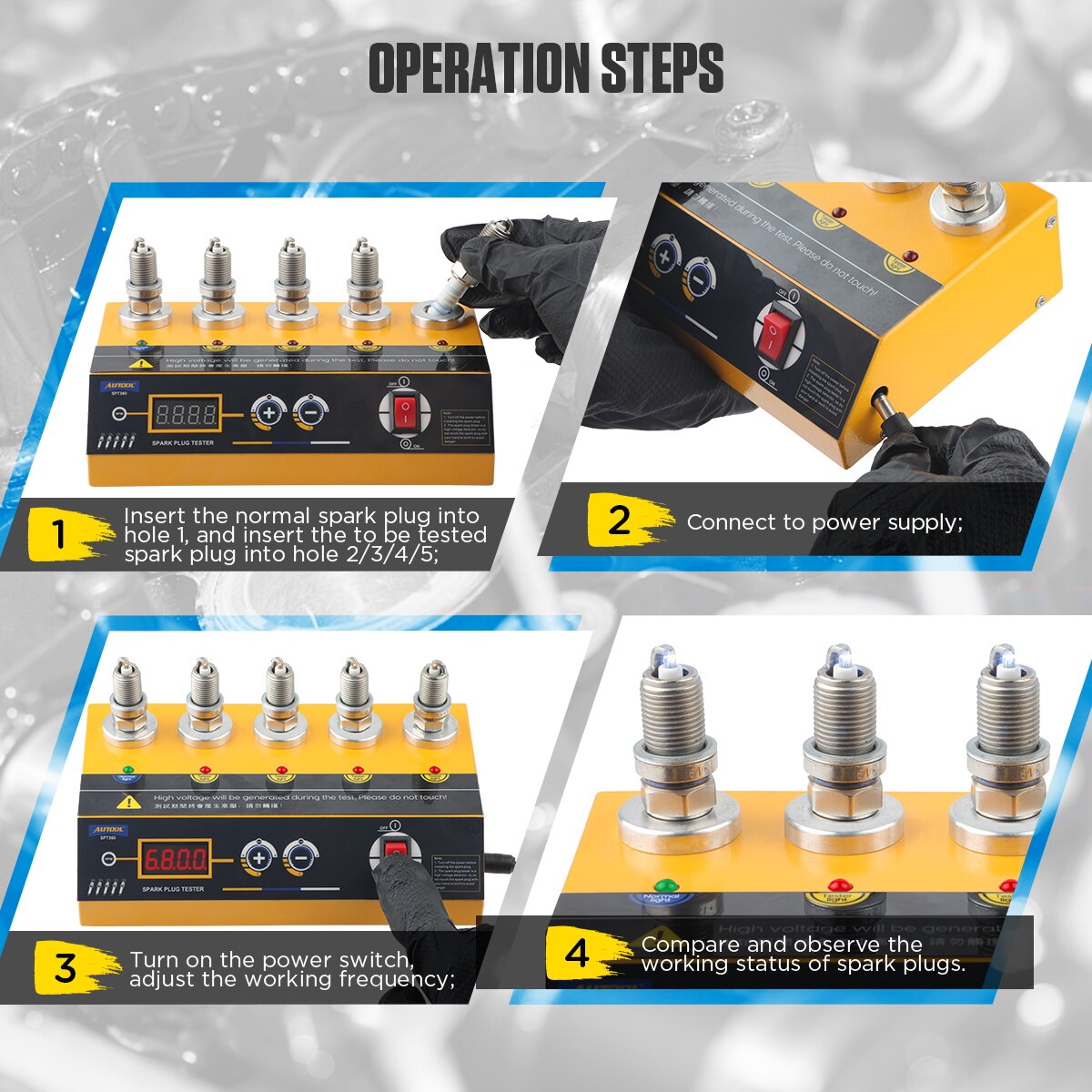

1. Insert the new spark plug into the hole ①, and insert the old spark plug into the hole ②③④⑤;
2. Insert the power adapter into the ⑩ power port on the back of the host, and the indicator light will light up;
3. Turn on the power switch and press the up and down buttons to adjust the working frequency. The higher the frequency, the higher the intensity of the spark plug.

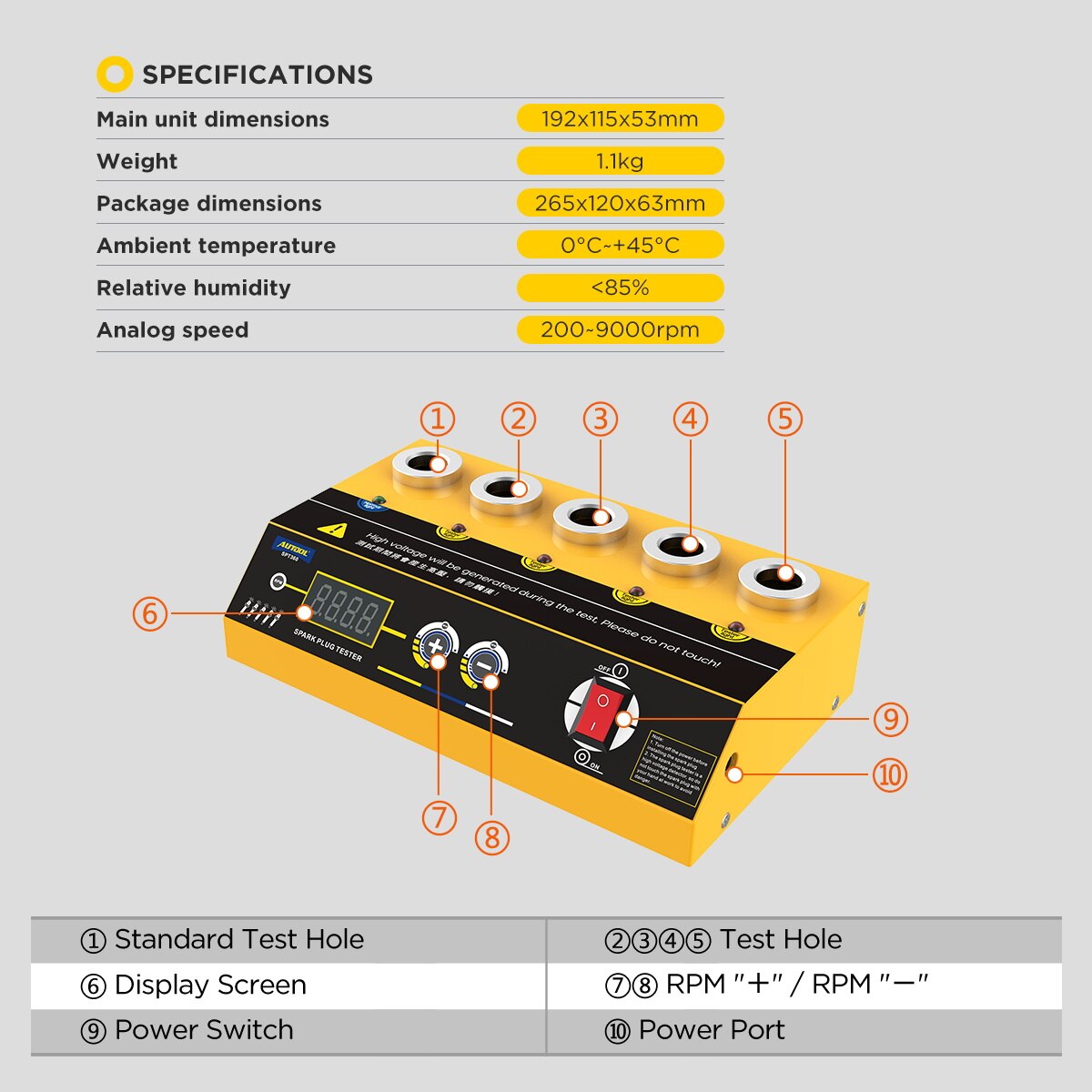

1- Standard test hole;
10- Power Port.

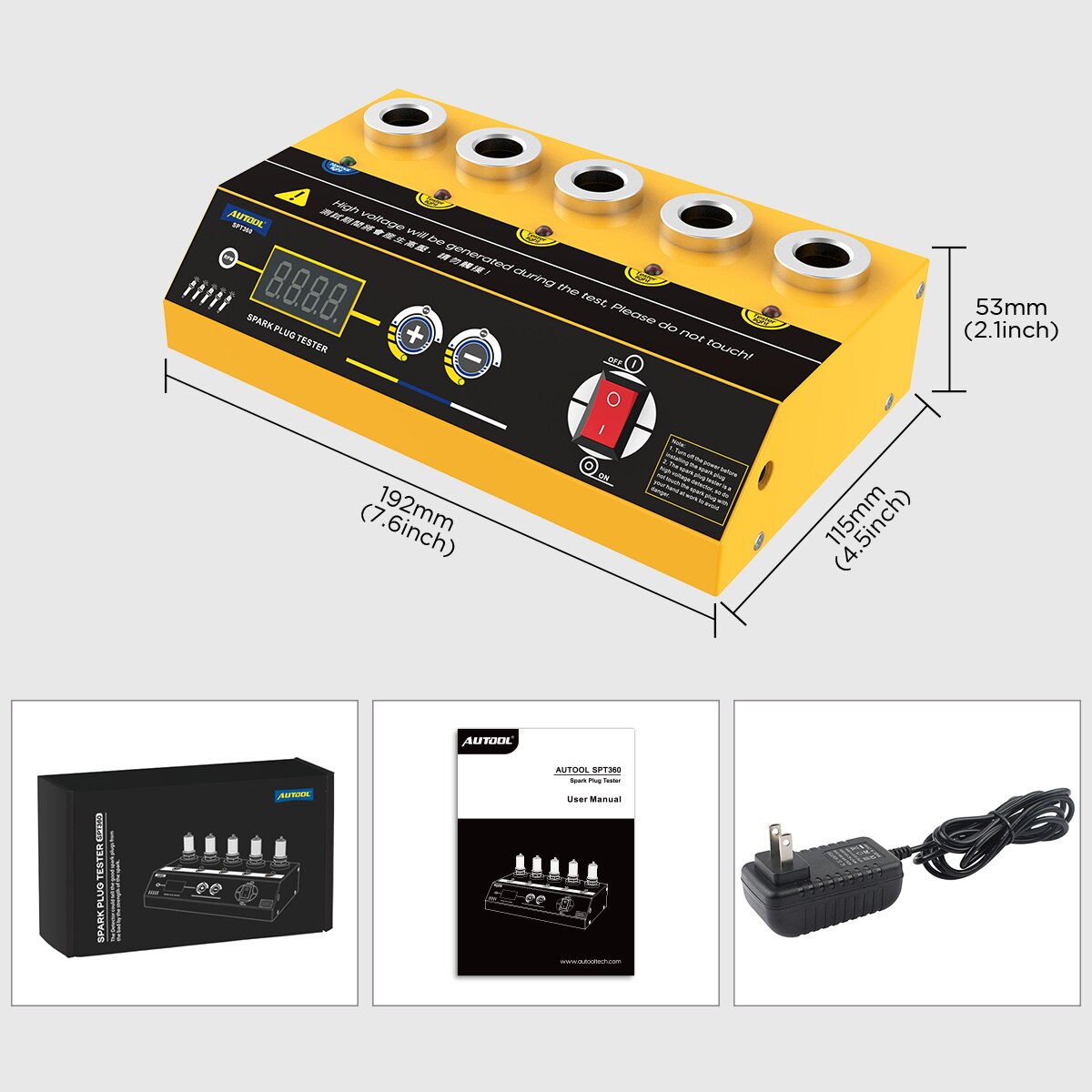

1pcs * SPT360 Car Spark Plug Tester
1pcs * Power supply
1pcs * Manual
1pcs * Packing box
