AUTOOL SDT 202 Car Smoke Leak Detector — an outstandingly professional auto pipes leak Smoke Tester. It will help us position cars motorcycles leaks on the pipe systems in minutes, quickly and exactly, such as Intake System Test, Exhaust Systems Test, Car Sealing Test, Fuel Tank System Test, Various Pipe Fittings Test.

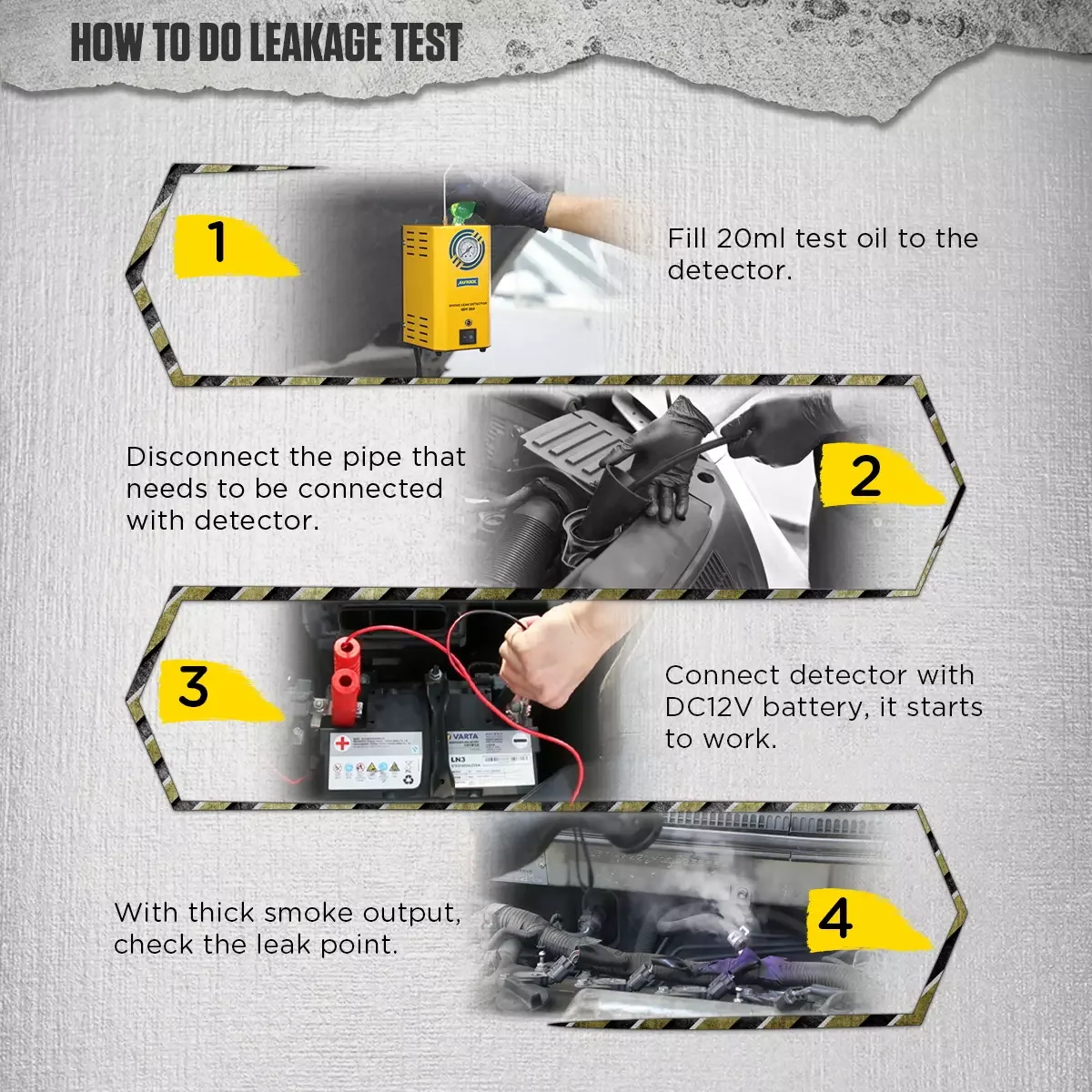

How to do Leakage test ?
1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector.
3.Connect detector with DC12V battery, turn on the power switch, and the detector starts to work
4.In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
AUTOOL SDT 202 Car Smoke Leak Detector Features：
1.[WHY IS IT NEEDED]: Must-have tool for vehicle techs .The AUTOOL SDT 202 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. By observing the pressure gauge, the leakage situation is clear at a glance.
2.[HOW TO WORK]: Firstly fill 20ml test oil, then simply connect the the DC12V battery,it starts to work. Soon thick smoke outputs into sealed pipe system. You can find the leak point easily.

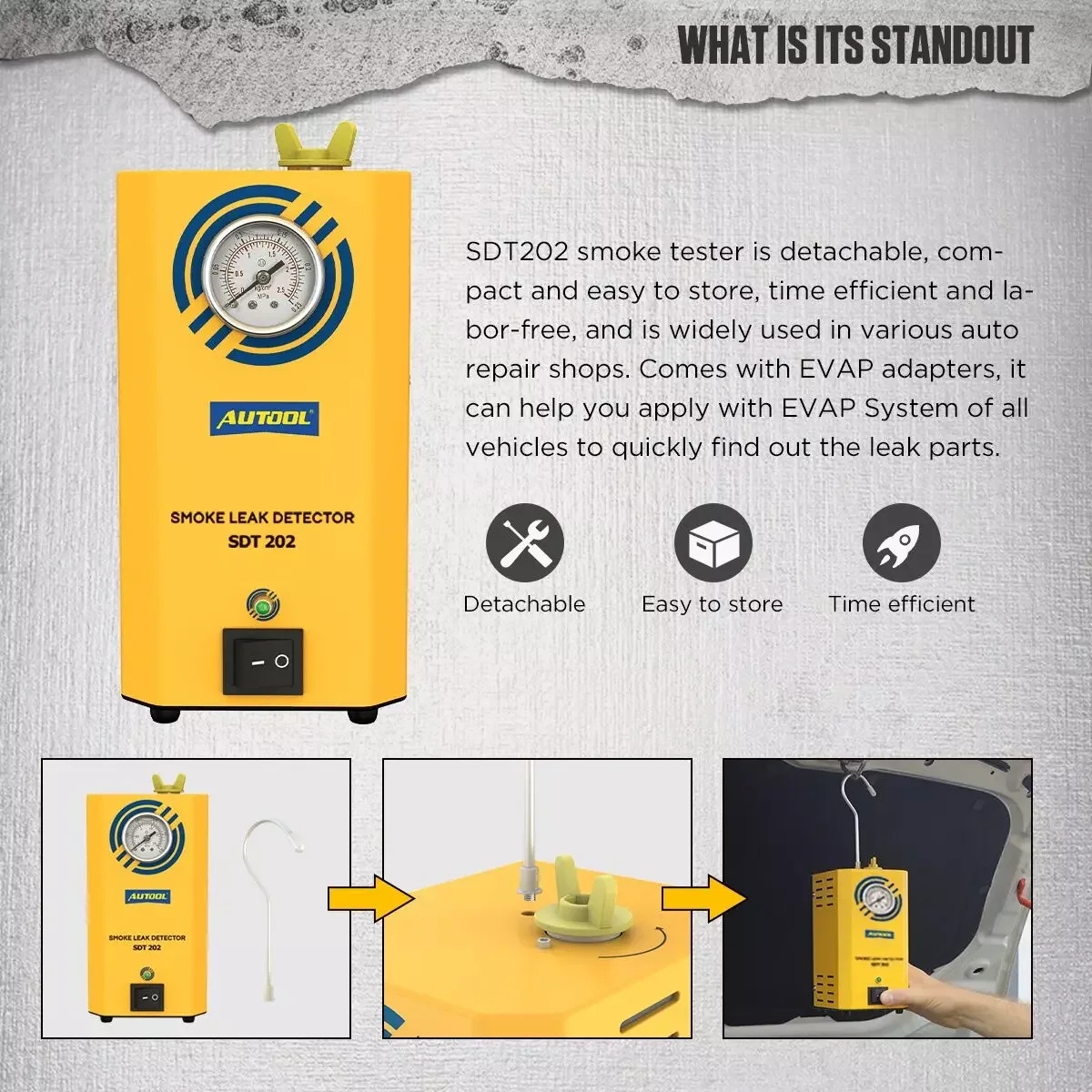

3.[WHAT IS ITS STANDOUT]: SDT202 smoke tester is detachable, compact and easy to store, time efficient and labor-free, and is widely used in various auto repair shops. Comes with EVAP adapters, it can help you apply with EVAP System of all vehicles to quickly find out the leak parts.
4.[WHERE TO USE]: Quickly smoke test for EVAP systems, Turbo leaks, Intake System, Exhaust Systems, Cooling System, Car Sealing, Fuel Tank System, Various Pipe Fittings and more. Suitable for all car models, eg. motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.
5.[3 YEARS WARRANTY]: For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.Main Unit Structure :

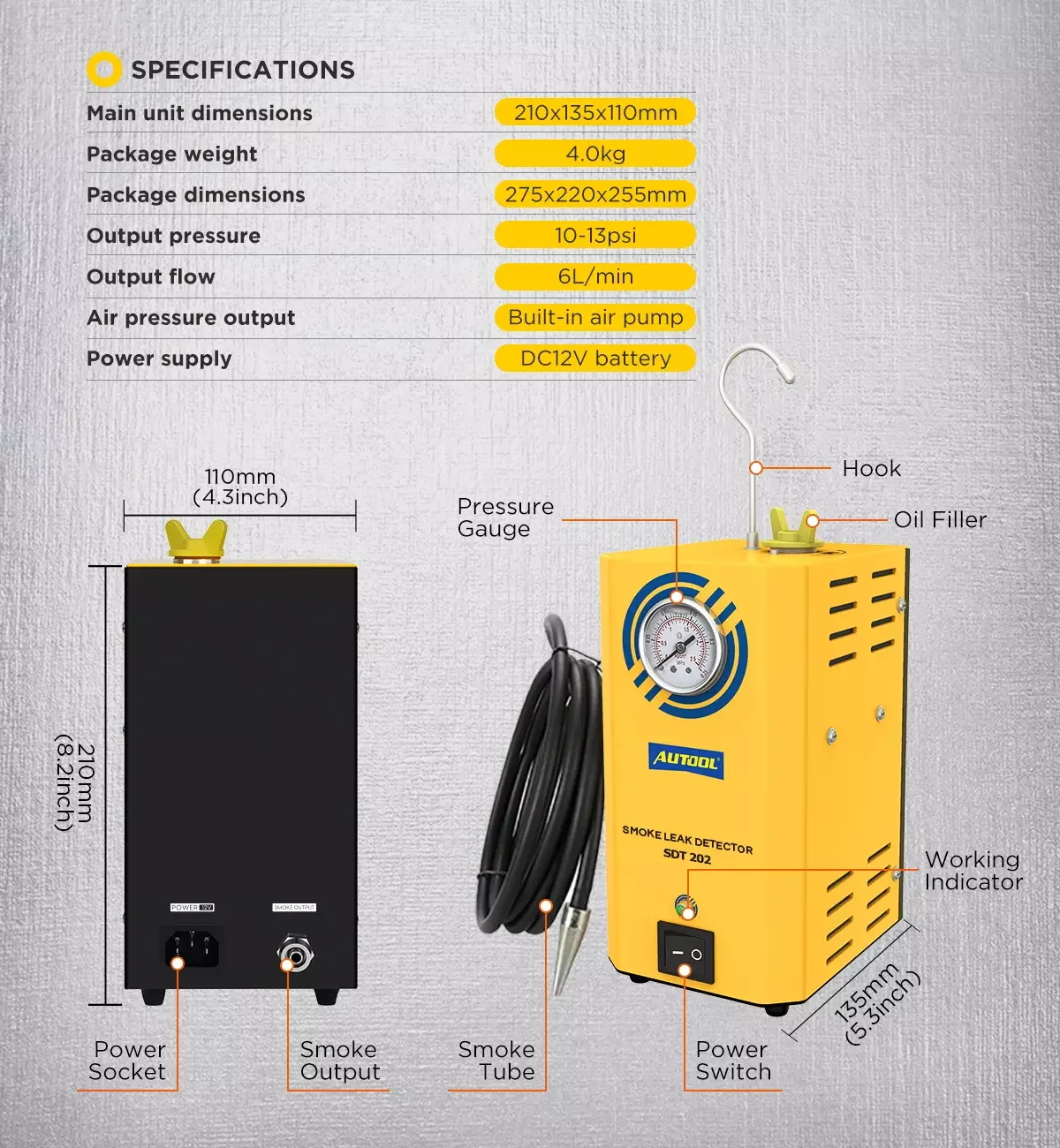

Hook: To hang the detector when detecting.
Working Indicator: It is lit when the detector works.
Power Switch: Power it on, and the detector works.
Smoke Output Tube: The smoke outlet which connecting with detection port.
Power Code Clamp: To connect with vehicle battery. The voltage is DC12V.
– 1.When you use this AUTOOL SDT 202 Car Smoke Leak Detector for the first time, fill with 10-20ml oil.Please be careful NOT to beyond this range.
– 2.The testing liquid : both liquid paraffin and baby oil are OK.
– 3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
– 4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
– 5. During the process of leak detection, please keep away from smoke-sensitive parts.
– 6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.
– 7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
– 8.The round part of this detector has temperature, please be careful to avoid burns.
– 9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
1pcs * AUTOOL SDT 202 Car Smoke Leak Detector Main Unit
1pcs * Hook (with hand-tighten nuts)
1pcs * Rubber Connect Parts
1sets * Hard Rubber Hose Plug (with serial specification)
1pcs * Standard Cone Adapter
1pcs * Universal Airbag Adapter
1pcs * Power Cord Clamp
1pcs * Valve Core Wrench
1pcs * Test Oil Refill Bottle(oil not included)
1pcs * EVAP Special Connector
1pcs * Smoke Hose
1pcs * User Manual
