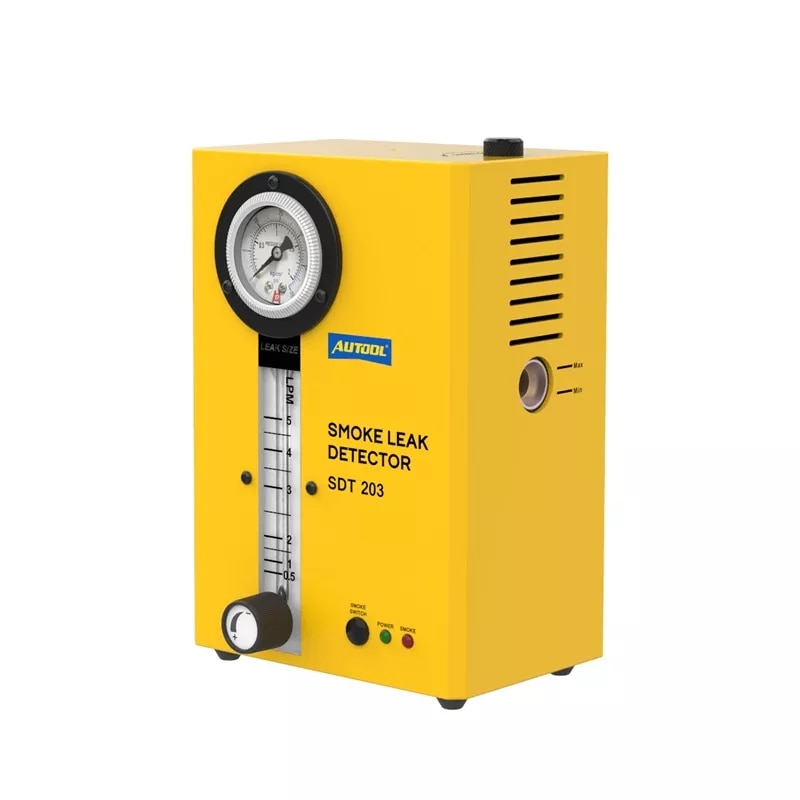

AUTOOL SDT203 Car Smoke Leak Detector Pipe EVAP Vacuum Leakage Diagnostic Tool
AUTOOL SDT203 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test, Various Pipe Fittings Test.

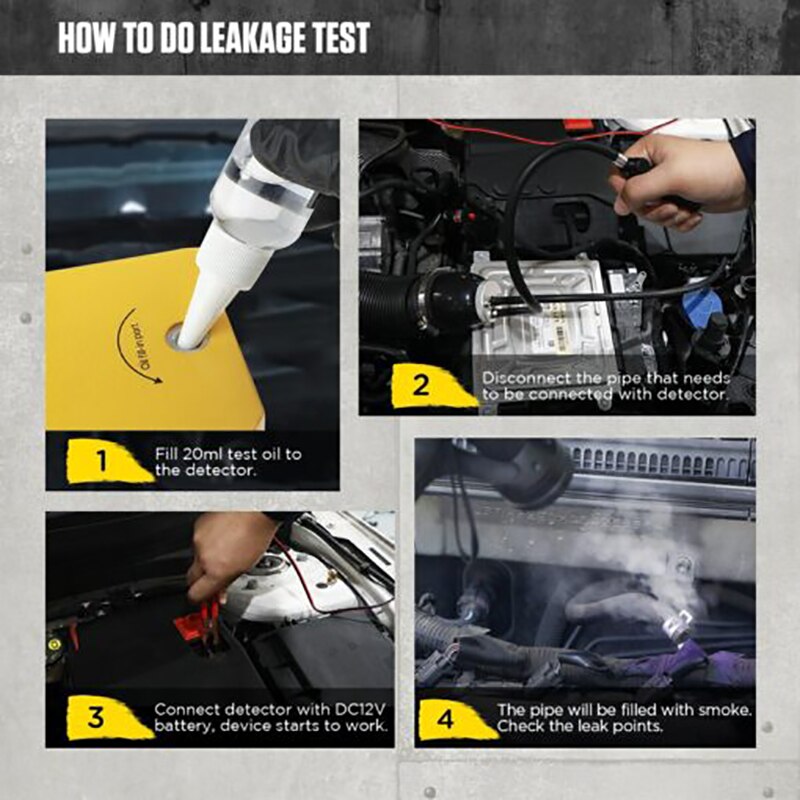

How to do leak test？
1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.
4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
AUTOOL SDT 203 Car Smoke Leak Detector Features：
1.[Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.

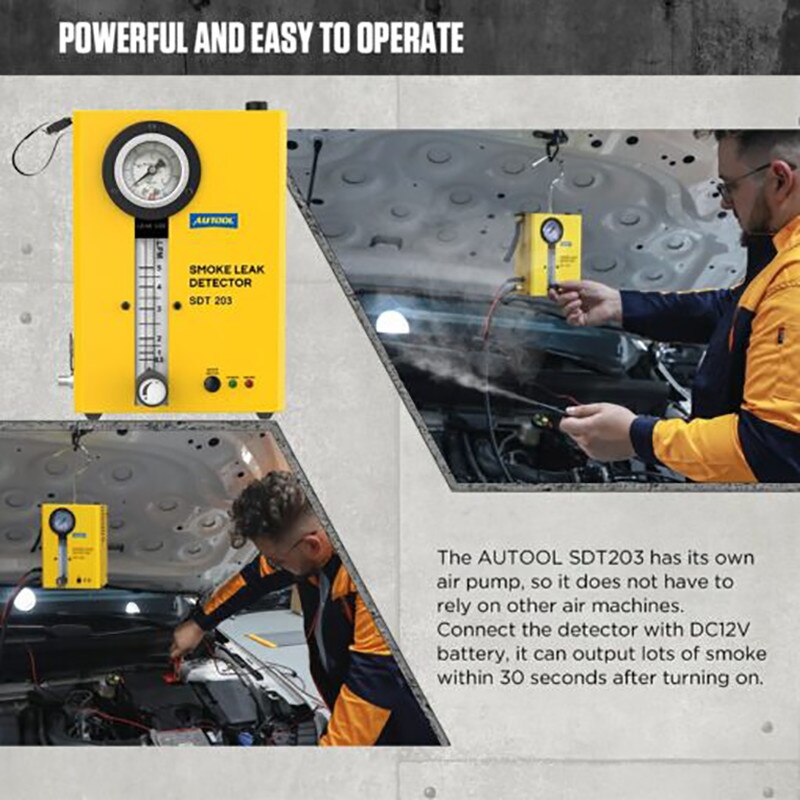

2.[Powerful and Easy to Operate] : The AUTOOL SDT 203 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.

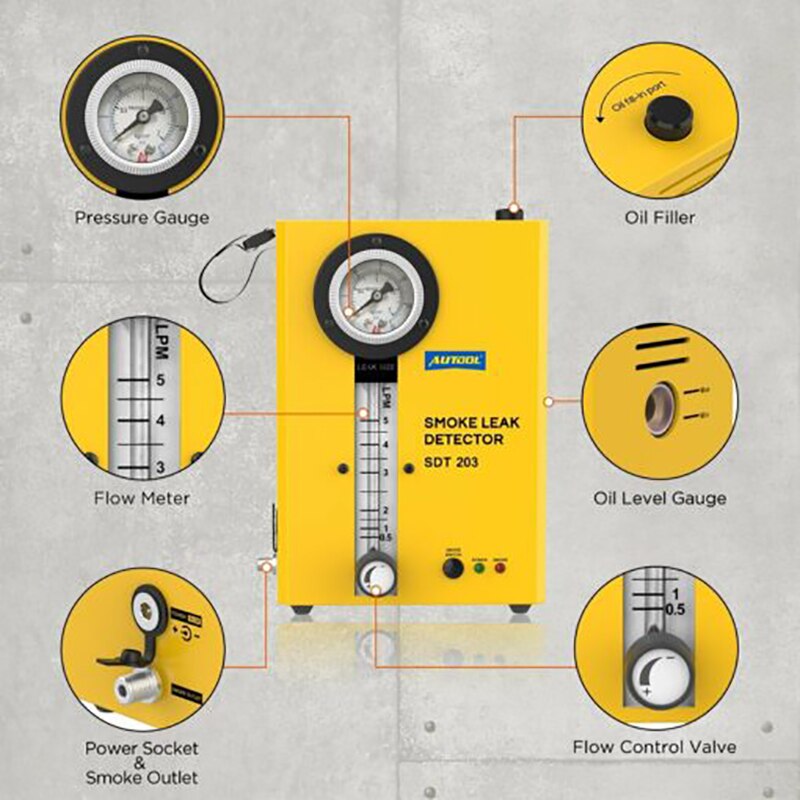

3.[Advanced Technology]: It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode.
4.[Overheat & Anti-frost Protection]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.
5.[3 Years Warranty]: For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
1.When you use this AUTOOL SDT 203 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

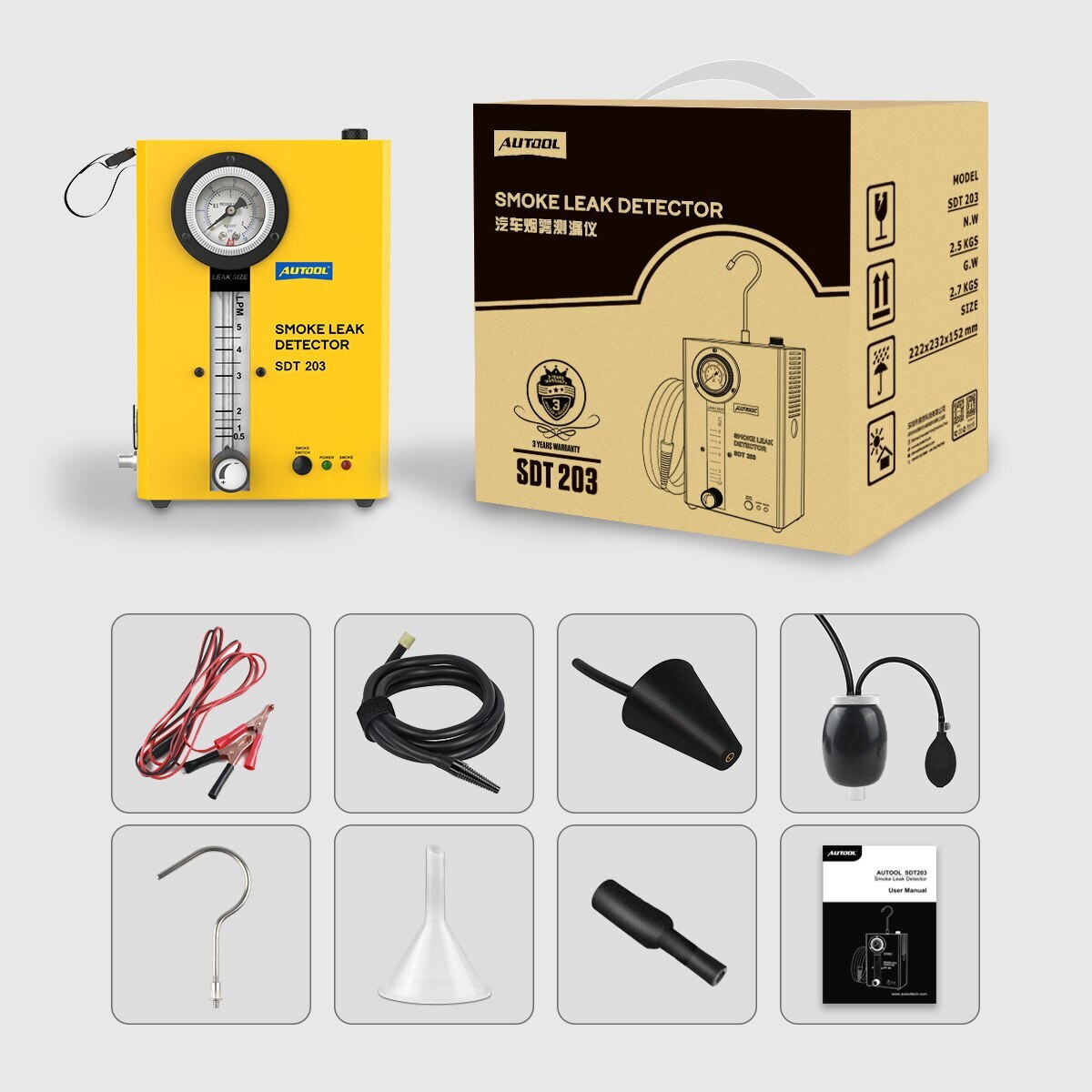

1pcs * AUTOOL SDT 203 Car Smoke Leak Detector main unit
1pcs * Power Cord Clamp
1pcs * Smoke Hose
1pcs * Standard Cone Adapter
1pcs * Universal Airbag
1pcs * Hard Rubber Hose Plug
1pcs * Hook
1pcs * funnel
1pcs * User Manual
