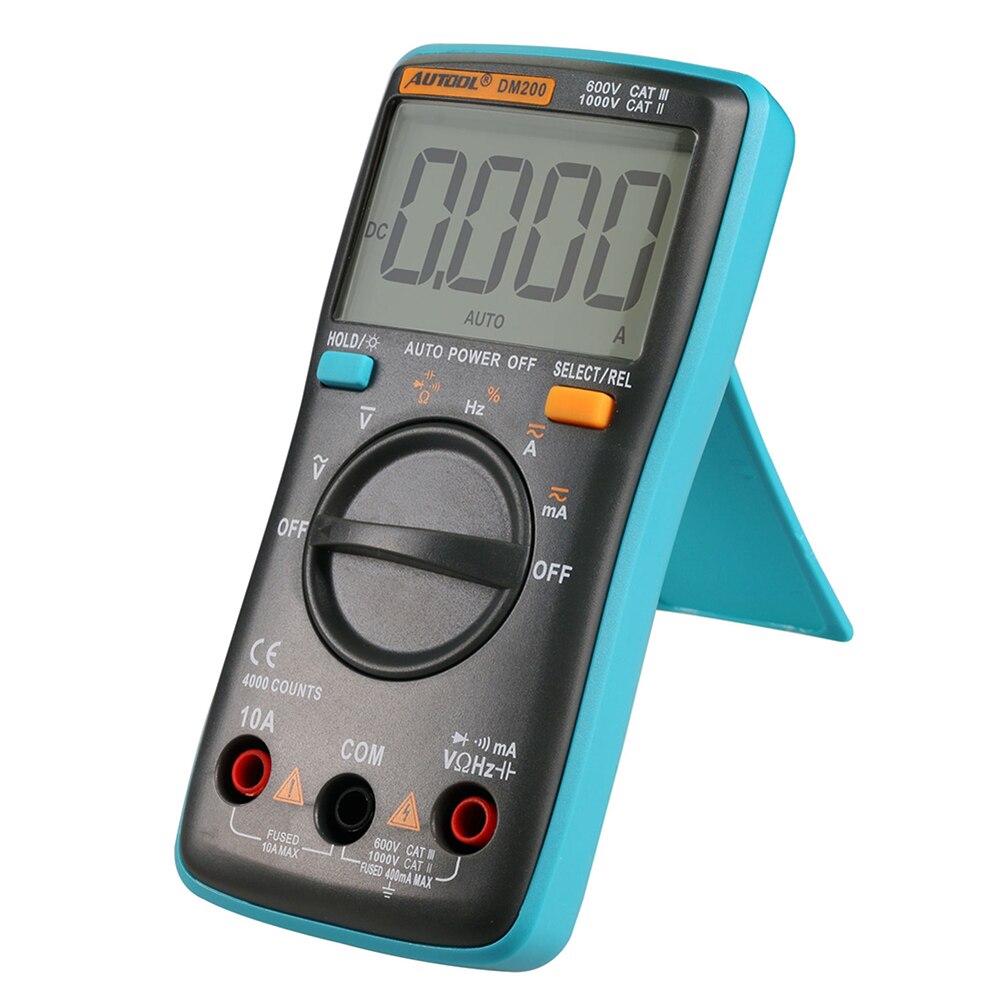

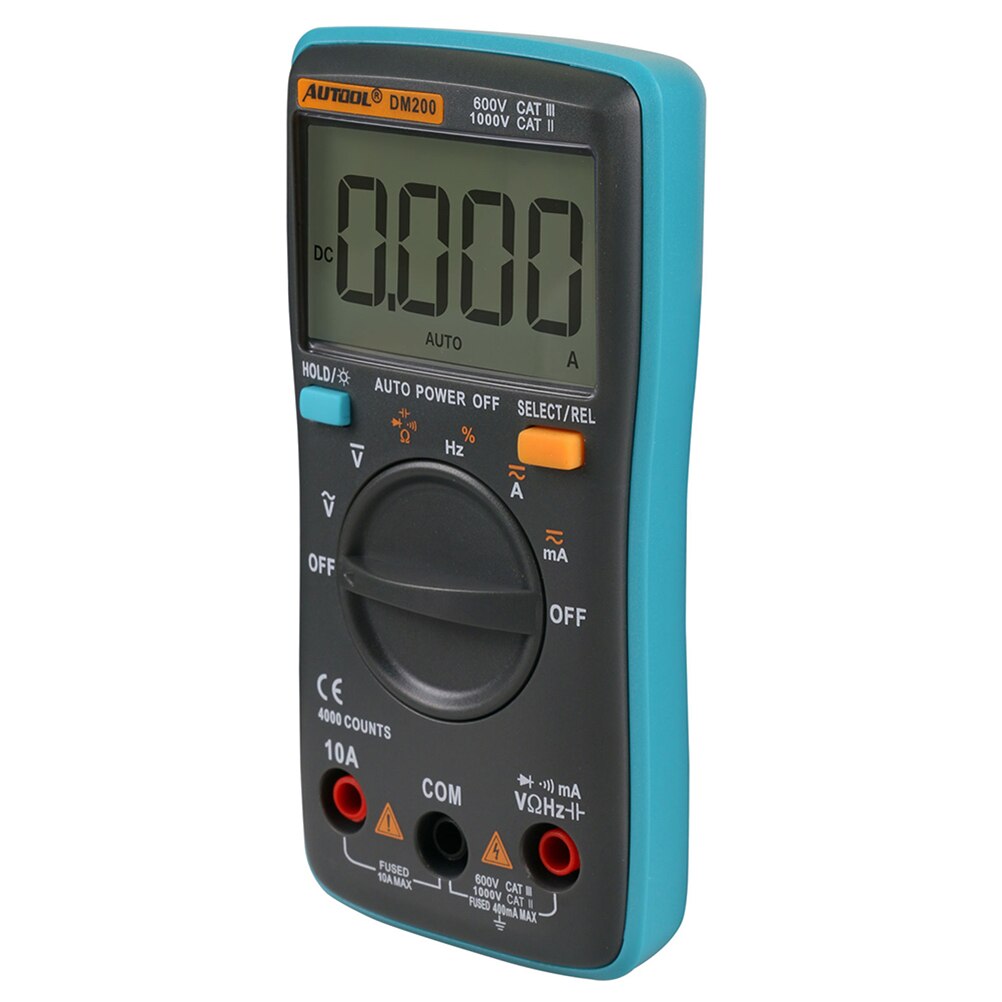

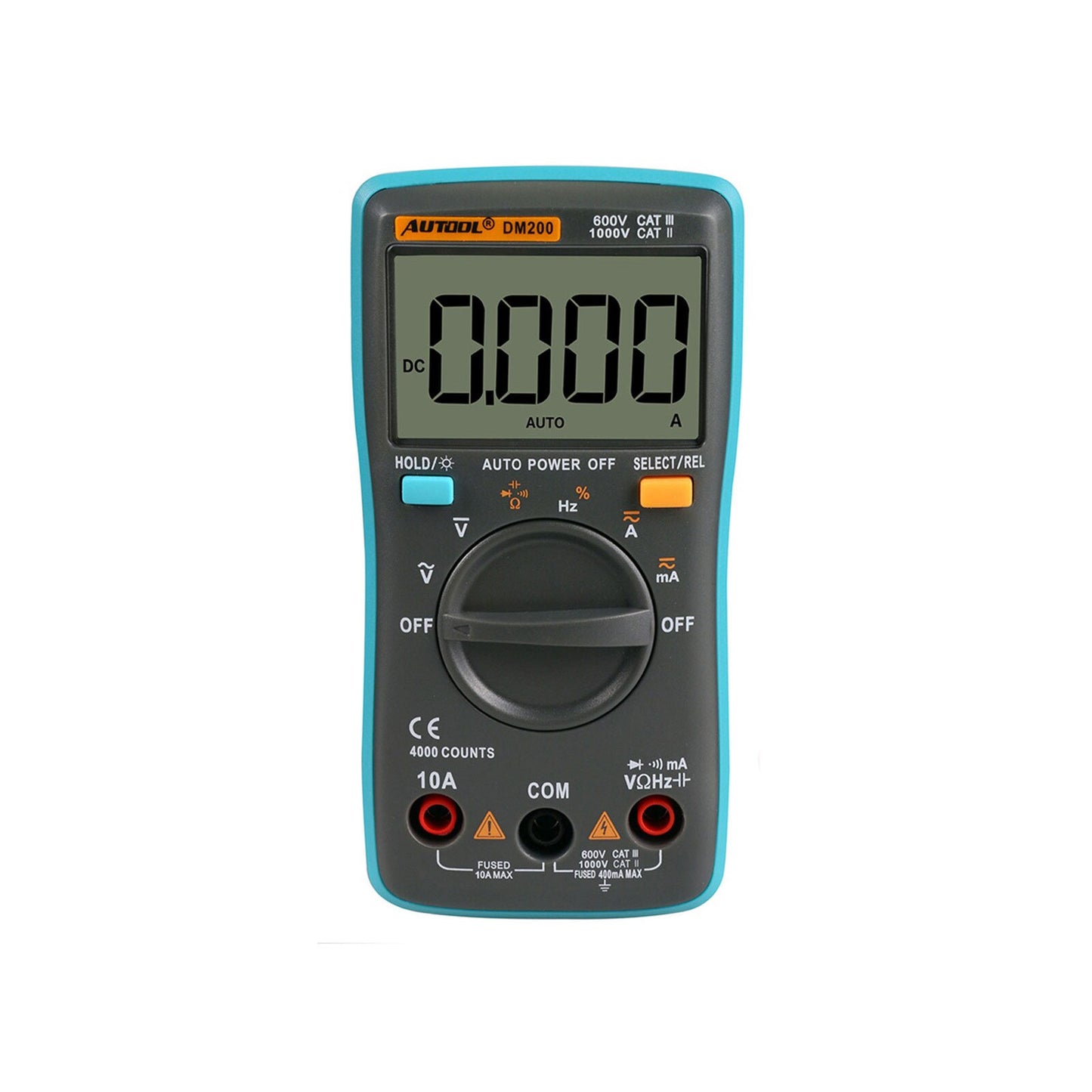

Autool DM200 Multimeter AC DC Ammeter Voltmeter Ohm Frequency Diode Temperature Backlight Handheld Meter Digital Tester

Autool DM200 Multimeter AC DC Ammeter Voltmeter Ohm Frequency Diode Temperature Backlight Handheld Meter Digital Tester

Regular price $16.06
Regular price $0.00 Sale price $16.06
Sale Sold out
Shipping calculated at checkout.

Autool DM200 Multimeter 6000 features AC / DC Ammeter Voltmeter Ohm Frequency Diode Temperature Backlight Handheld Meter Digital

Product Description:

Frequency range: 5/50/500 / 5k / 50k / 500k / 5M / 10MHz
Temperature range: -20 to 1000 degrees Celsius (-4 to 1832 degrees Fahrenheit)
Capacitance range: 9,999 nF / 99.99 nF / 999.9 nF / 9.999 uF / 99.99 uF / 999.9 uF / 9.999 mF
AC voltage range: 600 mV / 6V / 60V / 600V / 750V
DC voltage range: 600 mV / 6V / 60V / 600V / 1000V
DC current range: 60 mA / 600 mA / 10A
AC current range: 60 mA / 600mA / 10A
Resistance range: 600 / 6K / 60K / 600K / 6M / 60M Ohm
Measurement rate range: 1% to 99%

Warnings:

1) Do not exceed the maximum values indicated in the specifications.
2) Do not input voltage in Current Mode, Resistance Mode, Diode Mode, Continuity Mode, or Temperature Mode.
3) Do not use the product when the batteries or the battery cover is not located correctly.
4) Turn off the product and remove the test leads from the test points before changing the batteries or fuses.
5) Do not input voltage that exceeds 36 V DC or 25 V AC when setting the measurement current.

Note:

Does not include two 1.5V batteries.

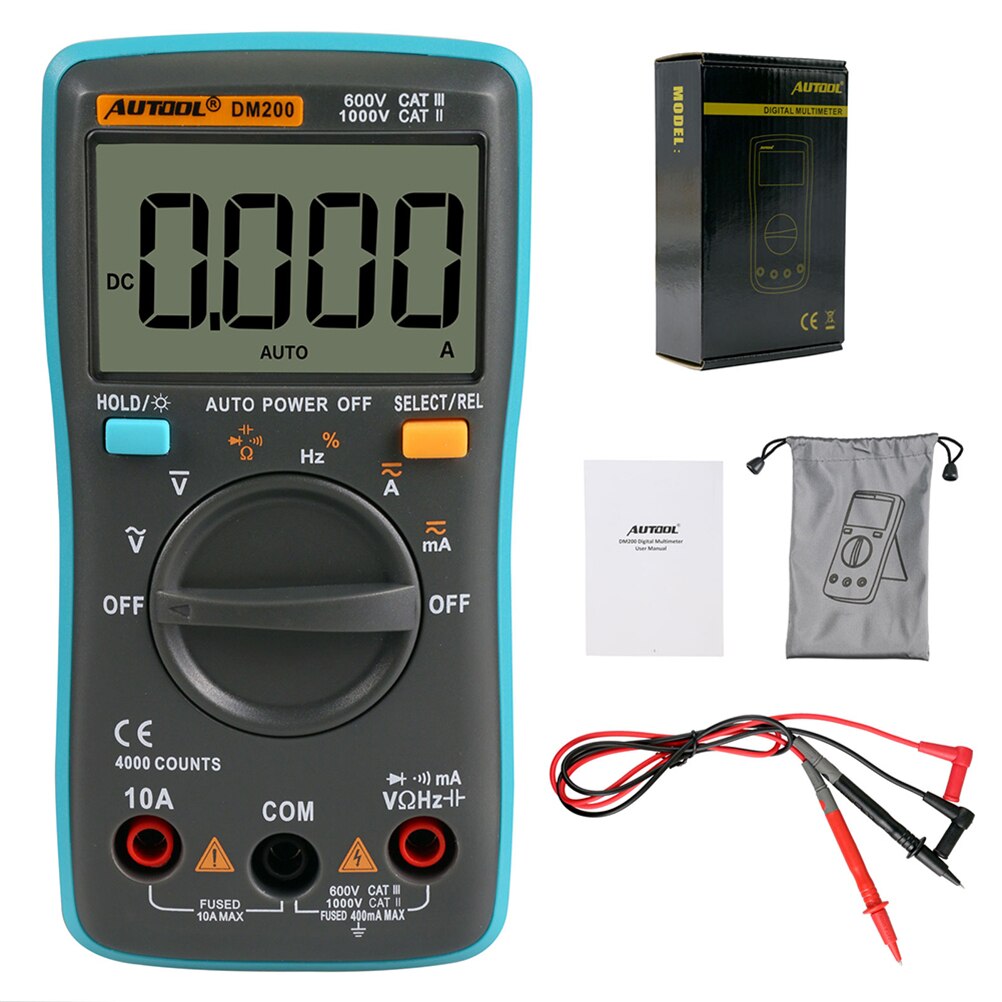

Package List:

1PCS AUTOOL multimeters
1PCS user manual
1PCS a pair of test wires
1PCS Storage Bag
