AUTOOL CT160 Car Fuel Injector Tester Heating Cleaner is a professional 4 cylinders auto fuel injector testing cleaning machine. It will help us clean and test the injectors of gasoline cars and motorcycles. Support for more cars and motorcycles.Can only be used to clean diesel fuel injectors.The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-230V and English control panel.
Support For 99% Cars & Motorcycles
Support for Audi，for Australia Ford，for Benz，for BMW，for Brilliance，for Chevrolet，for Chevy，for Chrysler，for Citroen，for Dacia，for Dadi，for Daewo，for Daihatsu，for Demo，for Fiat，for Ford，for GM，for Holden，for Honda，for Hyundai，for Isuzu，for Jaguar，for Kia，for Lancia，for Land Rover，for Mahindra，for Maruti，for Mazda，for Mitsubish，for Nissan，for Opel，for Peugeot，for Porsche，for Renault，for Romeo，for Rover，for Saab，for Seat，for Skoda，for Smart，for Subaru，for Suzuki，for Tata，for Toyota，for Volvo，for VW，for Yamaha.
CT160 Original Car Fuel Injector Tester Cleaner Features：
1.[Wide range of applications] :CT160 Car Fuel Injector Tester and Heating Cleaner have a good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injector. And also can be used to ‘clean’ diesel fuel injectors.
2.[Easy to operate ] :When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of 3M cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube Industrial alcohol, the test can be completed after power on.
3.[Leading technology] :At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
4.[Safety]:Its working voltage range is 110-230V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
5.[3 year warranty]:For damage caused by non-human factors, we promise to resend parts for free within 3 years.
CT160 Car Fuel Injector Tester Cleaner how to work:
1.Clean injector's outside with cleaning liquid before open machine .Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.The cleaning fluid does not exceed the connection port of the pulse line.
2.Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors.After cleaning, the remaining cleaning fluid can be recycled.
3.Fixed injectors on main machine,testing injectors for resistance, shorts, and current draw.The test liquid can be added to the half of the glass tube.
4.Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions.
A Cleanning petrol injector with ultrasonic
B Cleanning spark plug.Put spark plug into cleaning tank ,input clean fluid and begin clean
C Testing injector injection in different situation, check leaking and blocking
D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
F Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)

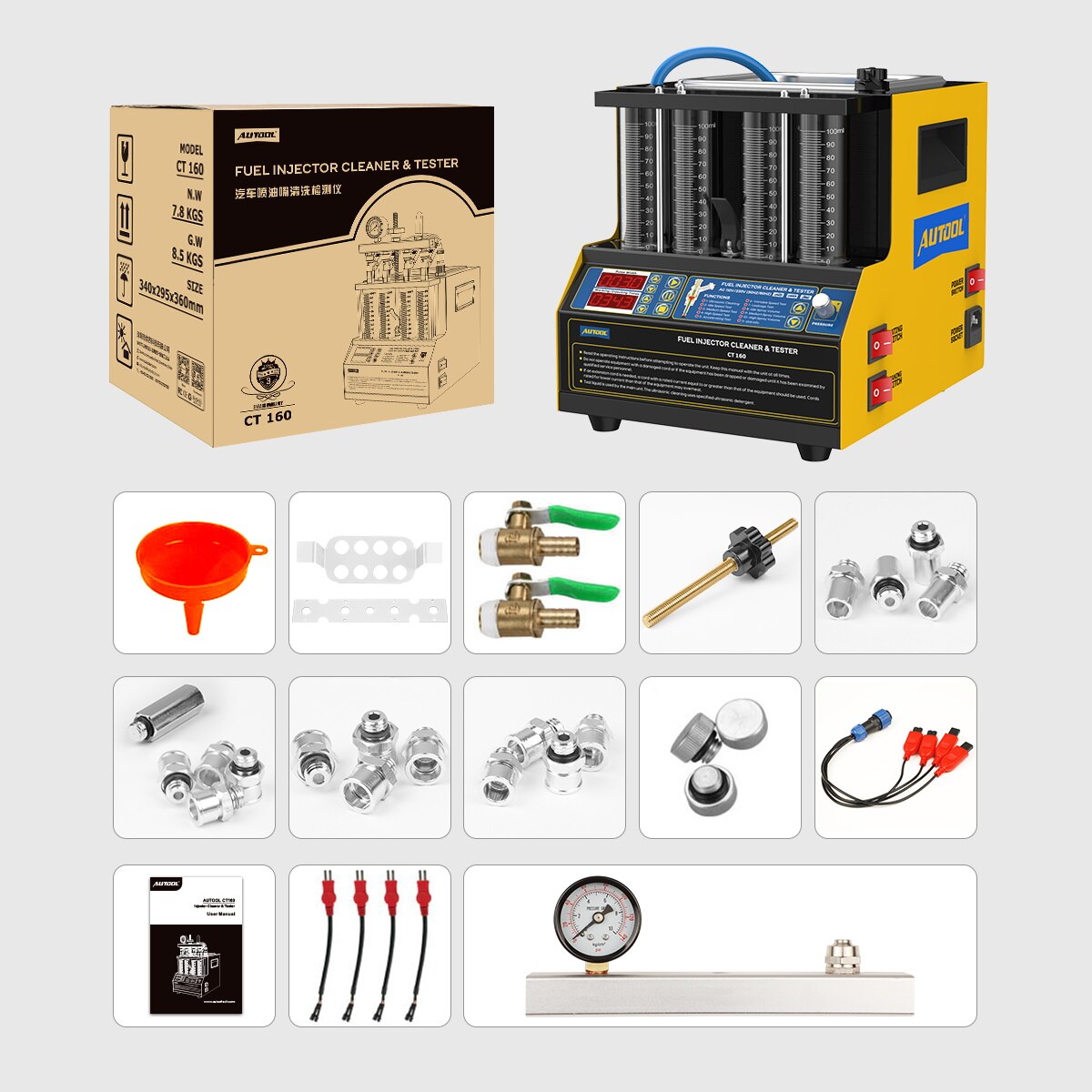

1pc* AUTOOL CT160 Fuel injector diagnostic and cleaning Cleaner Machine main unit
1pc* Ultrasonic leaning stand
2pc* Oil drain valve
1pc* Lock pole
4pc* Extended plug
4pc* Motorcycle top oil inlet connectorⅠφ10mm
4pc* Motorcycle top oil inlet connectorⅡφ11mm
4pc* Motorcycle top oil inlet connectorⅢφ10.6mm
4pc* Car top oil inlet connectorⅢφ10.6mm&13.4mm
1pc* Signal wire
4pc* Adapter cable
1pc* Oil rail
1pc* User manual
