AUTOOL C80 Car Fuel Cleaning Machine Cleaner Washing Tool Non-Dismantle Automotive For Auto Gasoline Diesel Engine Repair

AUTOOL C80 Auto Injector Cleaner Non-Dismantle Auto Fuel Injector Cleaner

The injector clean kits include many different kinds of adapters, covering almost all for EU, for Asia, for USA cars and light trucks.

Non dismantle injector throttle and fuel system.

The system is not only characteristic of high and low pressure cleaning function.

At the same time put the function of the whole combustion chamber fuel system of several functions in one product, such as cleaning throttle valve and the fuel nozzle.

Suit for CFS Series Fuel System .(for Cummins Fuel Systems)

Using Tips:

Find out the fuel return hose, disconnect it and plug it with a suitable adaptor;

Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;

Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work;

Charge the cleaning fluid into the tank of the cleaner;

Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;

Check all connect point to make sure there is not leakage;

Start the engine to clean the fuel system.

To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.

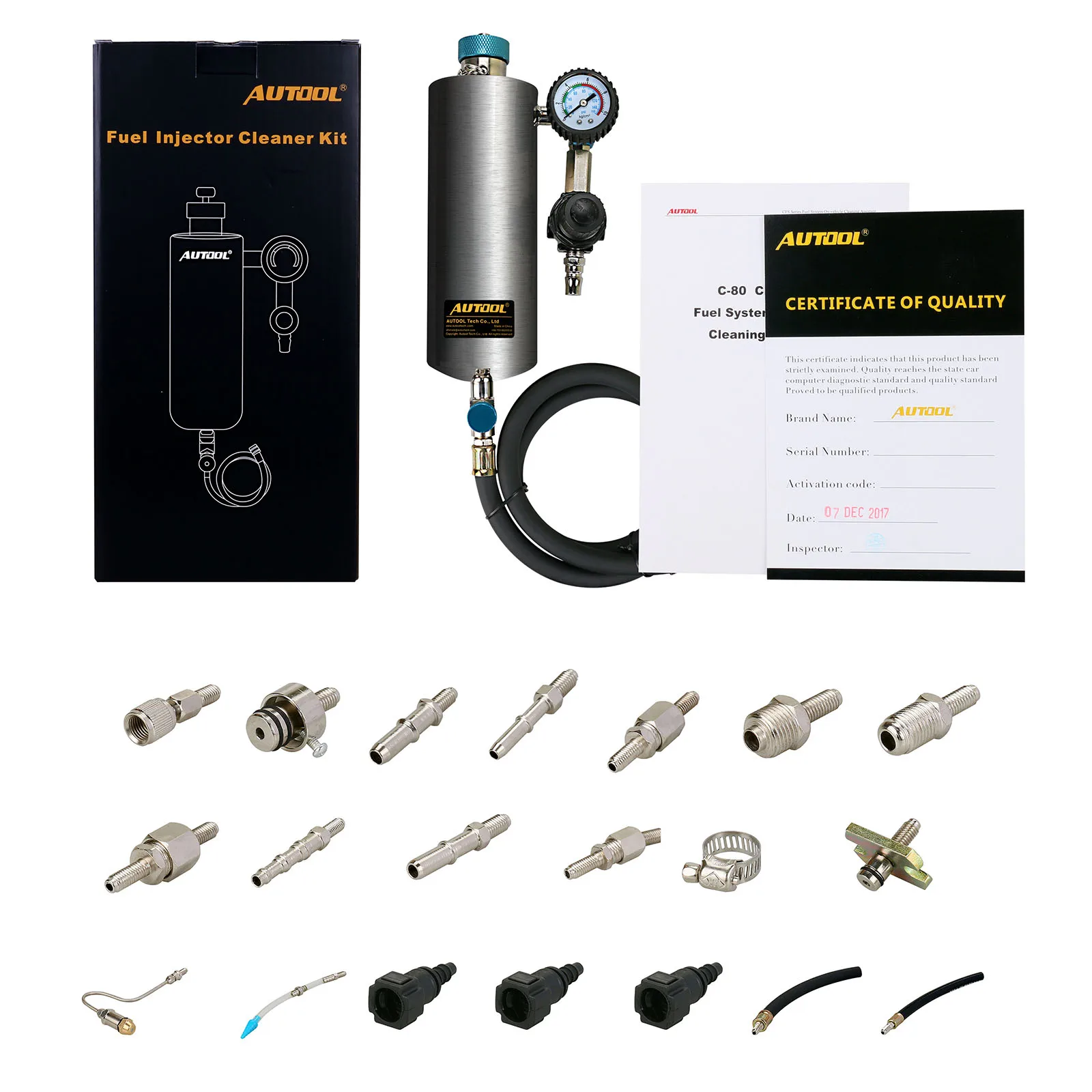

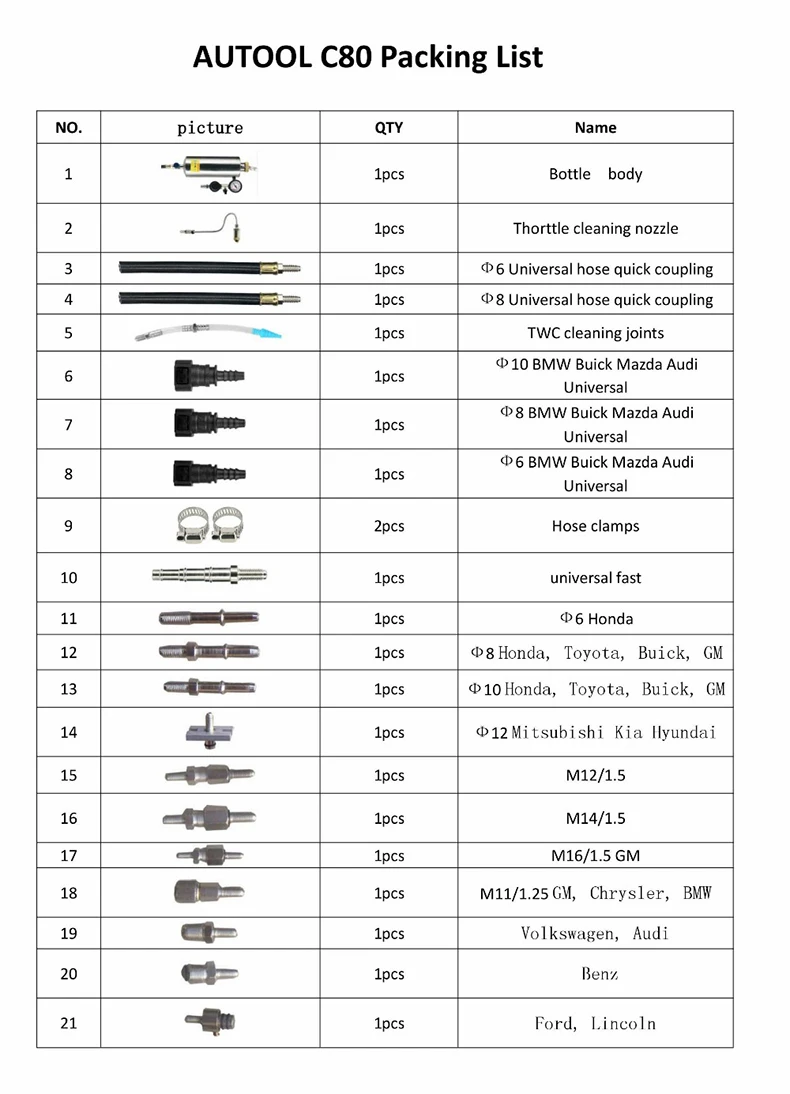

Package list:

1x Fuel Injector Cleaner

1x Adapter Kits

1 x Instruction
