2024 New-LAUNCH X431 PRO V5.0 Car Diagnostic Tools with DBScar VII VCI CAN FD Auto OBD2 Scanner 36+ Reset Coding PK X-431 V
2024 New-LAUNCH X431 PRO V5.0 Car Diagnostic Tools with DBScar VII VCI CAN FD Auto OBD2 Scanner 36+ Reset Coding PK X-431 V
Couldn't load pickup availability
![](https://ae01.alicdn.com/kf/S3b7db74e167e4cd7a9823843288b0097J.jpg)

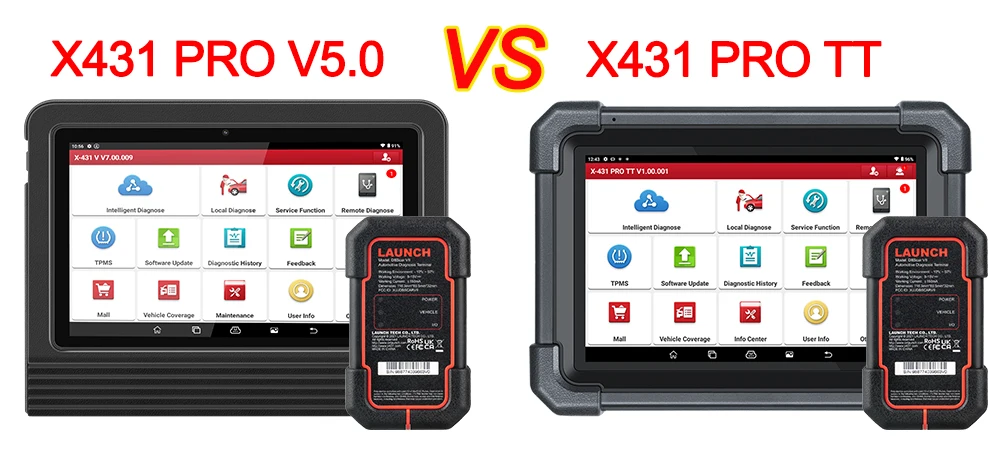

what is the different between X431 PRO V5.0 and X431 PRO TT
The functions are the same, but there are some differences in appearance
![](https://ae01.alicdn.com/kf/Sebe1364968d04f518a78ebea2ea2adbfw.jpg)

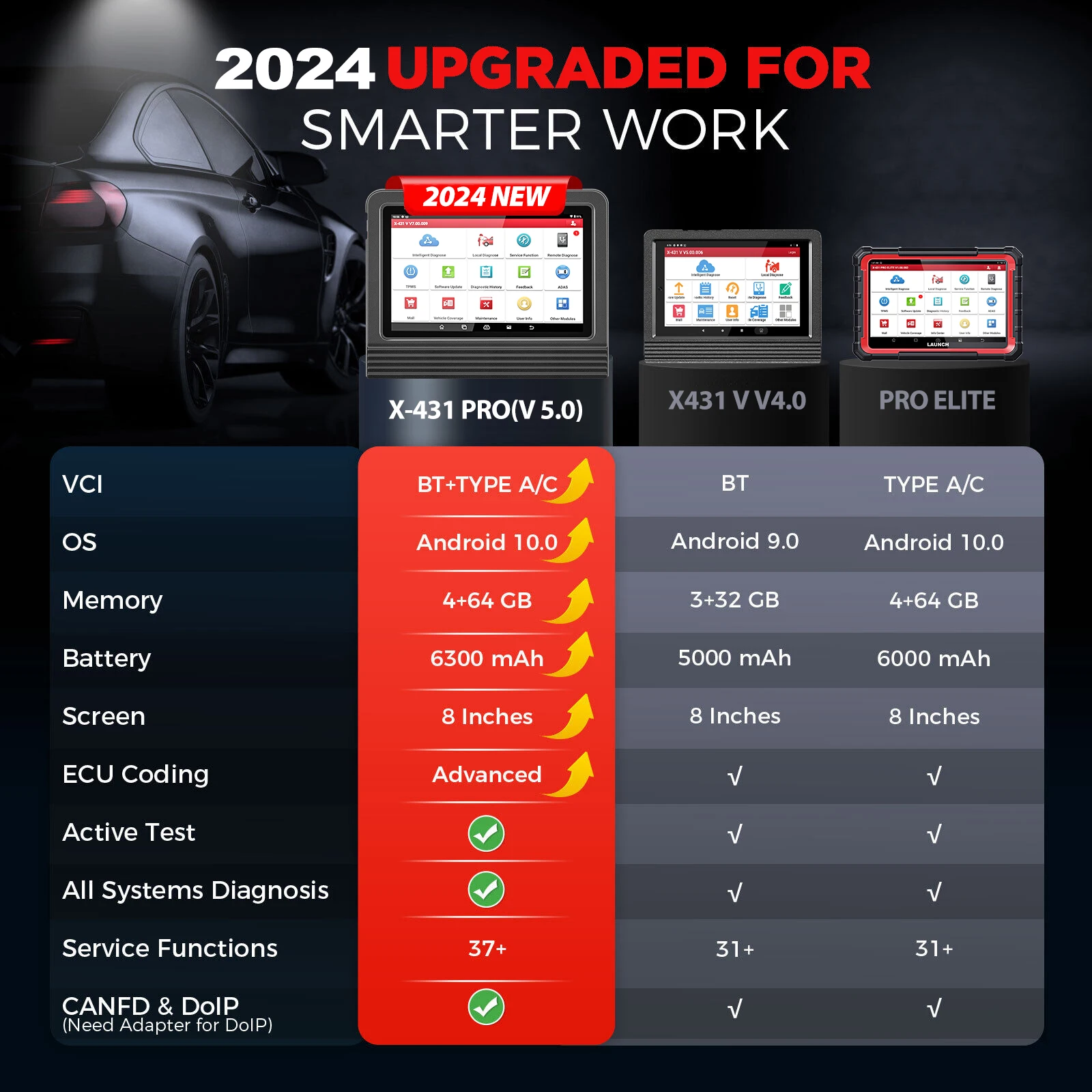

X431 PRO V5.0 tablet configuration parameters
Tablet size: 8.0 inches, 1280 * 800
System version: Android 10
CPU version: 2.0GHz 4-core
Running memory: 4GB
Storage memory: 64GB
Battery capacity: 47880mWh (7.6 V, 6300mAh)
Camera: Front 500W, rear 800W
WiFi network: 2.4GHz/5GHz (dual band)
Plate size: 234mm x 166mm x 39.5mm
![](https://ae01.alicdn.com/kf/Sd02384b83db94f90bd13e72a2d5353a5w.jpg)
Multi-Language Supports
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional...
Warm TIP: The factory presets the language and the model software in English. After switching the language, customer needs to re-download the model software in the corresponding language.
![](https://ae01.alicdn.com/kf/Sb12b234e890f4797aa2326f61420d046E.jpg)
with DBScar VII VCI adapter
Support CAN FD new protocols
DOIP (Optional)

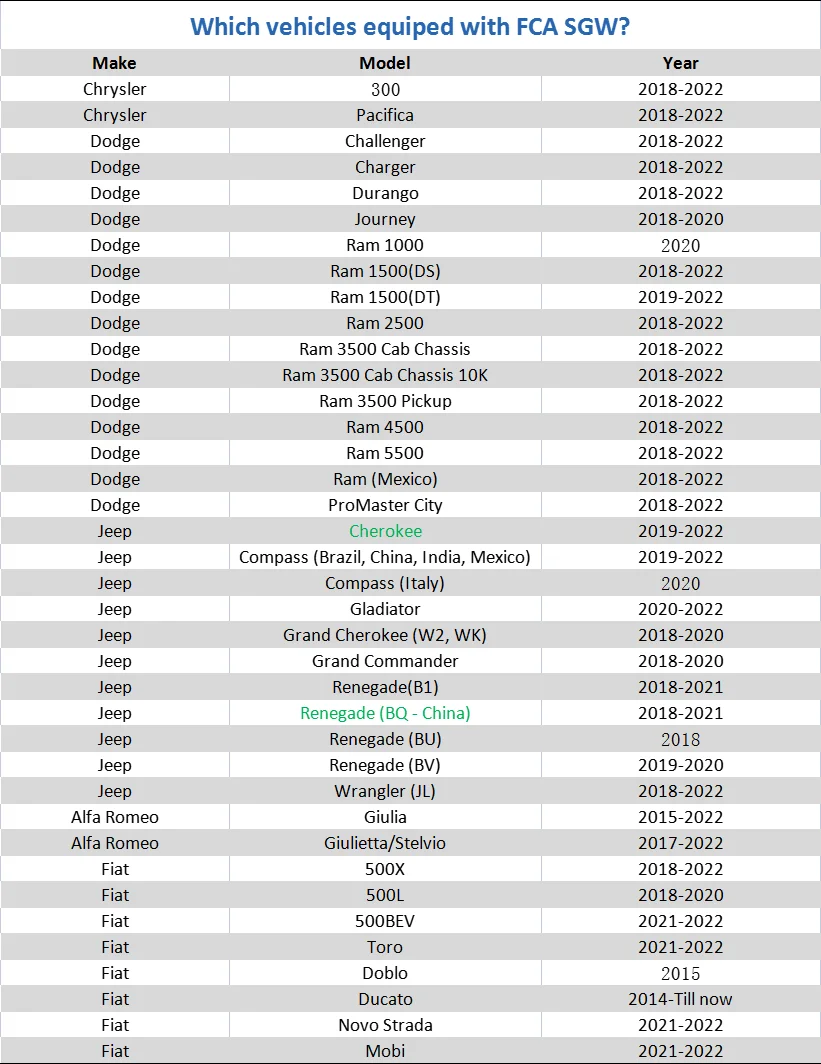

What's FCA US SGW? (Optional)
FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.
This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle’s SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.
Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles.
NOTE: The model coverage list is still being updated. If you have any questions, please feel free to contact us.
![](https://ae01.alicdn.com/kf/Se44b96adc4f14898b6b3434b683d08c4L.png)
ECU Coding
used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our x431 v pro to stimulate all the possibilities of the vehicles
After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Recode Changed Modules/Optimize Vehicle Performance/Re-Flash/Hidden Functions/Renew ECUs Coordination/Reprogram/Adaptive Data/Improve Fuel Efficiency/Reduce Power Loss/Improve the Durability of Mechanical Parts
Active Test ( BI-Directional Controls )
requests a module to perform a specific test and function.(Turn on and off actuators to determine whether there are problems with sensors and actuators)
Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable,Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector Cut Out Test,A/C Compressor Clutch Relay On/Off
EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test
Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/OFF Front and Rear side ACM Solenoid,
Turning the fuel pump on and off,Oil Pressure Control Test
Inlet and Outlet Valve tests,High beam test,Interior lighting test
![](https://ae01.alicdn.com/kf/S9e885874b4f74fbb9515fb1306deb301L.jpg)
OE-Level Full System Diagnostic, Faster and more effective
LAUNCH X431 V V4.0 can establish a data link to all systems and subsystems of the vehicle being serviced to:
Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.
Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components.
The following is a list of modern vehicle systems that this scan tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.
![](https://ae01.alicdn.com/kf/Sf956b6f8ce884e79b584cf28c06477d2i.jpg)
37+ Kinds of Special Reset Service Functions , keep increasing
1> Oil Reset Service
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.
2> Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.
3> Steering Angle Calibration
This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.
4> ABS Bleeding
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.
5> Gear Learning
This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.
6> IMMo Service
This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.
7> Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder,so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.
8> Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
9> Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
10> Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.
11> Gearbox Matching
This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.
12> AFS (Adaptive Front-lighting System) Reset
This function enables you to initialize the adaptive headlamp system.
13> Sunroof Initialization
This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.
14> Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the airsuspension system.
2. When the vehicle height is incorrect.
15> EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.
16> Seats Calibration
This function is applied to match the seats with memory function that arereplaced and repaired.
17> Tyre Reset
This function is used to set the size parameters of the modified or replacedtire.
18> Coolant Bleed
Use this function to activate the electronic water pump before venting thecooling system.
19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.
20> NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.
21> Ac System Initialization
AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.
22> High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status informationdetection.
23> Windows Calibration
This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.
24> Language Change
This function is used to change system language of vehicle center console.
25> AF Reset
This function is applied to set or learn airlfuel rate parameters.
26> Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
27> StoplStart Reset
This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).
28> Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it isreplaced or repaired.
29> Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.
30> Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.
31> Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.
and more...
( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D )
.......
![](https://ae01.alicdn.com/kf/S457f71da30d44dfaacdaafaa81f822ff7.png)
LAUNCH X431 PRO V5.0 Compatible Models
(contact seller to get a link to purchase this model)
X431 ADAS Mobile/PRO:
When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.
VSP600-Videoscop:
helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.
LAUNCH X431 TSGUN:
a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and pro-gramming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.
X-PROG & X-PROG3 Immobilizer:
turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive k-ey pro-gramming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level antitheft systems; also to have completed IMMO & K-ey Pro-gramming (read & write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.
X431 PRINTER: Print out diagnostic data/ reports
O2-1 ScopeBox, Oscilloscope: to quickly acquire the circuit signal, and slowly display the waveform for better data analysis.
BTS360 Bluetooth Battery Tester
With LAUNCH BST360 automotive battery tester, we can check the overall health of the battery.works for all 6 volt and 12 volt lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA). Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and even golf carts.
![](https://ae01.alicdn.com/kf/S97085bc343cc4f999cd89a68b9e626d1E.jpg)
LAUNCH X431 PRO V5.0 support Car List :
X-431 PRO V5.0 supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis
American cars:
For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT(BRAZIL), For FORD, For FORD(AUSTRALIA), For GM
For JEEP, For LINCOLI, For GM(BRAZIL),For TESLA
European car:
For ABARTH, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI,For CITROEN , For DACIA, For DR, For EUROFORD, For FERRARI, For FIAT, For GAZ, For OPEL(SOUTHAFRICA), For IVECO, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVE, For MASERATI, For MAYBACH, For MERCEDES, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLSROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAUXHALL, For VAZ, For VOLVO, For VW, For BORGWARD, For ASTON MARTINA,
Asian cars:
For ACURA, For DAEWOO, For DAIHATSU, For HM, For HOLDEN(AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA(INDIAN), For MARUTI, For MARUTI(INDIAN), For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR(NISSAN, For PERODUA, For PERODUA(MALAYSIA,
For PROTON, For PROTON(MALAYSIA, For SAMSUNG, For SAIPA,
For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TATA(INDIAN, For TLISUZU, For TOYOTA, For UNITED PAKISTAN,
For VINFAST
Chinese car:
For BRILLIANC, For BYD, For CHANGAN, CHANGAN-FORD, , For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVRO-KET, For CHERY, For CHSUZUKI, For DFCIROEN, For HONDA(DF), For DFNISSAN, For DFEUGEOT, For ECUAID, For FAW(TIANJIN, For FOTON, For GOLDEN(XIAMEN, For GONOW, For MITSUBISHI(GAC, For GREAT WALL, For HONDA(GAC, For HAFEI, For HAIMA, For HCBMW, For JAC, For JIANGHUAI, For JMC, For JOYLONG, For LIFAN,
For LYNKCO, For MG(SAIC, For NJFIAT, For QOROS, For MAXUS,
For SGM, For TOYOTA(CHINA, For VENUCIA, For WULING, For XINKAI,
For YQMAZDA, For ZHONGGSHUN, For ZHONGXING, For ZOTYE, For SOUEAST, For ROEWE(SAIC), For JIQING(FAW), For HUANGHAI, For LANDWIND, For EXEEDTY, For NISSAN(ZHENGZHOU), For DFPV,
For JETOR, For DFFX, For CHERY EV
![](https://ae01.alicdn.com/kf/S0b7ec623922148cc9d286535256e7ebdQ.png)

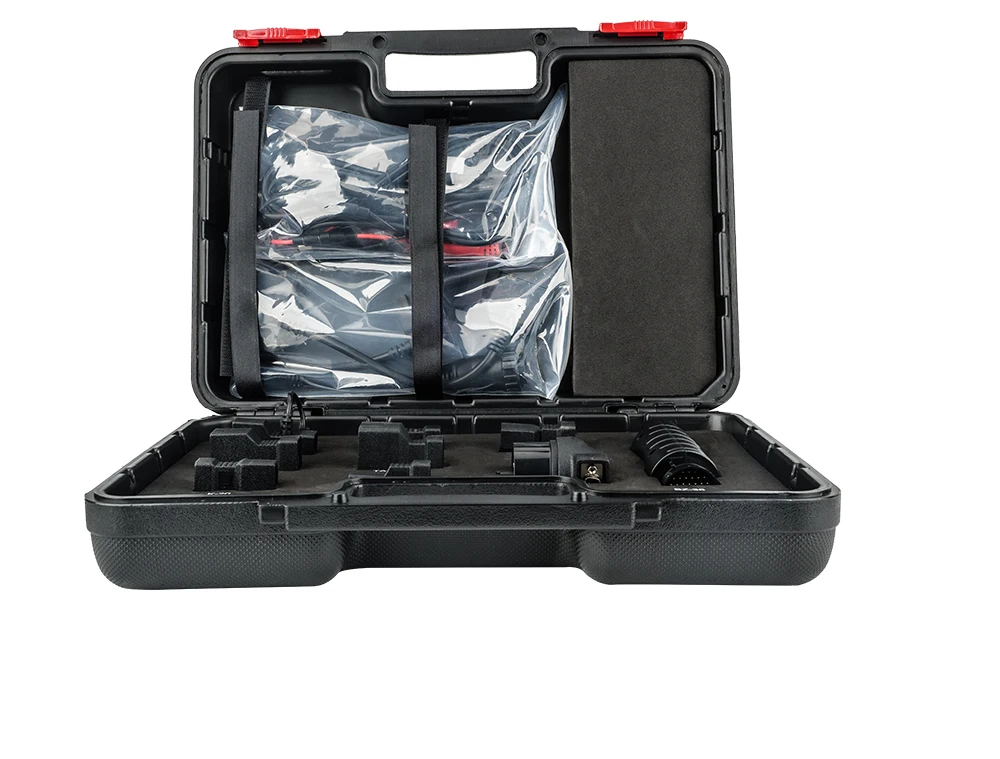

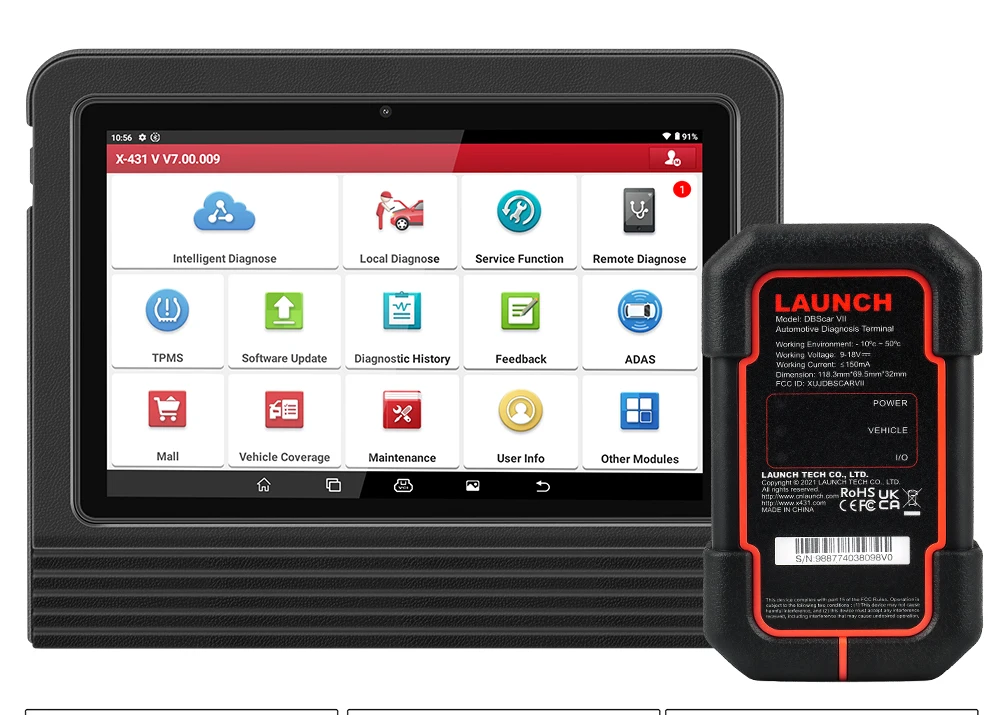

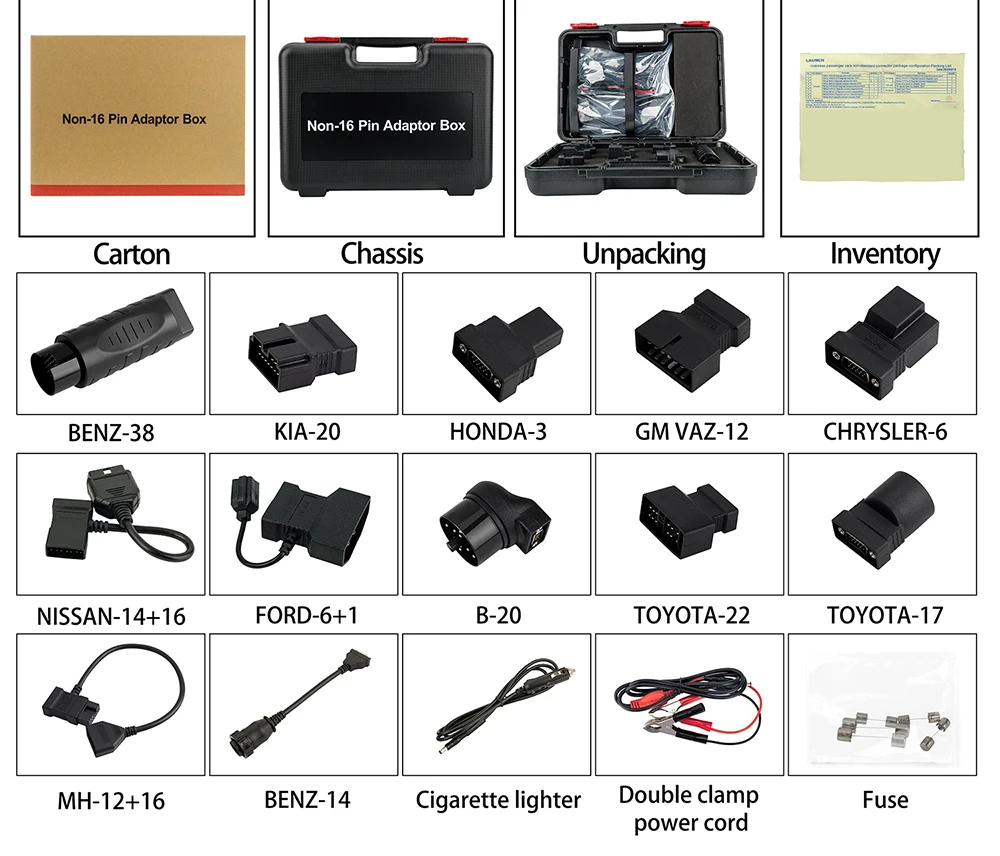

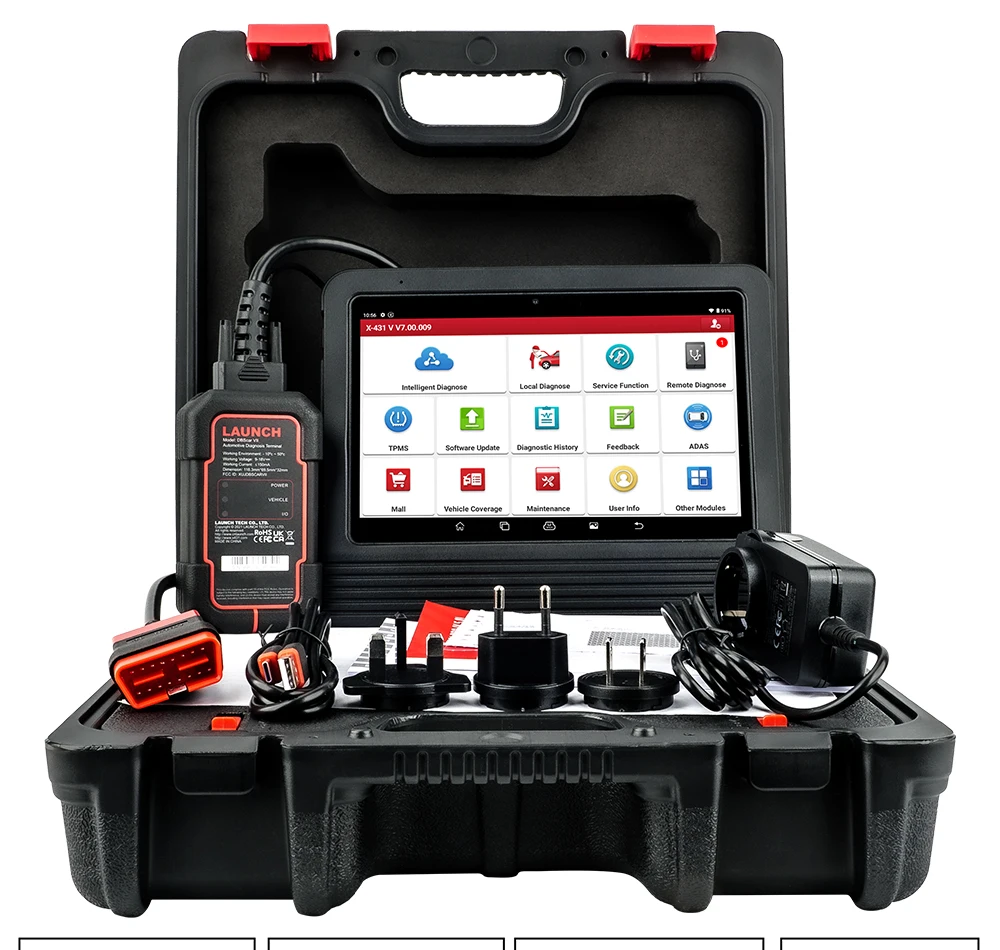

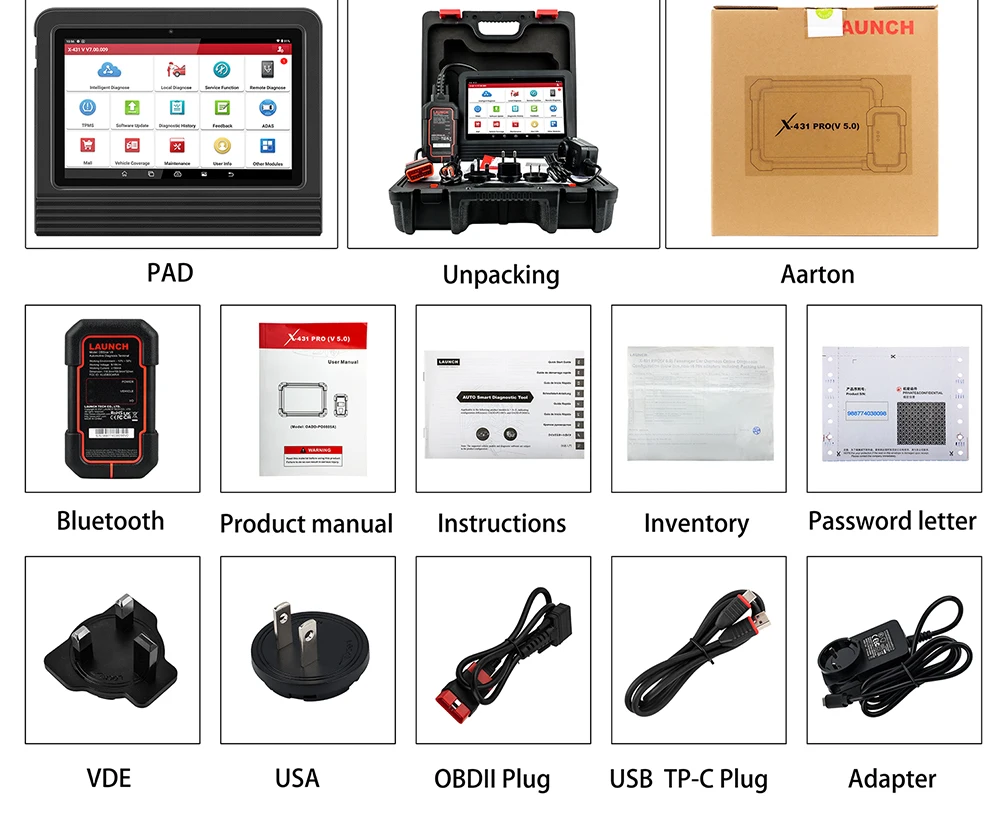

Packing List
![](https://ae01.alicdn.com/kf/S715c74317710473f940af8c11a82a4f4h.jpg)
![](https://ae01.alicdn.com/kf/S582be302bd7545269d199a41677260e6s.jpg)
![](https://ae01.alicdn.com/kf/S453f264513594dc7a5c989b00a27469bu.jpg)
![](https://ae01.alicdn.com/kf/S2bdb7f0746b042a9883c7c705b8408b1M.jpg)
![](https://ae01.alicdn.com/kf/S35473ed1dfc44966a35c387a843e606f3.jpg)
![](https://ae01.alicdn.com/kf/S7a0539d3b3d4421ab4c2c21cb7fde588Q.jpg)
