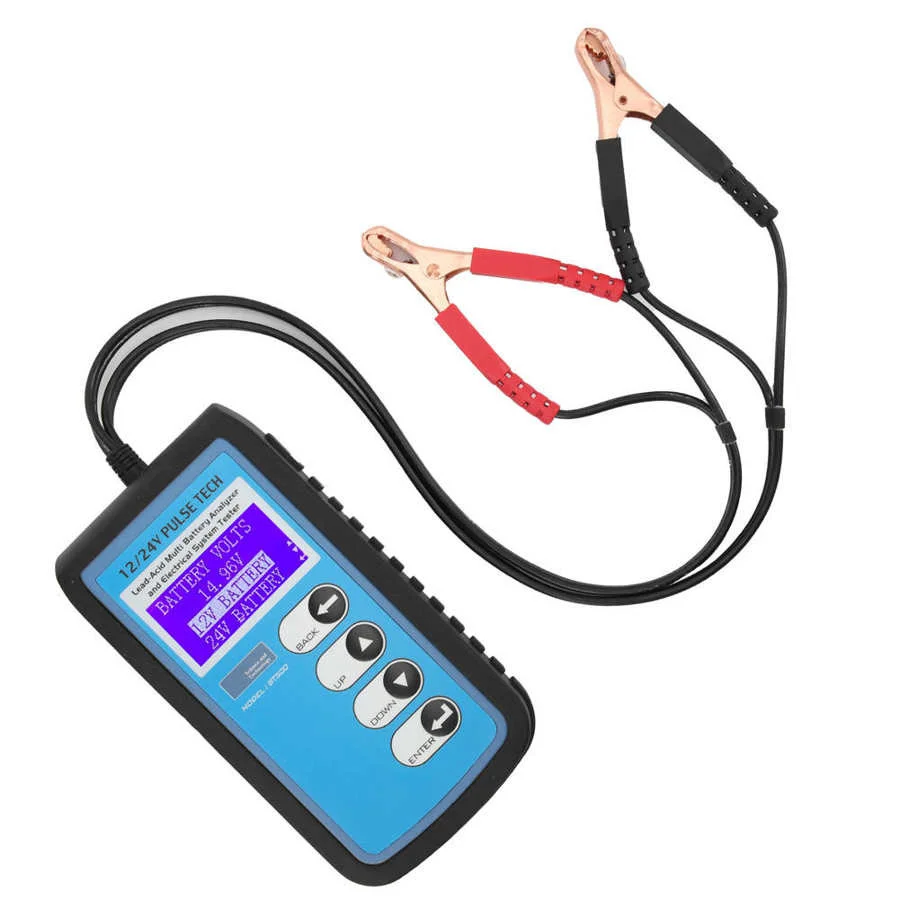

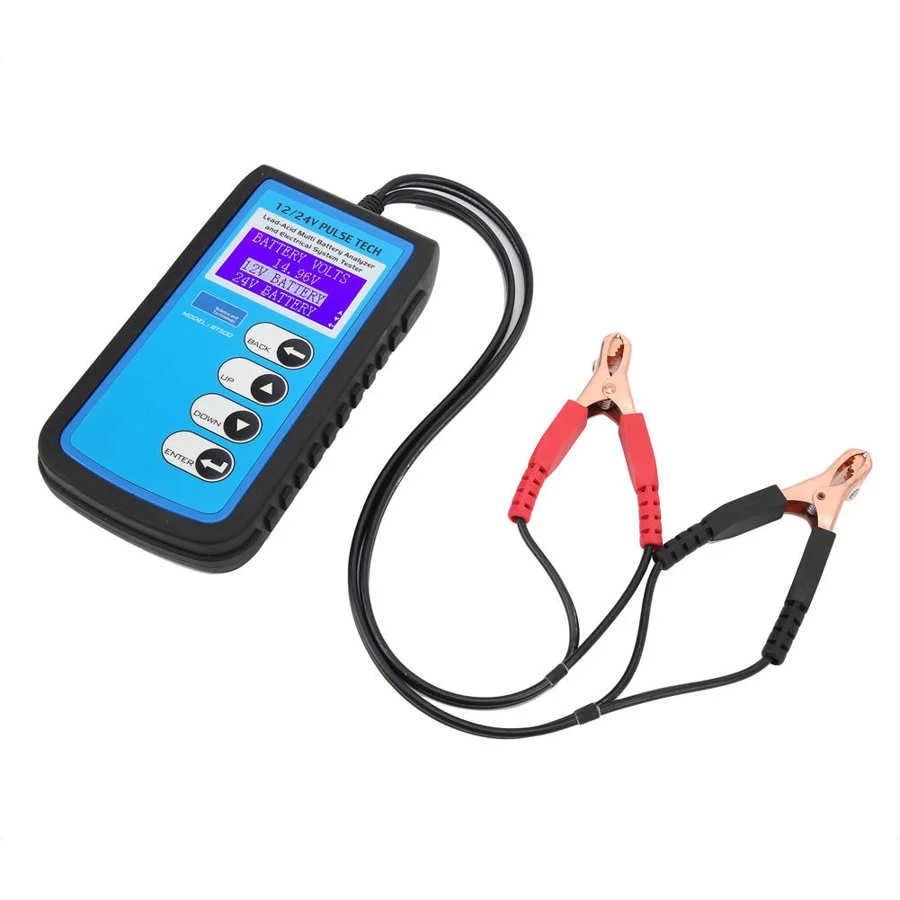

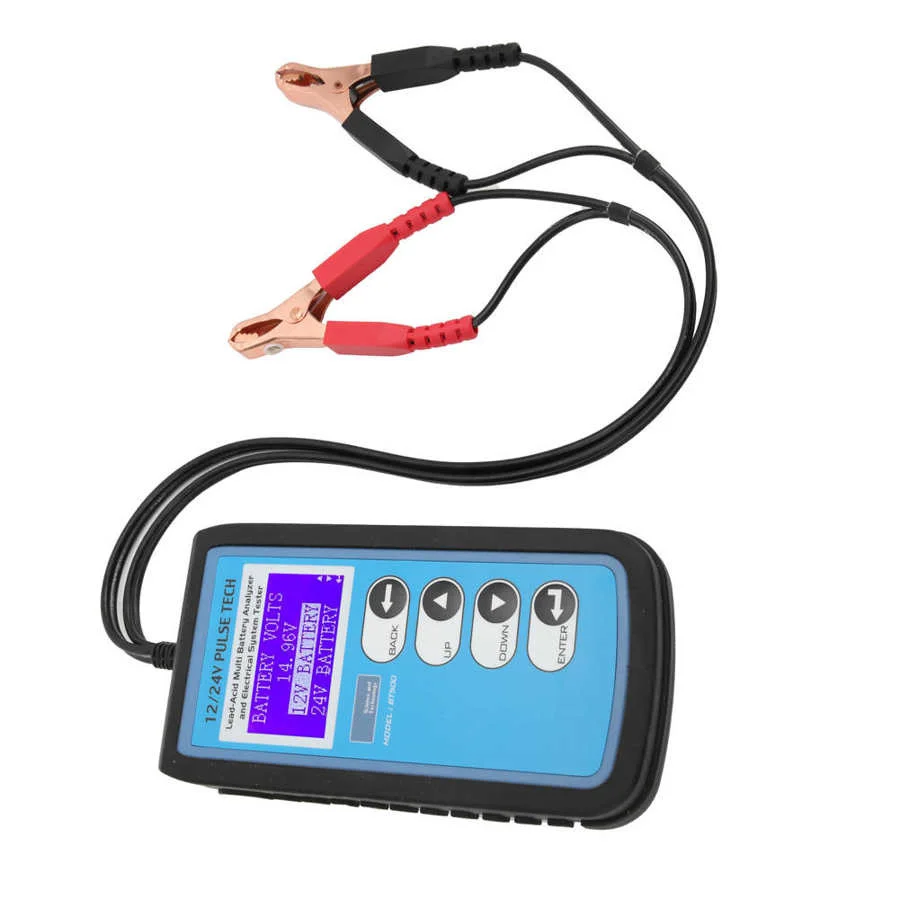

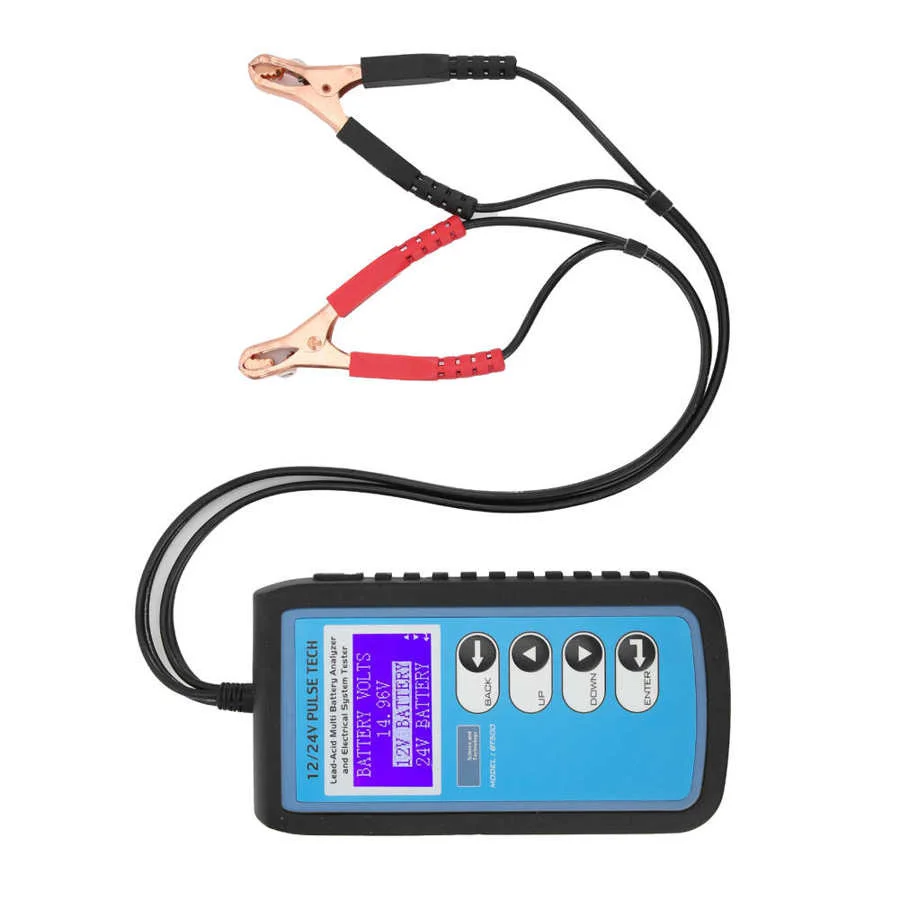

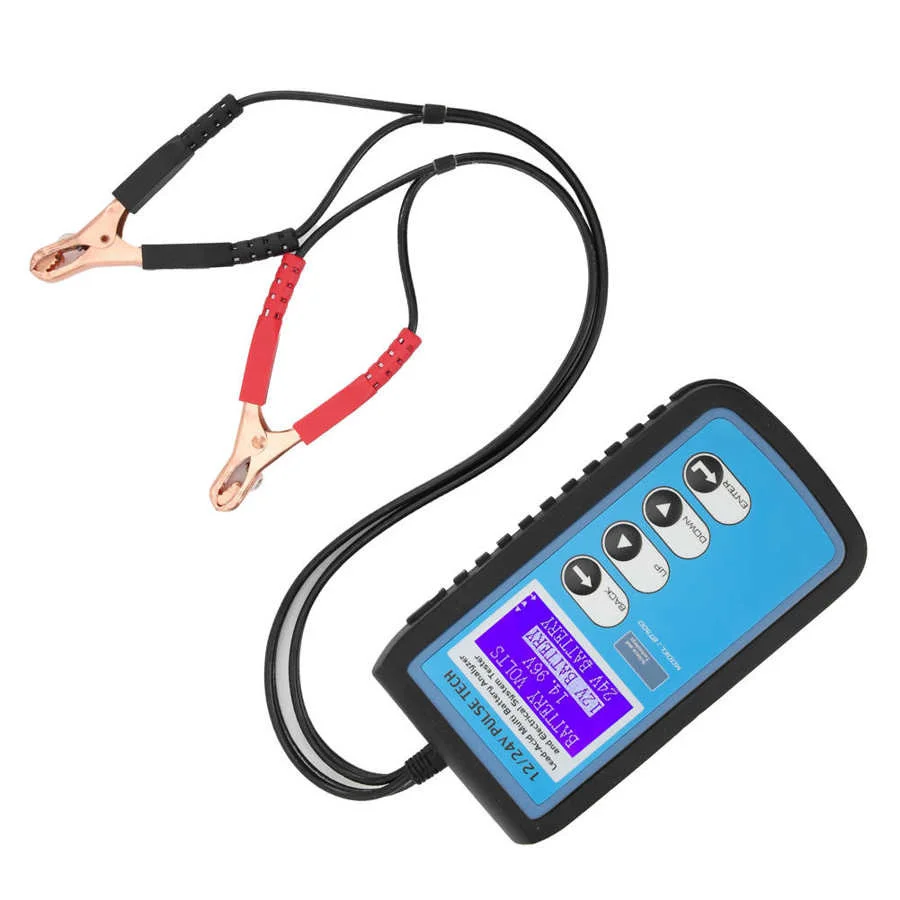

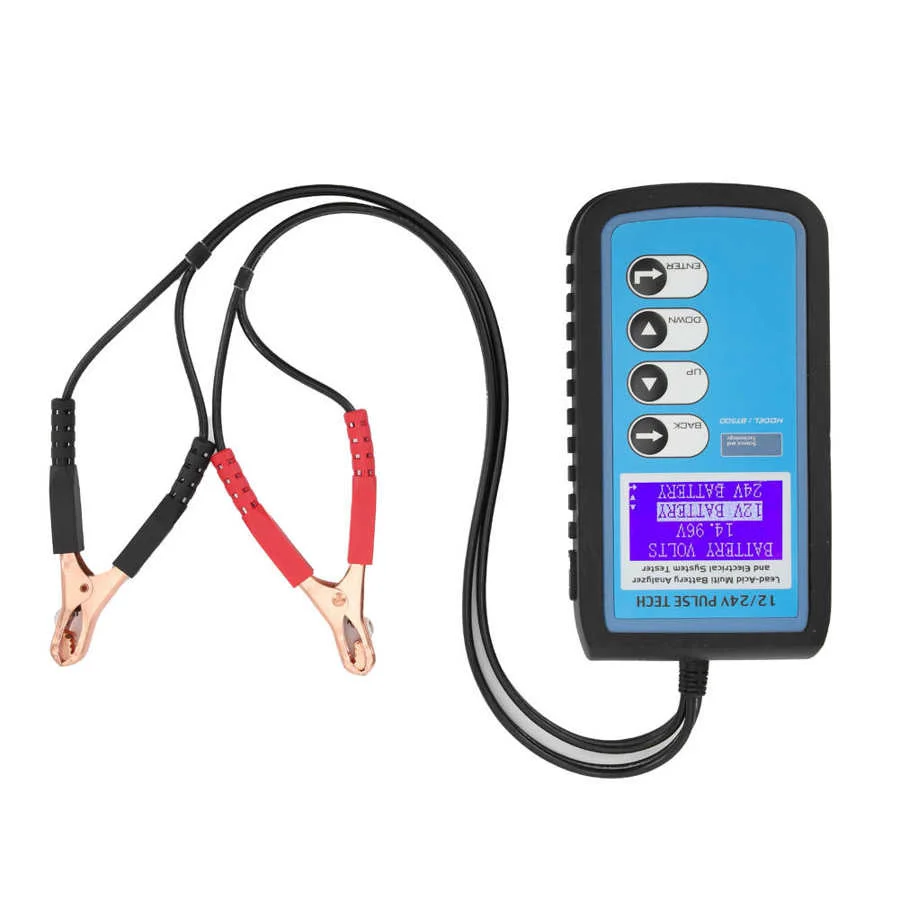

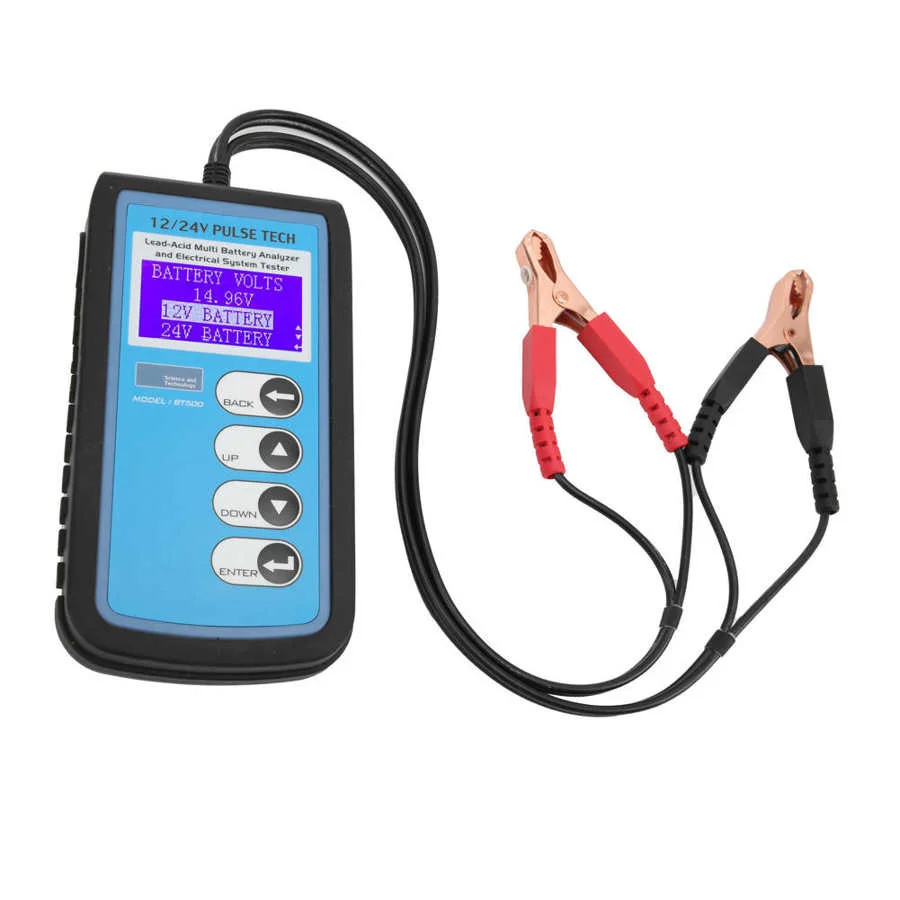

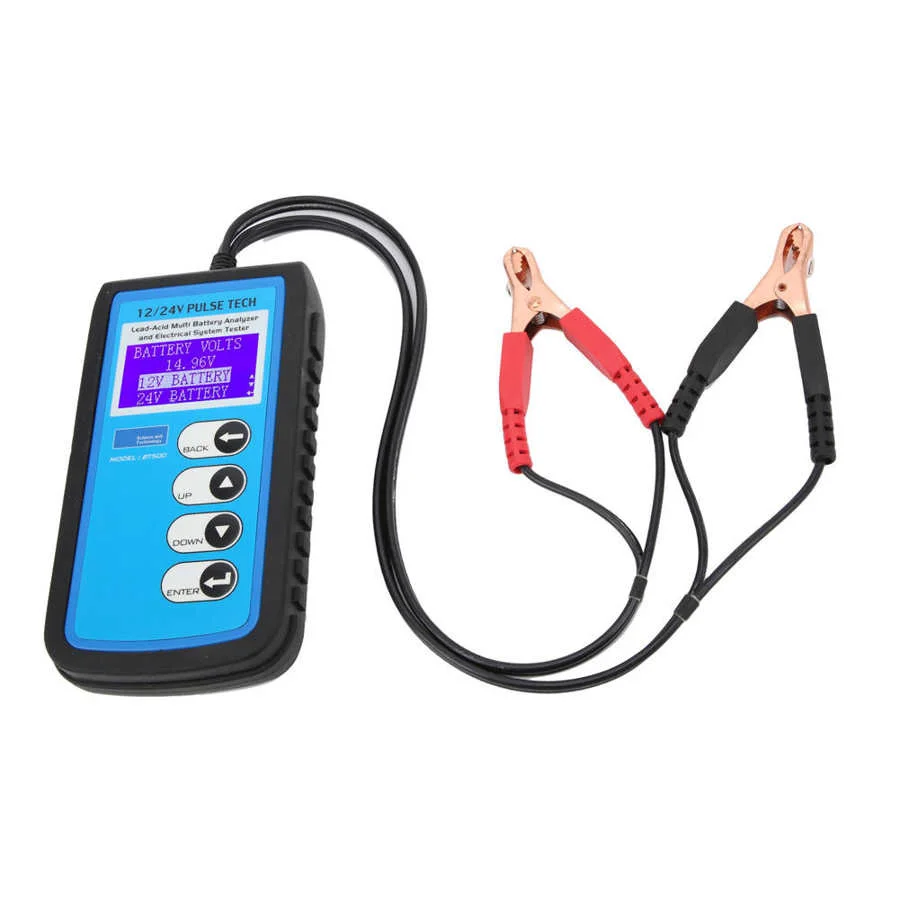

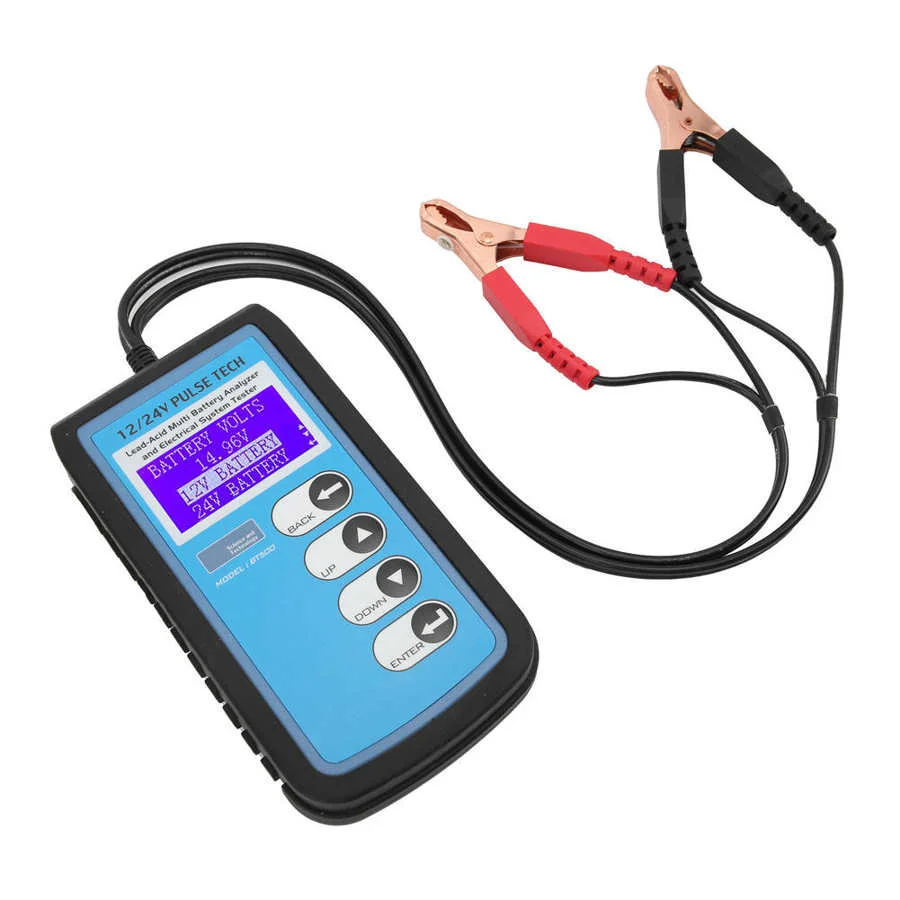

12V/24V Battery Tester BT500 Cranking and Charging System Analyzer CCA DIN IEC EN JIS

12V/24V Battery Tester BT500 Cranking and Charging System Analyzer CCA DIN IEC EN JIS

Regular price $85.36
Regular price $0.00 Sale price $85.36
Sale Sold out
Shipping calculated at checkout.

12V/24V Battery Tester BT500 Cranking and Charging System Analyzer for CCA DIN IEC EN JIS


Feature:

1. No need for high current discharge, the battery has no heat and no damage, and can be tested multiple times in succession. It is suitable for ordinary flooded (WET), maintenance-free (MF), AGM, EFB start-stop, GEL, marine, etc.
2. Three major functions, including battery test, start-up system test and power generation charging system test, are simple to operate, easy to carry and store. Built-in multiple test standards, you can easily measure batteries of different standards.
3. Suitable for 12/24V car battery. Suitable for CCA, DIN, IEC, EN, JIS standard batteries and unknown standard batteries. The tester avoids the high current discharging the battery and can protect the battery from damage and heat.
4. The Battery tester is equipped with LCD and LED backlight, and the input voltage is DC 9 ‑ 30V. Can use two languages, English (United States) and Chinese (Simplified).
5. Use TPE rubber sheathed wire, very thin copper wire, silicone insulation, especially soft, prevent breaking, the cable is environmentally friendly, each wire has 427 copper wires.


Specification:


Item Type: Battery Tester
Material: ABS and silica gel and copper wire
Size: Approx. 185 x 100 x 30mm/7.3 x 4.0 x 1.2in
Copper Wire Length: Approx. 400mm/15.7in

Applications: Suitable for 12/24V automotive batteries (Regular, AGM, GEL), automotive start system and charging system test. Suitable for CCA, DIN, IEC, EN, JIS Standard batteries and unknown standard batteries.
Voltage range: DC 9 - 30V
Working temperature: 0 - 40℃
Working humidity: 20% - 80%
Language: English(US), Chinese (Simplified)
Screen Parameter: LCD, LED backlit
Resolutio: 128 x 64
TPE Rubber Cover Wire Characteristics: Very fine copper wire, silicone insulation, especially soft, prevent breaking
Description:
The batteries will gradually age over time after being made. As the battery electrode plate age and produces sulfides, the batteries can not undergo the chemical reactions effectively, this is the main reason the most batteries cannot continue to be used. At this time, the internal resistance of the batteries increases. The older batteries, the greater the internal resistance. By accurately measuring the value of internal resistance, you can determine the aged of the batteries. Currently, conductance method is the method to measure the internal resistance of the batteries.
Function:
It has a proven result of electric conductance testand 1/2 CCA discharging measurement test can be identical. Given result fully shows the accuracy of this tester. During operation, avoiding large current to discharge the battery can protect the battery from possible damages and heat generation. This allow the machine operator perform tests several times within a short time period. In recent years, the conductance method to measure the internal resistance of a battery is being widely used around the world.



Package List:

1 x Battery Tester

1 x User Manual
