Yanhua Mini ACDP Module 41 for T_oyota R7F7014xx/S6J3xxODO OBD/CAN mileage correction

ACDP Module 41 Toyota R7F7014xx / S6J3xx ODO OBD/CAN

Module functions：

1：Support Toyota S6J3001(2019-) encrypted/unencrypted chips instrument mileage correction via OBD/CAN method.
2：Support Toyota R7F701401(2021-) encrypted/unencrypted chips.instrument mileage correction via OBD/CAN method.
3：Support Toyota R7F701441 encrypted chips instrument mileage correction via OBD/CAN method.

Overall connection diagram：

Method 1: CAN connection▼

Method 2: OBD connection▼

Supported models：

APP operation interface：

Configuration List:

ACDP Configuration List (Module 41 Toyota R7F7014xx/S6J3xx ODO OBD/CAN mileage correction)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

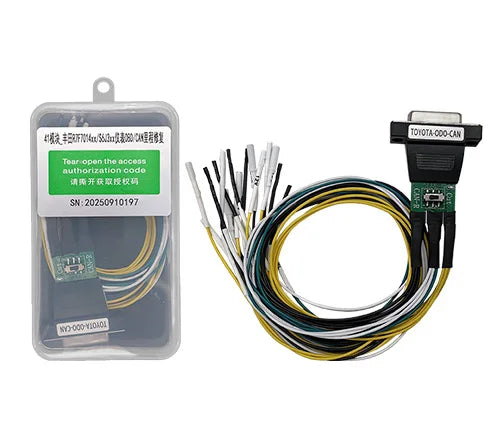

1	TOYOTA-ODO-CAN Cable		Applicable to connect Toyota instrument plug test points	1
