Yanhua Mini ACDP Module 39 with License A105 for Benz A206 A223 MB HU7 Instrument R7F7015923/ R7F7015924 Cluster Calibratio

ACDP Module 39 MB HU7 Instrument Module mileage correction

Module functions：

Support mileage correction for the MB HU7 instrument module (A 206/A 223/A 177) with chip model R7F7015293/ R7F7015294.

Supported vehicle models:

S（W223）/C（W206 /S206/ V206 /X206）/AMG（192 /X290）/A（W177）/B（W243 W247）/ CLA（C118 /W118）/CLE（A236 C236）/EQA（H243）/EQB（X243）/EQE（V294）/EQS（V297）/GLA（H247）/GLB（X247）/GLC（C254/ X254）/GLE（V167）/GLS（X167）/CLS（W257）/SL（232）

Supported Instrument Modules：

Overall connection diagram：

R7F7015293 - A ▼

Push the DIP switch on the BENZ - HU7 - A interface board to the C - end ▼

R7F7015293 - A ▼

A 223 ▼

R7F7015294 - B ▼

APP operation interface：

Step 1: Modify the mileage (in kilometers) of the HU7 instrument module ▼

Step 2: Install ODO Module emulator ▼

Configuration List:

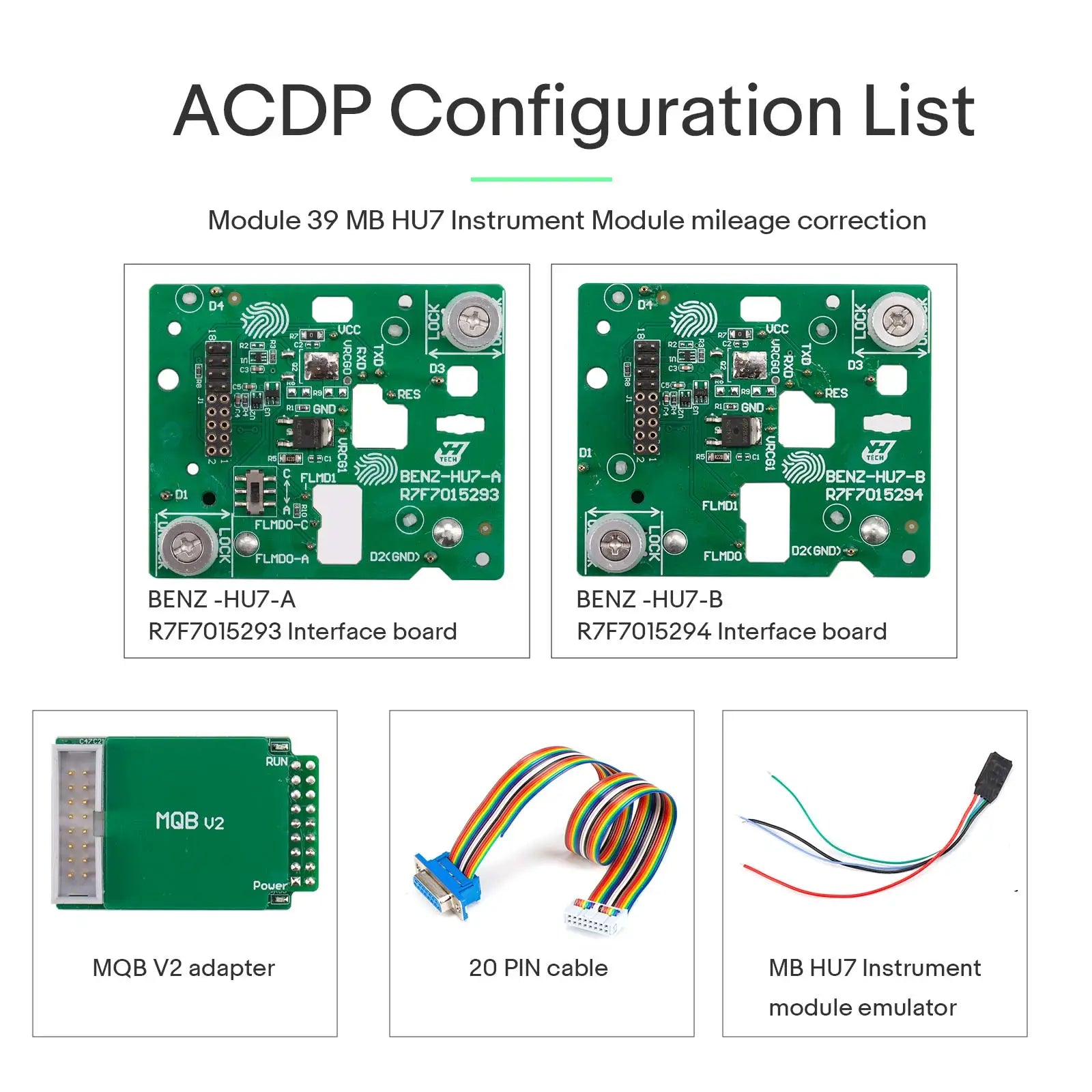

ACDP Configuration List (Module 39 MB HU7 Instrument Module mileage correction)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

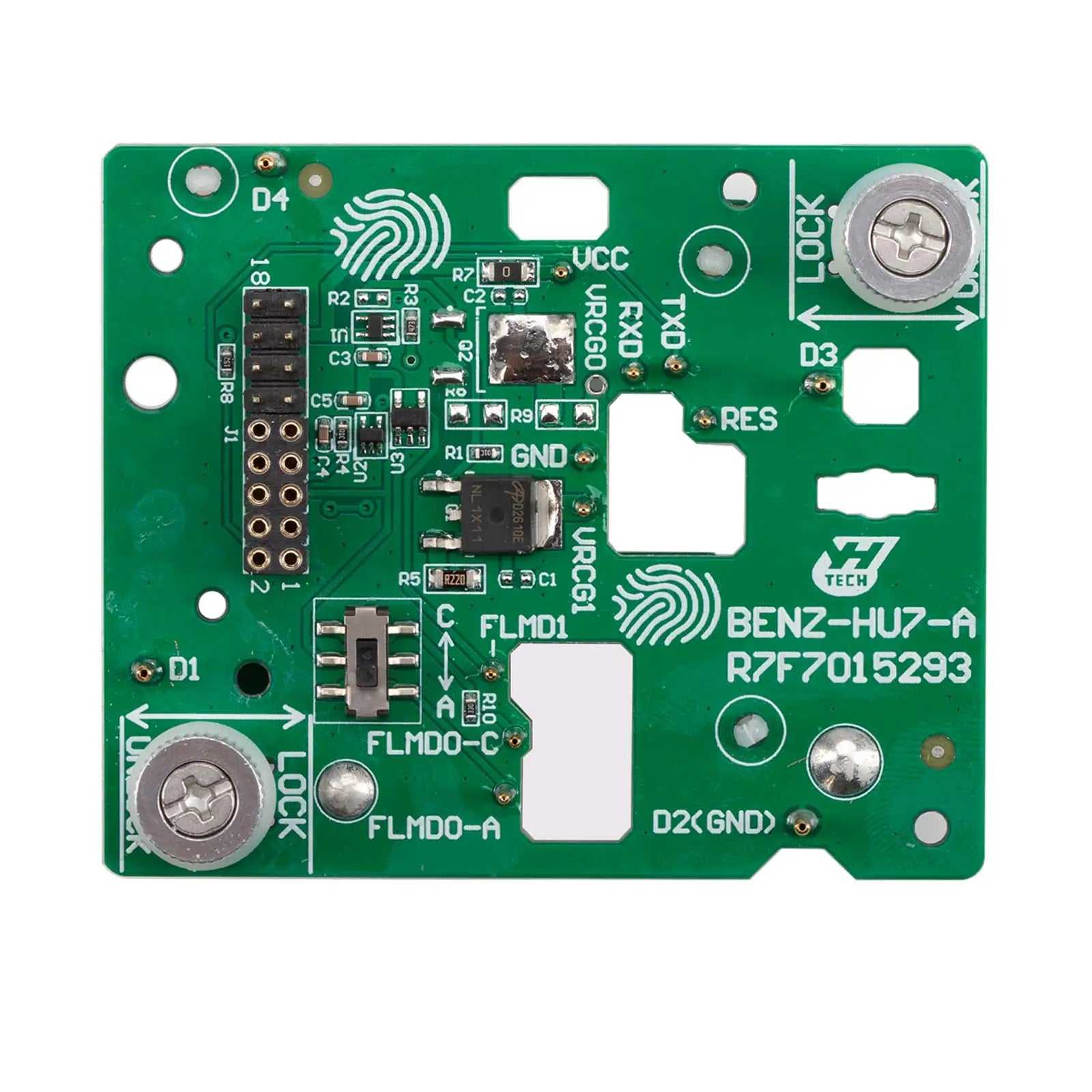

1	BENZ-HU7-AR7F7015293 Interface board		Applicable to connect R7F7015293 chip benz HU7 instrument module	1
2	BENZ-HU7-B R7F7015294 Interface board		Applicable to connect R7F7015294 chip benz HU7 instrument module	1

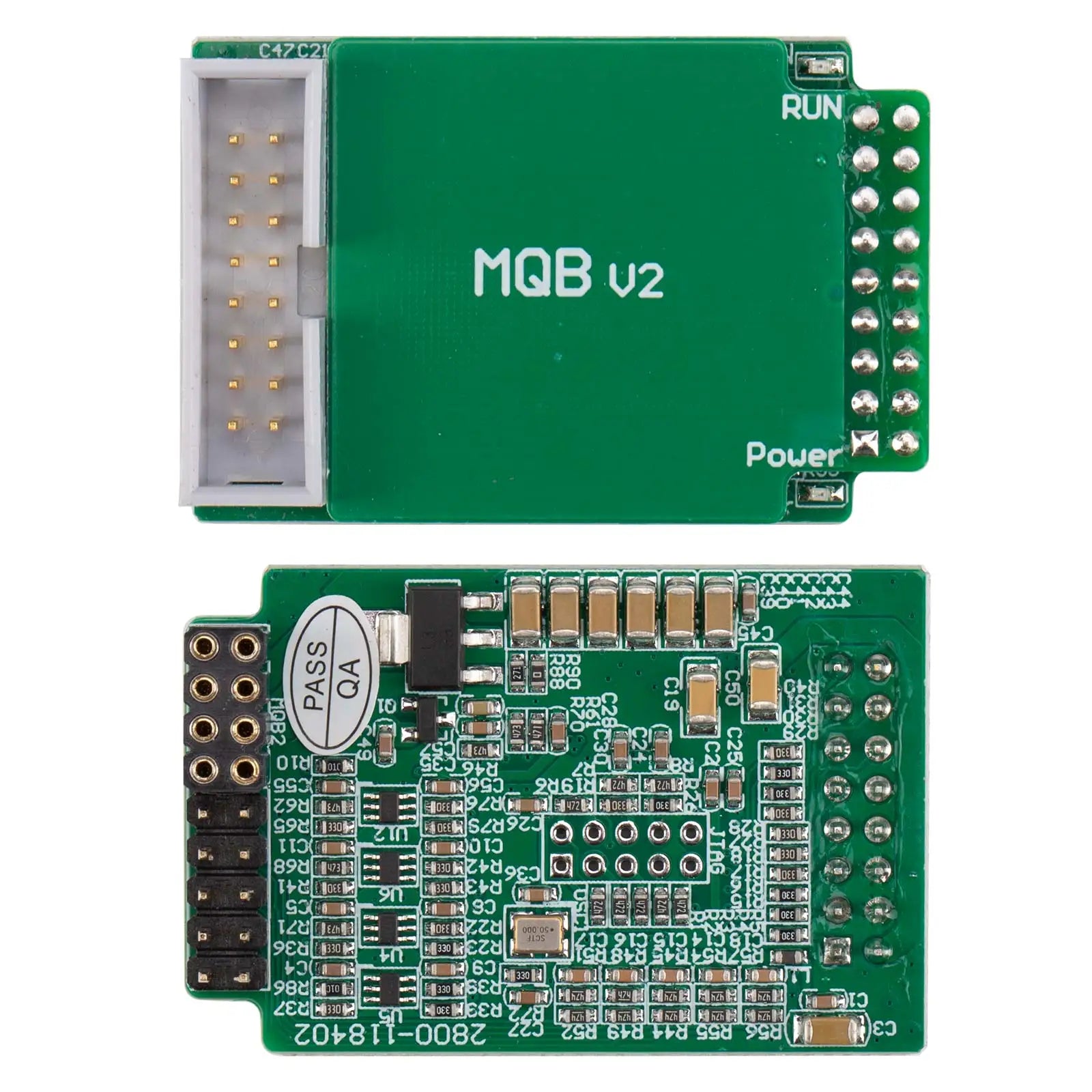

3	MQB V2 adapter		Applicable to decrypt benz HU7 instrument module	1
4	20 PIN cable		Applicable to connect ACDP host and MQB adapter	1
5	MB HU7 Instrument module emulator		Applicable to weld onto the MB HU7 instrument module	1
