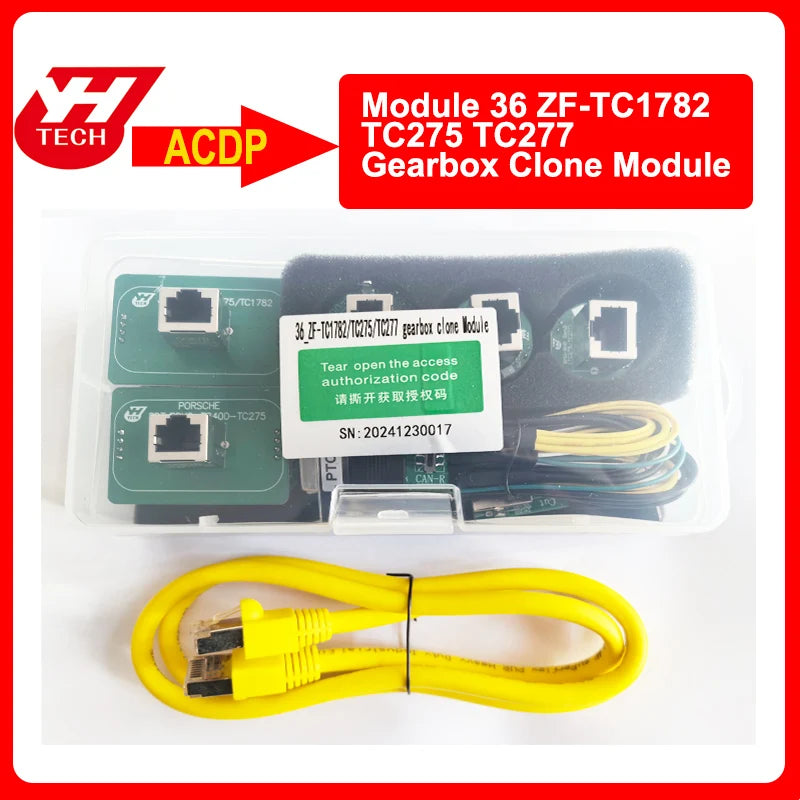

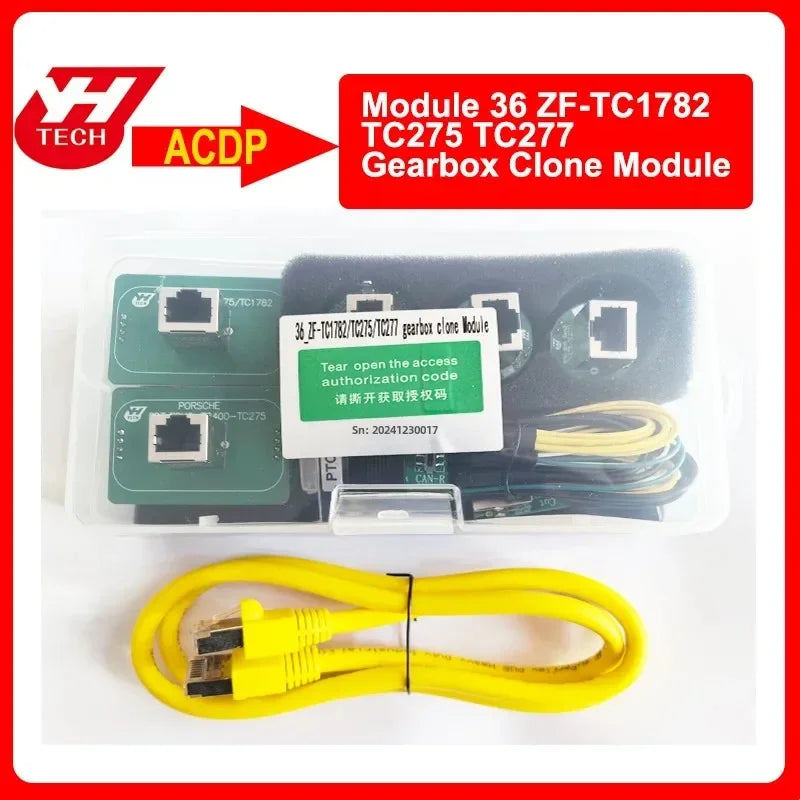

Yanhua Mini ACDP Module 36 for BMW JLR Mercedes-Benz Porsche Honda Jeep Chrysler ZF-TC1782 TC275 TC277 Gearbox Clone 8HP 9HP

ACDP Module 36 ZF-TC1782/TC275/TC277 gearbox clone

Module functions：

1：Support BMW 3rd generation 8HP (TC275/TC277) gearbox clone.
2：Support 2017+ JLR 3rd generation 8HP (TC275) gearbox clone.
3：Support JLR 9HP50 (TC275) gearbox clone.
4：Support JLR, Honda, JEEP, Chrysler and other 9HP48 (TC1782) gearbox clone.
5：Support Porsche 8DT/PDK2-TC400 (TC275) gearbox clone.
6：Support Mercedes-Benz VGS3-FDCT (TC275) gearbox clone.

Overall connection diagram：

BMW-8HP Gen3 (TC275/TC277) ▼

JLR-8HP Gen3(TC275) ▼

9HP48/50（TC275/TC1782）▼

Porsche 8DT/PDK2-TC400（TC275）▼

MB-VGS3-FDCT（TC275）▼

APP operation interface：

BMW-8HP Gen3(TC275/TC277) ▼

JLR-8HP Gen3(TC275) ▼

JLR, Honda, JEEP, Chrysler and other 9HP48 (TC1782)/ 9HP50（TC275）▼

Porsche 8DT/PDK2-TC400（TC275）▼

MB VGS3-FDCT（TC275）▼

Configuration List:

ACDP Configuration List (Module 36 ZF-TC1782/TC275/TC277 gearbox clone)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

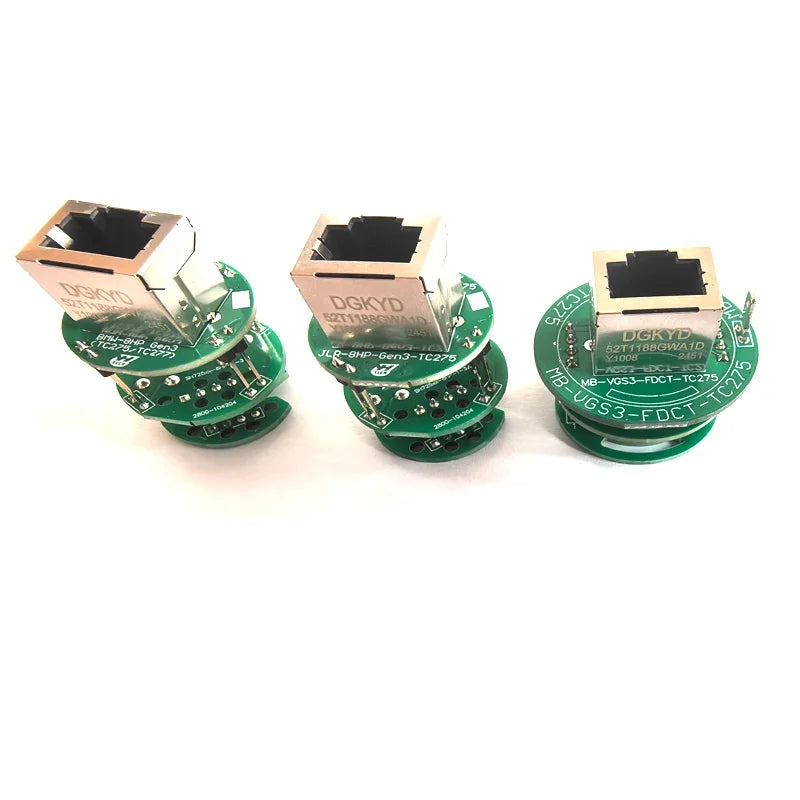

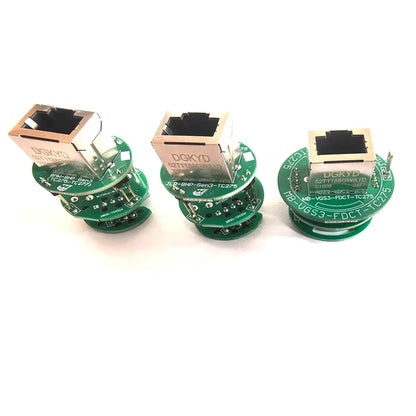

1	BMW-8HP Gen3 (TC275/TC277) Interface board		Applicable to connect BMW GEN3 8HP gearbox	1
2	JLR-8HP-Gen3-TC275 Interface board		Applicable to connect JLR-8HP-Gen3-TC275 gearbox	1
3	MB-VGS3-FDCT-TC275 Interface board		Applicable to connect MB-VGS3-FDCT-TC275 gearbox	1

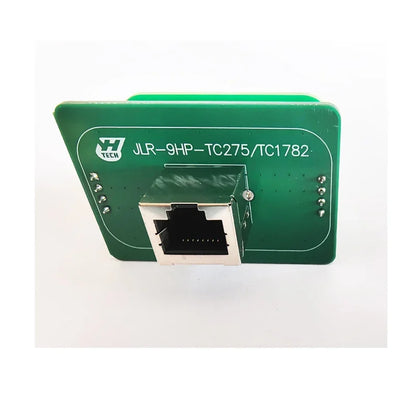

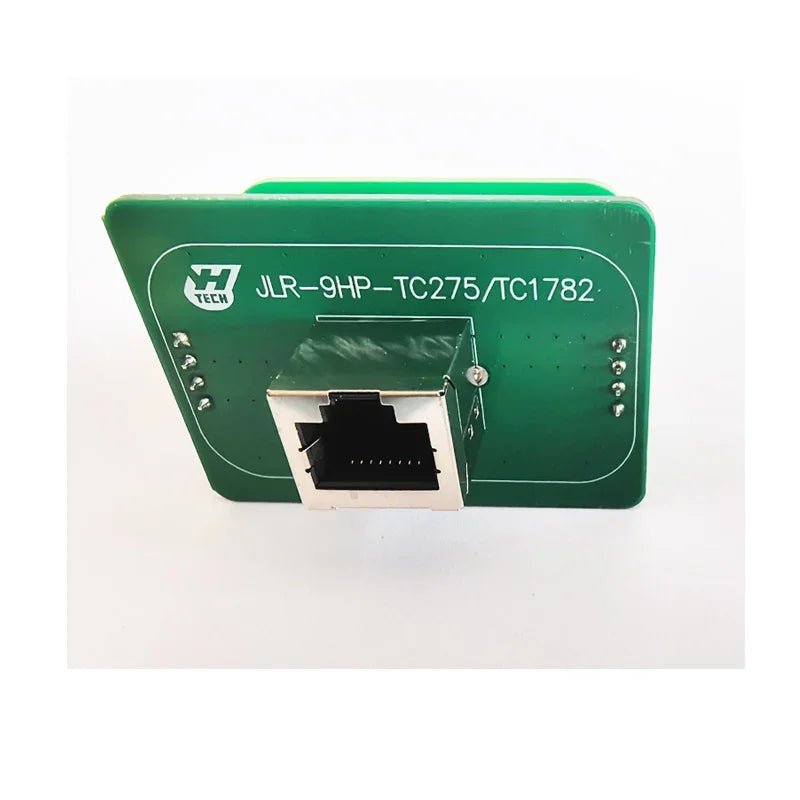

4	JLR-9HP-TC275/TC1782 Interface board		Applicable to connect JR,Honda,JEEP Chrysler and other 9HP48/9HP50 gearbox	1

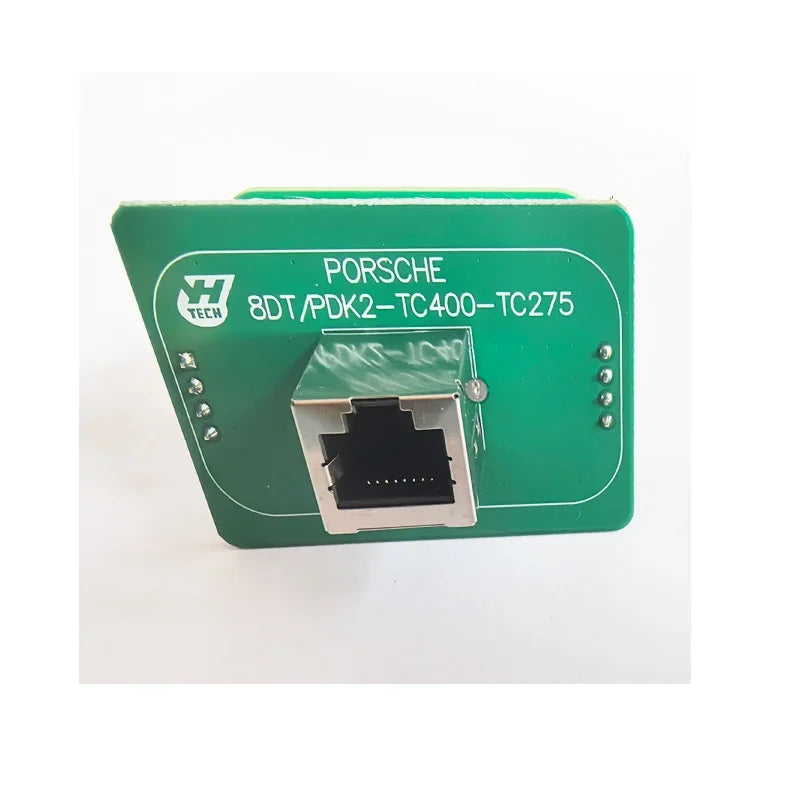

5	Porsche 8DT/PDK2-TC400-TC275 Interface board		Applicable to connect Porsche 8DT/PDK2-TC400 gearbox	1

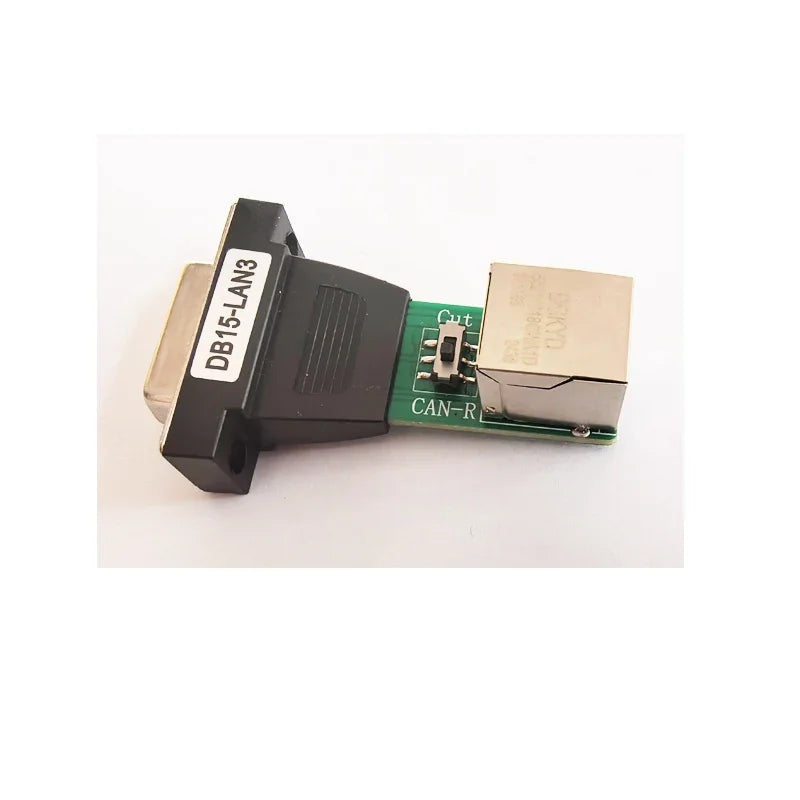

6	DB15-LAN3 adapter		Applicable to connect ACDP host and TCU cable	1
7	TCU cable		Applicable to connect PTCU adapter and interface board	1

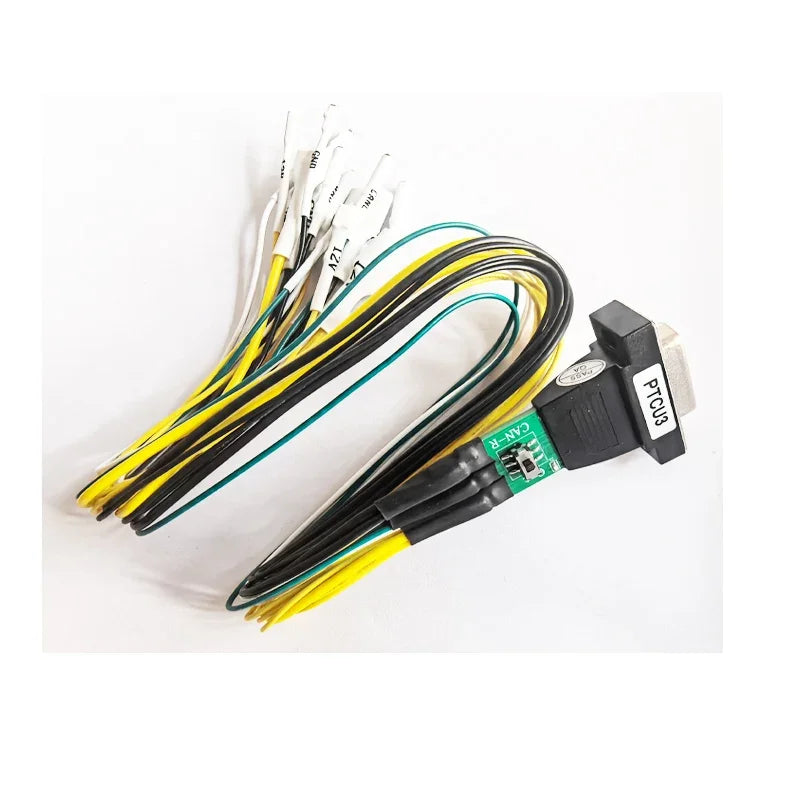

8	PTCU3 cable		Applicable to connect ACDP host and gearbox	1
9	GND cable		Applicable to connect MB-VGS3-FDCT gearbox GND	1
