YANHUA Mini ACDP Module 20 for VOLVO IMMO for CEM Key Programming with License A302

ACDP Module 20 New VOLVO IMMO module

Module Features:

1：Reading CEM data in ICP mode without soldering.
2：Programming new kyes via OBD mode.

Module features：

Programming process,No need remove any components of PCB,No soldering,No damage ,No scratch.
The special interface board connection replaces the traditional soldering ,Intelligent pin detection, safe and reliable.

Supported vehicle models:

VOLVO XC40（2020-），VOLVO XC60（2018-），VOLVO XC90（2015-）
VOLVO S60（2020-）, VOLVO S90（2017-）
VOLVO V60（2018-）, VOLVO V90（2016-）
Lynk&Co（2018-）

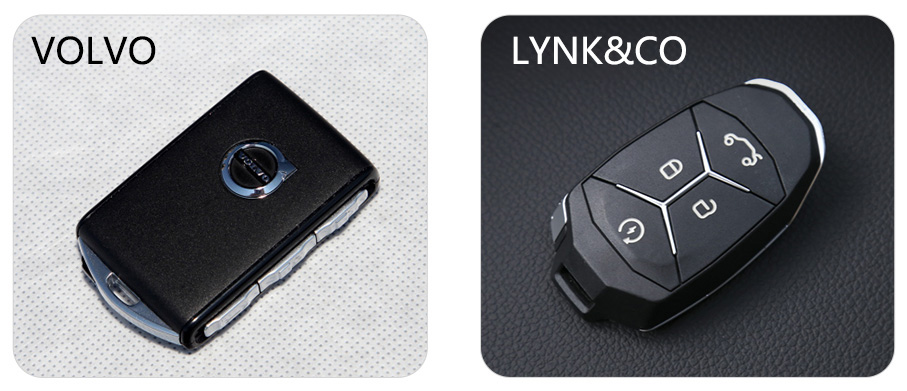

Supported key types：

CEM connection diagram：

SPC5646C ▼

SPC5747g/ SPC5648G ▼

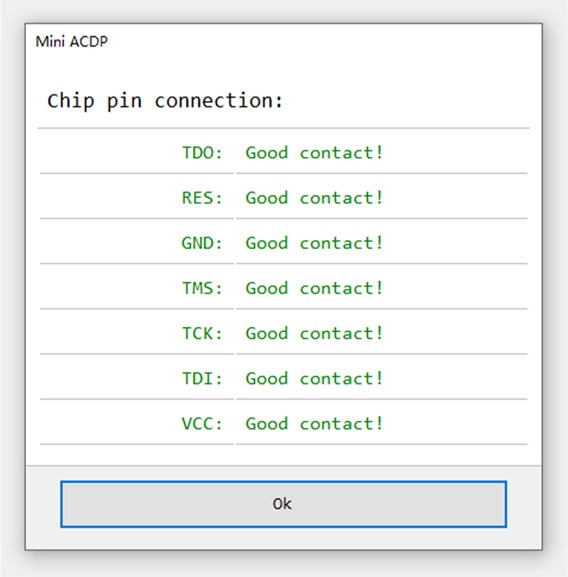

Pin intelligent detection：

Programming key area：

VOLVO ▼

LYNK & CO ▼

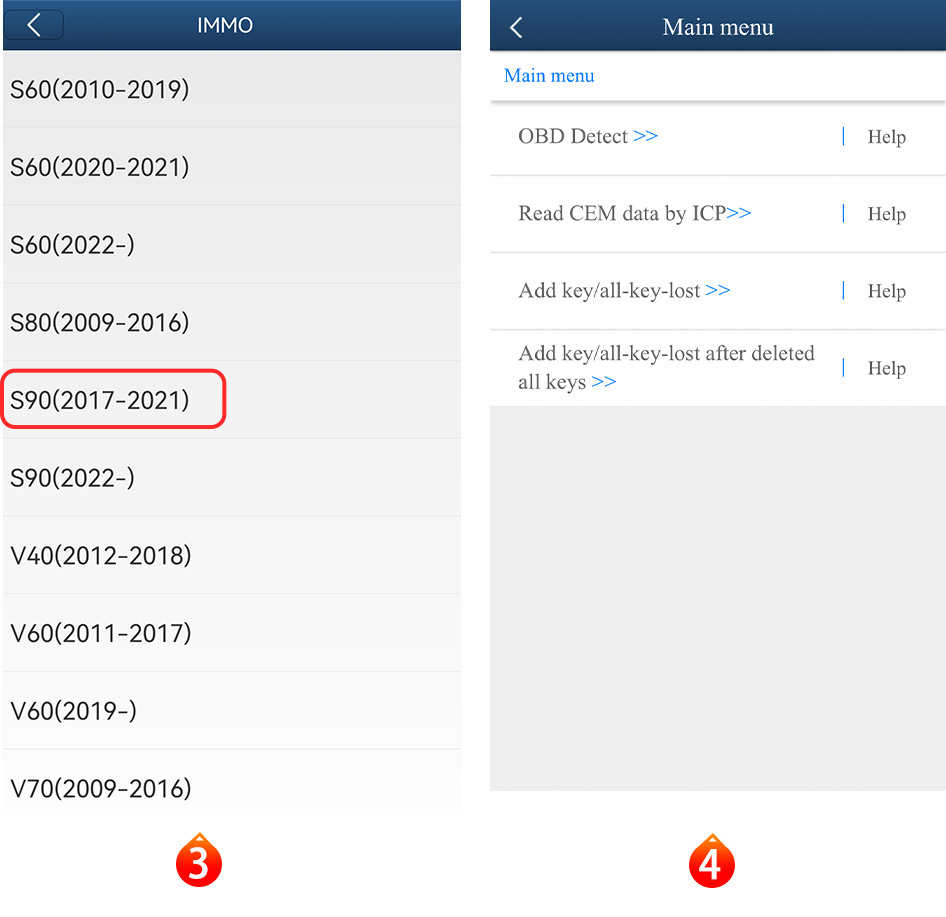

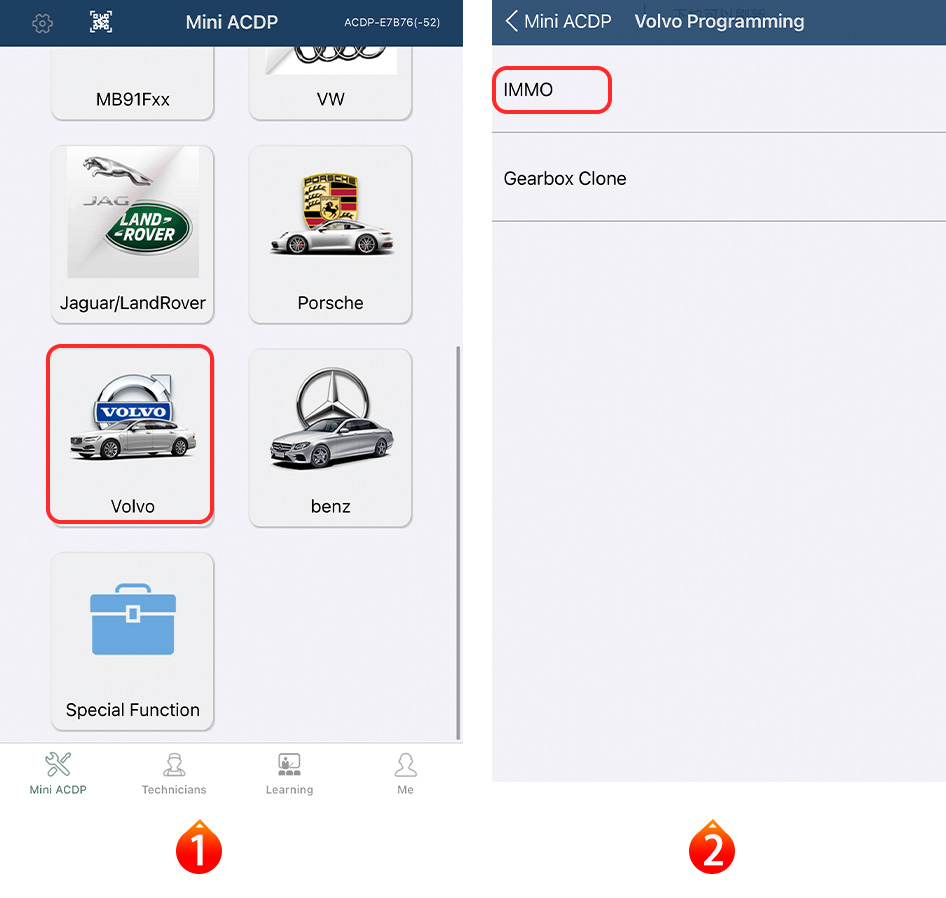

APP Operation Interface：

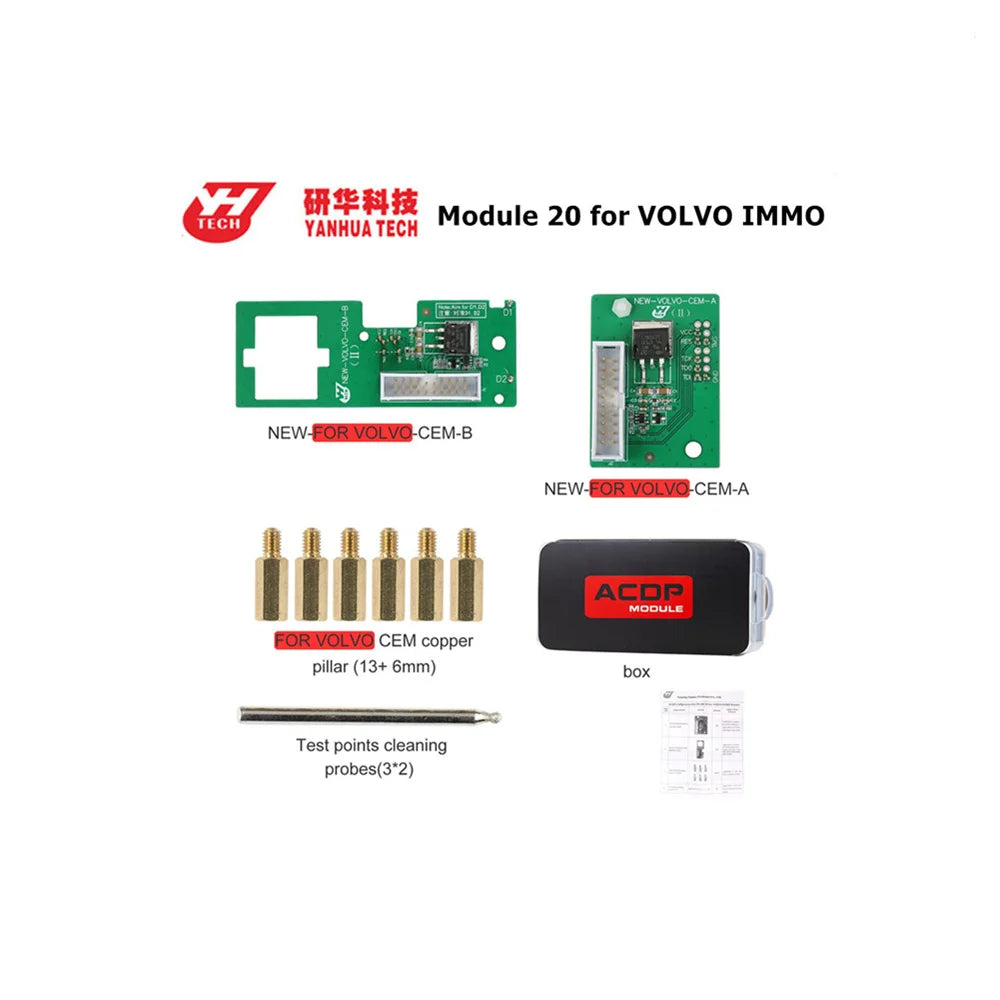

Configuration List:

ACDP Configuration List (Module 20 New VOLVO IMMO Module)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity
1	NEW-VOLVO-CEM-A Interface board		Applicable to connect the CEM module test point of the new Volvo SPC5646C chip model	1

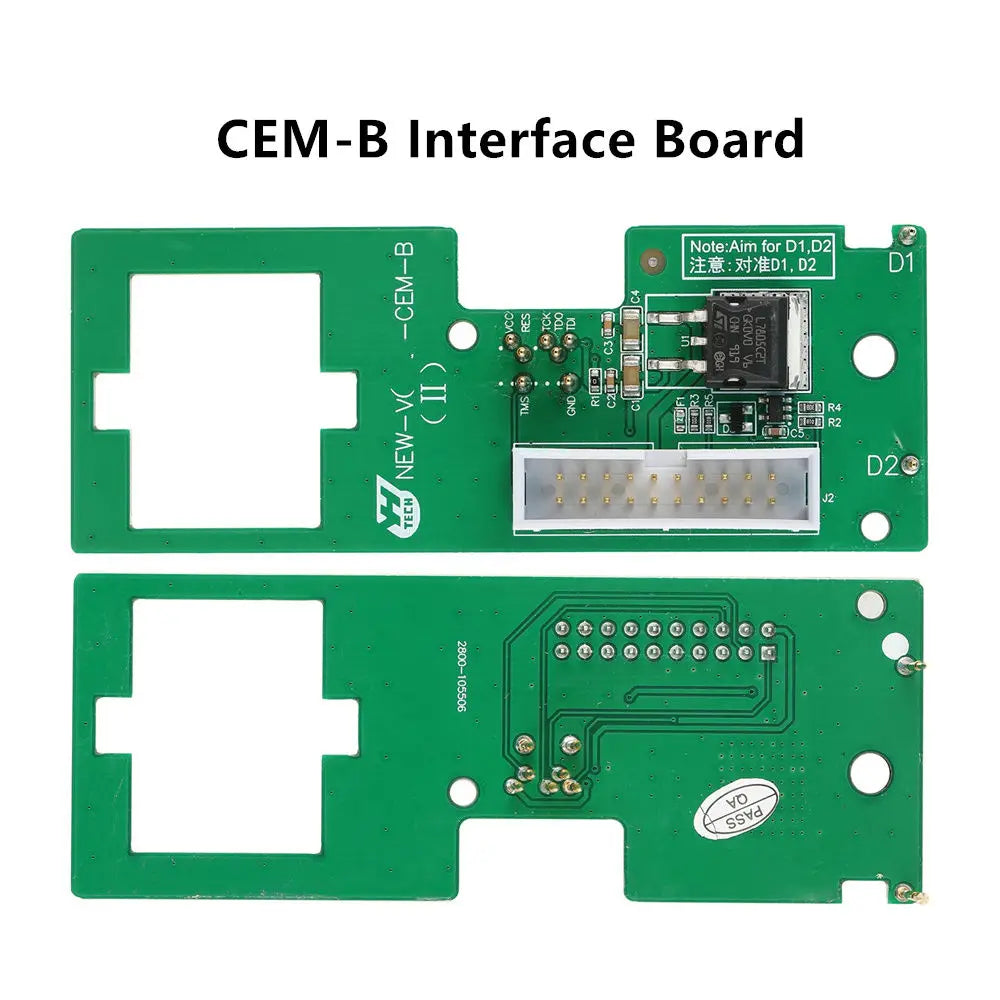

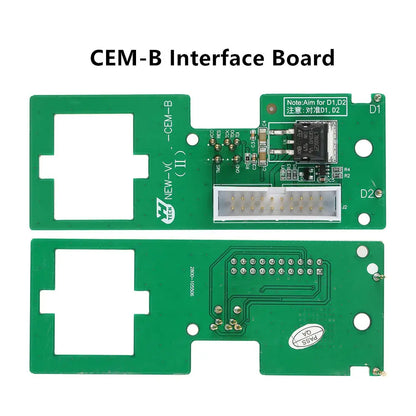

2	NEW-VOLVO-CEM-B Interface board		Applicable to connect the CEM module test points of the new Volvo SPC5647G/SPC5648G chip models	1
3	VOLVO CEM copper pillar (13+6mm)		Applicable to fix new Volvo interface board	6
4	Test points cleaning probes(3*2)		Applicable to clean new Volvo CEM module test points.	1
