CAN PRO V5.5.1 with FTDI FT245RL Chip VCP OBD2 Diagnostic Interface USB Cable Support Can Bus UDS K Line Works for AUDI/VW

Note:

1.V-A-G CAN PRO do not support for V-A-G other software!!

2.If the CD broken, please contact with us to get  the link Do not open dispute

3.The software contains plug-ins, so the computer anti-virus software will prompt that the software contains viruses, please close the anti-virus software before installation

4. V-A-G 409/V-A-G KKL Cannot use VCP software, they are different cables

Language:English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish, Chinese

V-A-G CAN PRO Function interface(we text the software on Window xp and 7 only):

Supported Cars:

1. For Audi

A2 2009-

A3 8P 2003-

A3 - platform MQB-

A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-

A4 model 8K wariant B8 (UDS + TP2.0) 2008-

A5 model 8K (UDS) 2007-

A6 model 4F 2004-

A8 model 4E 2003-

Q3 (UDS) 2010-

Q5 (UDS) 2008-

Q7 (TP2.0 + UDS) 2006-

S5 model 8K

(R)S6 model 4F

R8 (UDS)

TT model 8J 2007-

2. For Mercedes

For Sprinter (For VW Crafter) - - Only the engine and immobilizer

3. For Seat

For Altea

For Leon MQB 2013-

For Leon model 1P 2005-

For Toledo model 5P 2004-

For Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. For Skoda

octavia model 1Z 2004 -

octavia platform MQB -

superb II B6 2008-

fabia model 5J 2007-

yeti 2009-

5. For VW

For Crafter (immobilizer, engine)

For Caddy model 2K 2005-

For Eos

For Golf V model 1K

For Golf VI model 5K

For Golf VII platform MQB

For Golf Plus

For Jetta II model 1K

Transporter / Multivan (Only after the CAN-BUS drive for storing data)

Multivan/Transporter GP model 7E (UDS) 2009-

For Passat B6 model 3C 2005-

For Passat CC-

For Phaeton GP 2007-

For Polo model 6R 2009-

For Polo FL MQB 2014-

For Scirocco III-

For Touran-

For Tiguan-

For Touareg GP 2007-

For Touareg NF 2010

6. K-line ( KWP1281, TP/KWP2000)

For VW Golf III, IV

For VW Passat 3B

For VW Bora

For VW Transporter T5

For VW New Beetle

For VW Polo II,III,IV

For Skoda Octavia I

For Skoda Fabia i i II

For Seat Leon I

For Seat Toledo II

For Seat Alhambra

For Seat Ibiza II, III, IV

For Audi A2,A3,A4,A6 K-Line

Notes for Audi A4:

1. Option A4 8E B6 model

This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

2 .Model A4 8E, B7 option

This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.

In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans V-A-G.

New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform

Update database-ODX (support for all models 2015)

How to install the program of cable without USB dongle?

1. copy files from disk to your computer.

2. extract the zip files.

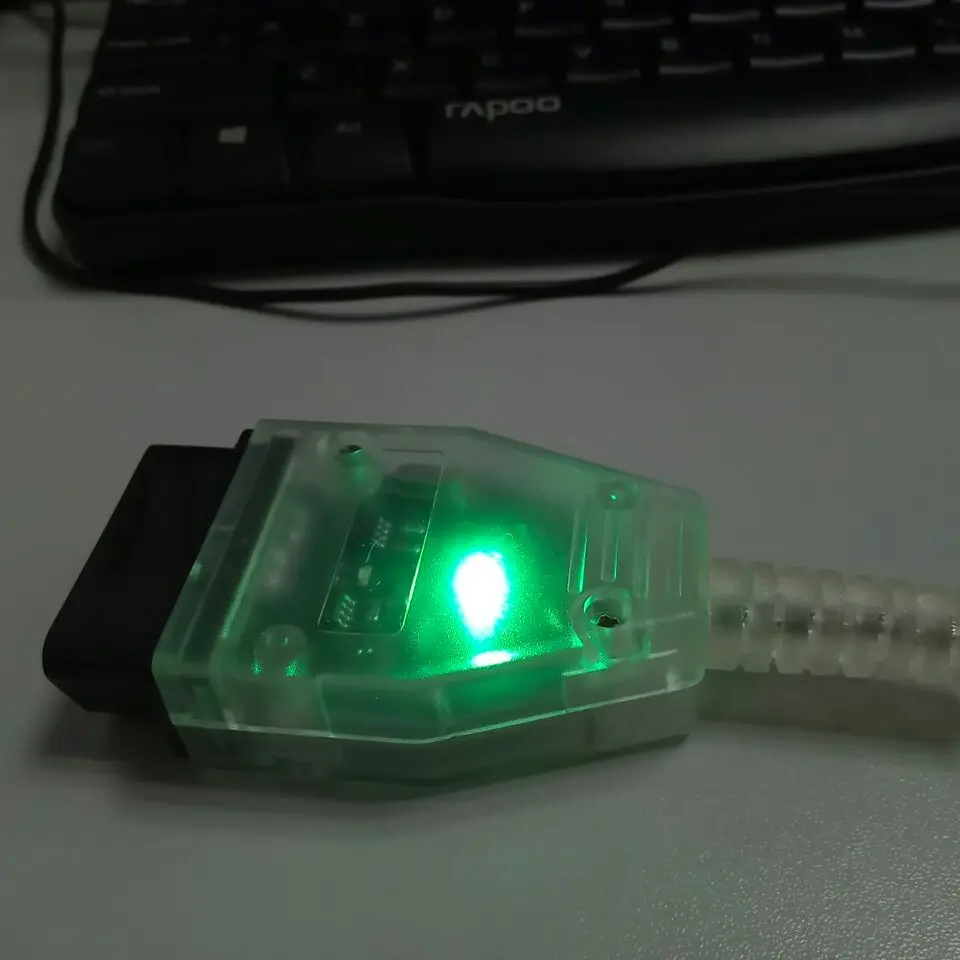

3. plug cable into computer , you will see the cable light , and install driver.

if you use win xp system, the driver will be automatically installed.

if you use win 7 32 bits system, please install this driver" "

if you use win 7 64 bits system, please install this driver""

4. after installed driver, run ""

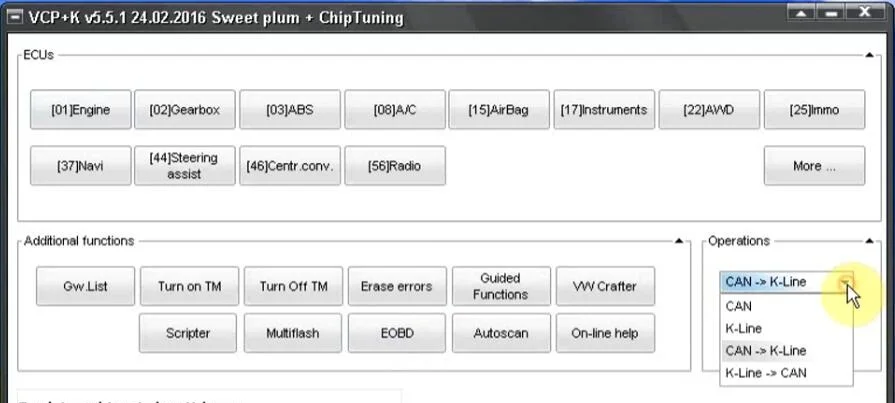

5. wait a few seconds, it will appear software Interface. Then you can choose the function you want to diagnose.

Question&Answer:

Q1. I bought the cable without USB dongle, after I install the program, then run program, Why it has such tips?

A1: please check whether you have install the driver or not. if finish to install the driver, please directly run "v-a-gcanpro.exe" this file.

Q2Where to get the Software if CD broken?

A2:The CD is easy broken after long shipping,we upload software and install video on MEGA for free download

Q3:the programmer is not working,why?

A3:It is VCP 5.5.1,not VCP 6.2,please contact with us to get video about how to install.
