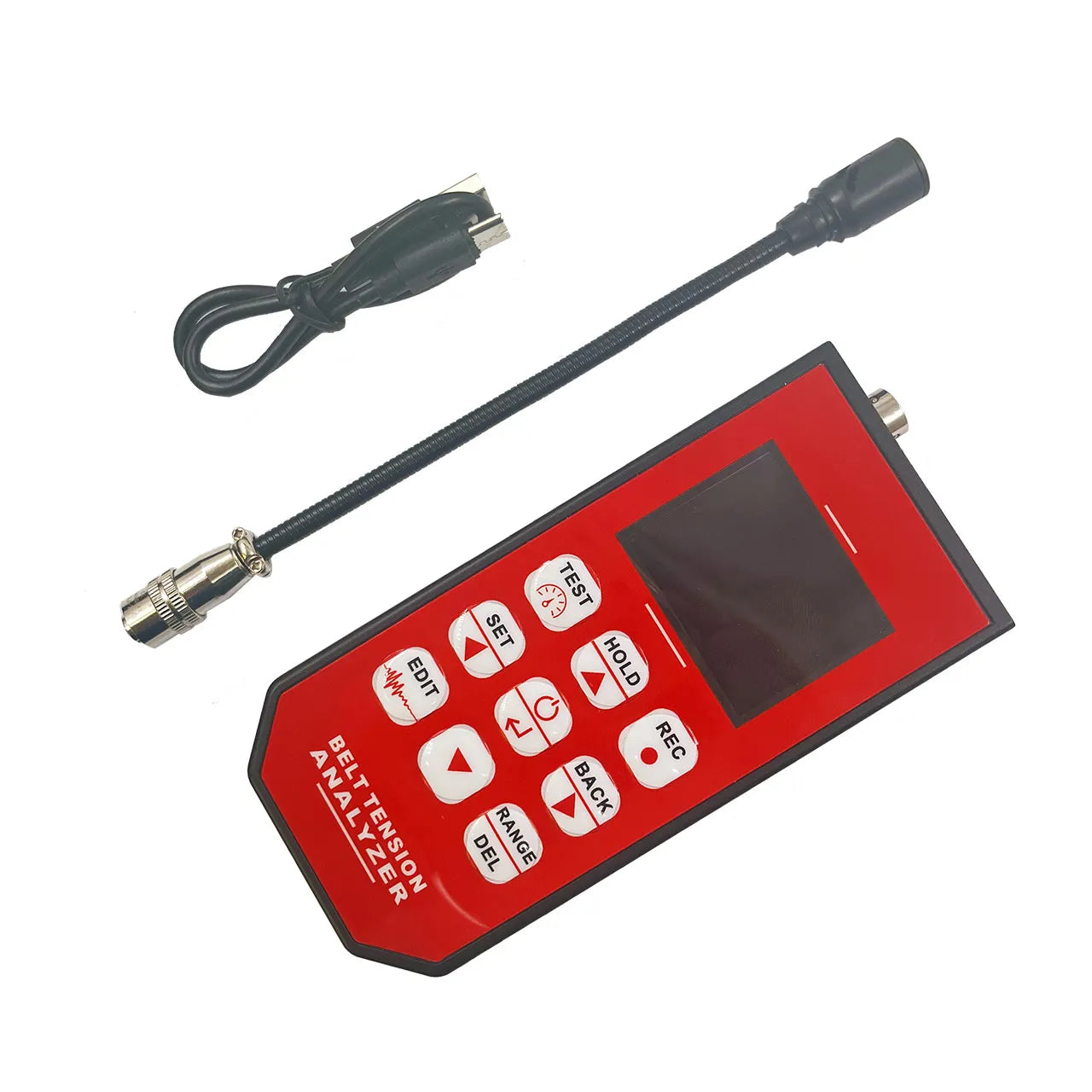

Sonic Belt Tension Analyzer

The sonic belt tension analyzer captures the sound waves generated by the amplitude of the belt through a high-precision

microphone probe, and through analog signal processing, can measure the vibration waveform under different conditions and

read the period of the waveform. By processing the frequency of the frequency, the tension value can be converted. You only need

to gently move the belt to easily obtain the belt tension data.

This sonic belt tension analyzer can test most types of belts: V-belts (V-belt series), wrapped belts, toothed edge cutting belts, multi

wedge belts, combination belts, synchronous belts, and power transmission belts, among other industrial belts. It helps you

measure belt tension quickly, reliably, and efficiently.

Product features:

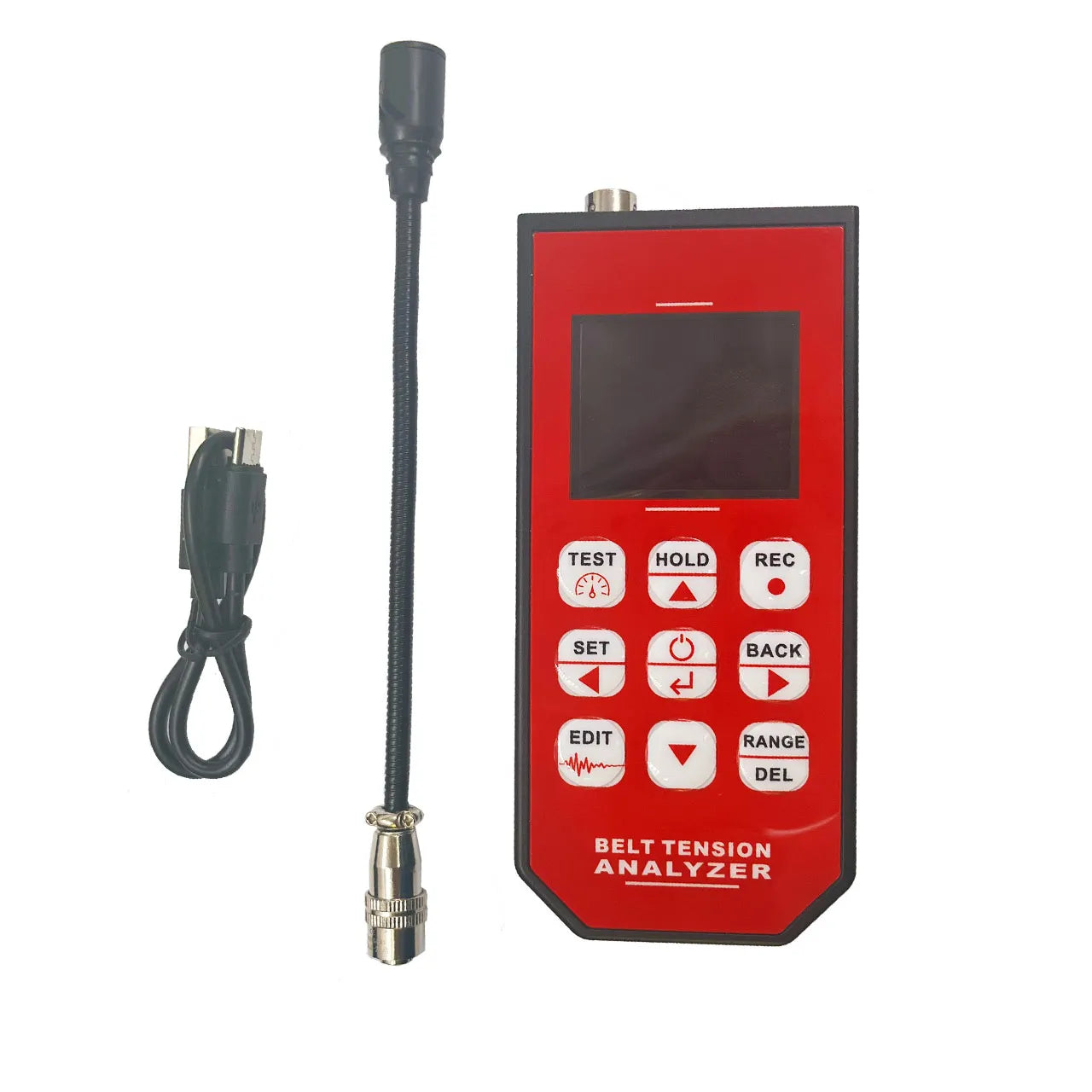

The sonic belt tension analyzer consists of two parts, a handheld measuring instrument and a connected microphone probe;

Measurement of non-contact tension force.

Tension range: 0.01-99900N; Frequency range: 10-5000Hz

Can store 500 sets of measurement data;

Support adding databases using PC, up to 999 entries.

Automatically eliminate noise and interference from noise;

Comes with a belt database for direct selection;

Color screen with background lighting design;

High precision microphone probes have strong sensitivity to low frequencies and can be used for measuring large conveyor belts;

Suitable for measuring in narrow spaces

Quick response: tension data can be measured in 0.7 seconds

Automotive repair industry applications: motorcycle belts, car belts (mainly Japanese

Parameter：

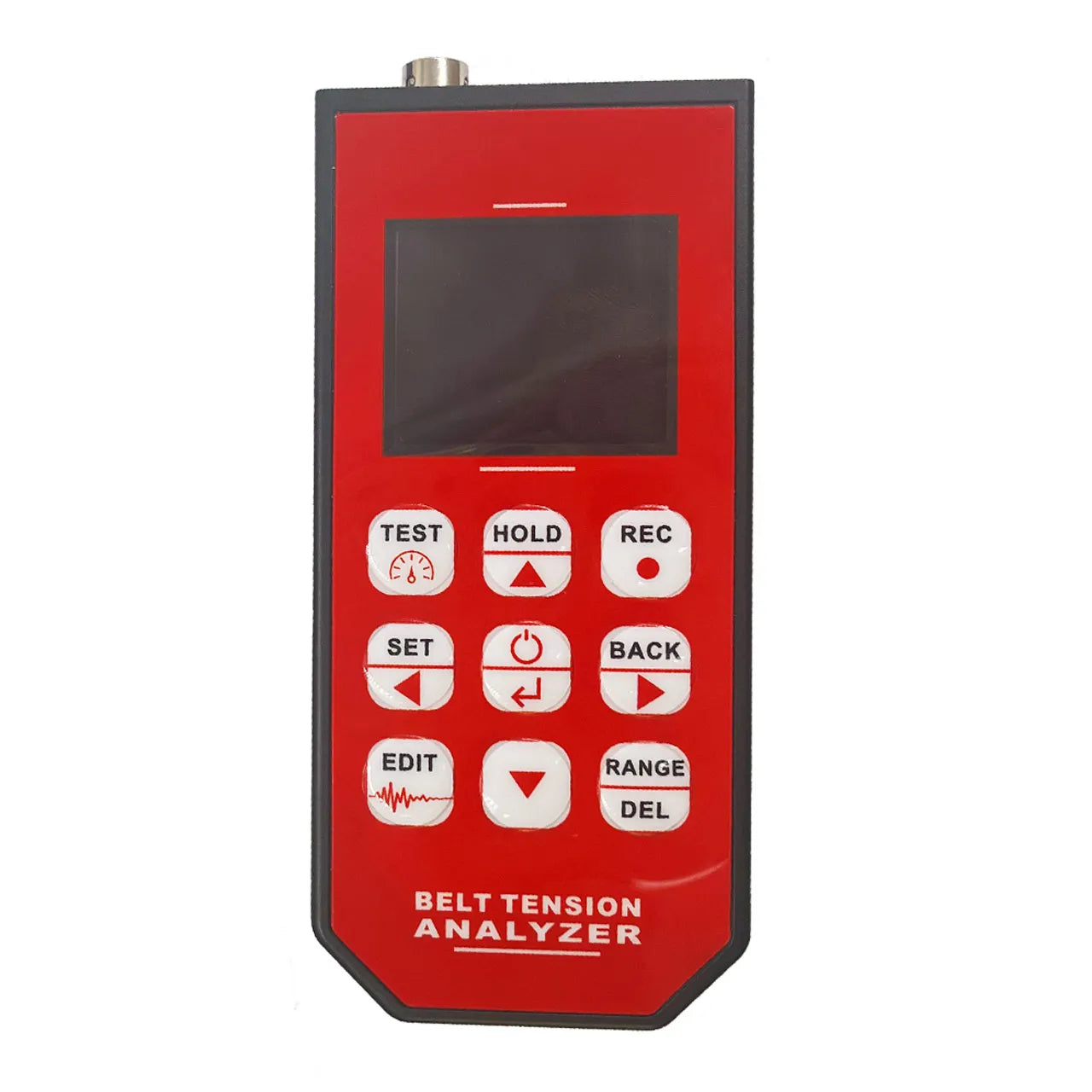

Main unit Dim.：61.5*25.5*130mm

Power Supply：AAABattery *2

Frequency Range：10-5000Hz

Tension Range：0.01-99900N

Language： CN，EN

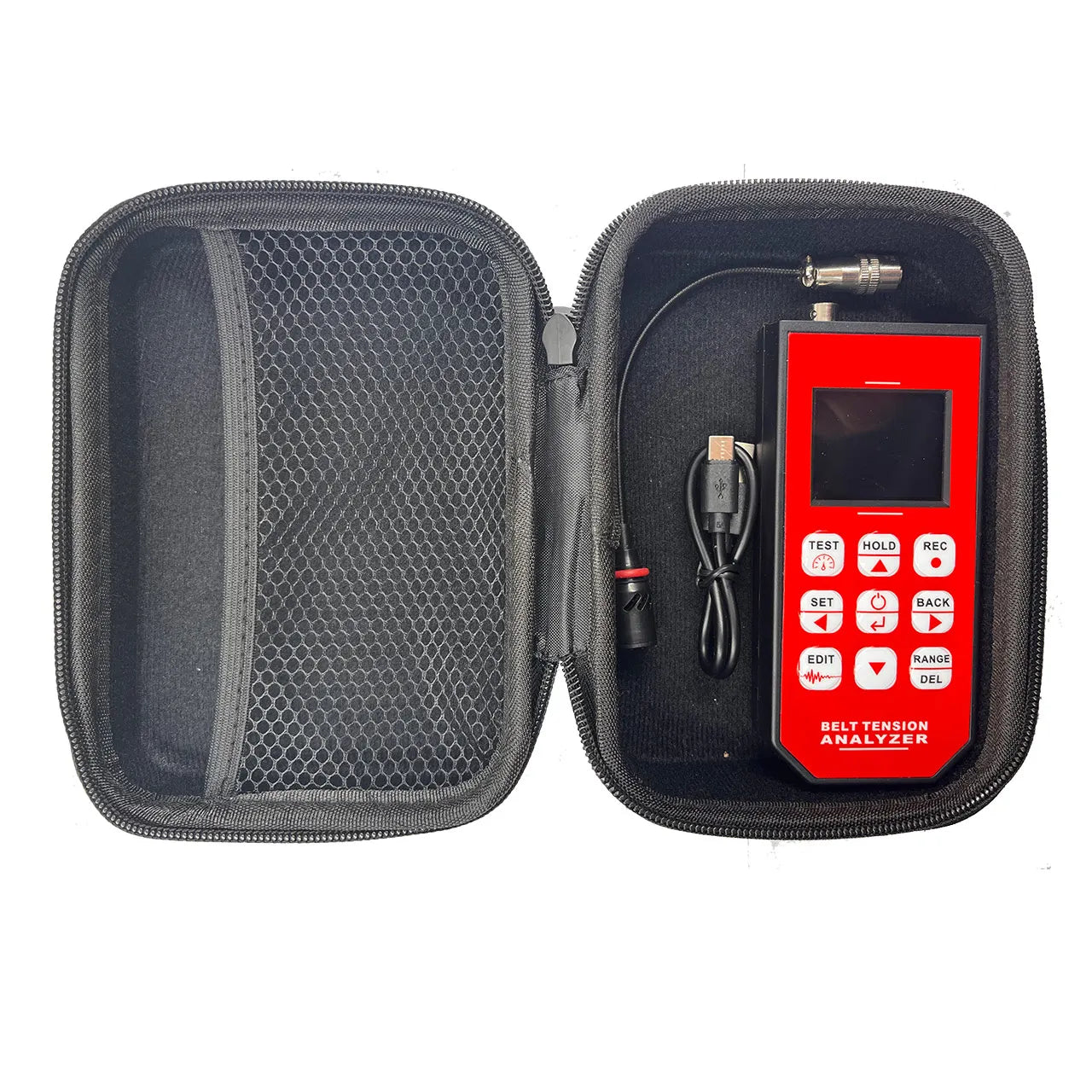

Parts List：

Main Unit x 1

Probe Sensor x 1

USB cable x 1

EVA carry case x 1

User Manual x 1
