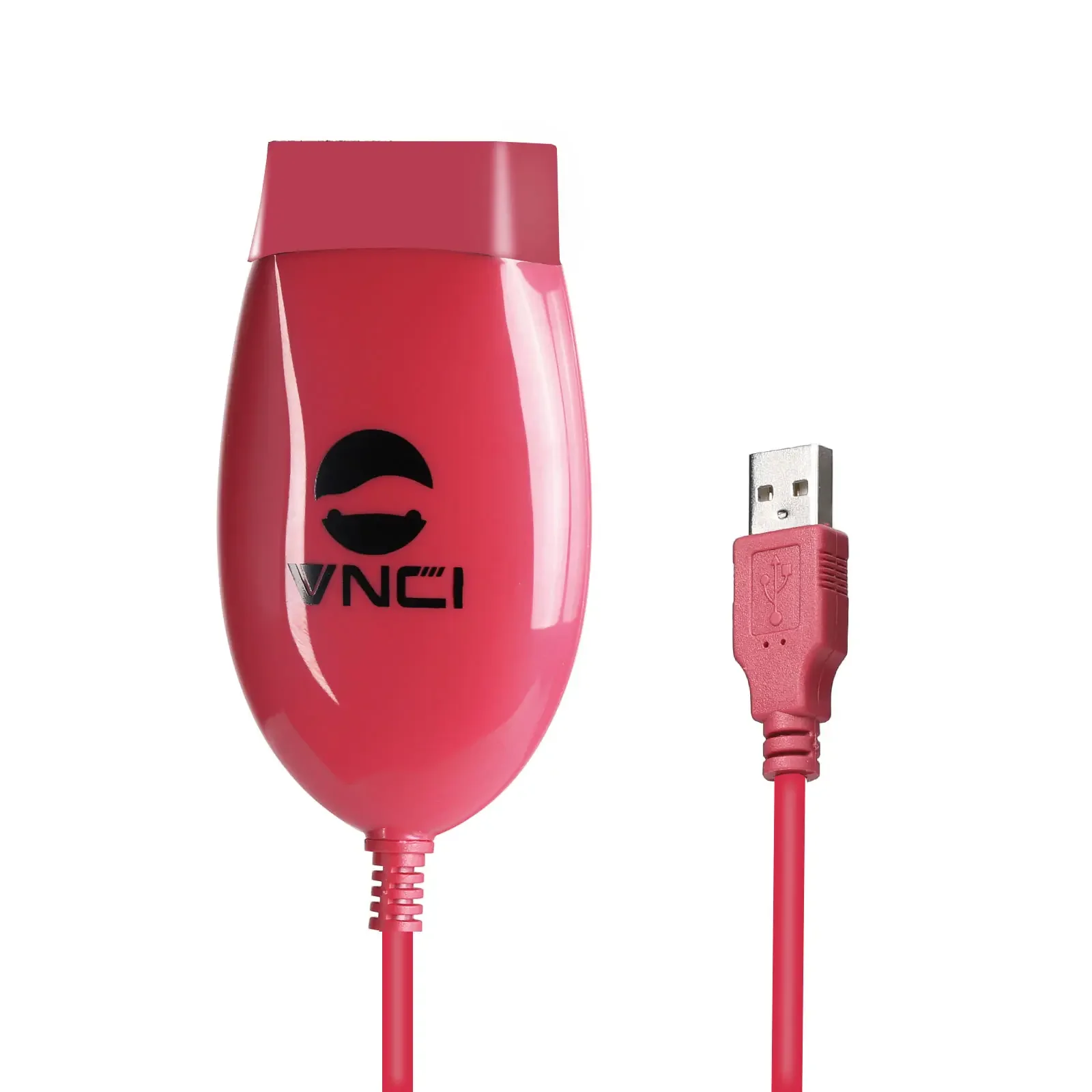

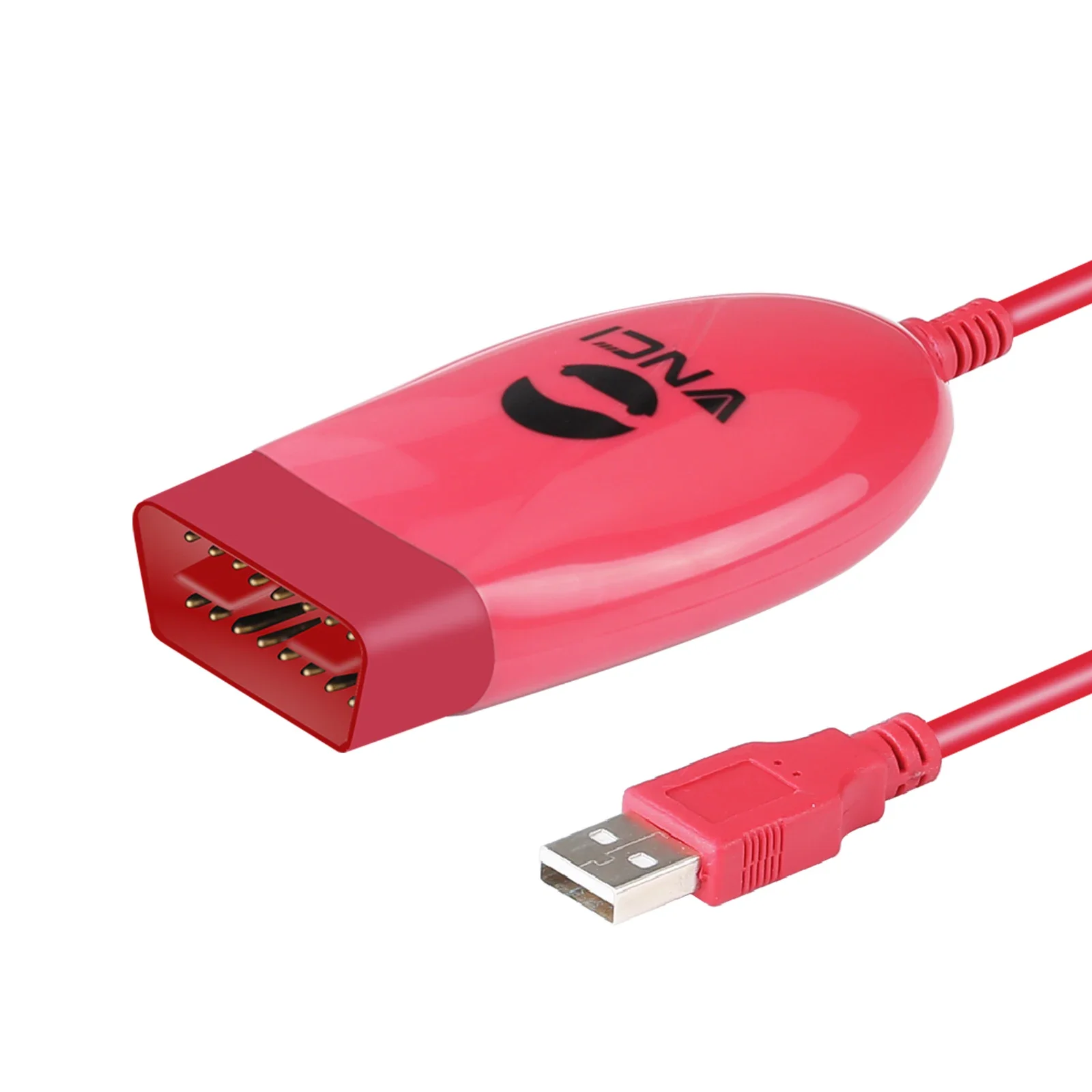

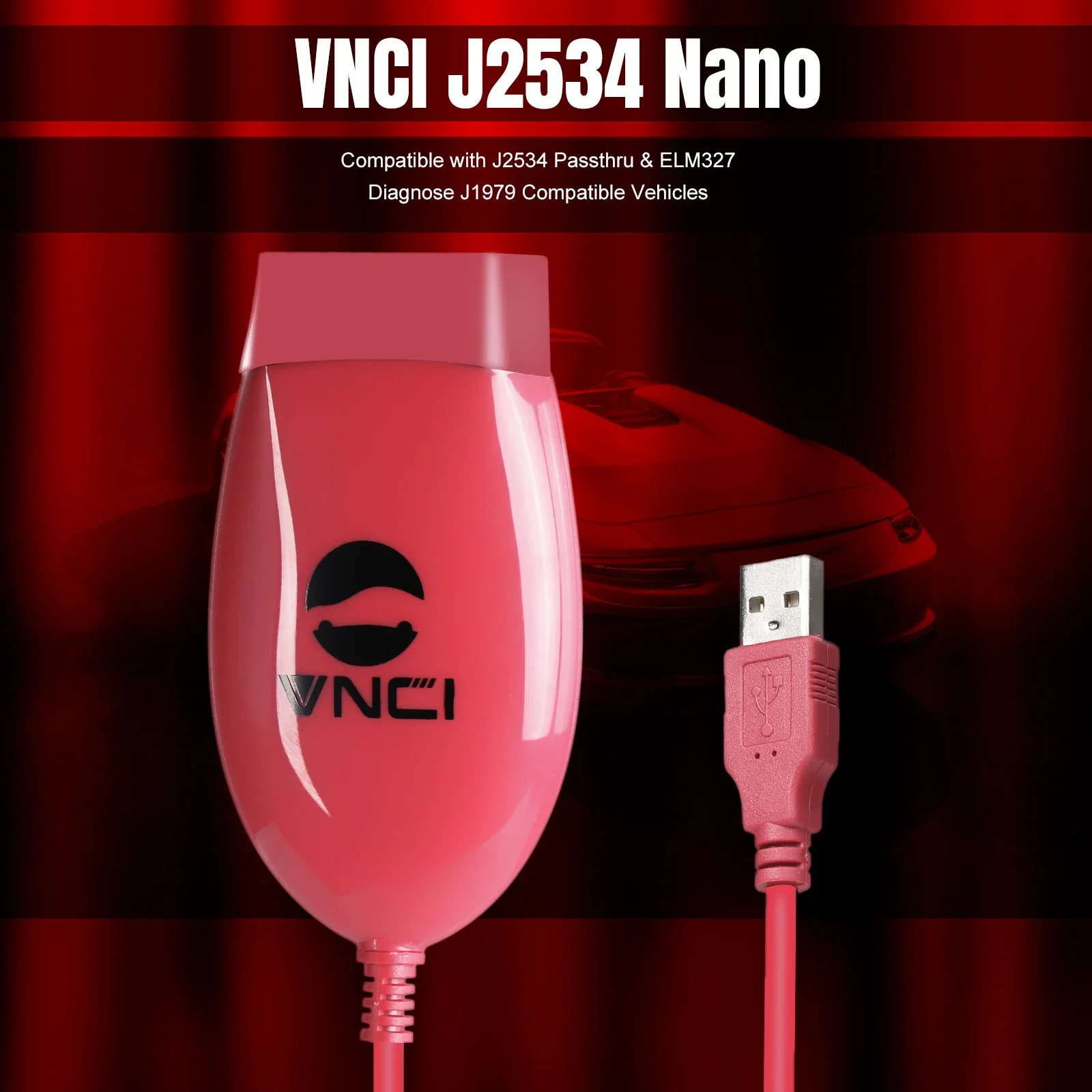

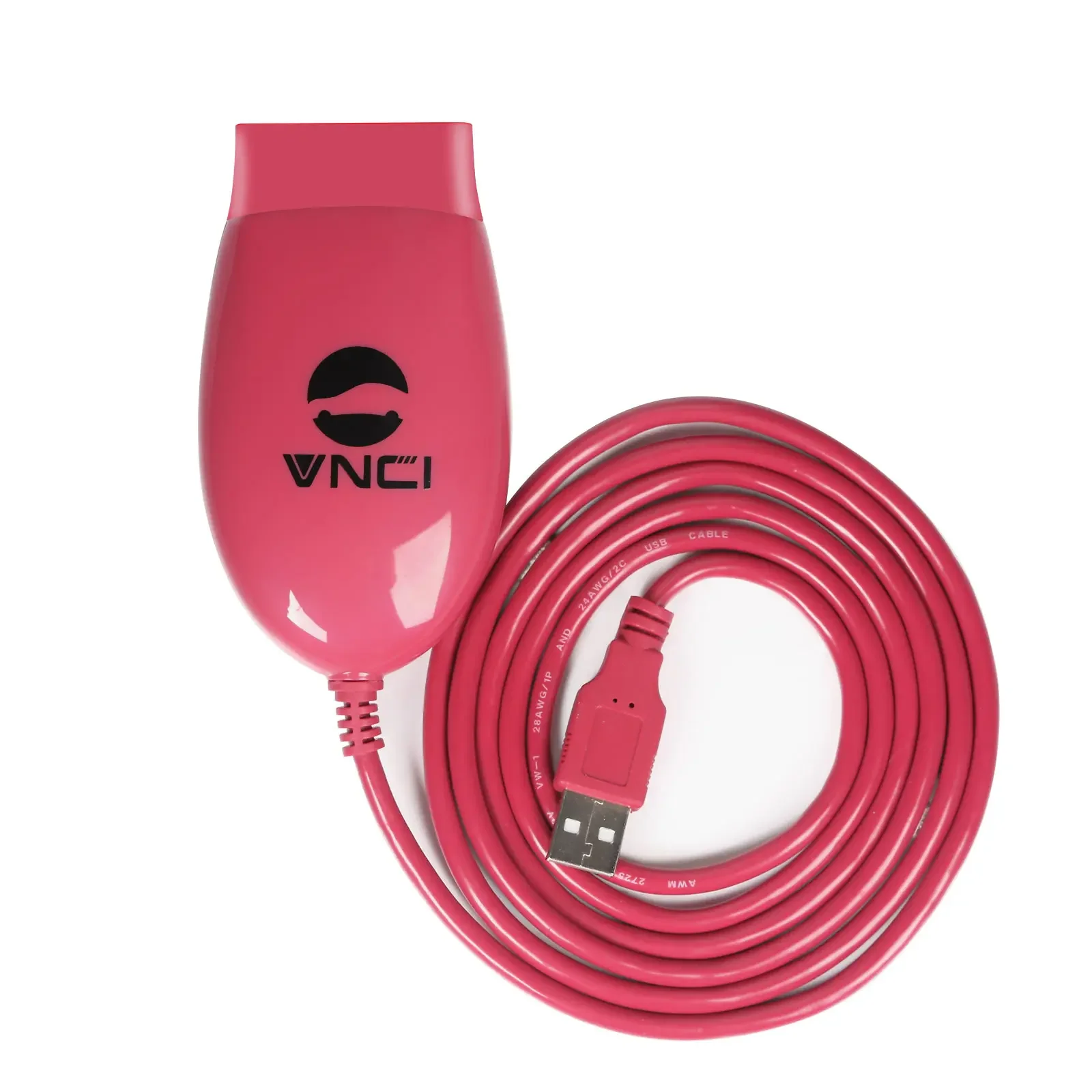

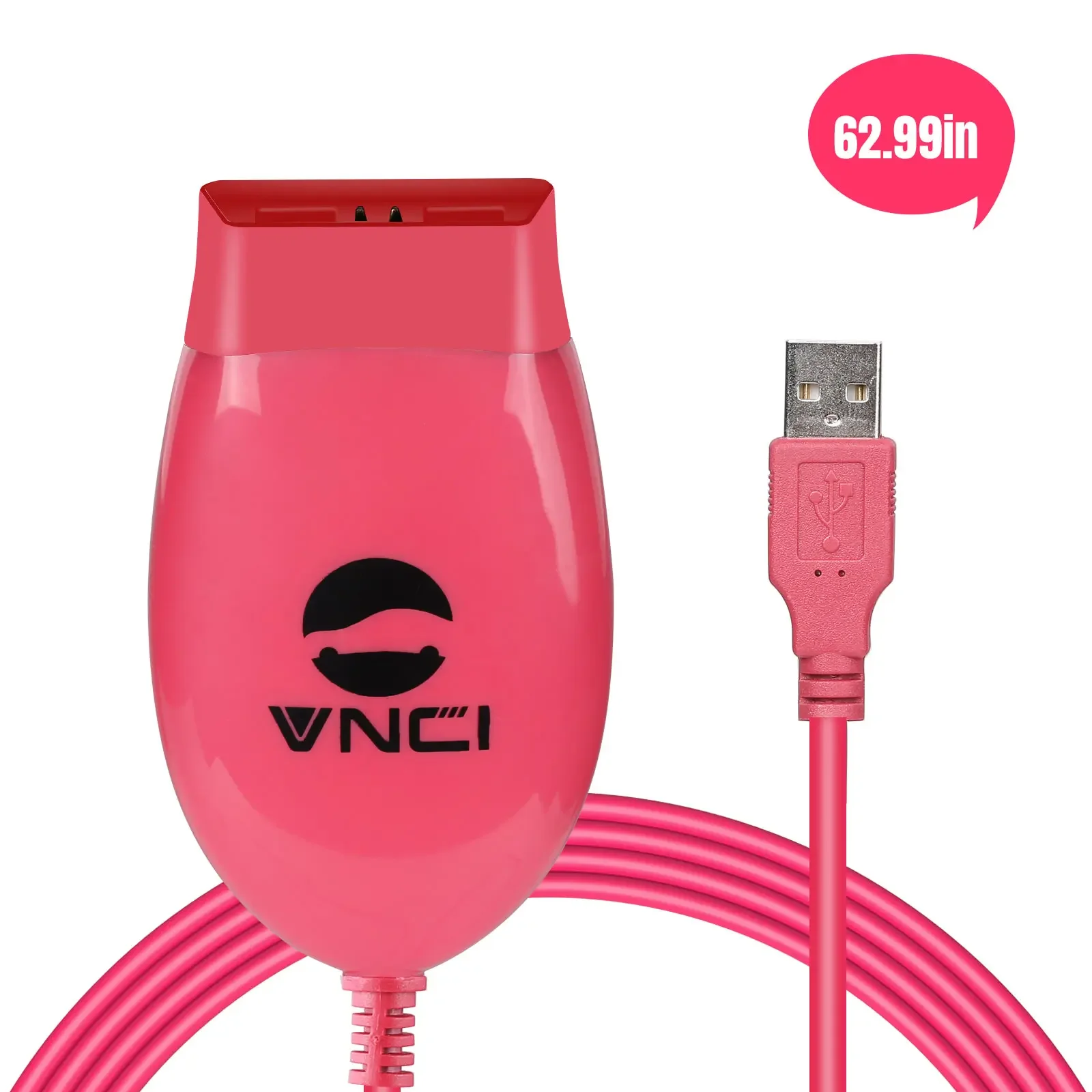

2024 Newest VNCI J2534 Nano Compatible with J2534 Passthru IDS HDS TIS Forscan SDD & ELM327 Diagnose J1979 Vehicles

VNCI J2534 Nano Compatible With J2534 Passthru IDS HDS TIS Forscan SDD Flash&ELM327 Diagnose J1979 Compatible Vehicles

VNCI(Vehicle Network Communication Interface)is a device that works between diagnostic software and vehicle.It is compatible with J2534 Passthru and ELM327.

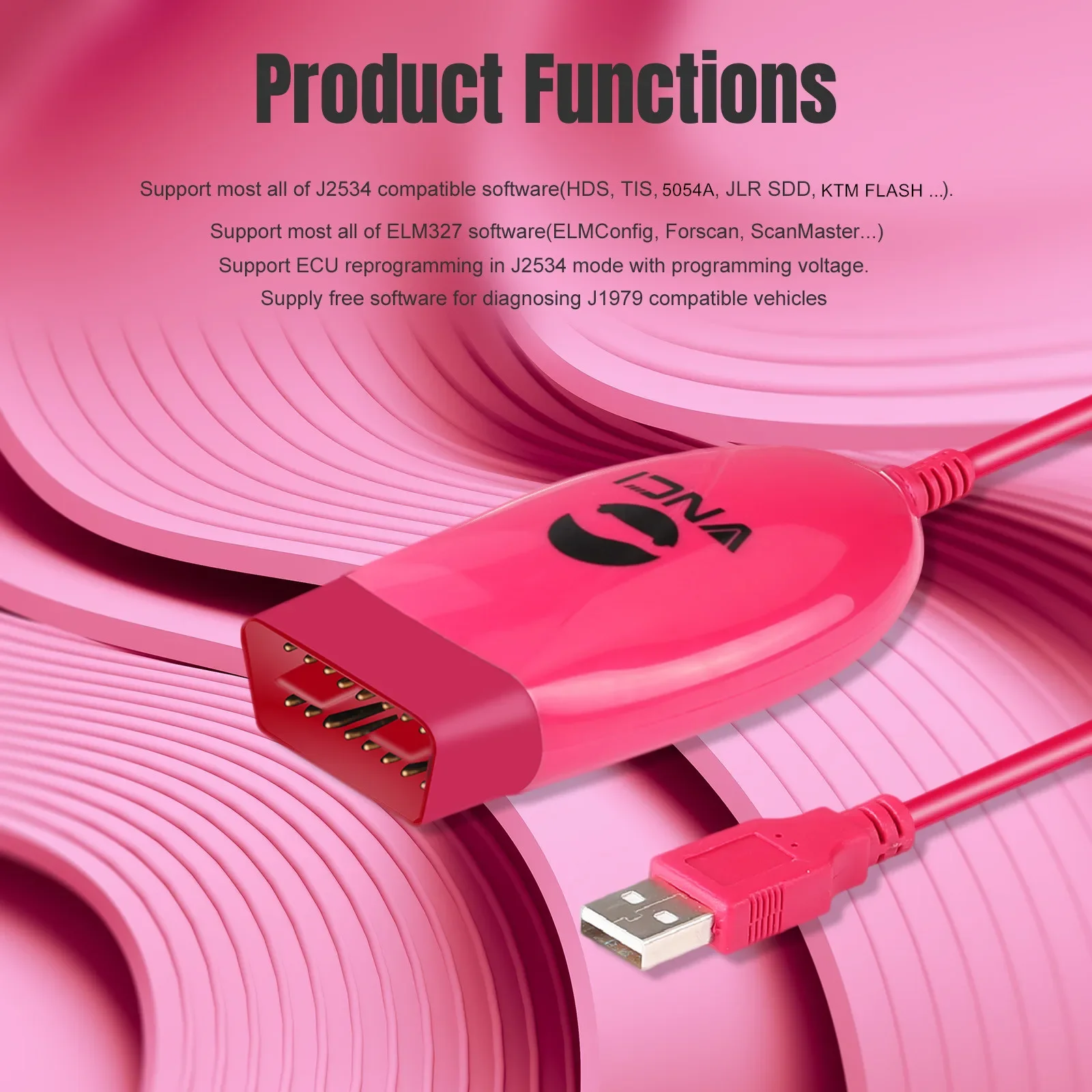

Product Functions:

1.Support most all of J2534 compatible software(HDS,TIS,5054A,for JLR SDD,...).

2.Support most all of ELM327 software(for ELMConfig,for ScanMaster...).

3.Support ECU reprogramming in J2534 mode with programming voltage.

4.Supply free software for diagnosing J1979 compatible vehicles.

5.Support Windows 8/10/11,32/64bit

Supported Languages Below:

For 5054A: English,Japanese,Portuguese,Romanian,Korean,Dutch,Polish,Turkish,Spanish,French,

Italian,Croatian,Danish,German,Swedish,Finnish,Slovenian,Czech,
Russia,Greece,Chinese

ForToyota:English,French,Spanish,Japanese,German,Italian,Russian,Turkish,Chinese

ForHonda:English,German,Czech,Dutch,Finnish,French,Greek,Hungarian,Italian,Norwegian, Polish,Portuguese,Russian,Slovenian,Spanish,Swedish,Turkish,Japanese,Chinese

For JLR SDD:German,English,Spanish,French,Italian,Dutch,Portuguese,Russian, Japanese,Chinese,Korean

For ELS27 Forscan:English,Russian,Polish,Italian,German,Hungarian,Turkish,French, Latvian,Bosnian,Finnish,Romanian,Portuguese,Traditional Chinese,Simplified Chinese,Czech,Lithuanian,Slovak,Ukrainian

For scanmaster elm327:English,Czech,German,Spanish,French,Hungarian,Italian, Polish,Serbian,Turkish,Danish,Croatian

Product Highlights:

1.Support J2534 and ELM327 mode in one device.Switch mode automatically.

2.More speedup.Faster communication and reprogramming.

3.More stability.Never let you down while reprogramming.

4.Portable and convenient.Small package and easy to carry.

VNCI J2534 Nano protocol configuration:

1.ISO15765(Standard/Extended frame).

2.ISO9141.

3.ISO14230.

4.J1850 PWM(Support IFR and 2X speed mode).

5.J1850 VPW(Support 4X speed mode).

6.Programming voltage.

7.Short to ground.

8.ELM327 with command set version 1.5a

VNCI J2534 Nano hardware configuration:

1.ISO11898-2 high speed CAN(OBDII PIN 6 and PIN 14.Speed up to 1000Kbps).

2.ISO9141 and ISO14230 K line(OBDII PIN 7 and PIN 15).

3.J1850 PWM (OBDII PIN 2 and PIN 10).

4.J1850 VPW (OBDII PIN 2).

5.Programming voltage(OBDII PIN 12 or PIN 13. Programming voltage up to 20V).

6.Short to ground (OBDII PIN 9.Short to OBDII PIN5).

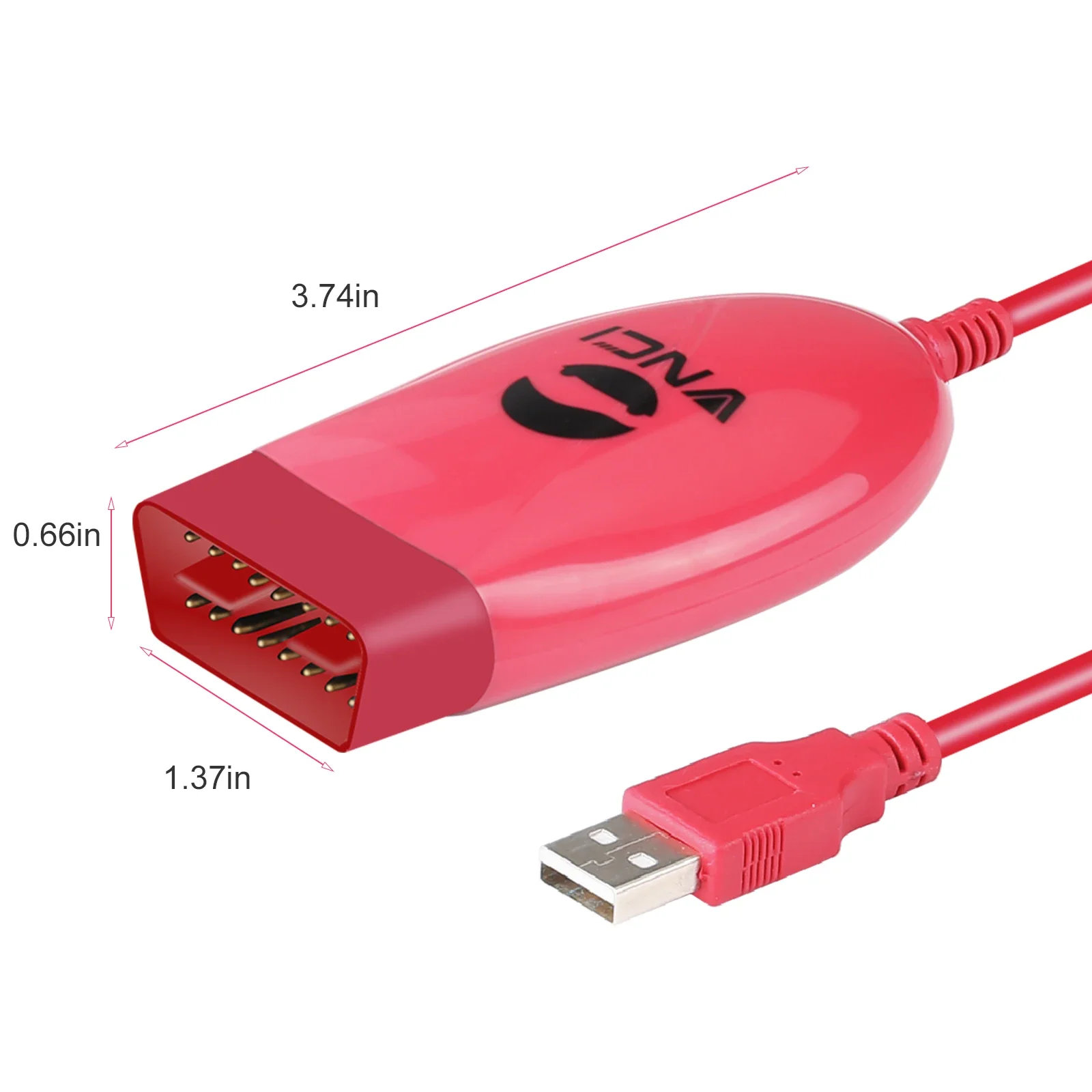

7.Dimension(L*W*H):95mm*55mm*23mm

8.Environmental:-20℃-45℃(-4℉-113℉)

9.Vehicle voltage requirements:8-18V DC

10.Vehicle connection:Molded DLC3(OBDII-16)

11.Host connection:USB 2.0

VNCI NANO J2534 Function List:

Software	Brand	Year	NOTE
FOR Toyota TIS Techstream	For Toyota, Lexus	1995-2022	Free download and activate software, update by link
FOR Honda HDS 3.102	For Honda Acura	1995-2022	Does not support non-#7 K-line, update by link
FOR 5054-S/-E	FOR VW Audi Skoda Seat	1995-2022	For J2534 VA-G only. Don't support CAN FD protocol, Don't support Ignition switch voltage detection
FOR Forscan 2.3.48	Ford Mazda Lincoln	1996-2022	Cannot do 3, 11 medium speed CAN
FOR Scanmaster V2.0		1996-2022	Free download and activate software
FOR KT-M Flash V1.2.0	67 modules	1996-2022	Yes, test by your side
FOR J1979Tester		1996-2022	Free FOR Honda immo code calculation
FOR ELMConfig		1996-2022	Yes, test by your side
FOR Volvo VIDA	For Volvo	1996-2022	Yes, test by your side
FOR JLR SDD2	For Jaguar Land rover	2006-2016	Yes, test by your side
FOR GDS2	For G-M Buick Cadilac Chevlert	1995-2022	Yes, test by your side
FOR Xentry Passthru	For Benz, Smart	1995-2022	Yes, test by your side
FOR IST-A-D, IST-A-P	For BMW, Mini	1995-2022	Yes, test by your side
FOR Consult III-R2R	For Nissan, Infiniti	1995-2022	Yes, test by your side



Package Includes:

1pc x VNCI J2534 Nano
