Dual Double 2PCB PIC18F25K80 Firmware 1.5 ELM327 V1.5 OBD2 BT Diagnostic Interface ELM 327 V1.5 Hardware Support More Car

ELM327 Firmware V1.5 Software V2.1 Universal OBD2 Code Reader Scanner

Double 2PCB With PIC18F25K80 Chip

PIC18F25K80 Chip 4mHz, BT module 16mHz.It supports commands ATAL and ATPPS.

2PCB Board MAC AddressAA:BB:CC:11:22:33

Firmware V1.5

What is the different Firmware V1.5 and Firmware V2.1

• Firmware V1.5 Supports SAE J1850 PWM and SAE J1850 VPW for Ford Cars.

• Firmware V1.5,it is more stable and supports more cars than ELM V2.1.

Here install CD software and test device Firmware V1.5

ELM327 V1.5 chip detected,interface version V1.5

Highlights to Buy ELM327 Firmware V1.5

Hardware V1.5Software V2.1

BT Password:0000 / 1234

BT Version:V2.0

Supports Platform: Android Smart Phone/Computer .No works iOS.

Univeral OBD2 Code Reader Tool,it supports Muti-Brand cars and all OBD2 Protocols.But it does not means it can supports all cars in the market.

PCI18F25K80 Chip supports part of Diesel. For details list ,please check on your own test.

It can not works trucks.

Description:

Firmware V1.5 Supprots All Protocols:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

Also supports CAN protocols and other protocols.

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others.

Default Settings(user adjustable)

1.Works with OBD-II compliant vehicles

2.Wireless (Bluetooth-compatible ) 5~10 meter

3.Software included for Pa, PDA,Mobile

4.Software included for Windows PC ,Can also be used with a PC with a BT Card.

5.Software included for Windows Smartphone Android torque

Specifications:

Dimensions: 5 * 4.5 * 2.5cm

Net weight: 40g

Total weight: 43g

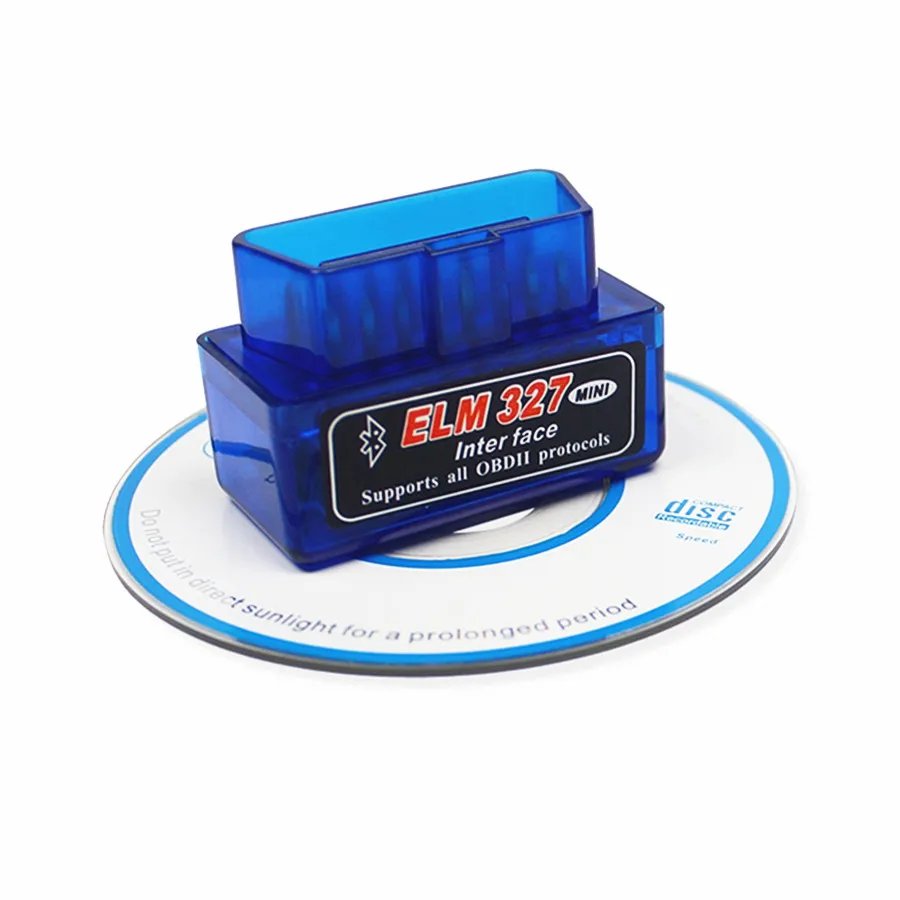

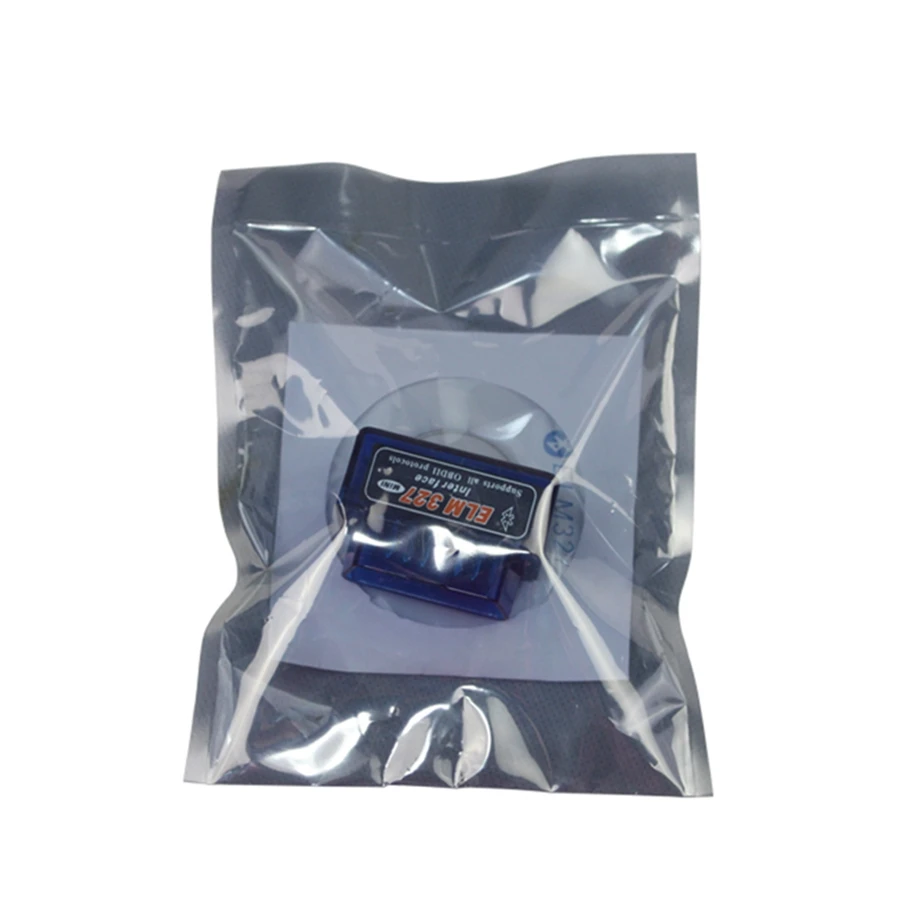

Packing List:

1 x ELM327 BT V1.5

1 x CD

Q:What Version of this ELM327?

A:Hardware V1.5,Software is V2.1

Q:What Chip of this hardware V1.5?

A:PIC18F25K80 ChipDouble 2PCB

Q:How many language of this device CD software?

A:Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Q:Does it supports Russian Language?

A:Sorry,the software has no Russian yet. If your Smart Android phone is Russian setting ,it is OK.

Q:Does it supports WIFI and iOS?

A:No,it only supports android BT and Computer.

Q:Does Hardware V1.5 better than V2.1?

A:Yes,Hardware V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand .

Q:Does this device works diesel car or truck?

A:With PIC18F25K80 Chip,it works only gasoline cars and parts of Diesel Cars,and it supports all OBDII Standard protocols. But it does not means all cars can be supported.Test on your own car. It no supports truck.

Q:How can i know if this device works my car or not ?

A:this ELM327 works most gasoline car brand model and parts of diesel ,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)

Q:How is the step for Run software on android phone?

A:Open your android phone soft ware--Setting--Connecting Type--OBD2 Adapter Setting--BT--Choose BT Device--OBDII.

Q:My android phone connect to my old ELM327 before ,do i need delete previous informations?

A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.

Universal OBD2 scanner,it supports multi-gasoline cars. For details car list, please test on your own car,thank you .

We no test your car ,so it can not sure if your car supported or not ,please test yourself .

CD software supports Multi-Language:

Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Works on Android Phone Test Reference: Software test on Computer Reference:

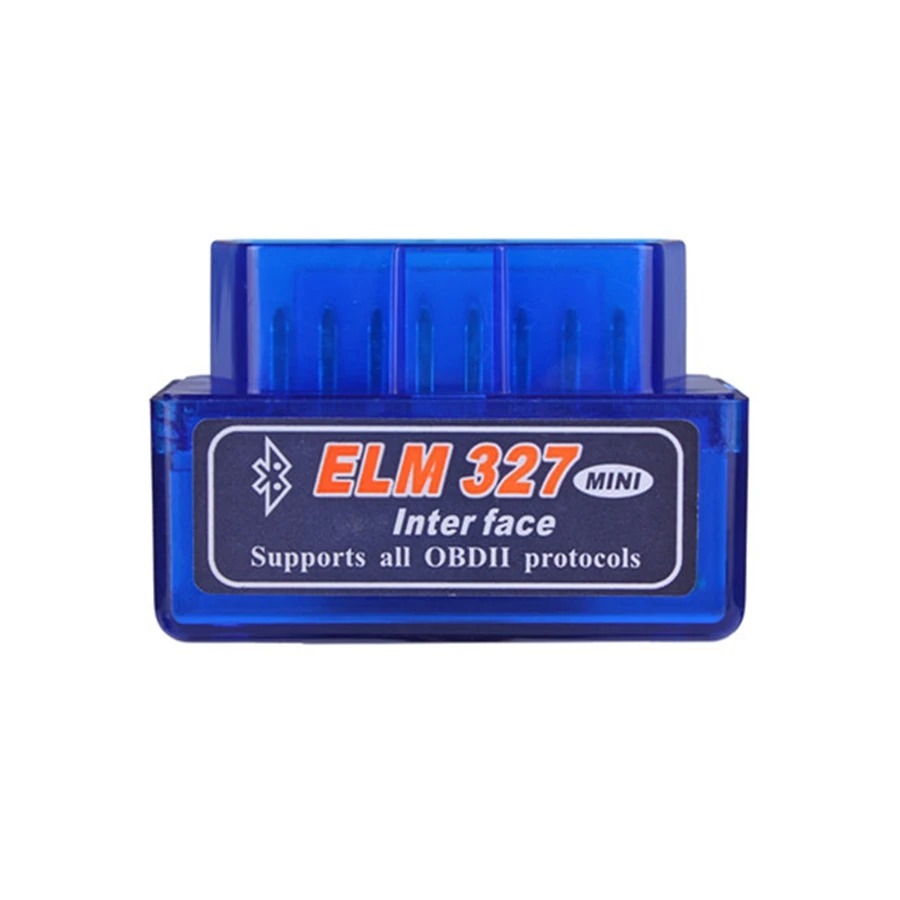

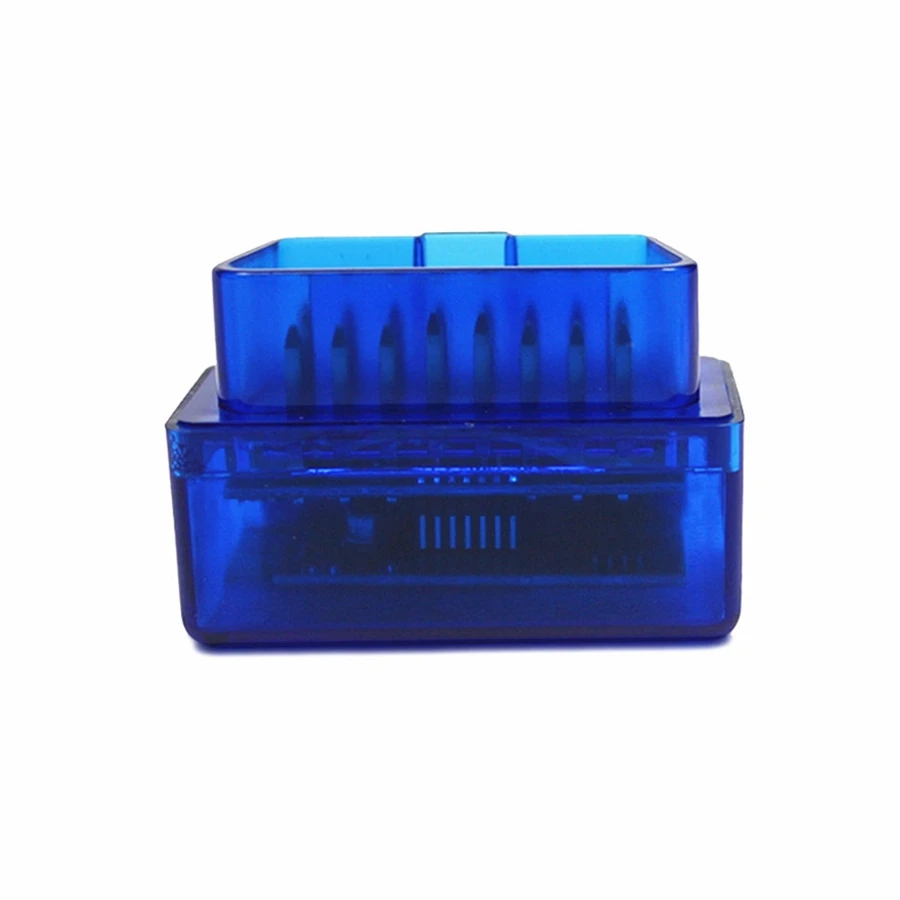

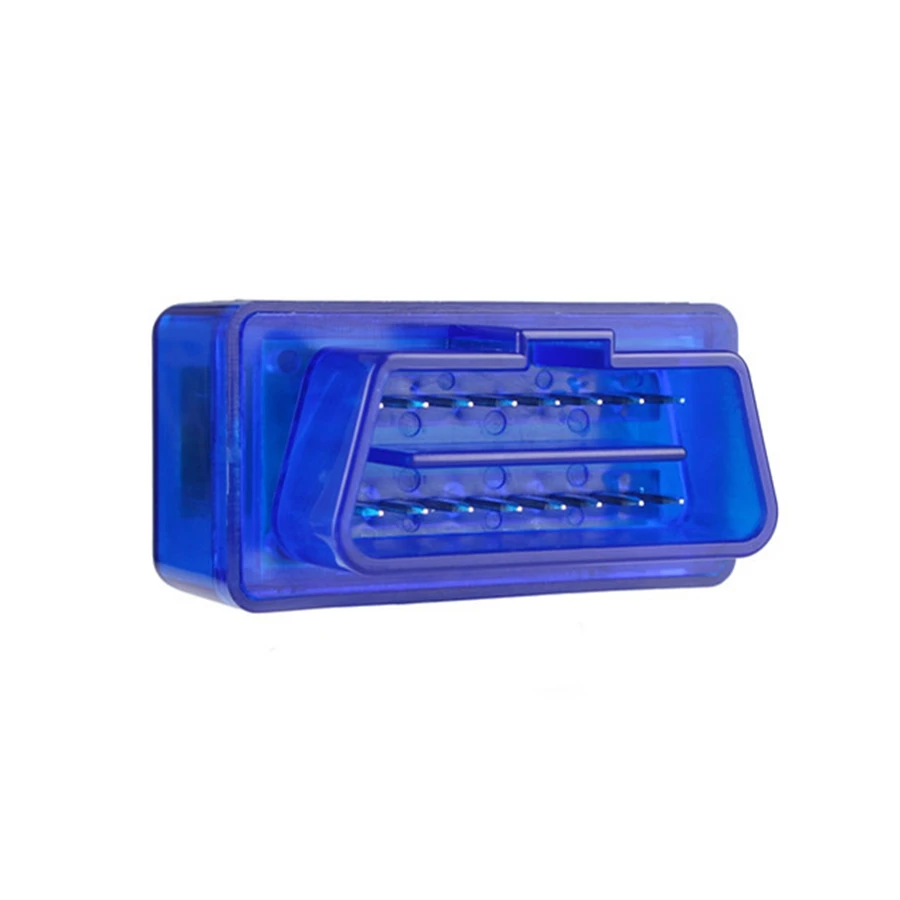

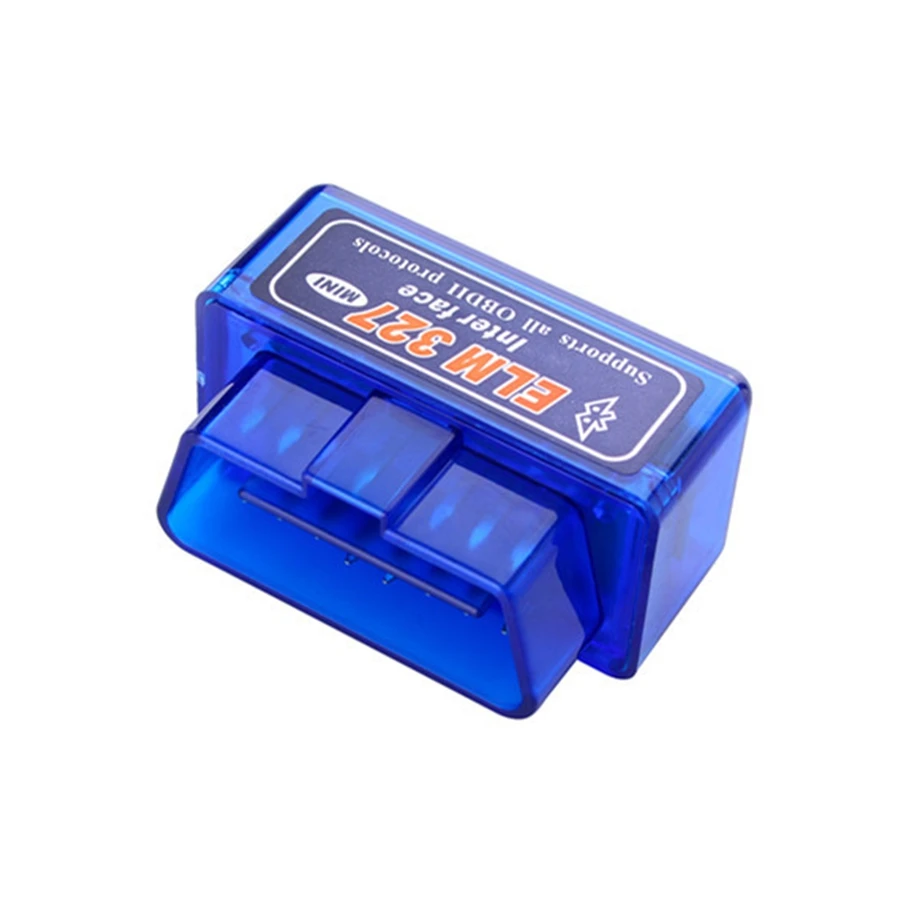

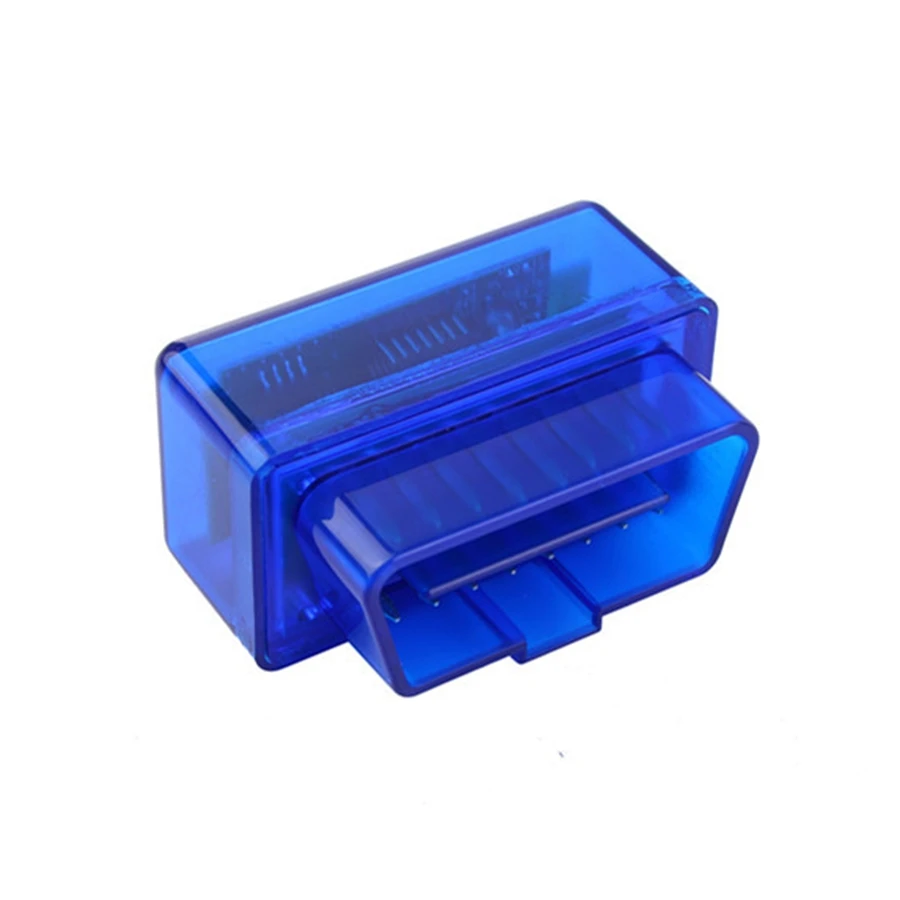

Blue Color

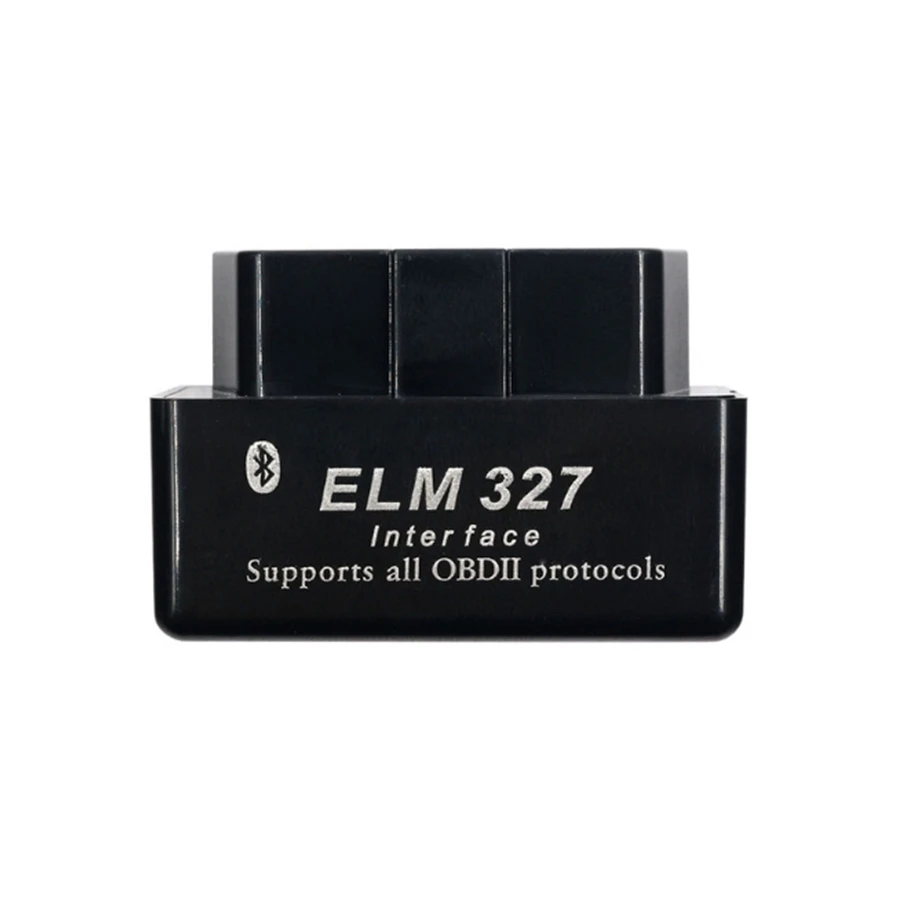

Black Color

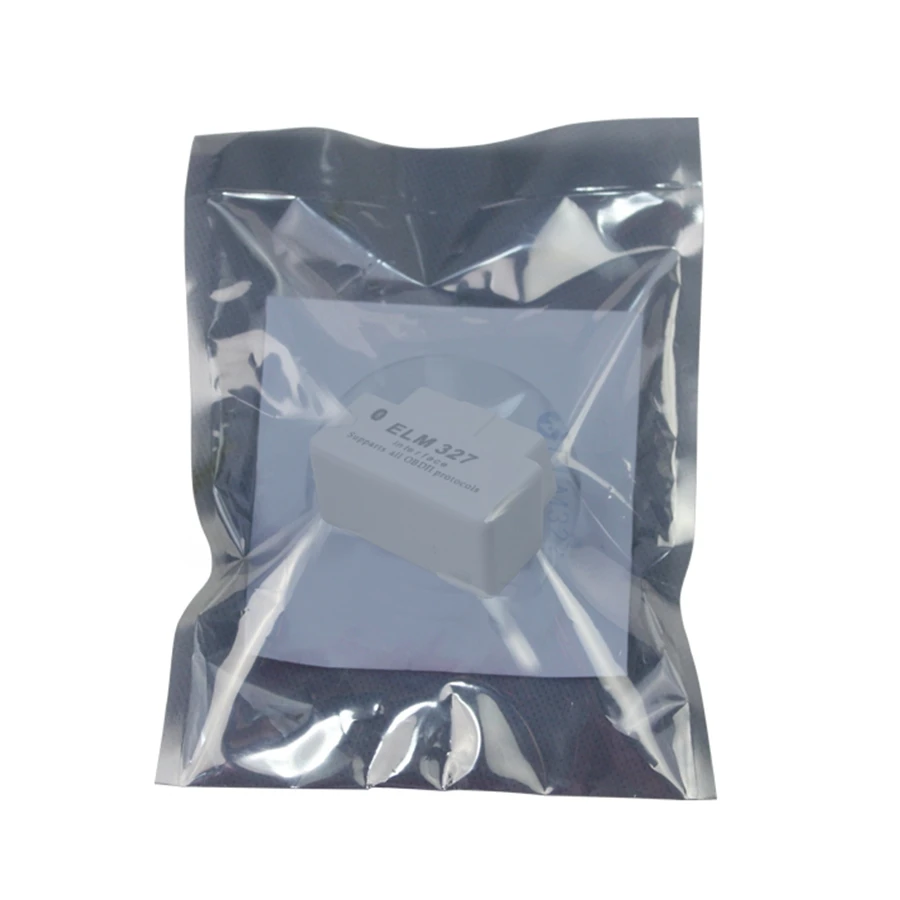

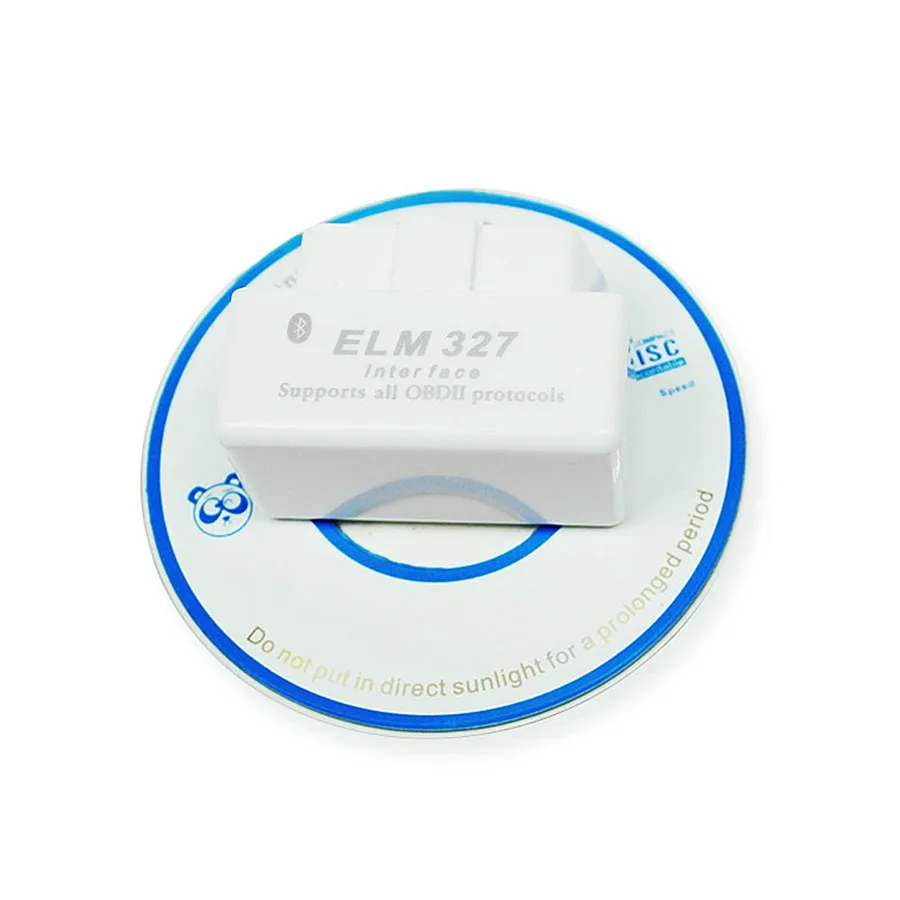

WhiteColor
