V5.55 XPROGM V6.50 V6.26 Full Adapter Auto ECU Chip Tuning Programmer Xprog M 5.55 6.12 6.26 6.50 Metal Box X-PROG
V5.55 XPROGM V6.50 V6.26 Full Adapter Auto ECU Chip Tuning Programmer Xprog M 5.55 6.12 6.26 6.50 Metal Box X-PROG
Couldn't load pickup availability
XPROG V5.55 V6.12 V6.26 V6.50 Black Metal Box Better XPROG M V6.26 ECU Programming Interface Xprog-M
For the installation system, please Note:
XPROG 5.55 : Can only support WIN 7 32BIT computer system
XPROG 6.12/6.26/6.50 : Can only support WIN 7 64BIT computer system
ITEM 1: XPROG V6.50
Please Attention For Xprog V6.50 Software Installation Tips:
1. Please use the real WIN 7 64BIT system and close the anti-virus program.
2. Only one xprog version 6.50 software can be placed and installed in the computer, no other xprog software, if there are other software, it will conflict and cause certificate problems!
3. Turn on the computer network, the computer time needs to be consistent with the local time.
4. The computer needs to have 2 or more partitions, such as C and D disks. It cannot be an external hard disk, but must be multiple partitions of the computer's hard disk.
5. MUST first install 6.50 registry, then run V6.50 Software.
6. The product cannot open multiple software interfaces at one time, which will cause the product to enter a locked state! ! Because the system will mistakenly believe that you use the product incorrectly or crack the product, resulting in lock-up.
7. Product can't be updated.
8.After used,close the software and unplug the usb dongle from the computer.
Please must follow this instructions to run software,otherwise device will not installed.
ITEM 2：XPROG V6.26
Please Attention For Xprog V6.26 Software Installation Tips:
1. Please use the real WIN 7 64BIT system and close the anti-virus program.
2. Only one xprog version 6.26 software can be placed and installed in the computer, no other xprog software, if there are other software, it will conflict and cause certificate problems!
3. Turn on the computer network, the computer time needs to be consistent with the local time.
4. The computer needs to have 2 or more partitions, such as C and D disks. It cannot be an external hard disk, but must be multiple partitions of the computer's hard disk.
5. MUST first install 6.26 registry, then run V6.26 Software.
6. The product cannot open multiple software interfaces at one time, which will cause the product to enter a locked state! ! Because the system will mistakenly believe that you use the product incorrectly or crack the product, resulting in lock-up.
7. Product can't be updated.
8.After used,close the software and unplug the usb dongle from the computer.
Please must follow this instructions to run software,otherwise device will not installed.
Please MUST READ This :
ITEM 3 : XPROG V6.12
XPROGM V6.12 Highlights:
1. Latest Software Version: V6.12, Firmware: V4.4
2. Adds new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9
3. Operating System: Win7 64BIT
4.Language: English only
1. Please use the real WIN 7 64BIT system ，Turn off the network and anti-virus programs. Product can't be updated.
7. Product can't be updated.
Install Notice:
XPROGM V6.12 windows system required as below:
2. The windows system should be with at lest 2 partitions (except the CD ROM.)
3. Can not be working with virtual harddisk.
XPROG Box 6.12 Installing Steps:
1. Click the file "installation.reg", get the file information to the regedit.
3. Plug the Xprog main interface to the computer, install the USB driver.
4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.
XPROG V6.12 Authorizations included:
AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 for BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 for MB ZGS001 authorization
AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 for ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 for ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 for Renesas V850 Authorized 2017/10/9
AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9
AUTH-0028-3 for Renesas RL78 Authorized ---New!
AUTH-0028-4 for Renesas M32C Authorized ---New!
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 for Motorola HC05B/X PLCC52 programming adapter
ADP-0005 for Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adapter for 5M48H P-Flash
ADP-0019 Rev.A EWS3 adapter
EEPROM adapter
QFP28 adapter
QFP64 adapter
QFP80 adapter
QFP112 adapter
QFP144 adapter
X-PROG V6.12 Newly Added 4 Adapters:
ADP-0019 Rev.B ----New!
ADP-0006 M35080 ICP adapter ---New!
QFP64 MC908AZ/AS60 3K85K adapter ---New!
QO18S714 ---New!
Package Includes:
1pc x XPROG-Box Hardware (Aluminum Enclosure)
19pc x Adapters Set
1pc x USB Cable
1pc x 16Pin cable
1pc x CD with XPROG-Box Software (V6.12)
ITEM 4:XPROG V5.55
Highlight of XPROG 5.55:
New Software Version:V5.55
V5.55 Especially For BMW CAS4 DECYPATION
System Requirement: WIN7 32bits Only (close an-virus program,or soft ware attacked)
Add new authorization:AUTH-0025 Authorized 11/4/2014
Without USB Dongle,Software is not encrypted.Feel free to install software.
1. Please use the real WIN 7 32BIT system ，Turn off the network and anti-virus programs. Product can't be updated.
2. Only one xprog version 5.55 software can be placed and installed in the computer, no other xprog software, if there are other software, it will conflict and cause certificate problems!
3. The computer needs to have 2 or more partitions, such as C and D disks. It cannot be an external hard disk, but must be multiple partitions of the computer's hard disk.
4. MUST first install 5.55 registry, then run 5.55 Software.
5. The product cannot open multiple software interfaces at one time, which will cause the product to enter a locked state! ! Because the system will mistakenly believe that you use the product incorrectly or crack the product, resulting in lock-up.
6.After used,close the software and unplug the usb dongle from the computer.
7.Product cannot be updated.
Note For XPROG V5.55:
1. There is no dongle with this one.
2.Old Version like V5.0/V5.3 tool ,it can not use with this V5.55 .
3.Disconnect internet when run soft ware ,otherwise device will damaged.
4.Don't update online, or hardware broken and can not work any more.
5.Please unistall all old Xprog version clearly ,and make sure install Our XPROG 5.55 only into your PC only .
Please read and following those tips when install Xprog V5.55,otherwise hardware can not use any more .
XPROGM V5.55 Authorizations:
AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 for ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 for MB ZGS001 authorization
AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (for Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (for Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx(New added)
AUTH-0023-2 XC23xx(New added)
AUTH-0024-1 MC9S12Cxx(New added)
AUTH-0024-2 MC9S12XE(New added)
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx (newly added)
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx (newly added)
XPROGM V5.5.5 Adapters:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 for Motorola HC05B/X PLCC52 programming adapter
ADP-0005 for Motorola HC05B/X QFP64 programming adapter
ADP-0006 for ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
Computer Requires:
Processor: INTEL Pentium 60MHz or faster (depends on operating system)
Memory (RAM): 64MB (depends on operating system)
Hard drive: 20MB free space
Communication: One free physical COM or USB port
Operating system: Microsoft Windows WIN7 32Bits Only
Packing List :
1 x XPROG Unit
19 x Programming Adapter
1 x USB Cable.
1 x CD Software
ITEM 5: 8 SOIC CLIP CHIP
Description：
Clip for XPROG-Box ECU Programmer reading 8pin chip without removing.
Also this clip adapter can work with UPA USB Programmer.
NOTE: Don't support XPROG V5.55!!!
Package includes:
1 x 8 Soic Clip Adapter

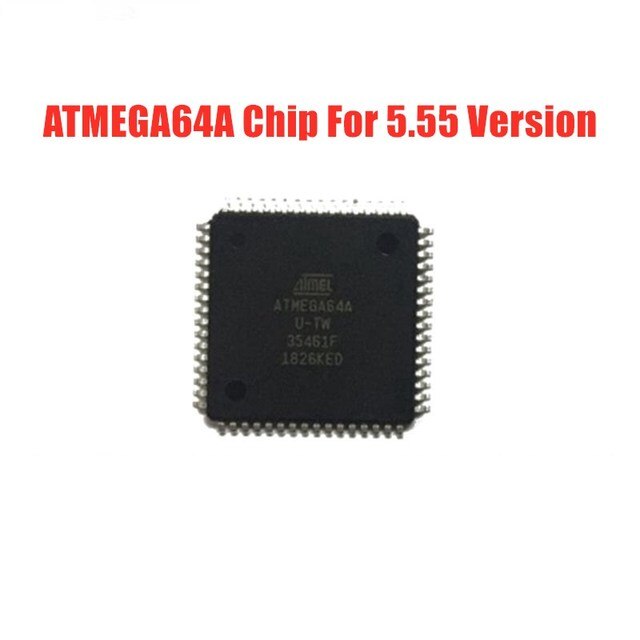

ITEM 6: ATMEGA64A Chip
When buyer meet this problem ,it means your computer install other older version and didn't uninstall yet.and computer has old xprog software registry.red and didn't uninstall ,so it wil cause this problem .
Now you need buy ATMEGA 64 chip to reflash programmer and then next time must click 6.12registry and then run 6.12 software.
So No matter which version you use,before open software MUST click the right version registry .Otherwise it will runs old version registry and then confilt with new hardware and show this update error.
PS:
if buyer meet software message shows "Waiting Certificate" that means you did not run software correct, Certificate already lost.
It only flash IC Chip . So please Must pay attention to it.
Some buyer did not run software and click update in wrong operation makes device no working shows "Device is Silent",certificate lost.
It requires to buy ATMEGA64A Chip to replace and solder,please check below photo:
5.55:
6.12:
6.26:
8 foot soic clip:
OEM FEM BDC
5pcs Probes Adapters：
