Yanhua Mini ACDP Mercedes Benz DME/ISM Refresh Module 18 with License A102

ACDP Module 18 Mercedes-Benz DME/ISM refresh

Module function：

1.Support Mercedes-Benz CR3.XX/CR4.XX/CR5/CR6/CR60.XX/SIM271DE2.0/SIM4LKE/SIM271KE2.0/CRD.11/CRD2.XX/ME9.7/MED17.7.X/SIM266 etc.DME refresh.
2.Support Mercedes-Benz ISM refresh.

Overall connection diagram：

Mercedes-Benz ISM ▼

Mercedes-Benz 271 DME ▼

Mercedes-Benz 272(ME9.7) DME ▼

APP operation interface：

Mercedes-Benz ISM refresh ▼

Mercedes-Benz 272(ME9.7) DME refresh ▼

Mercedes-Benz 271(SIM4LKE) DME refresh ▼

Configuration List:

ACDP Configuration List (Module 18 Mercedes-Benz DME/ISM refresh)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

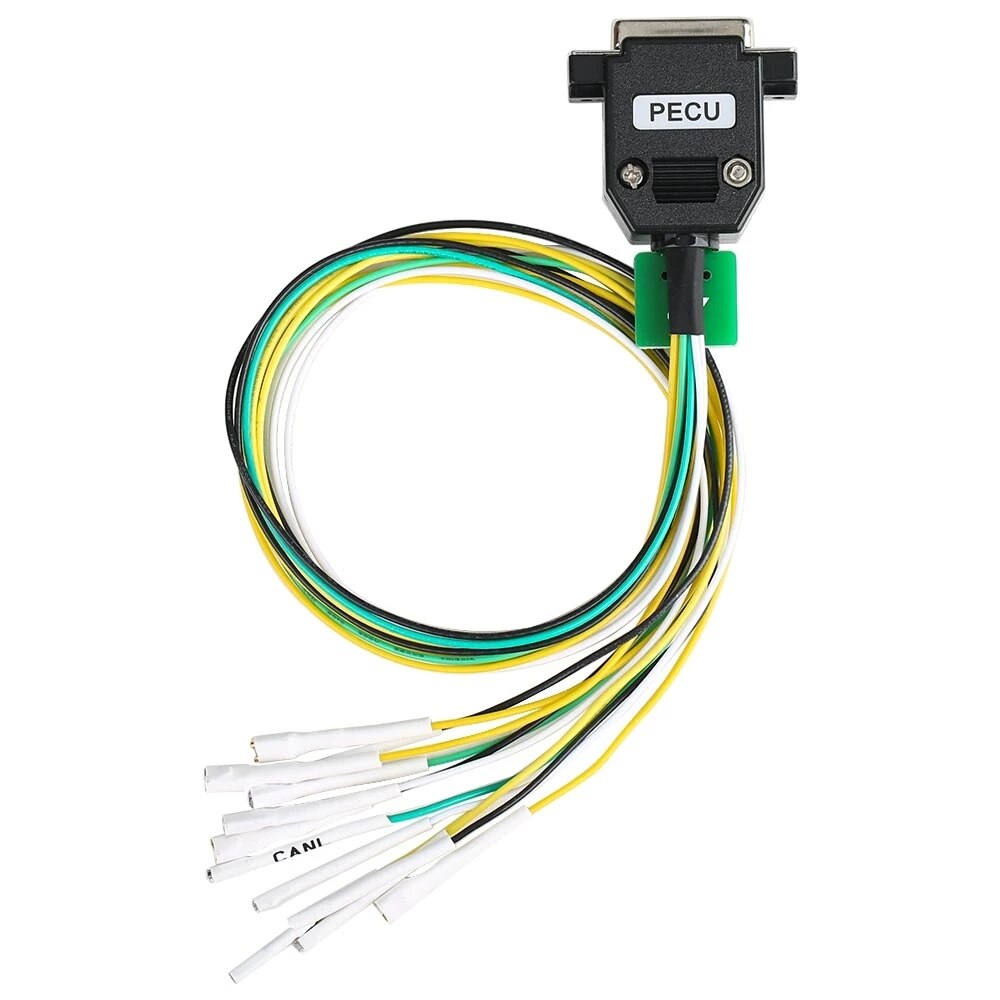

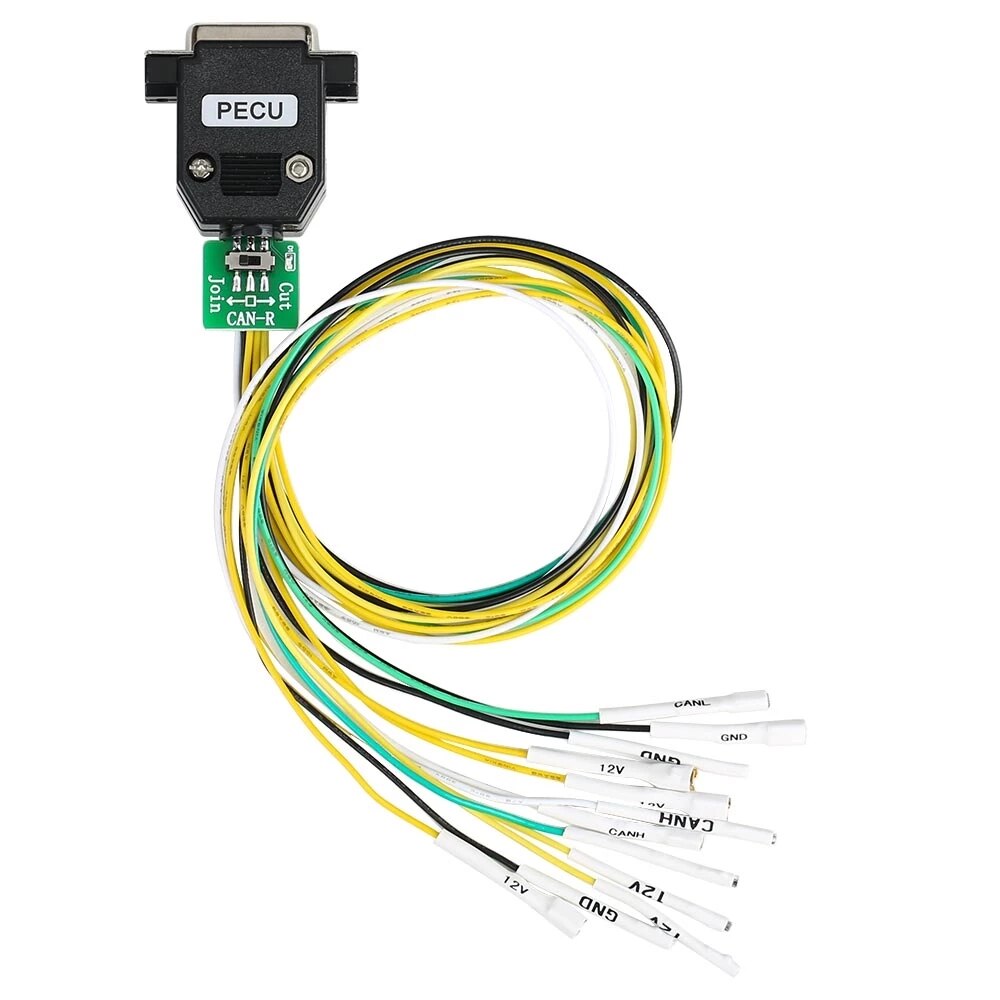

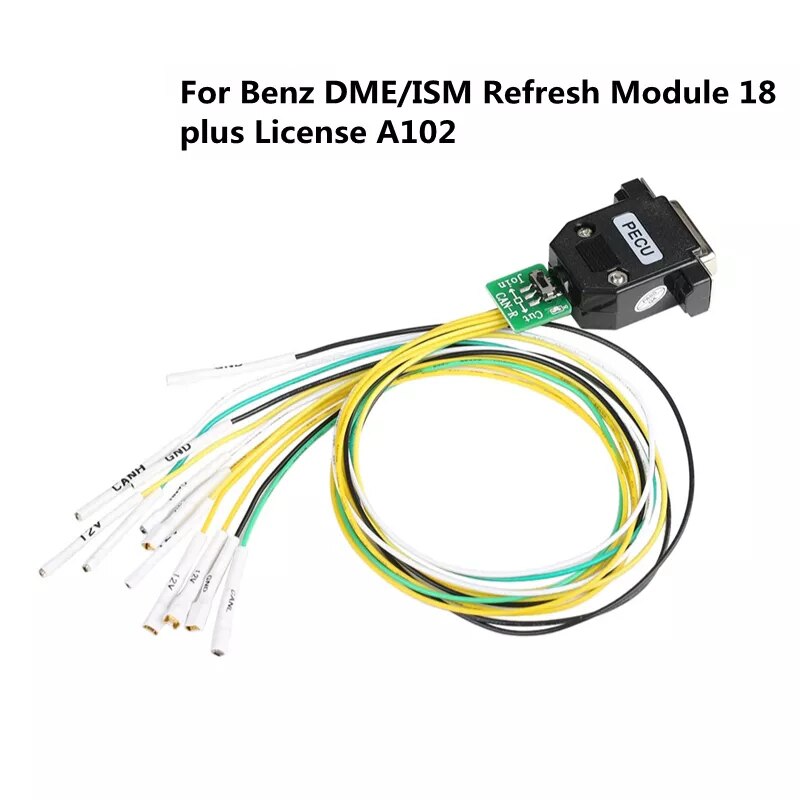

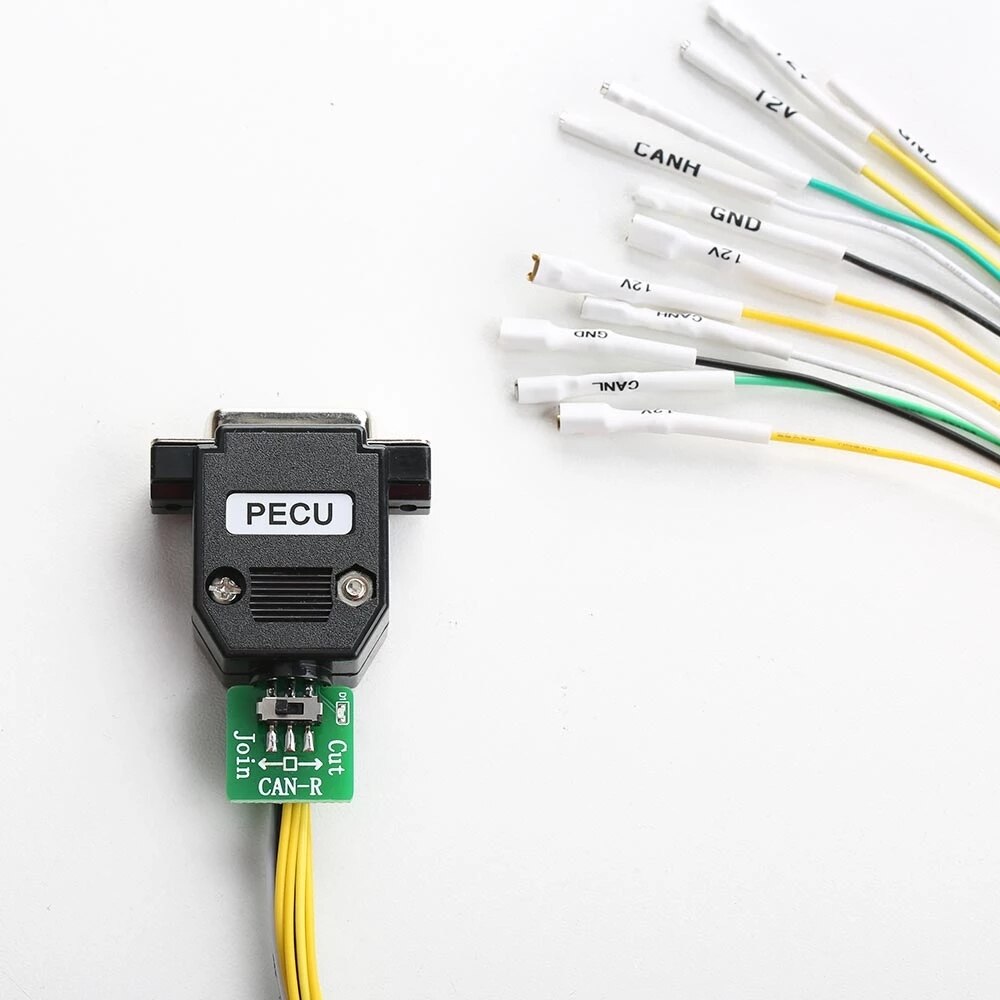

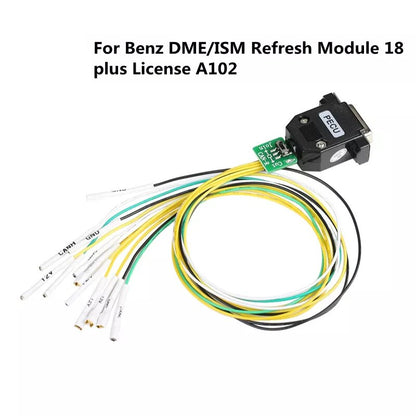

1	PECU Cable		Applicable to connect DEM/SM test points	1
