Yanhua Mini ACDP Jaguar/Land Rover KVM Module 9 Support Adding key and All Key Lost and Key Refresh

ACDP Module09 Jaguar/Land Rover KVM Module

Module functions：

Support Adding key and all-key-lost for new Jaguar and land rover with KVM module after year 2015.

Module features：

1:No disassembly，No soldering.No removing the crystal oscillator and capacitors on the KVM board, no damage to the KVM computer board.
2: Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.
3: The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.
4: With the key refresh function, No longer afraid of loss caused by key be locked.

Overall connection diagram：

APP operation interface：

Jaguar/Land rover key refresh connection diagram：

APP operation interface：

Configuration List:

ACDP Configuration List (Module09 Jaguar/Land Rover KVM Module)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

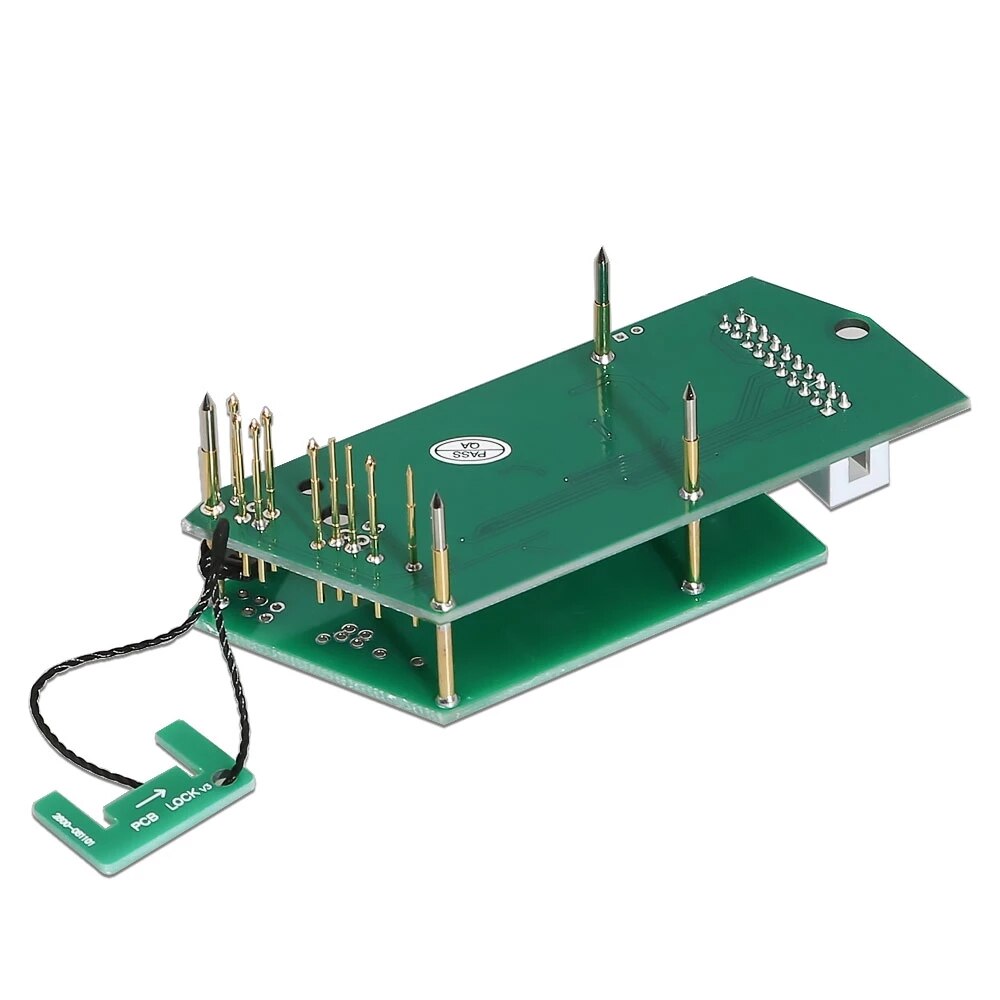

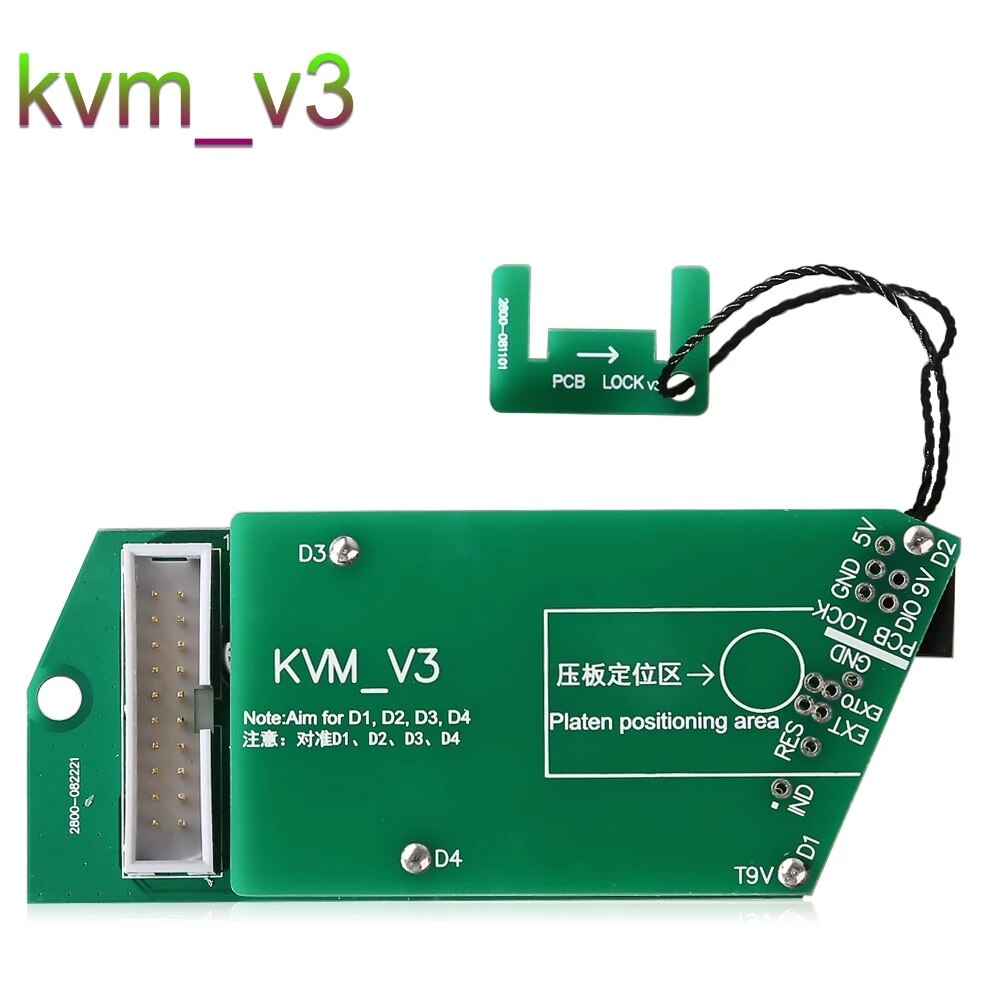

1	Jaguar/Land Rover KVM module Interface board		Applicable to connect and fix Jaguar/Land Rover KVM module test point.	1
2	Jaguar/Land Rover KVM module copper pillar package		Applicable to fix Jaguar/Land Rover KVM module interface boards	3
3	Jaguar/Land Rover KVM module test points cleaning probes		Applicable to clean KVM module test points.	2

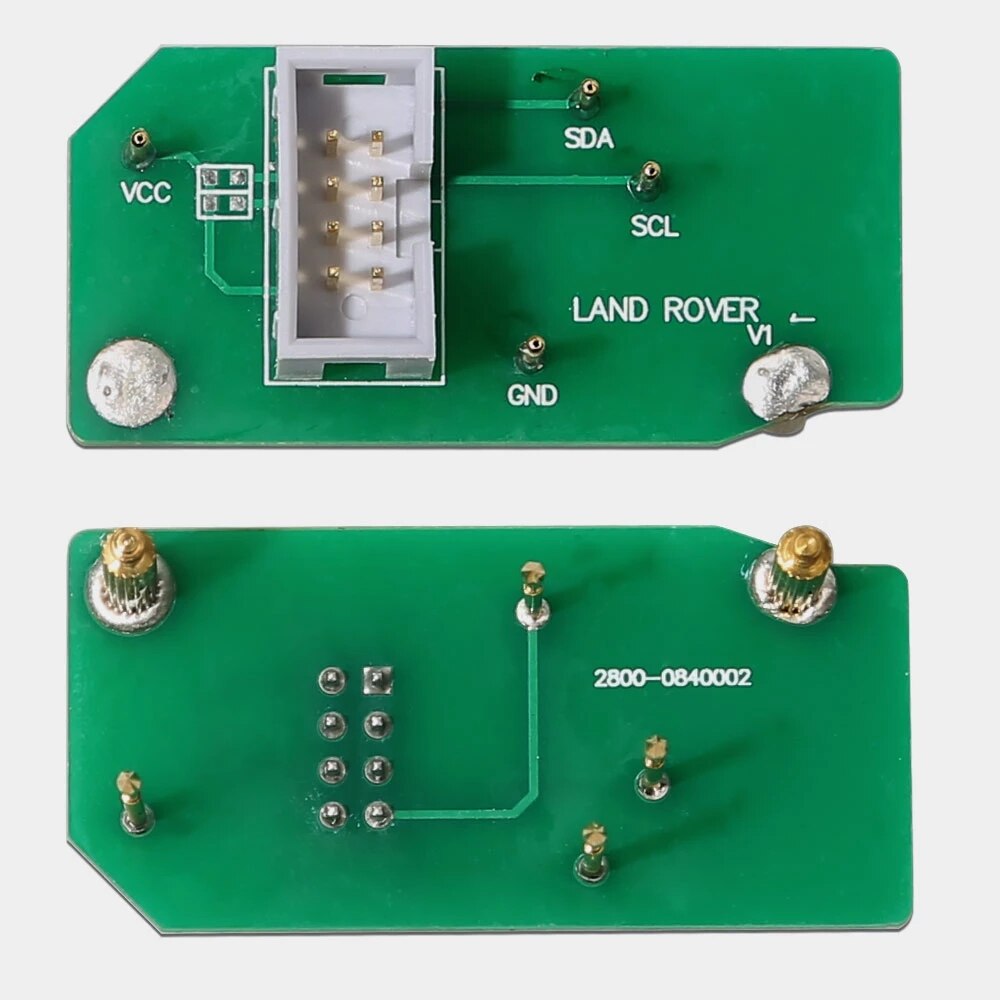

4	Land Rover key refresh interface board		Applicable to connect Jaguar/Land Rover key test point	1
5	Jaguar/Land Rover key refresh Copper pillar package		Applicable to fix Jaguar/Land Rover key test point	2
