Original JLR DOIP VCI Pathfinder Interface Jaguar Land Rover

Original JLR DOIP VCI Pathfinder Interface for Jaguar Land Rover from 2005 to 2020

Description:

The new JLR approved DOIP VCI is the only unit that will be compatible with Pathfinder and all JLR vehicles with the new vehicle architectures (from the Range Rover/Range Rover Sport (L405/L494) 17MY onwards) Jaguar S-Type Jaguar F-Pace 17MY onwards or allow the enhanced diagnostics that Pathfinder will offer the retailer.

Functions:

Work with all Jaguar & Land Rover models after 2005 year.
Work with the models after 2017, support Pathfinder software application
Work with the models before 2016, support SDD software.
Support all of the SDD's diagnostic & programming protocol.
Support all of the Pathfinder's diagnostic & programming protocol
Support Pathfinder activation service offline.
Support WIFI connection
Support VBF file edit
Support EXML file edit
Support SDD engineering software application
Support Pathfinder engineering software application
Support online programming, coding & key programming
SDD software can update to the newest version in the assistance of manufactures' engineer, and perform online programming.
Pathfinder can update to the newest version in the assistance of manufactures' engineer, and perform online programming.
Can replace JLR VCI box
Can replace JLR DoIP VCI box

Product Overview:
-Jaguar Land Rover Approved device
- Replacement for JLR SDD VCI's
- Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks
- Suitable for Legacy, Current and Future Vehicles
- 2m USB Cable as standard included
- Easy to update for J2534 new functionality updatesThe JLR VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

How does the Original JLR DoIP VCI get updated for future Software Updates?

Periodically JLR will release updates to its products' drivers and software. These updates are necessary to either release further device functionality or to resolve field issues.
The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request.
If problems are experienced during device use, always make sure that the latest device software and drivers have been installed.

Original JLR DoIP VCI Vehicle Coverage:

The JLR VCI is suitable for use with all JLR vehicle models with the following exceptions:
Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines).
Simultaneous logging of ECM and TCM datalogger signals on 2006my Range Rover.

In addition to the 17MY vehicle line applications, the DOIP VCI will be capable of interfacing with 14-16MY Multi-CAN architecture vehicle lines on the Pathfinder diagnostic system.
Software Name Vehicle Name Model Years Support System Function
SDD2 Land Rover L326 2015～2016 All
L319 2015～2016 All
L320 2015～2016 All
L322 2015～2016 All
L359 2015～2016 All
L405 2015～2016 All
L494 2015～2016 All
L538 2015～2016 All
L550 2015～2016 All
Jaguar X100 2015～2016 All
X150 2015～2016 All
X152 2015～2016 All
X202 2015～2016 All
X250 2015～2016 All
X350 2015～2016 All
X351 2015～2016 All
X400 2015～2016 All
Pathfinder Land Rover L405 2017～latest All
L494 2017～latest All
L462 2017～latest All
Jaguar X152 2017～latest All
X761 2017～latest All
X760 2017～latest All
X260 2017～latest All


FAQs:

Q 1:Must I have the JLR online dealer account to use this tool?
A 1:Yes

Q 2:Which laptop do you recommend to work with JLR DoIP VCI Pathfinder Tool?
A 2:No particular laptop, the more higher configuration the more better.

Q 3:There are two software in the HDD?
A 3:Yes,Pathfinder software for JLR vehicle after MY2018 ,JLR SDD software for MY2014-2018.

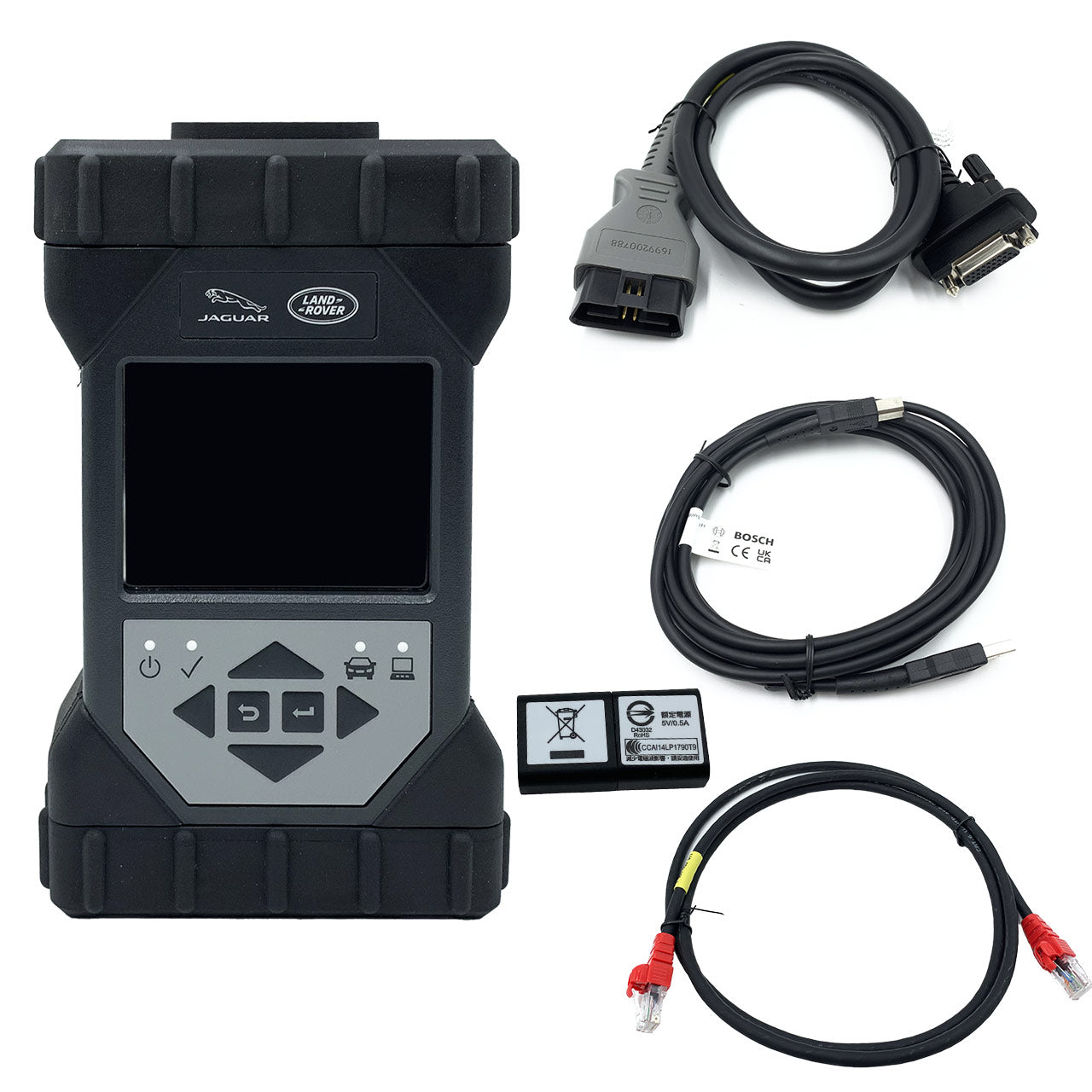

JLR DoIP VCI Diagnostic Tool Package List:

1pc x JLR DoIP VCI Main Unit
1pc x USB Cable
1pc x Diagnostic
1pc x Ethernet Cable
