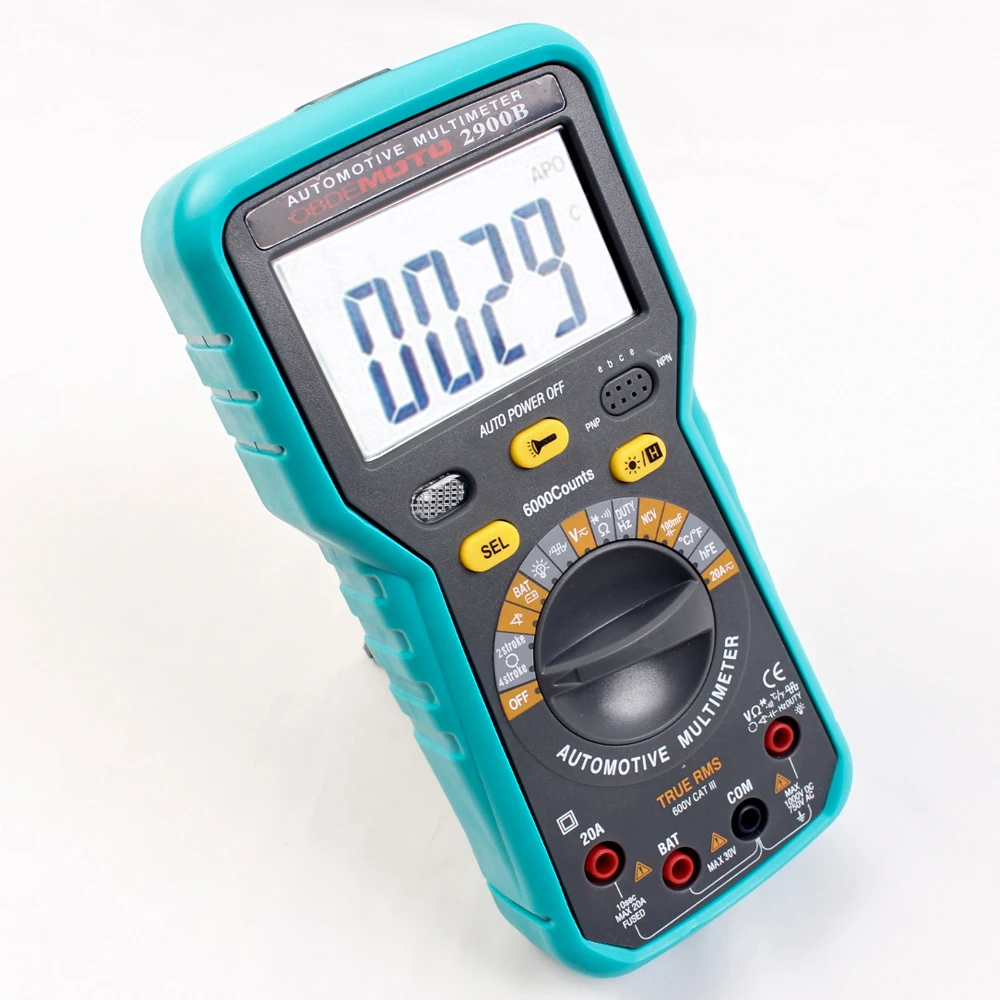

OBDEMOTO-2900B/MST-2900B Digital Automotive Car Multimeter 6000 Counts TRMS AC/DC Volt Amp Ohm Dwell Angle Rotational Speed

New 2900B 6000 counts digital automotive multimeter is well designed for convenient operation, accurate reading, true RPM, clear full symbol LCD display and complete functions.
The meter not only uses the latest software design, automatic calibration, high precision, good stability and new protective sleeve, but also has magnetic suction function, large screen LCD, backlight function and flashlight function, which is suitable for dark light environment.
"V" jack input is internally connected with PTC thermal-sensitive elements, which can protect the core parts of the meter sufficiently and greatly improve the safety and service life of the product.
This multimeter can measure DC voltage/current, AC voltage/current, resistance, capacitance, frequency, temperature, speed, closing angle, lamp test, positive and negative pulse, crystal diode, triode parameters and circuit on and off.
The product is suitable for vehicle maintenance and debugging, your ideal measuring tool.

Features

- Multifunction: Can accurately measure AC/DC voltage, AC/DC current, dwell angle, rotational speed, resistance, capacitance, temperature, frequency, diode, hFE, Duty Cycle, continuity, lamp, battery, positive and negative pulse.

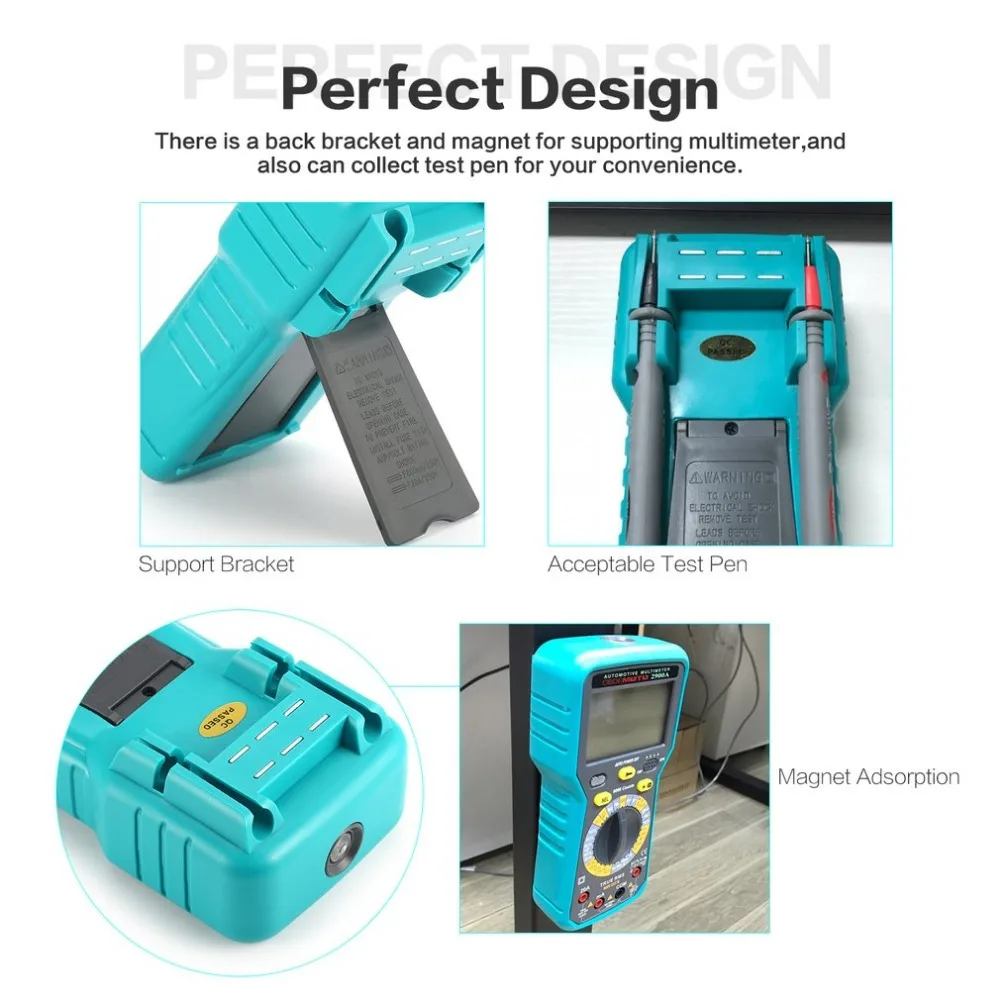

- Portable Design: There is a back bracket and magnet for supporting multimeter,and also can collect test probe for your convenience.
- Easy to Use & Clear to Read: With lar?ge LCD Backlight display and flashlight,convenient to use and read data in the dark.
- More advantages: Full symbol display, Full automatic operation, Auto power off, function select, True RMS, data hold, over range indication, full range overload protection and low voltage display, test lamp measurement, battery measurement, positive and negative pulse measurement.
- Widely use: A perfect tool for the laboratory,factory and power plant.
- Updating: 2900B is the updated version from 2900A, definetely better than manual 2900A

Top Feature:

Full Symbol Display: Yes
Full Automatic: Yes, better than 2900A which is manual one.
RPM: 2 Strokes, 4 Strokes, the same function as MST-1000
True RMS:Yes

Specifications:

Model: OBDEMOTO 2900B
Display: 5999 Counts
Color: Gray+Blue
Dwell angle:
1CYL: 0-180.0°, 4CYL: 0-90.0°, 5CYL: 0-72.0°, 6CYL: 0-60.0°, 8CYL: 0-45.0°
Accuracy: ±(1.2%+2)
Rotational speed:
1CYL/4CYL/5CYL/6CYL/8CYL:500~10000Turn/min±(1.2%+2)
DC Voltage:6V/60V/600V±(0.5%+3), 1000V±(0.8%+3)
AC Voltage:6V/60V/600V±(0.8%+3), 700V±(1.2%+3)
DC Current:6mA/60mA/600mA±(1.2%+3), 20A±(2.0%+5)
AC Current:6mA/60mA/600mA±(1.2%+3), 20A±(2.5%+5)
Resistance:600Ω±(0.8%+3),6KΩ/60KΩ/600KΩ/6MΩ±(0.8%+2), 60MΩ±(1.0%+5)
Capacitance:6nF/60nF±(5%+3),600nF/6uF/60uF/600uF±(3.0%+3), 6mF/60mF/100mF±(5.0%+3)
Temperature:
-40°～400°±(0.75%+4),400°～1000°±(1.5%+15)
-40°～752°±(0.75%+4),752°～1832°±(1.5%+15)
Frequency:6Hz～10MHz±(0.5%+3)
Diode Test:Yes
hFE Test:Yes
Continuity Testing:Yes
Duty cycle: Yes
Backlight:Yes
Auto Power off:Yes
Data Hold:Yes
Range Select:Yes
Over range indication: Yes
Full Symbol Display: Yes
Full Automatic: Yes
RPM: 2 Strokes, 4 Strokes, the same function as MST-1000
True RMS:Yes
Flashlight: Yes
Power: 9V Battery 6F22 (not included)
Product Size: 180 x 88 x 53 mm
Product Net Weight: 321g

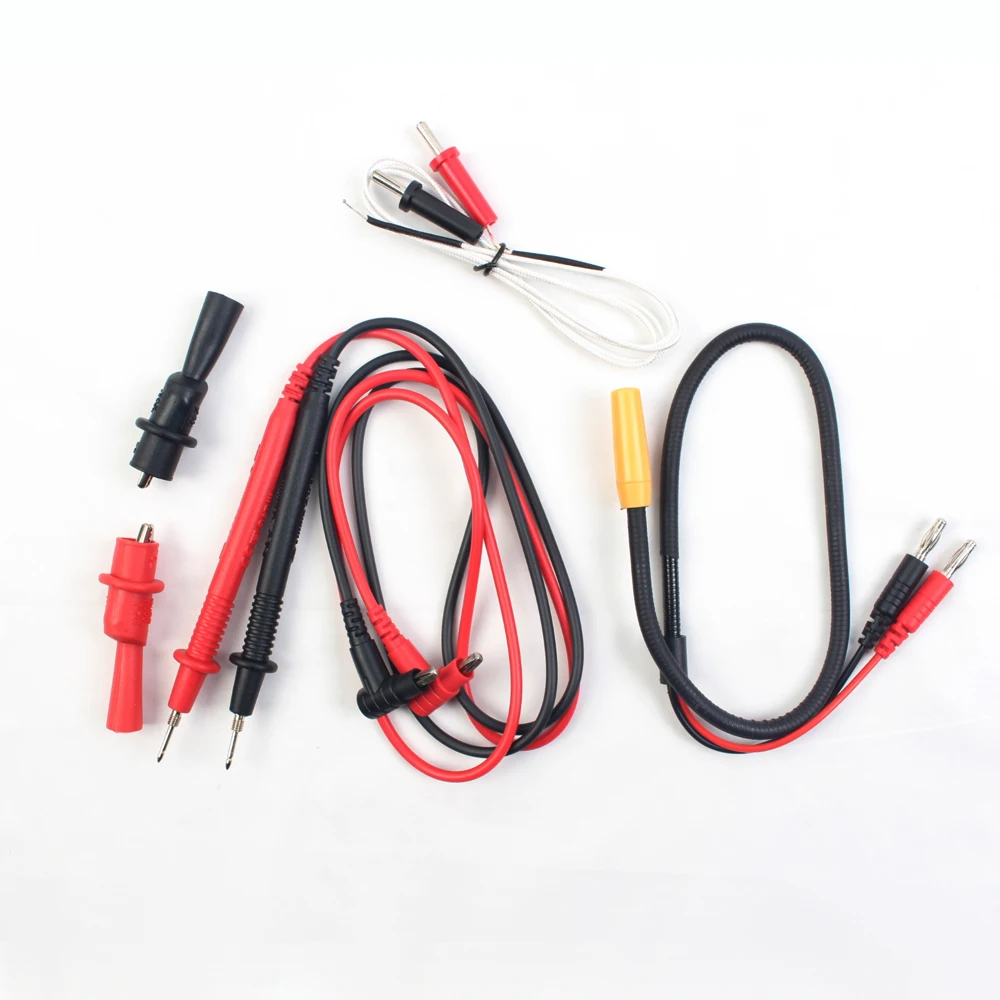

Package list:

1 x Digital Multimeter
2 x Test Pen Cable
2 x Alligator clip
1 x Temperature Test Cable
1 x Rotational Speed Test Cable
1 x User Manual
