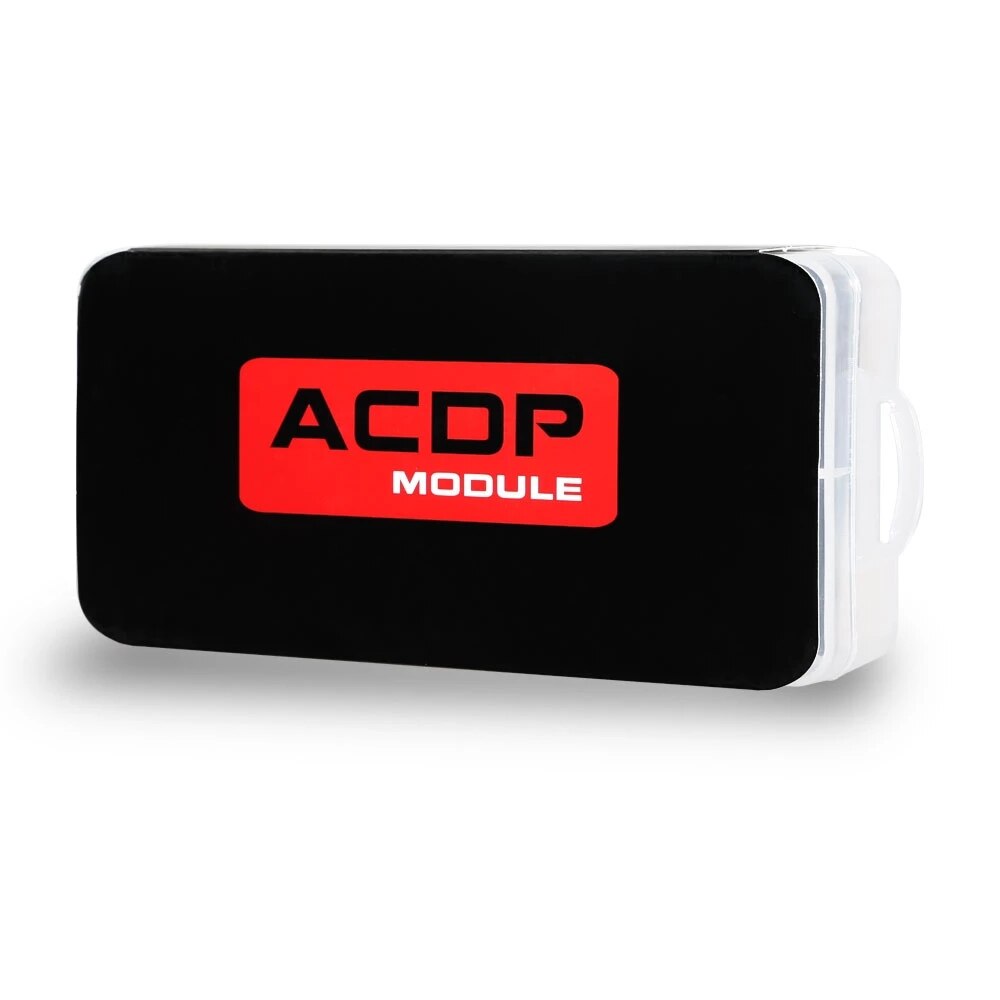

Yanhua Mini ACDP BMW ISN Module 3 Read Write BMW DME ISN Code by OBD All Key Lost No Need Soldering with A50B A50D A50E

ACDP Module3 BMW ISN

Module Function：

Read the requested ISN code when making BMW all key lost.

Module Feature:

Read ISN codes of N20/N55/N13/B48 by OBD or without openning the DME shell. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell. Read ISN code of other models (B38, etc.) by opening the shell.

Overall connection diagram:

APP operation interface：

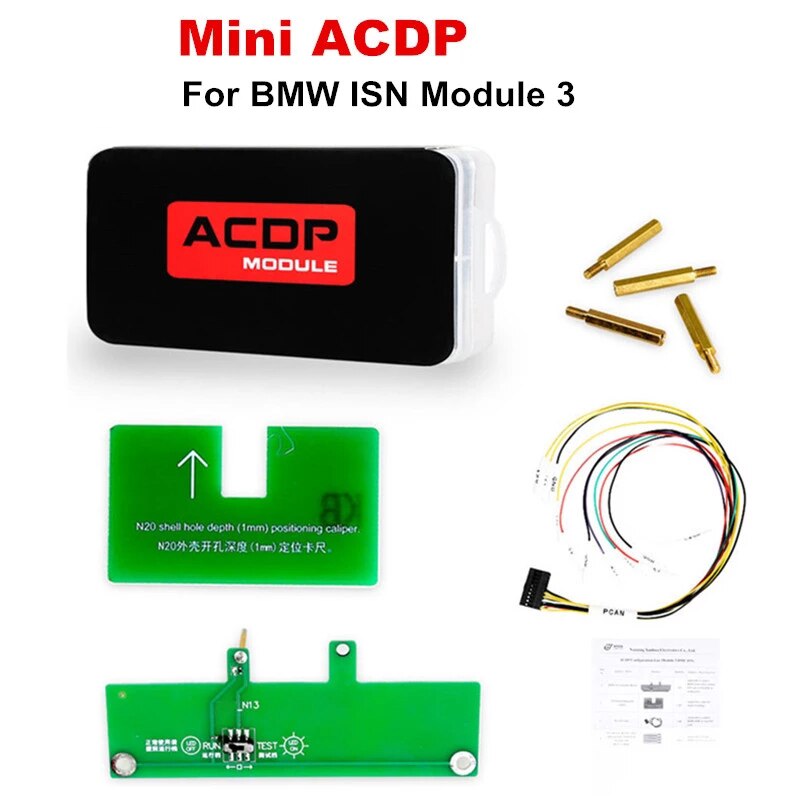

Configuration List:

ACDP Configuration List (Module3 BMW ISN Module)

Item NO	Adapters/Parts	Pictures	Adapters/Parts functions	Quantity

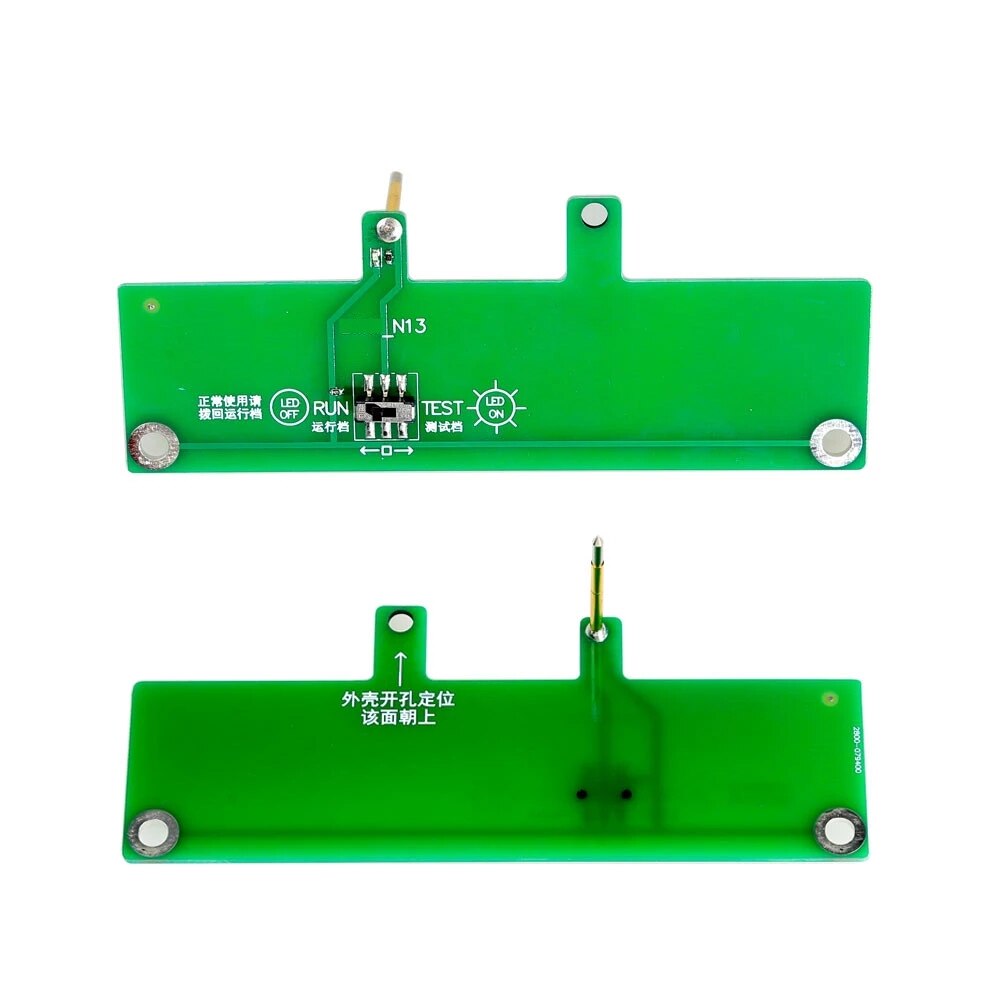

1	BMW-N13 Interface Board		Applicable to connect BOOT point when reading ISN code of N20 DME bydrilling hole.	1

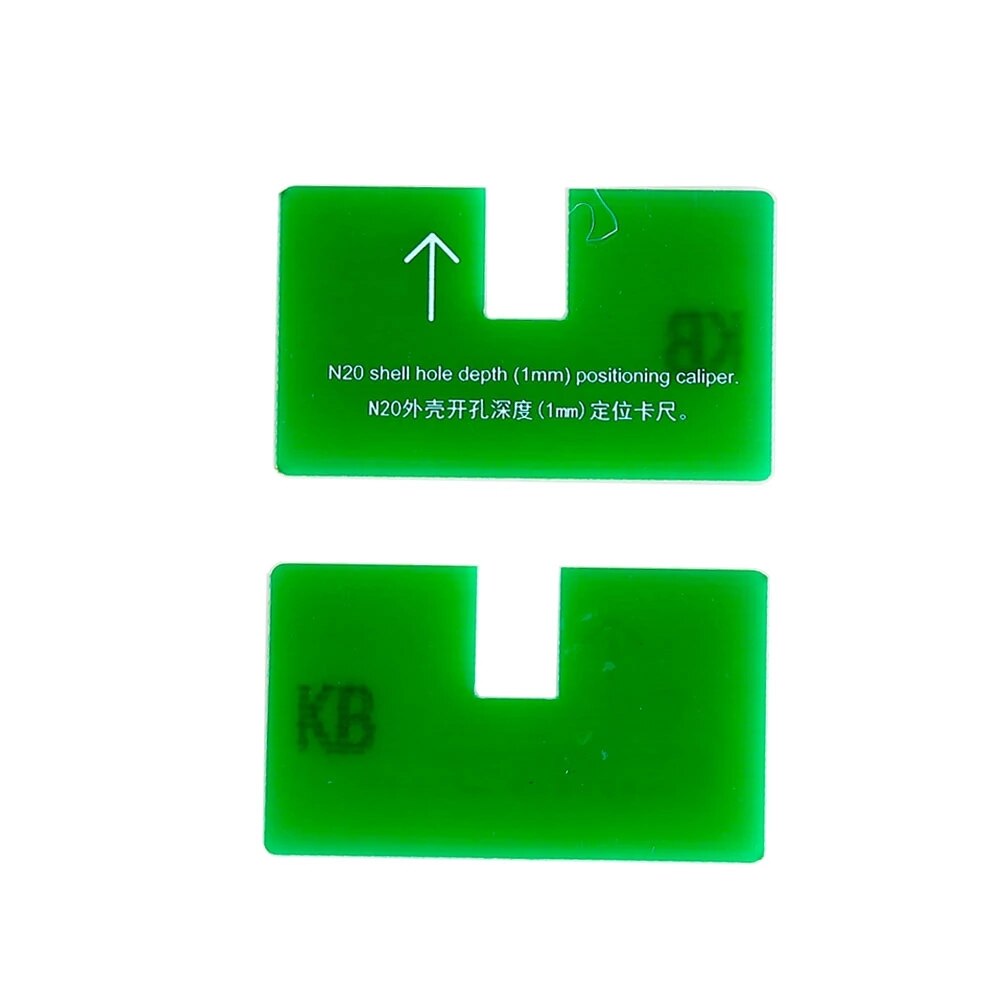

2	N20 shell drilling hole caliper		Applicable to limit thedepth of drilling.	1

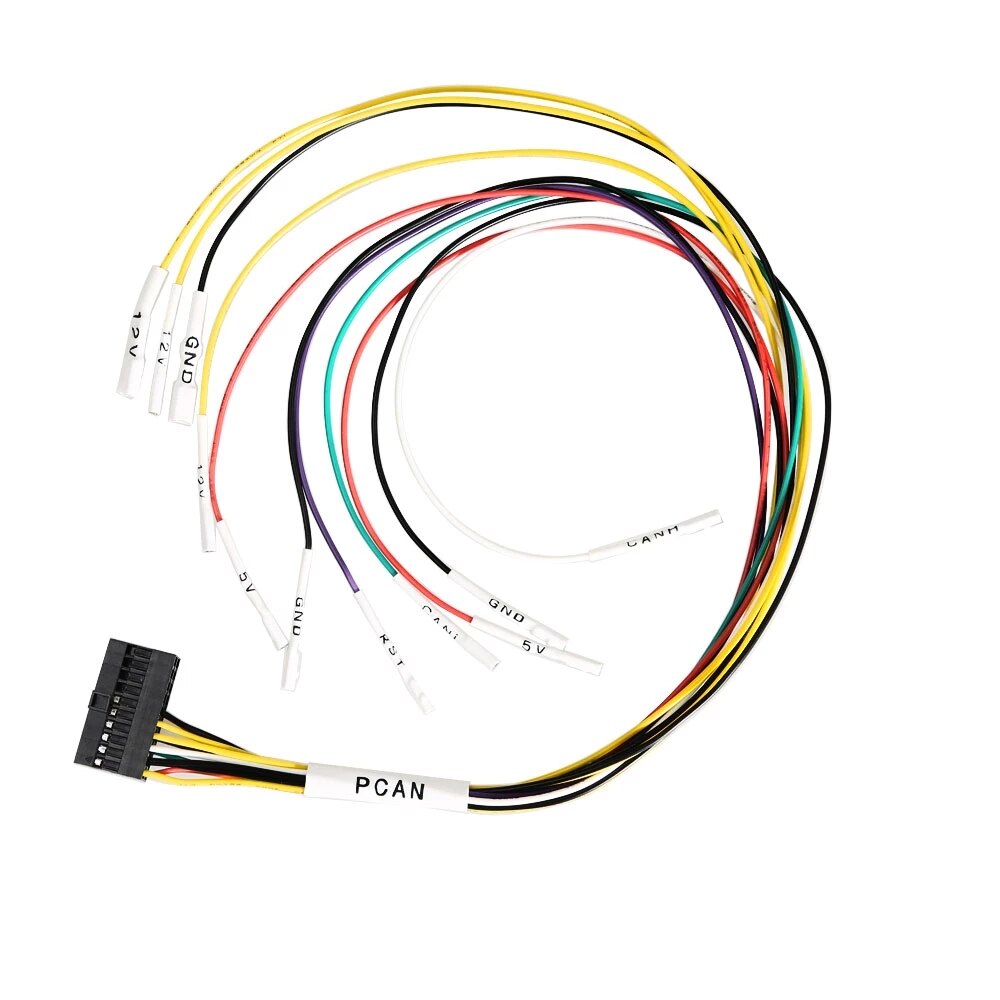

3	P CAN Cable		Applicable to connect BMW DME to read ISN code.	1

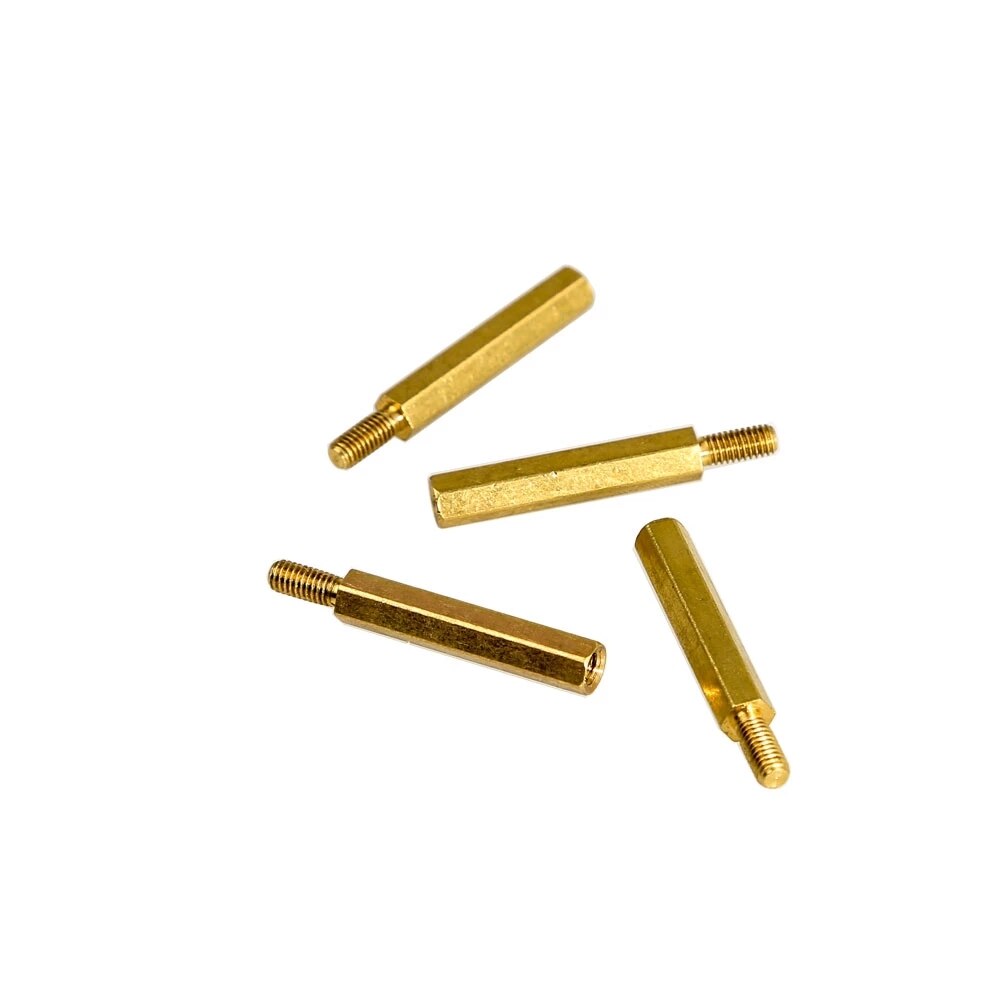

4	N13 Interface Board Copper pillar package (Single headsix angle studM3.5*27+8mm)		Applicable to fix the BMW-N13 interface board.	4
