WOYO PL025 Gear Shift Module GSM Tester For Maserati Ghibli Levante Quattroporte Gear Box Selector Detector Auto Diagnostic Tool

2024 WOYO PL025 Original Brand New

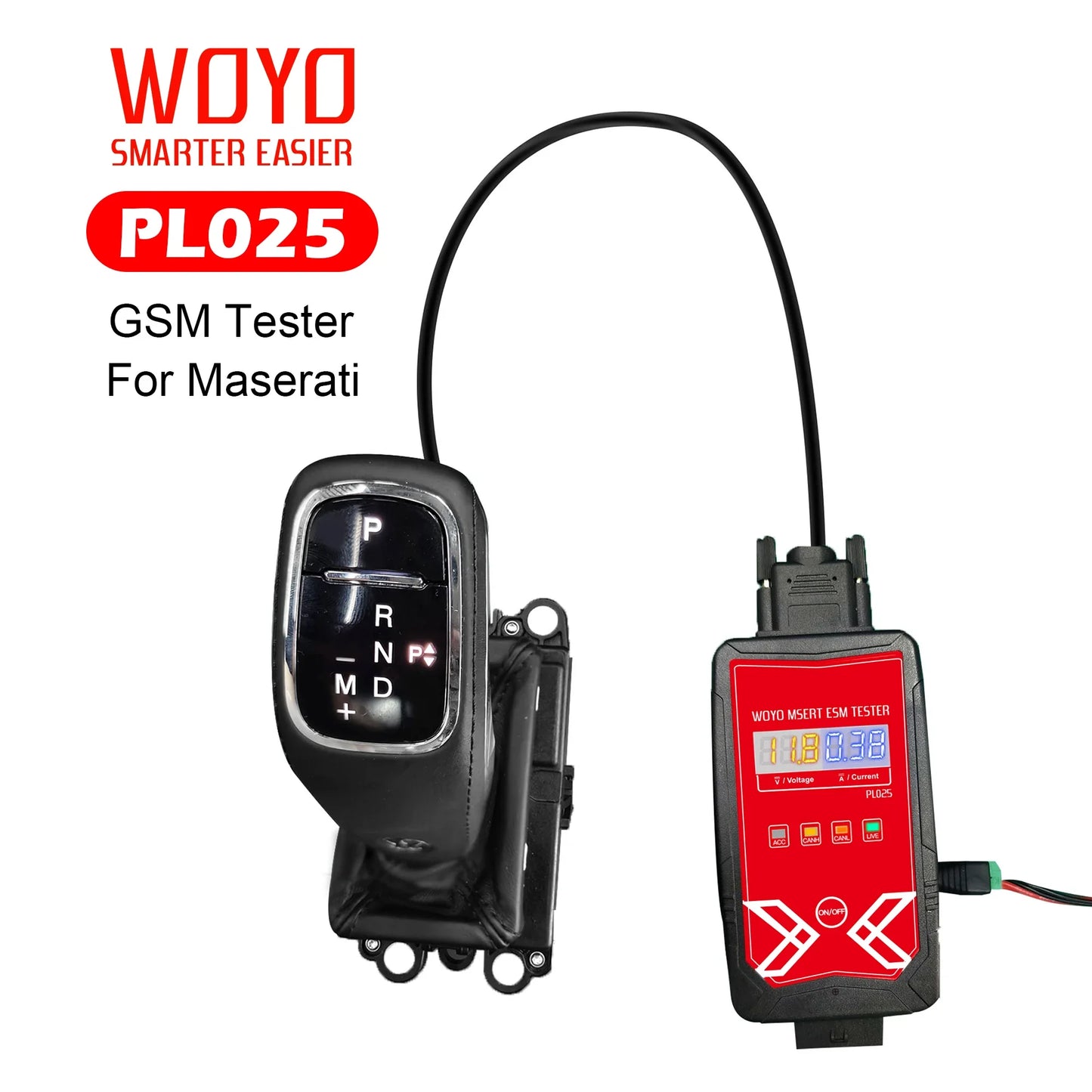

Gear Shift Module GSM Tester



For Maserati Ghibli (3.0T)/ Levante (3.0T) /Quattroporte



After repair, use the tester to test GSM without assembling it to vehicle, Which avoids it unable to operate after assembling the vehicle, repeated disassembly, and waste time.





How to use the WOYO PL025 To test the Transmission Gear shift Module?

① Connect to the 12V 2A power supply on the right of tester.

(Do not over power, will broke the tester)



②Connect to the connector cable at the top of tester.

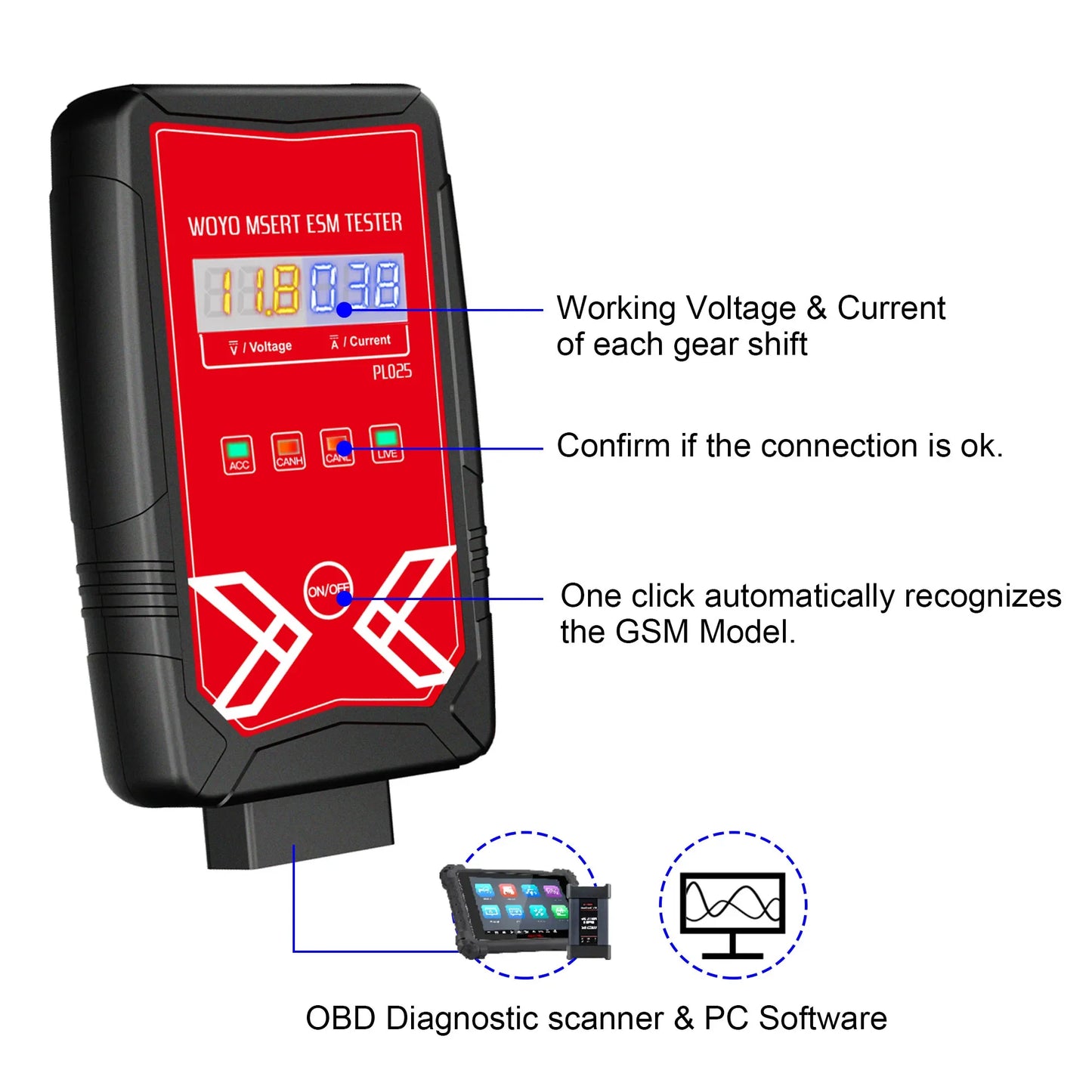

③ Press ON/OFF button to activate and automatice recognize the Gear box model.

④ Confirm the CANH & CANL light normally turn on red, ACC & LIVE light normally turn on green.



Change the gear to check the working voltage & current on the tester.



⑤ Connect to the OBD diagnostic scanner and need to manually select the automotive model to read the real-data.

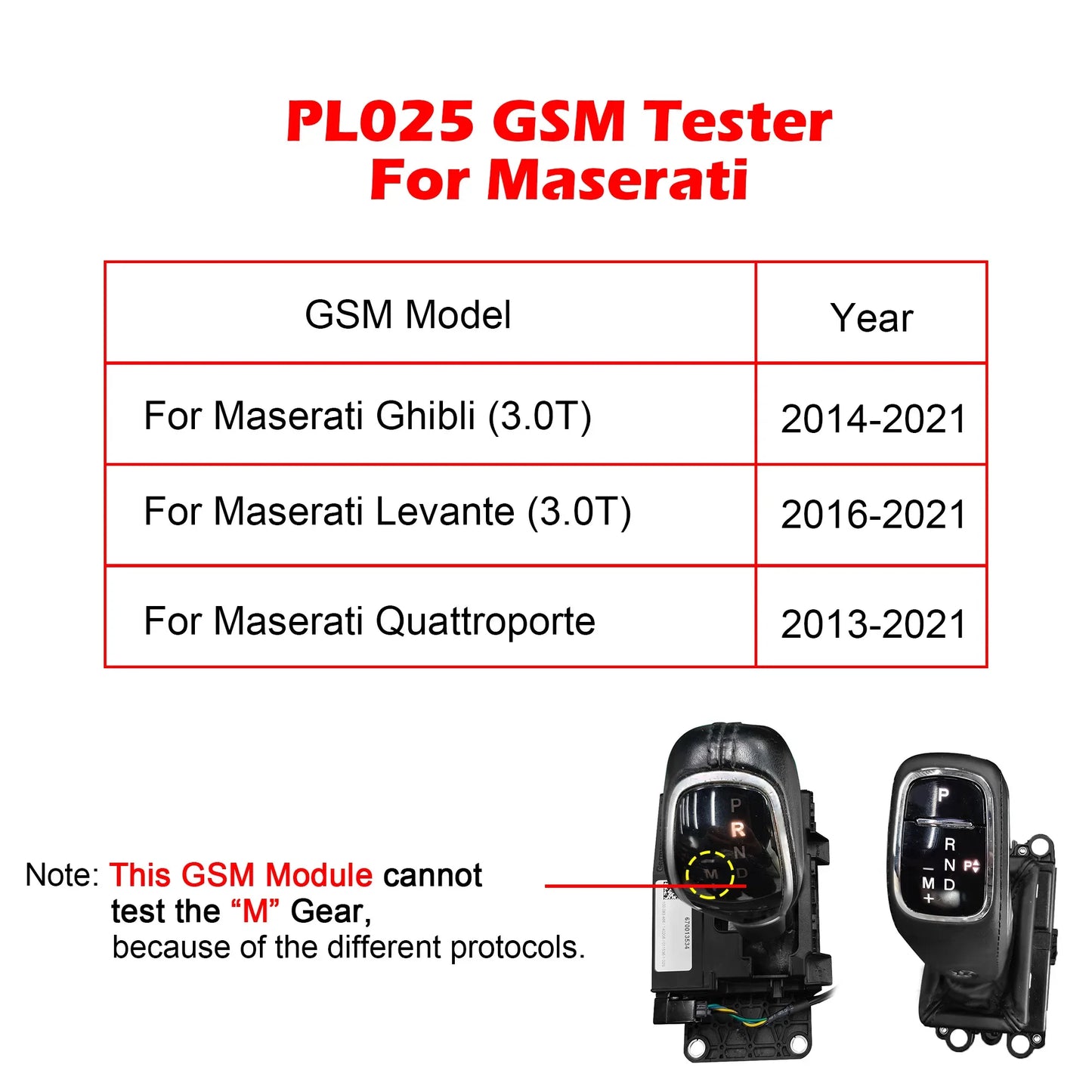

WOYO PL025 GSM Tester support model:

For Maserati Ghibli (3.0T) 2014-2021

For Maserati Levante (3.0T) 2016-2021

For Maserati Quattroporte 2013-2021

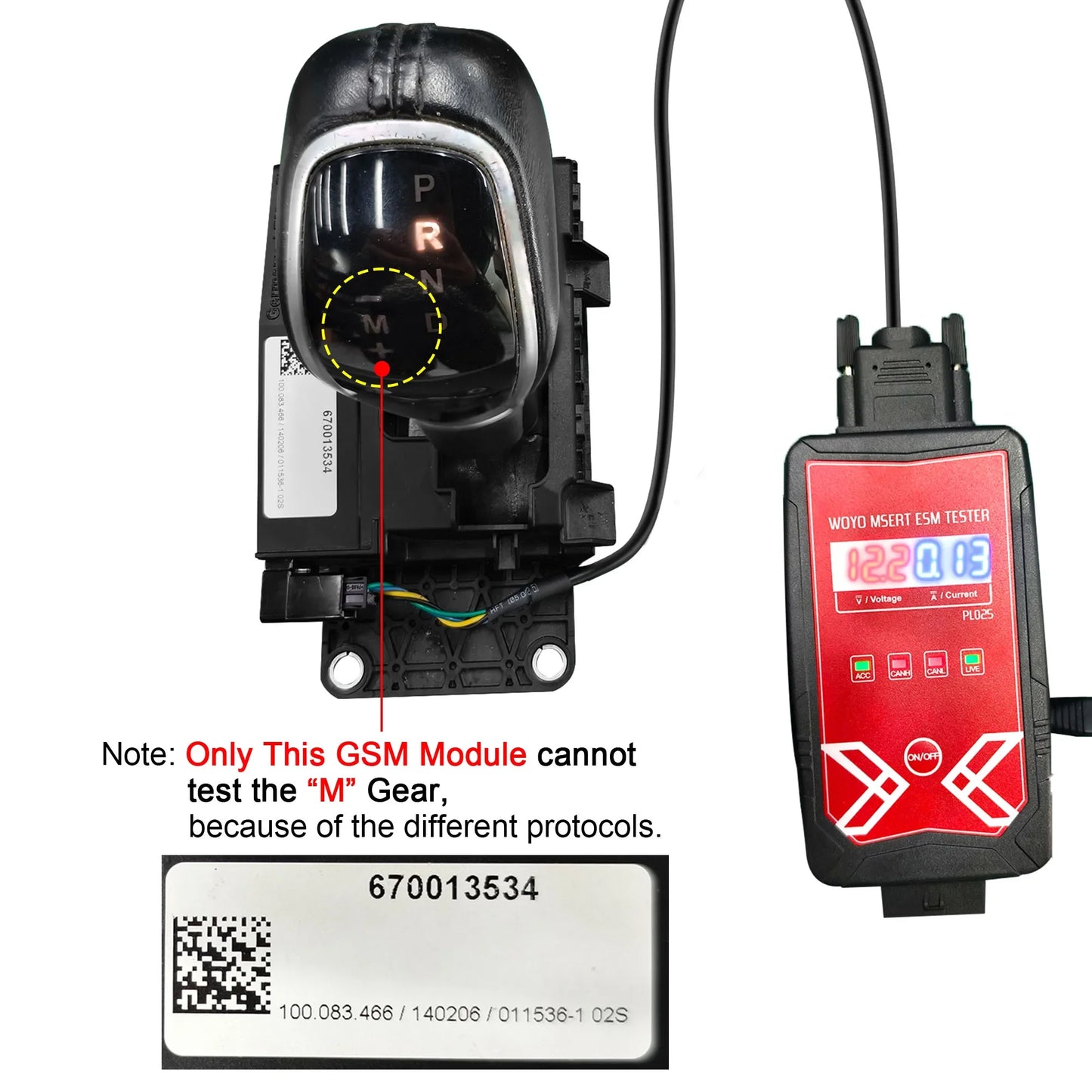

Notice: Only this module couldn't test the "M" gear, because of the different protocols.

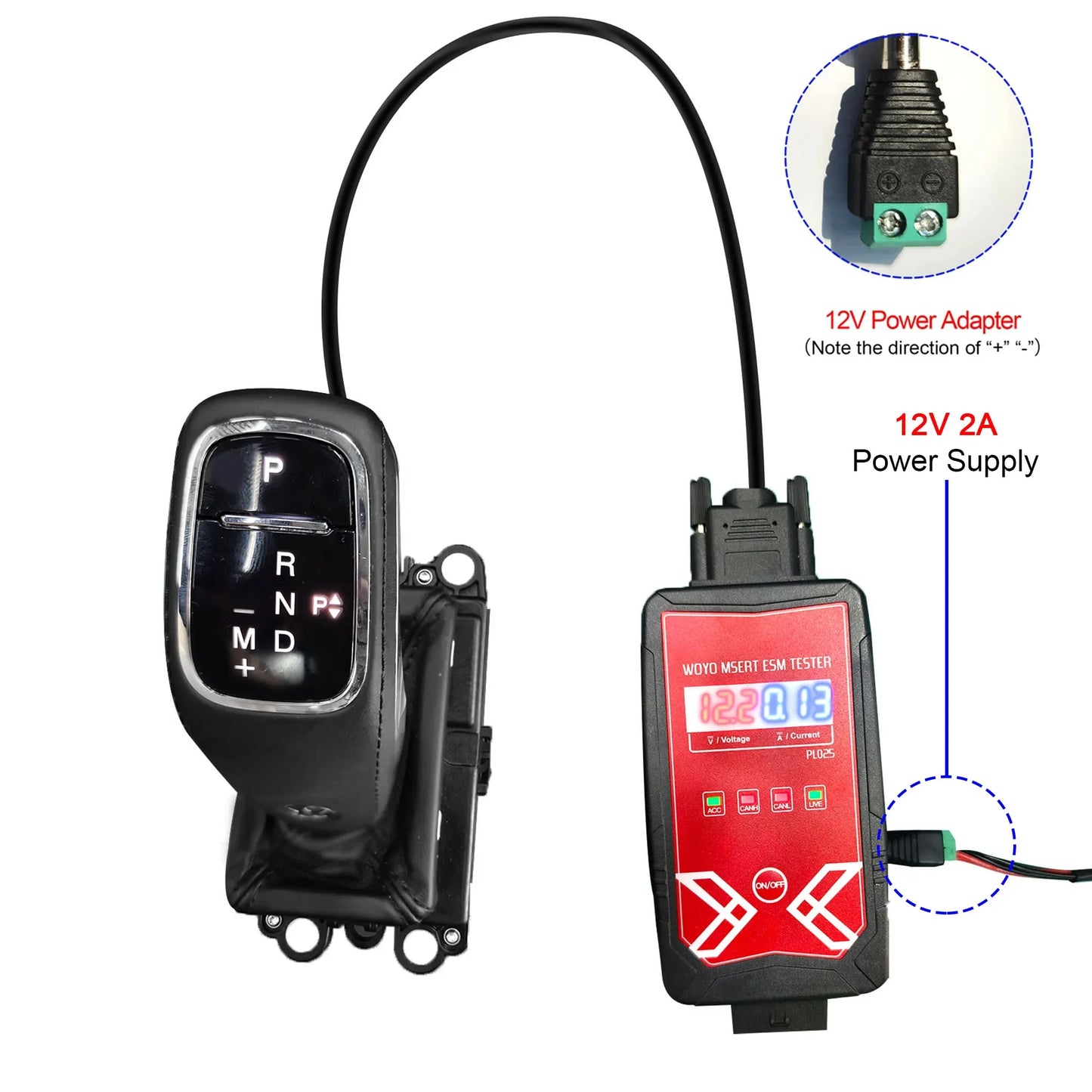

Power supply: 12V 2A (Do not over power)

When you use our 12V power adapter, please pay attention about the direction of positive "+" or negative "-", ortherwise, the tester circuit board will be broken.
