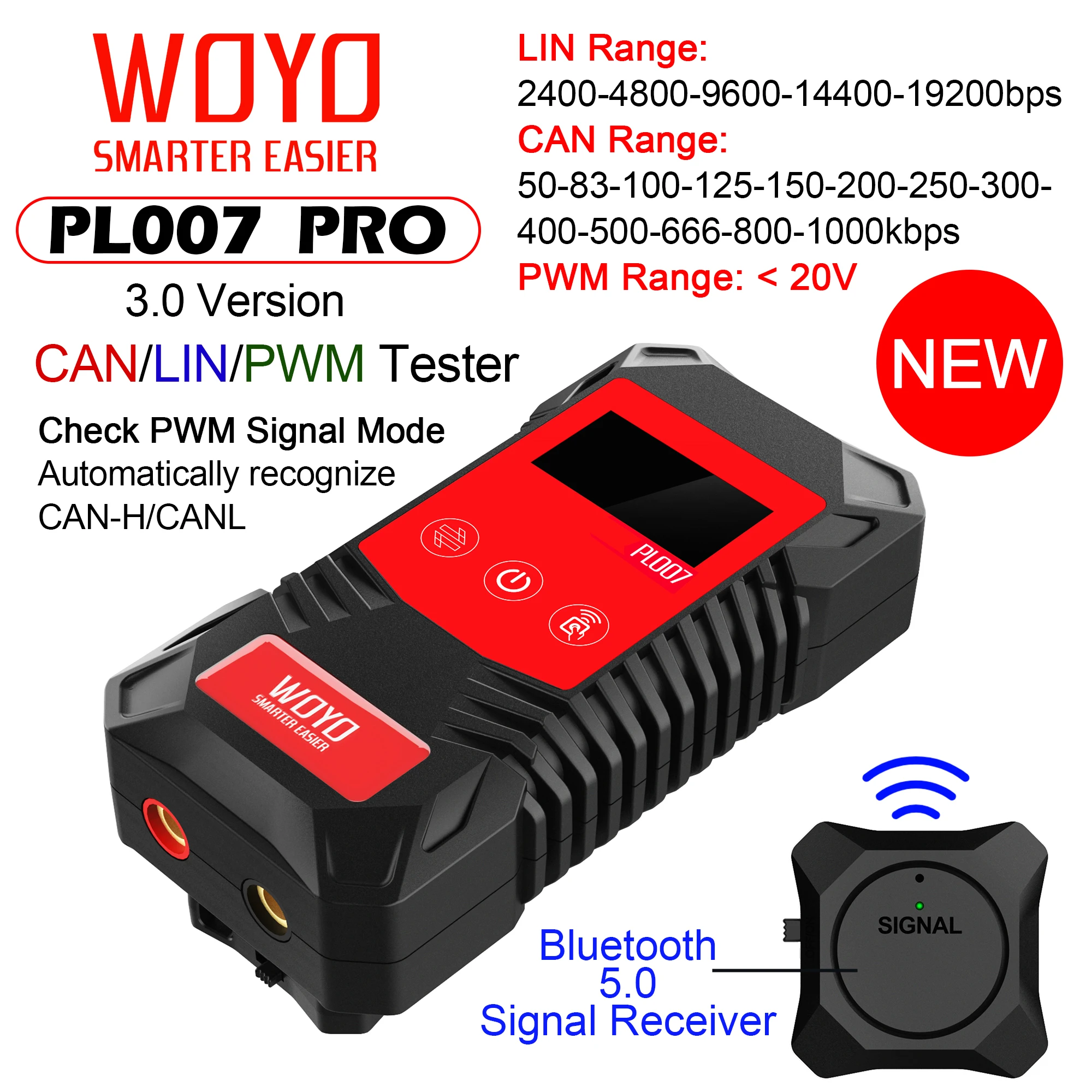

WOYO PL007 PRO 3.0 CAN BUS Tester with Wireless Signal Receiver, LIN BUS Analyzer, PWM Signal Detector For Automotive Diagnostic Tool
WOYO PL007 PRO 3.0 CAN BUS Tester with Wireless Signal Receiver, LIN BUS Analyzer, PWM Signal Detector For Automotive Diagnostic Tool
Couldn't load pickup availability
WOYO Original Tester
Description:
During the process of repairing automotive electrical modules, it is common to encounter situations where the communication line voltage is normal, but communication is not possible. The conventional solution requires using a CAN analyzer connected to PC software to check for communication data, which demands a certain level of technical expertise from the user.

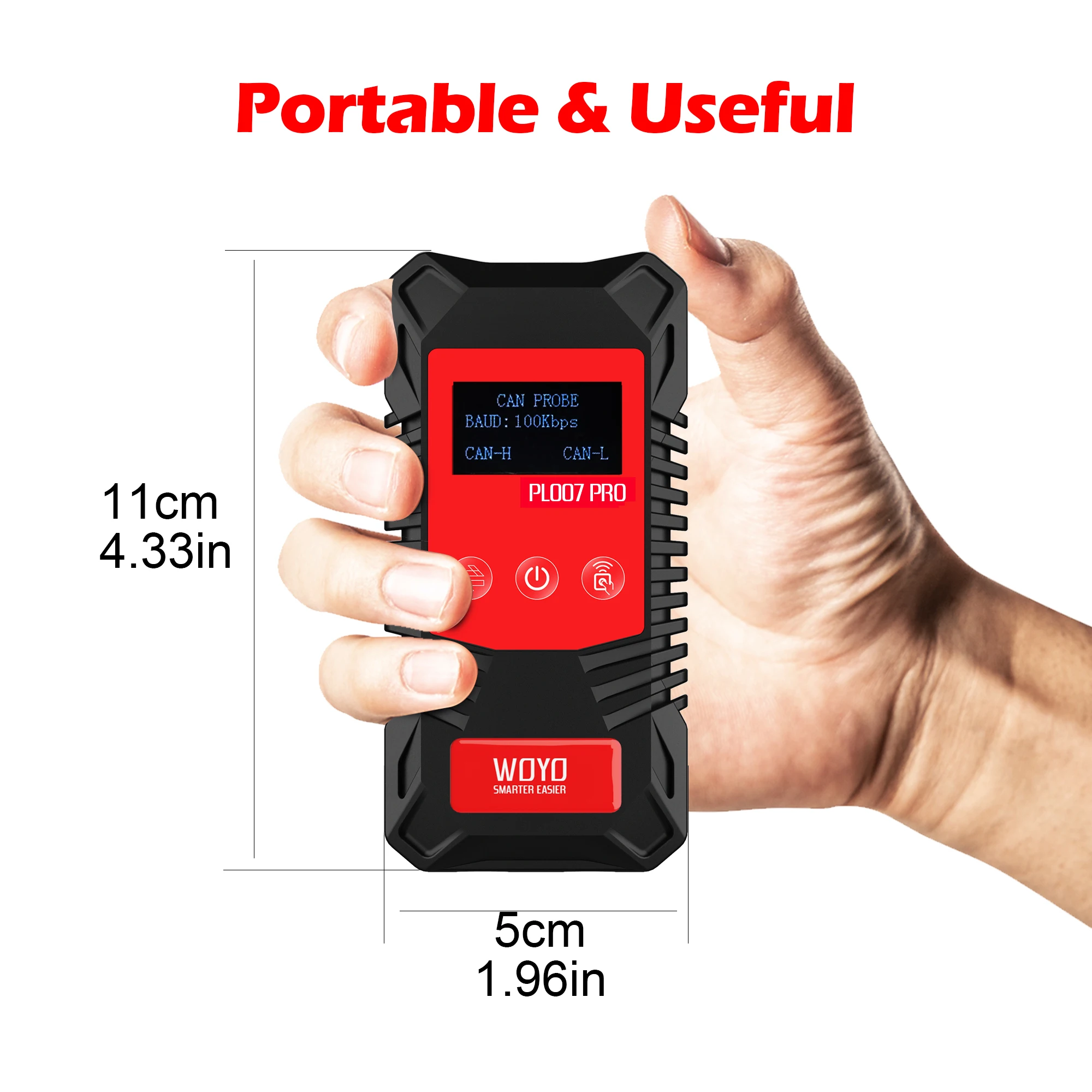

The WOYO CAN LIN PWM Tester is a digital tester specifically designed for automotive electronics. It is compact, easy to use, and meets the needs for rapid testing applications.

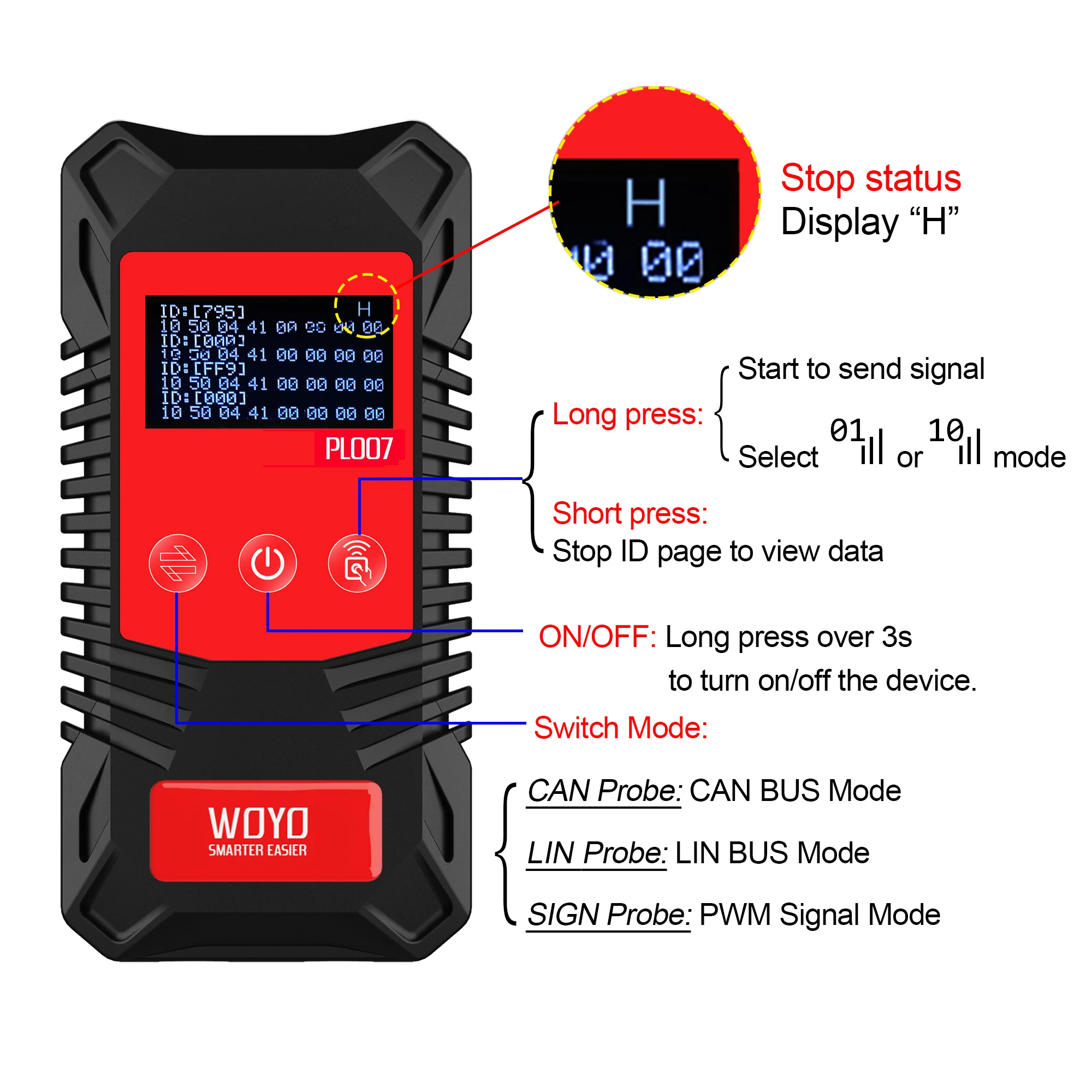

The tester can detect the communication status of CAN and LIN lines both online and offline, displaying data, ID, and baud rate.
Features:
1.Automatic CAN-High and CAN-Low Identification;
2.Automatic Baud Rate Detection:
CAN Baud Rates: 50, 83, 100, 125, 150, 200, 250, 300, 400, 500, 666, 800, 1000 kbps
LIN Baud Rates: 2400, 4800, 9600, 14400, 19200 bps
3.Voltage Measurement Function:
Capable of measuring voltages below 20V, indicating whether the signal is a pulse or a constant voltage.

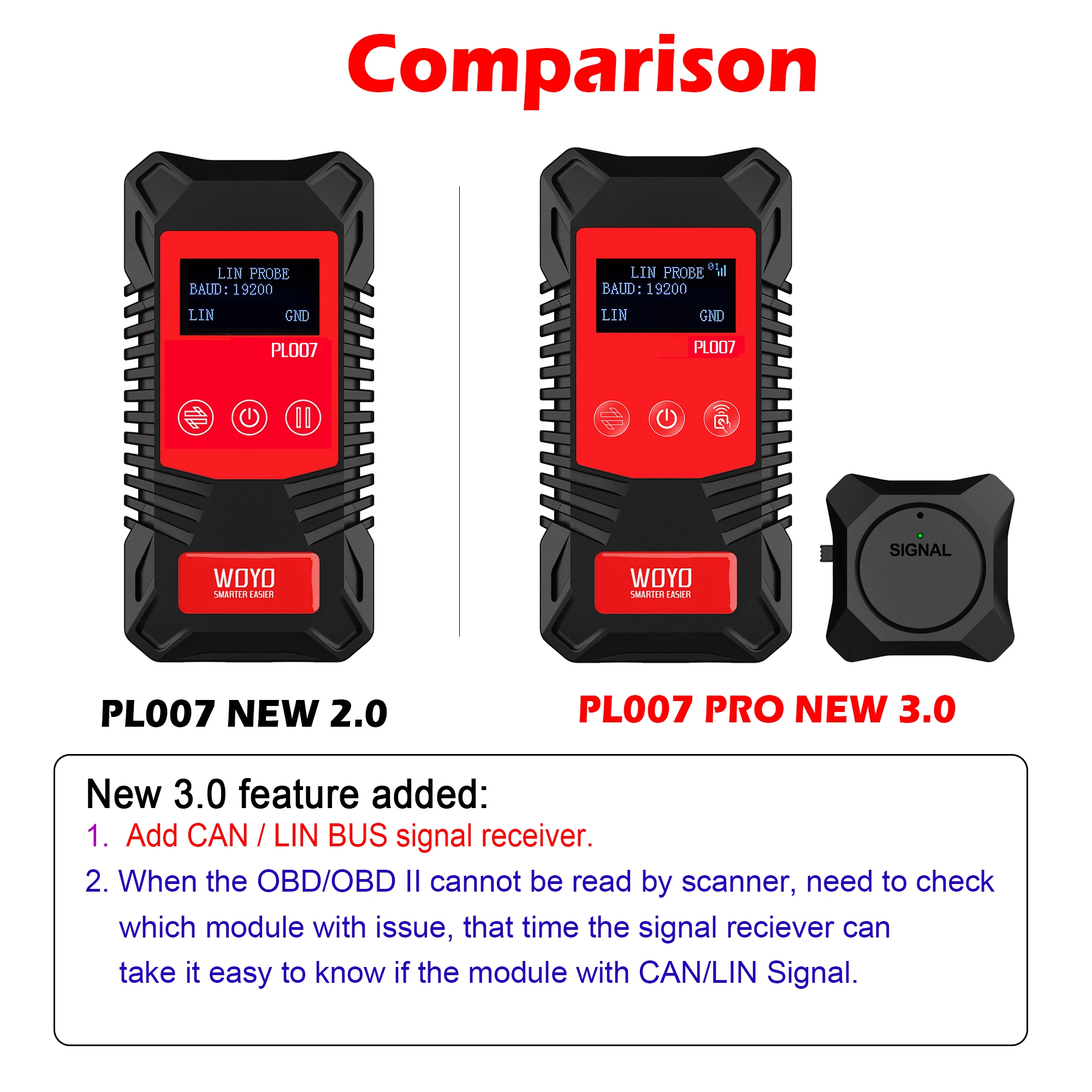

4.Equipped with Signal Receiver:
Adapts to more repair scenarios, making it convenient to monitor CAN/LIN signal status remotely.
The WOYO CAN LIN Tester provides a reliable and efficient solution for diagnosing communication issues in automotive electronic systems without requiring extensive technical knowledge, making it an ideal tool for both professional and DIY mechanics.

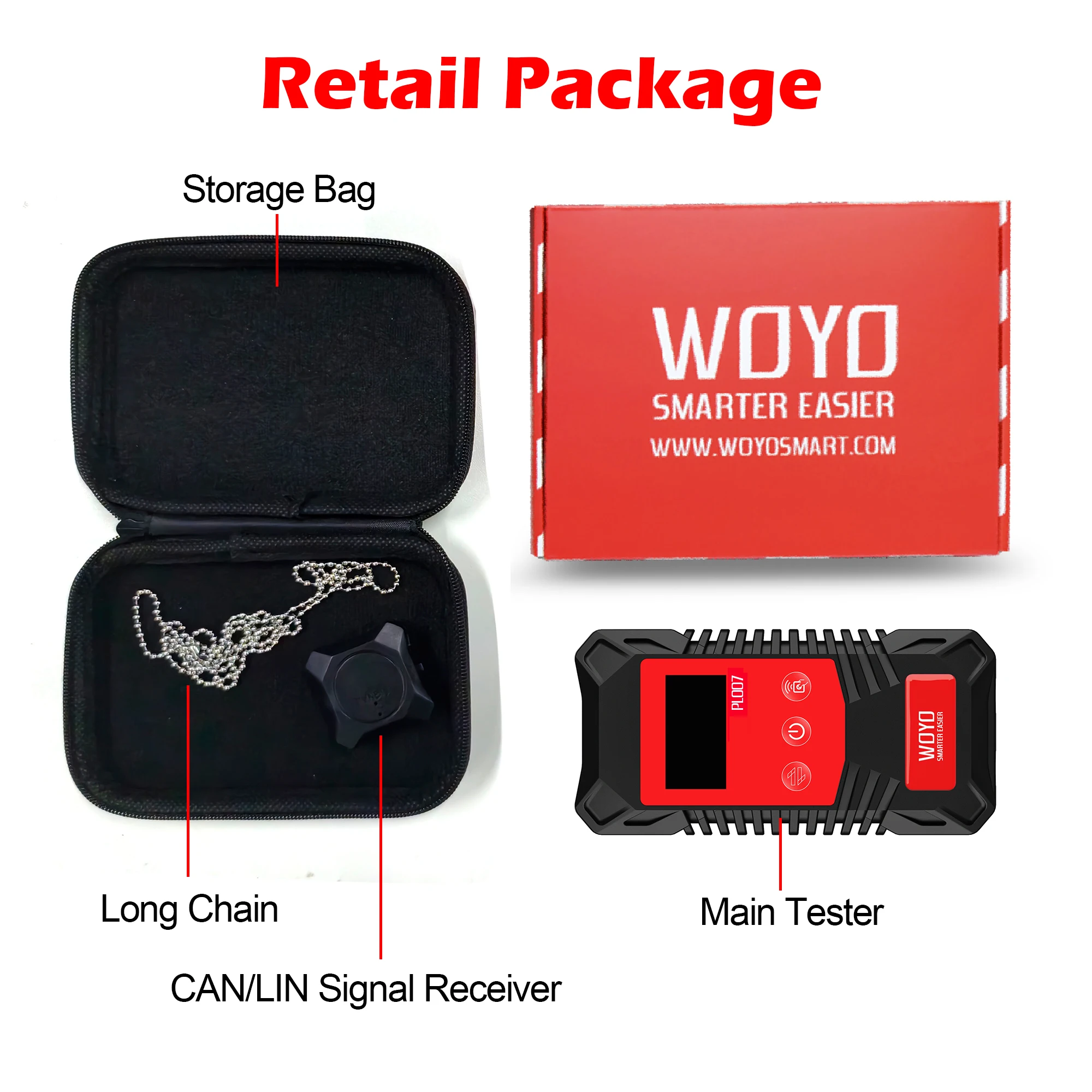

Package List:
Main*1
Remote Indicator*1
5. Due to the shipment policy, we ship out without 9V and CR2032 3V battery, you need to buy these two kinds of battery in your local shop.

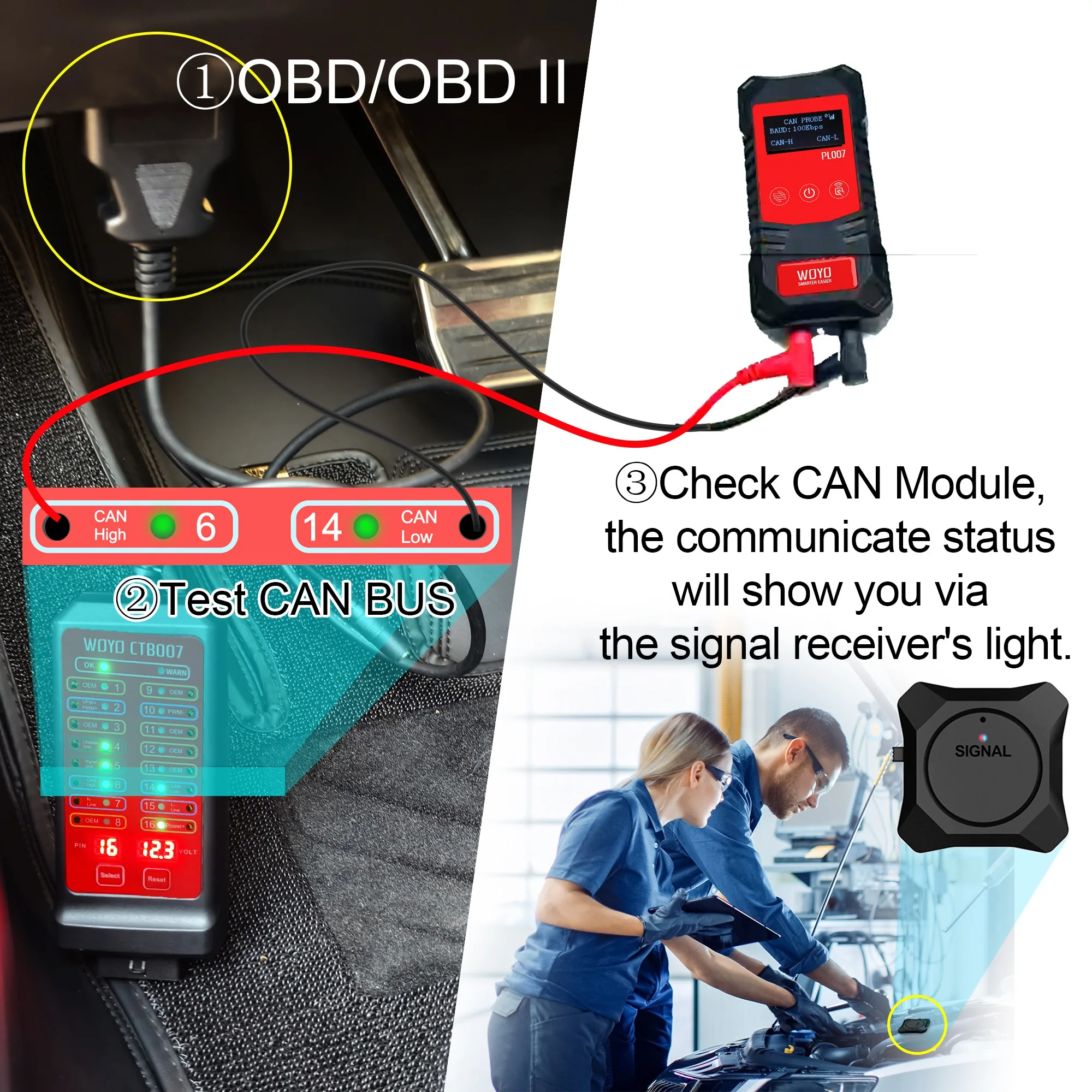

When the main device check the CAN/LIN cable from OBD 2, you can take the signal receiver to test other CAN/LIN BUS Module on the car.
The light of signal receiver will show you if the CAN/LIN BUS is normal.

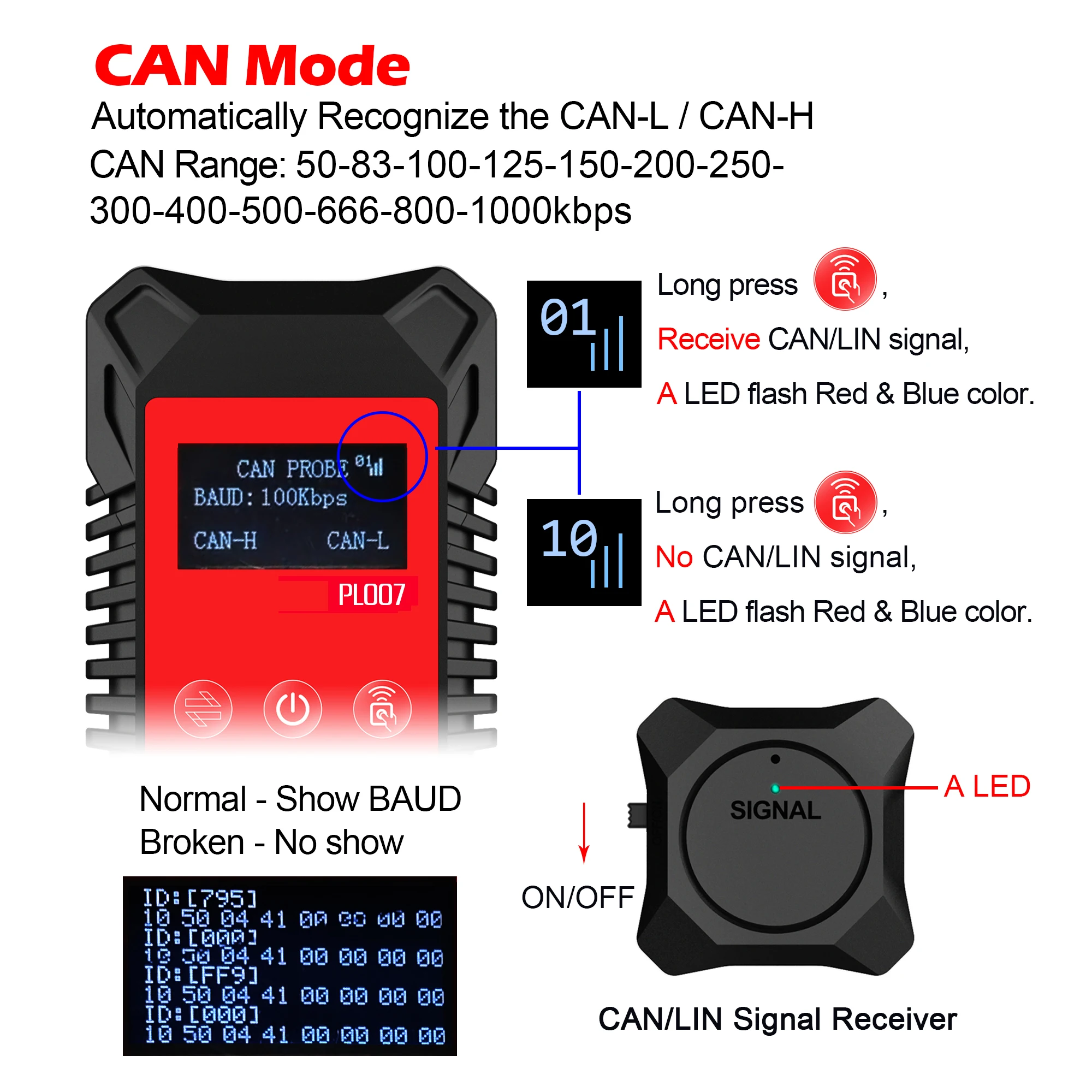

CAN Mode:
CAN Range: 50-83-100-125-150-200-250-300-400-500-666-800-1000kbps
Before you use:
1. Please confirm these two cable are CAN BUS cable.
2. If CAN Mode show nothing, please check the PWM mode.
CAN Mode:

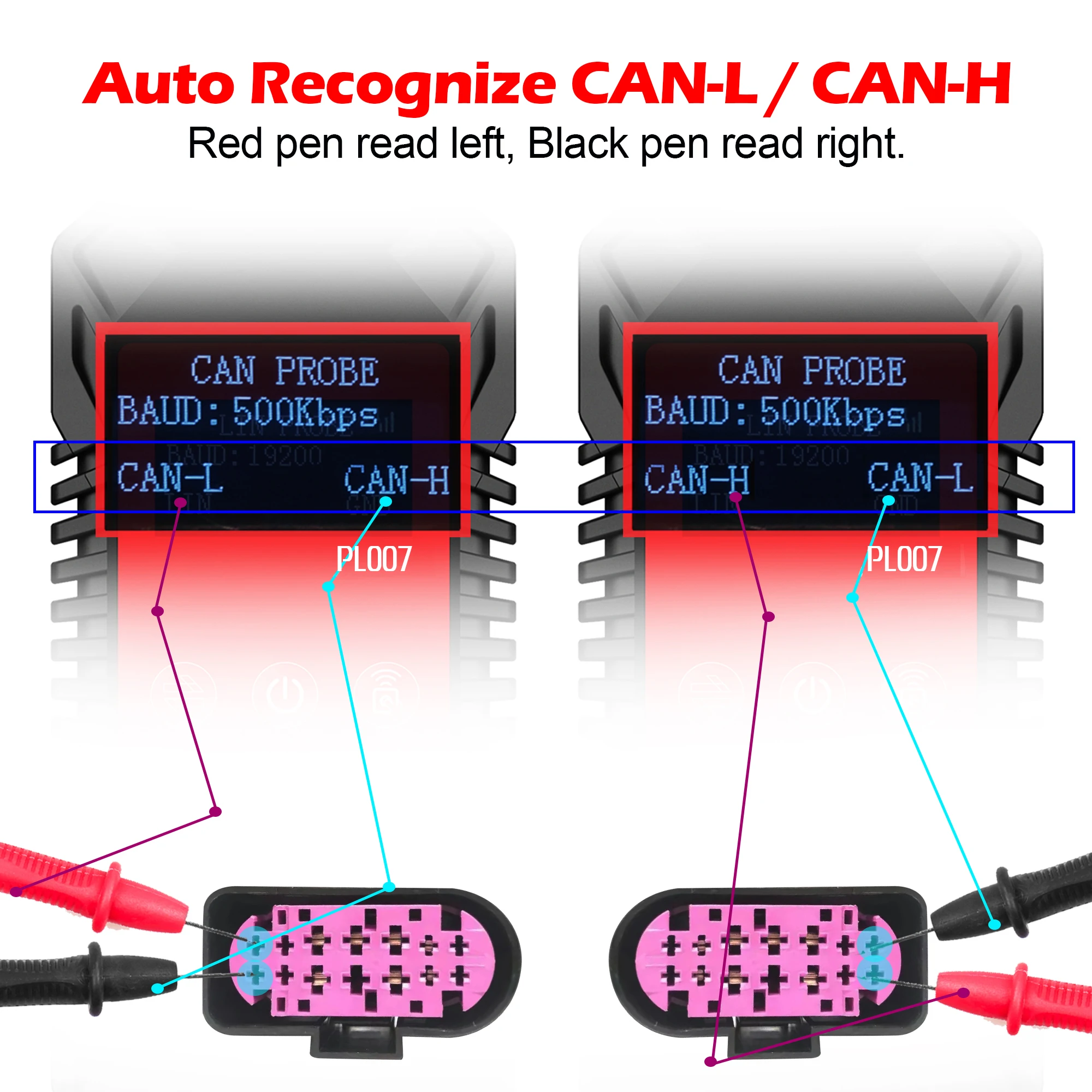

You can automactically recognize CAN-H or CAN-L.

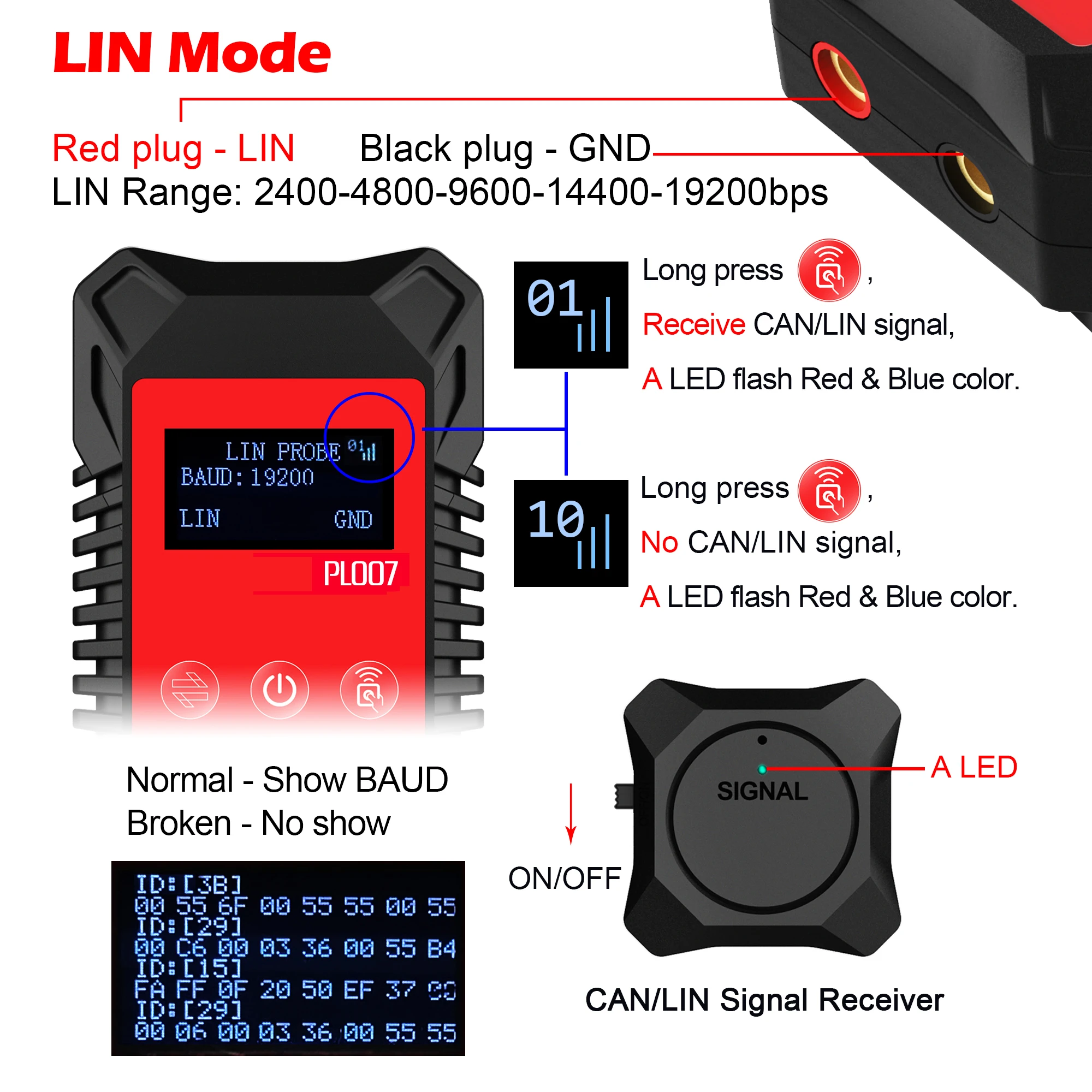

LIN Mode:
LIN Range: 2400-4800-9600-14400-19200bps
If LIN mode show nothing, please check PWM signal Mode is normal or not.
Red -- Left side --- LIN line
Black -- Right side --- GND

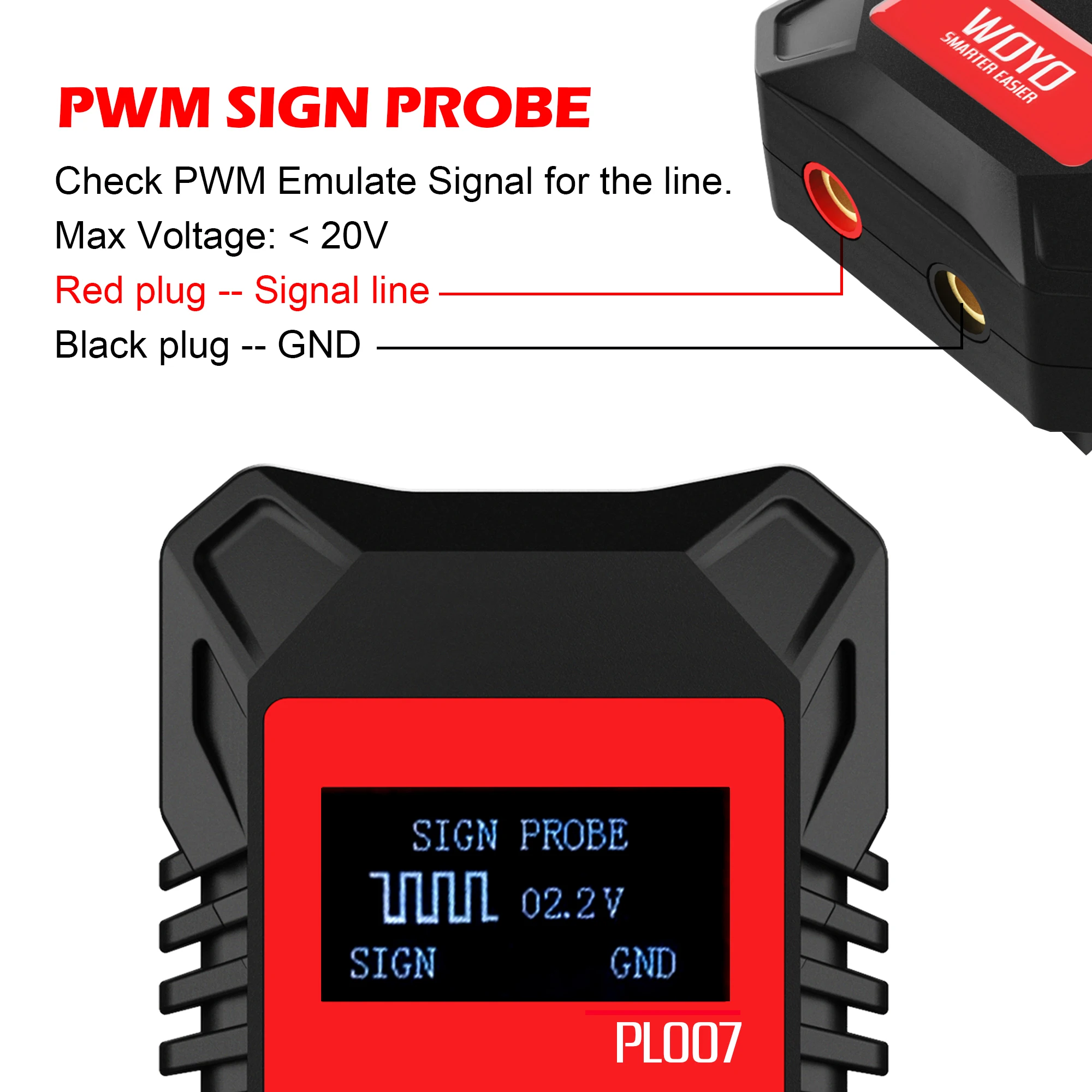

PWM Signal Mode:
Check PWM emulate signal for the wire.
Max voltage: < 20V
Red -- Left side --- Signal line
Black -- Right side --- GND

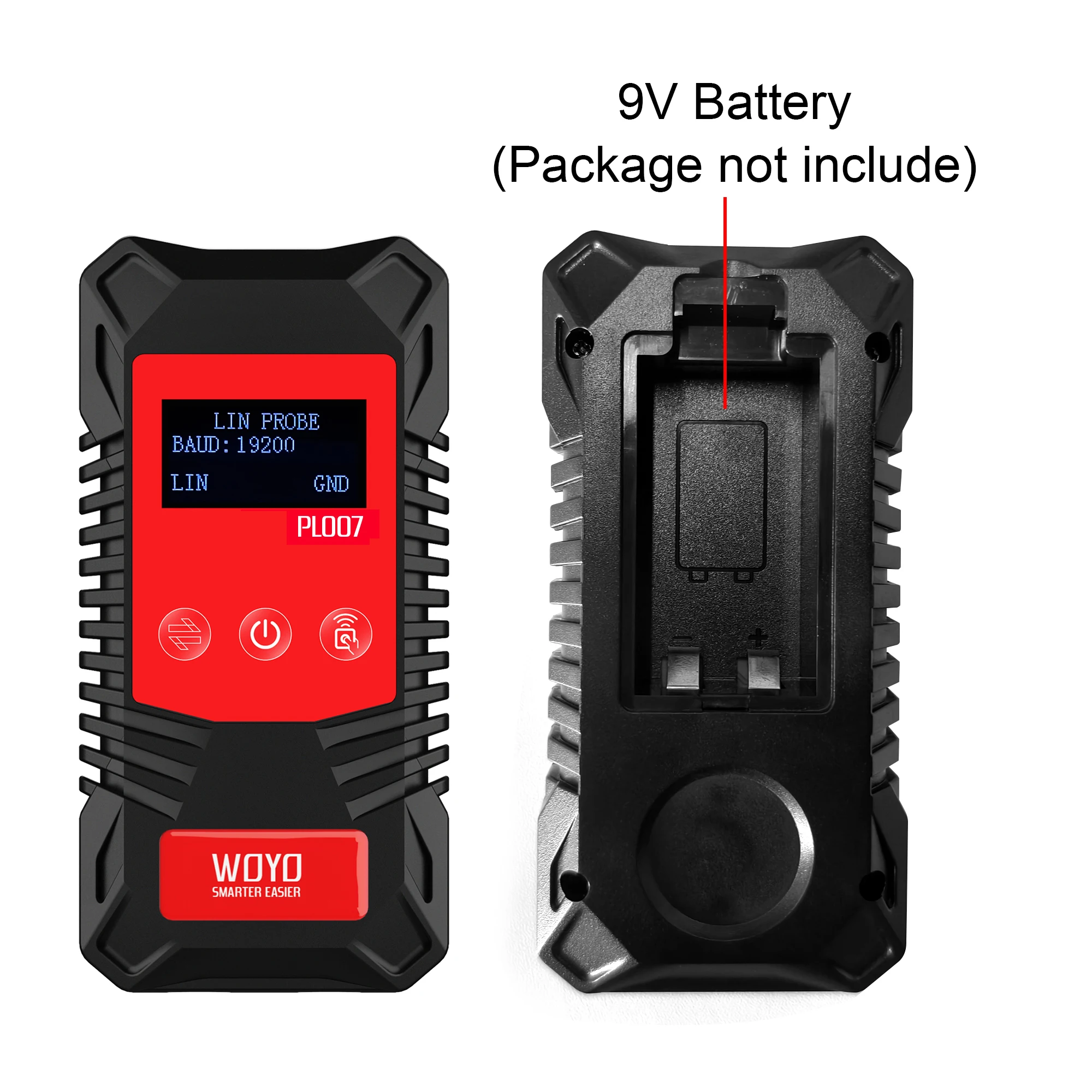

Package not include 9V battery!!
Package not include CR2032 3V battery!!
How to connect to the wireless signal receiver?

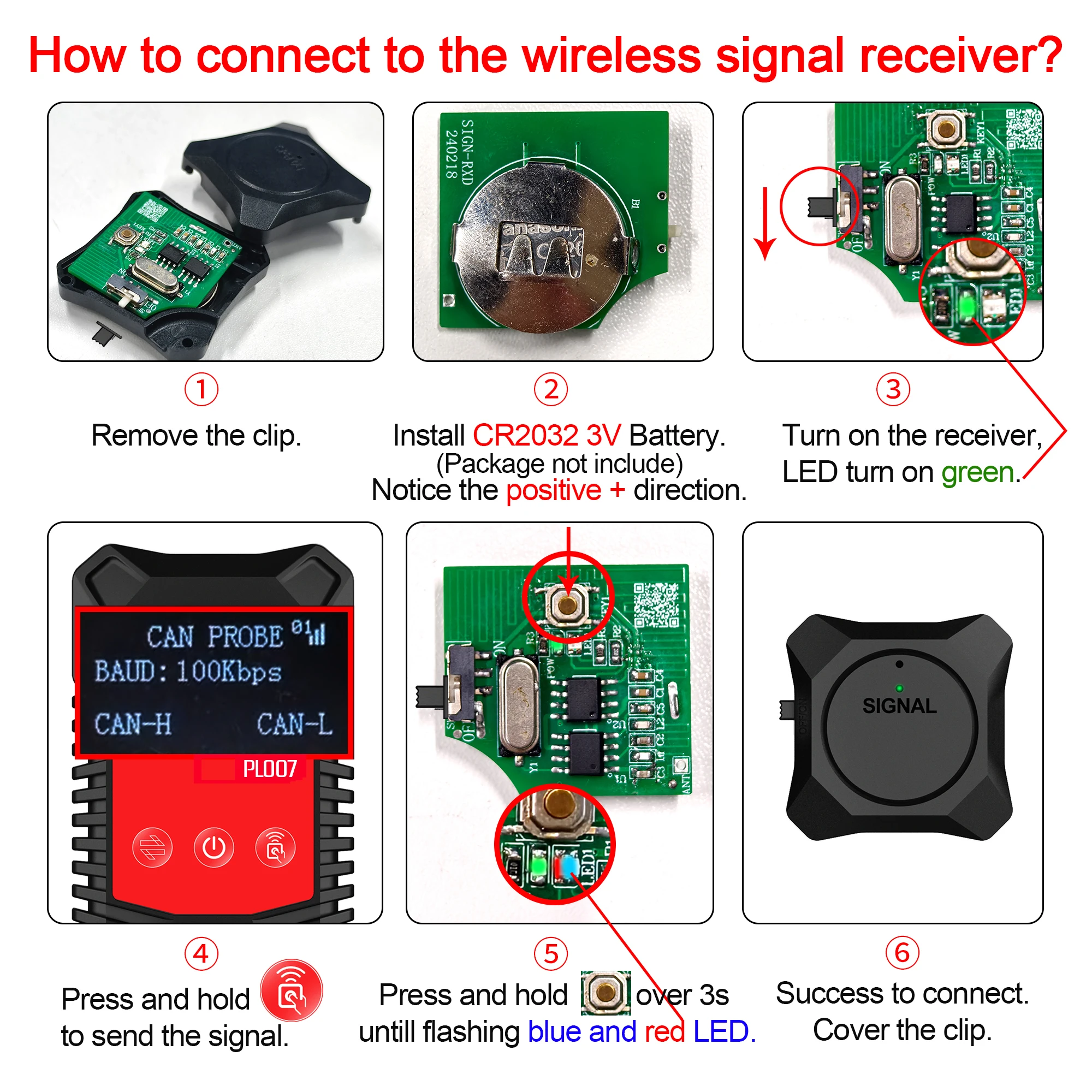

1. Remove the cover.
2. Install CR2032 3V battery, notice the positive direction!
3. Turn on the button, LED turn green.
4. Press and hold the right button on PL007 PRO to pair the receiver.
5. Press and hold the reset button on receiver over 3s until the LED flashing blue and red.
6. Success to connect and then cover the receiver.
Portable to use.
We will send with a long chain for the receiver, it's useful for you to keep the receiver.
