THINKCAR Pro Bluetooth IOS Android Car Intelligent Diagnostic Tool Support Diagzone Software OBD2 Scanner All Car Full System

Packing lists

1 * Thinkcar Pro Scanner
1 * Multilingual User Manual

Print Health Report

Free Thinkdiag App/THinkdiag App
Compatible with ios 9.0 or Android 5.0 and above, not compatible with Android 12

Subscription Fees + APP Point Reward

ThinkCar Pro point reward function can help you save money while purchasing soft-ware in app"ThinkDiag+"(Android) or "ThinkDiag"(iOS)

Only Pay For Required Services

1. Lifetime: Full OBD2 Diagnostics for All Vehicles
2. 1-Year Update: Full System Diagnosis for All Car Softw-are & 5 Reset Functions (Oil/ETS/Injector/IMMO/SAS)
3. Optional Subscription: 29.95 dollar per year for 5 Reset Functions (for All Cars)

Auto VIN

ThinkCar Pro OBD2 scan tool also can retrieve the vehicle information, like such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

A great convenience for car repairing or parts replacement.

How to Use

Step1: Download the "ThinkDiag" in the APP store or in GooglePlay store.

Step2: Open the THINKDIAD APP, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.

Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

Step4: Plug Thinkcar Pro into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.

Step5: Open the THINKDIAG APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.

Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics softw-are when first apply"All System Diagnostic"and"OBD Functions".

Support 11 Languages

English,French,German,Spanish,Italian,Portuguese,Japanese, Russian,Polish,Traditional Chinese, Turkish

Support Cover Up to Over 126 Major Vehicle Manufacturers From America, Europe and Asia:

THINKCAR Pro can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port. Please click here to check the Vehicle Coverage.

Examples are as follows:

All Car Full OBD2 FunctionsMode

1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

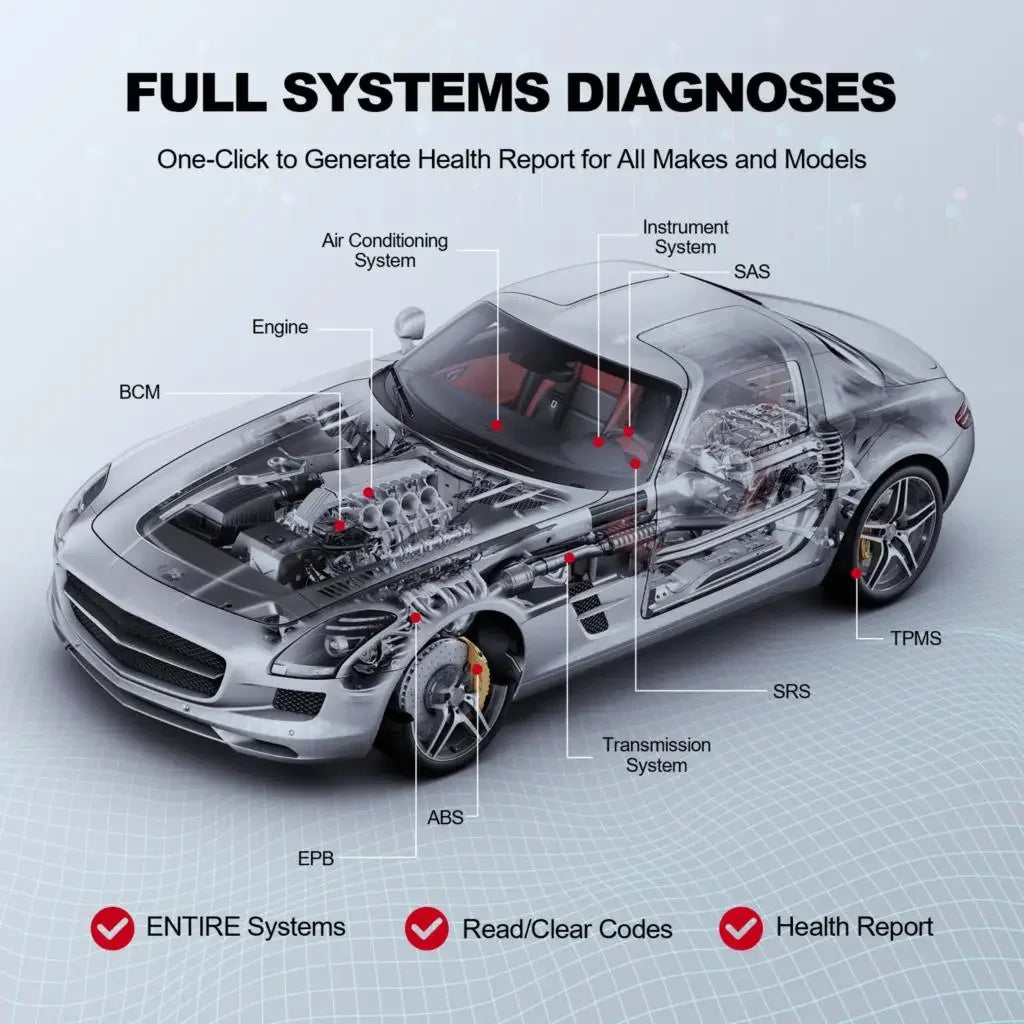

All Car Full System Diagnosis Lifetime Free

With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems'ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.
* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle's all electronic control systems to locate problem areas, and offer solutions;
*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests.

All Car 5 Maintenance Resets Free

Offer full system diagnosis for all car softw-ares and 5 reset functions within 1 year

1.Oil Lamp Reset Service : allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.SAS Reset service: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
3.IMMO Reset: the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
4.Injector Coding Reset :Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
5.Elec. Throttle Rlrn Service:Throttle Adaptation The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

All Cars Lifetime Free Full System + Full OBD2 Functions + All Cars 5 Maintenance Services Free 1 Year + 9 Languages

Why You Need Thinkcar Pro?

Thinkcar Pro is a portable and economical car fault diagnosis tool suitable for DIY individual users and small repair shops.
Thinkcar Pro is composed of a diagnostic connector and an APP, connected to the vehicle diagnostic socket through the connector, and wirelessly communicates with a smart phone or tablet through Bluetooth, so as to install client softw-are and diagnostic softw-are on the smart terminal to perform car fault diagnosis, including reading the version Information, code reading, code clearing, reading data stream, special functions, etc.
Supported models: compatible with all models supporting OBD II protocol after 1996
supporting agreement:ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)"""
