This cable is universal cable, it works for AUTEL maxisys scanner also works for LAUNCH X431/OBDSTAR scanners etc..

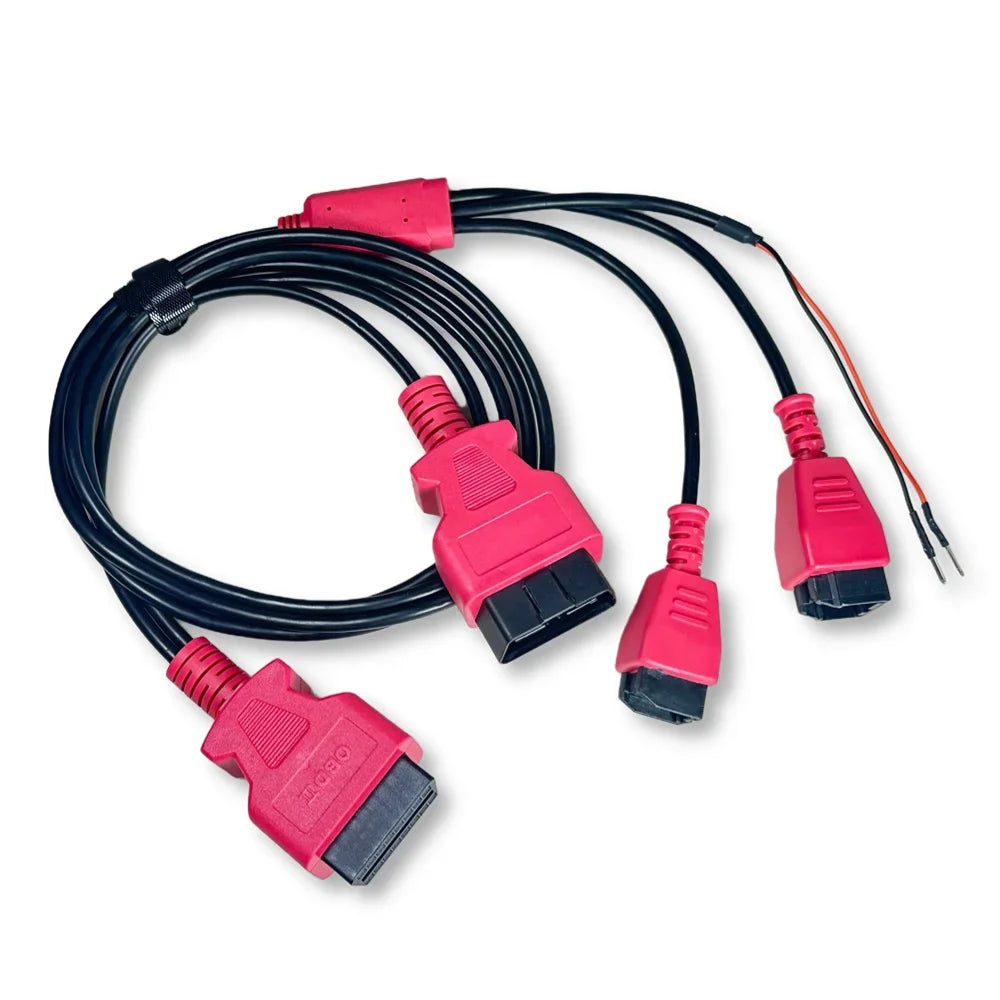

For Chrysler Programming Cable 12+8 Connector For Autel Maxisys LAUNCH X431 Series

The Chrysler 12+8 Adapter is Autel's by pass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.

2018 and newer For Chrysler, For Dodge, For Ram, For Jeep, and For Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new For Chrysler 12+8 Diagnostic Cable allows communication with latest model For Chrysler, For Dodge, For Jeep, For Fiat & For Alfa vehicles.

Suitable for:

1. The Cable Adapter can be used with Autel Maxisys Series Scanners

Such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite etc.

2. The Cable Adapter can be used with LAUNCH X431 Series Scanners

Such as X431 V, X431 V+, X431 PROS, X431 PRO3S+, X431 PRO3S+ HDIII Model, X431 PAD V etc.

What is it used for?

1. Use with Autel MaxiSys scanner to diagnose on For Chrysler For Jeep For Renegade For Wrangler 300C after 2018 year

2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning a For Chrysler with the Security Gateway Module:

DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT

Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

OBDII Cable Adapter for Autel maxisys For Chrysler/ For Dodge/ For Jeep/ For Fiat/ For Alfa 12+8

Access for Chrysler and for Fiat Vehicles Using Secure Gateway Module

Enables Read and Clear Codes

Perform Active Tests

Required to Access 80% of 2018 for Chrysler and for Fiat vehicles

Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

for 2013+ RAM Promaster
for 2015+ Fiat 500x
for 2015+ RAM Promaster City
for 2016+ Jeep Renegade
for 2017+ Alfa Romeo Giulia
for 2017+ Jeep Compass
for 2017+ Jeep Cherokee
for 2018+ Jeep Wrangler
for 2018+ Ram Trucks
for 2018+ Dodge Durango
for 2018+ Jeep Wrangler (JL Body only, not JK)
for 2018+ Dodge Journey
for 2018+ Jeep Grand Cherokee
for 2018+ Chrysler Pacifica
for 2018+ Chrysler 300
for 2018+ Dodge Charger
for 2018+ Dodge Challenger
for 2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
for 2020+ ALL FCA vehicles
...
